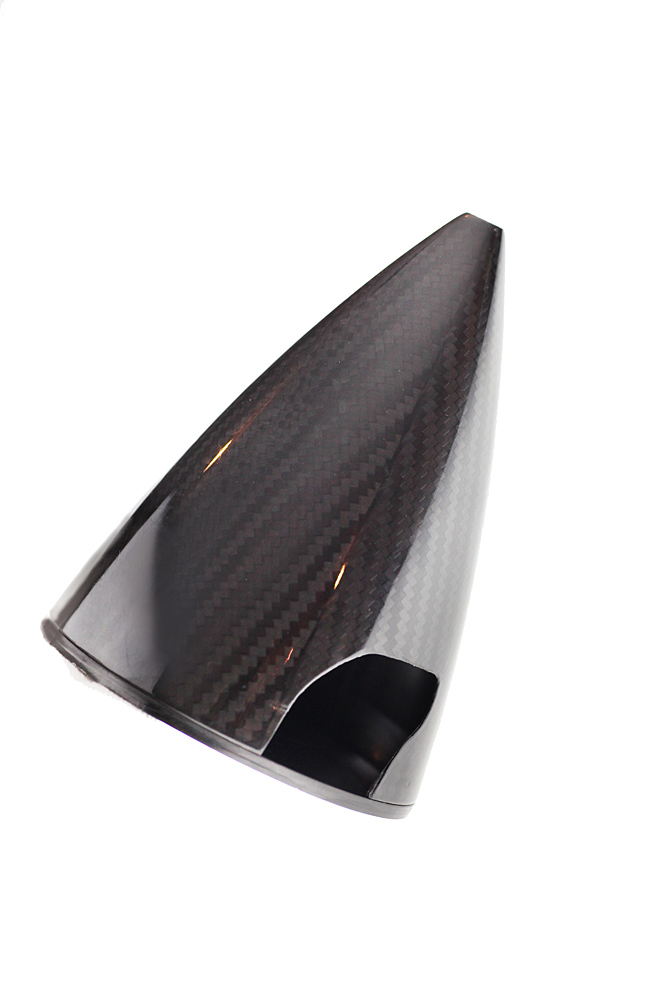

Carbon Fiber (CF) Spinners (Spinner)

Miracle Universal Gas Engine Wrench

• Miracle Aluminum Alloy Wrench 14mm For CM6 Spark Plug and 3mm/4mm Hex Key for Gas Engine RC Airplane Model Parts

Description:
Socket Head 5mm x 70/80/90/100/120/140mm
6 sizes for most spinners


+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:


The new DLE 20RA improves upon the original 20 version by adding a rear exhaust port for a cleaner and easier install. The DLE 20RA allows you to better hide your muffler in the cowl of most planes making for a more scale appearance.

Glow power isn't the only option anymore. The DLE-20RA not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20RA. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20RA is an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20RA, and also back it with our in house repair of DLE engines. Thousands of satisfied customers know already, buy from Redwing for headache free RC products!



Specifications:

• Displacement: 1.22 cu in (20cc)
• Bore and Stroke: 1.26 x .98 (32 x 25mm)
• Compression Ratio: 10.5:1
• REQUIRES: Gasoline with at least 87 octane rating; battery for ignition; Propeller
• Fuel Mixture: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
• Fuel Octane Level: 93
• Propeller Range: 14x10, 15x8, 16x6, 17x6
• Ignition Battery: 4.8 - 8.4V
• Replacement Spark Plug: NGK CM6
• Output Power: 2.5 HP at 9,000RPM
• Best Performance RPM Range:
• Idle Speed: 1,700RPM
• Weight, breakdown: Engine: 1.7lbs (660g); Exhaust: 2.8oz (80g); Ignition: 4.6oz (130g)
• Static Thrust: 13.14lbs (6.3kg) 328ft (100m) altitude / 12.6lbs (5.6kg) 5,900ft (1800m) altitude

Standoff (25mm) 100-120CC (Anodized Gas Engine 25m Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.
