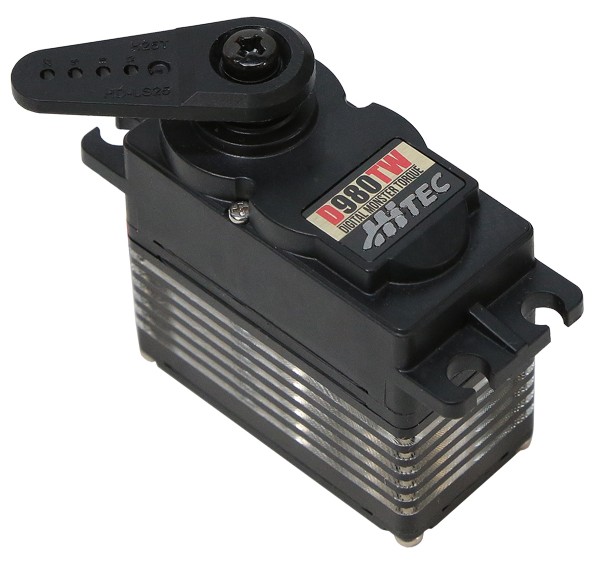

HiTec D-980TW 32-Bit, Ultra Torque, Titanium Gear Servo (44kg/611oz 0.17sec @7.4V)
Details
| Availability | 17 in stock | |
| Weight | 0.38 lbs | |
| SKU | HRC36980S | |
| Manufacturer | Hitec | |
| Market Price: | $267.95 | |
| Our Price: | $189.99 | |
Description
The titanium gear D-980TW is part of Hitec’s D-Series dynamo servo line. All Hitec D-Series servos have been designed using their cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and a 12-bit ADC for unprecedented programmability and flexibility. These servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with an M3 pan head with a phillips drive style, each D-Series servo brings monster performance never known before in the market.
Features:
- Wide Voltage Range: DC 3.5-8.4V
- 2 cell Li-Pi (6 cell Ni-MH) compatible
- Programmable digital amplifier with MOSFET drive
- Gold plated connector
- Narrow dead band width & high standing torque
- Applied H25T horn gear
- 3mm horn screw (‘+’ & HEX socket screw included)
- 32bit MCU / 12bit ADC
- Durable titanium alloy metal gears with dual ball bearings
- Ultra hardness gear shaft with 3 axial metal bushing
- Heat sink for motor
- Water & dust resistant (splash proof)
| Dimensions | 1.72” x 0.88” x 1.57” (43.8 x 22.4 x 40mm ) |
|---|---|
| Product Weight | 2.76oz (78.2g) |
| Output Shaft Style | 25 tooth (H25T) spline |
| Voltage Range | 3.5V - 8.4V |
| No-Load Speed (4.8V) | 0.28 sec/60° |
| No-Load Speed (6.0V) | 0.21 sec/60° |
| No-Load Speed (7.4V) | 0.17 sec/60° |
| Stall Torque (4.8V) | 361 oz/in. (26.0 kg.cm) |
| Stall Torque (6.0V) | 500 oz/in. (36.0 kg.cm) |
| Stall Torque (7.4V) | 611 oz/in. (44.0 kg.cm) |
| Max PWM Signal Range (Standard) | 750-2250μsec |
| Travel per µs (out of box) | .080°/μsec |
| Max Travel (out of box) | 120.5° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 2µs |
| Motor Type | Coreless |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearings |
| Gear Type | Straight Cut Spur |
| Gear Material | Titanium |
| Wire Length | 11.81" (300mm) |
