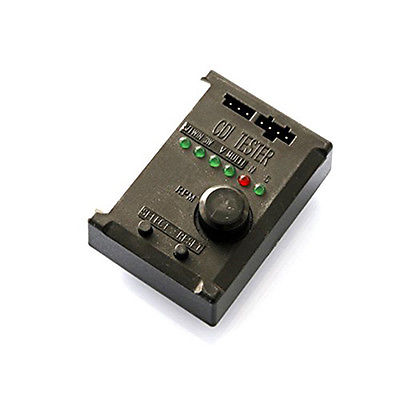

RCEXL CDI Ingition Tester (CDI Electronic Signal Generator Ignition Test box)
Details
| | |
| Availability | No items available |
| Weight | 0.10 lbs |
| SKU | RCEXL-CDI Tester-2203 |
| Manufacturer | RCEXL |
| Market Price: | $20.99 |
| Our Price: | $15.95 |
Description
Ignition and Hall sensor tester Single, Twin, V-Twin, 3W and Radial Engine ignitions and sensors by RCEXL.
- Can dial up rpm to simulate running engine to test ignition
- Can indicate North or South Magnet when testing hall sensor, and sensor triggered.
- Suitable for up to 9 cylinder ignitions.
Features:
- Supported engines: single cylinder, twin-cylinder, V cylinder, star multi-cylinder (3, 5, 7, 9) engines
- Operation guide: Plug the sensor of your CDI to the respective port (single-cylinder and twin-cylinder to the 3-pin port, other types to the 4-pin port), then press SELECT button to change the engine type. Adjust RPM knob can change the ignition frequency.
Specifications:
- Power supply: 5V (Taken power from the sensor port of the CDI, voltage shouldn’t exceeds 5.5V)
- Dimensions: 54*40*24mm
- Weight: 24.6g
Made by RCEXL
