DLE 55cc Engine

Details


Availability	No items available
Weight	5.00 lbs
SKU	DLE-55
Our Price:	$429.00

Description

This is a special order item and is subject to manufacturer availability.
Please allow a minimum of 2 weeks for delivery.
No returns or cancellations allowed.

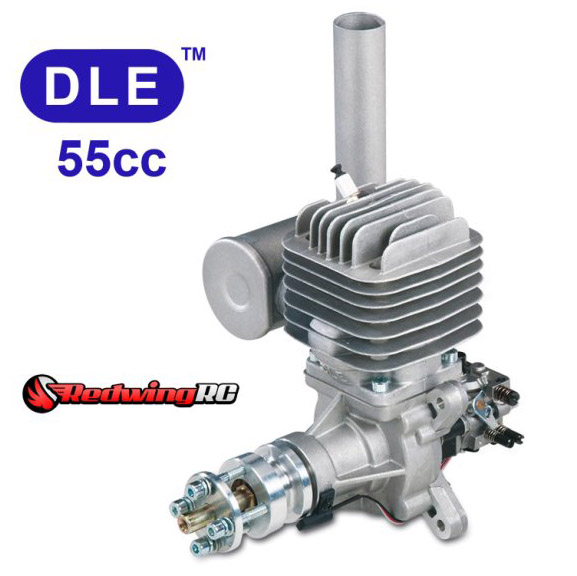

The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1.65 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 23x8, 24x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:

Two crankshaft bearings-simple design for lighter weight
Aluminum alloy crankcase
Four petal V-type reed valve bottom induction system
Walbro carburetor
Fully automatic electronic ignition
Two year limited warranty through Hobby Services beginning at date of purchase
INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual
