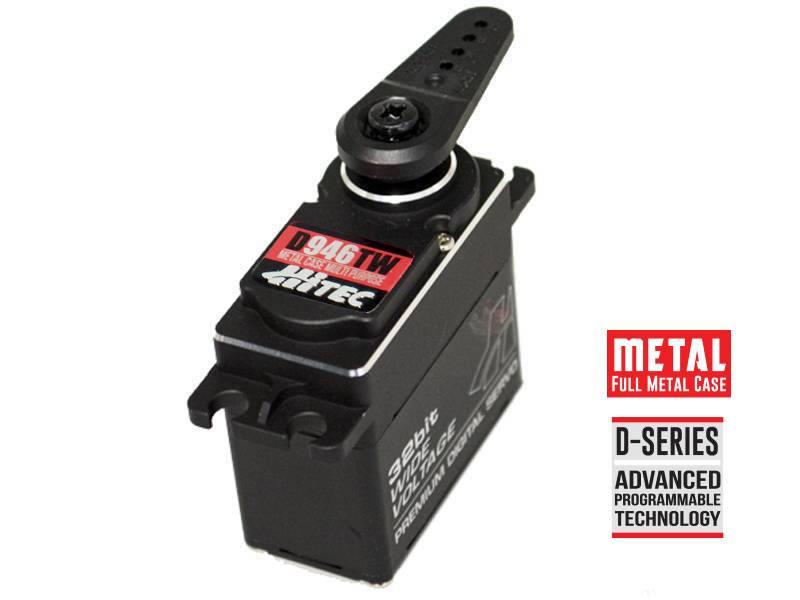

HiTec D-946TW 32-Bit, Multi-Purpose, Titanium Gear Servo (23kg/319oz [email protected])
Details
| Availability | 15 in stock | |
| Weight | 0.38 lbs | |
| SKU | HRC36946S | |
| Manufacturer | Hitec | |
| Market Price: | $233.95 | |
| Our Price: | $149.99 | |
Description
Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by their 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!
Features:
- High Response Circuitry
- Wide Voltage Capabilities
- 32-Bit MCU Technology
- Full Programmability
- Smart Sense Technology for Servo Analytics
- 25-Tooth Output Spline
Programmable Features:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
| Dimensions | 1.57" x 0.79" x 1.50" (40 mm x 20 mm x 38 mm) |
|---|---|
| Product Weight | 2.4 oz (68 g) |
| Output Shaft Style | 25 tooth (H25T) spline |
| Voltage Range | 4.8 V - 7.4 V |
| No-Load Speed (4.8V) | 0.16 sec/60° |
| No-Load Speed (6.0V) | 0.12 sec/60° |
| No-Load Speed (7.4V) | 0.10 sec/60° |
| Stall Torque (4.8V) | 194 oz-in. (13.97 kg.cm) |
| Stall Torque (6.0V) | 250 oz-in. (18 kg.cm) |
| Stall Torque (7.4V) | 319 oz-in. (22.97 kg.cm) |
| Max PWM Signal Range (Standard) | 750-2250 μsec |
| Max Travel (out of box) | 120° |
| Pulse Amplitude | 3-5 V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 1 µs |
| Motor Type | Coreless |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearings |
| Gear Material | Titanium |
| Wire Length | 11.81" (300 mm) |
| Wire Gauge | 20 AWG |
