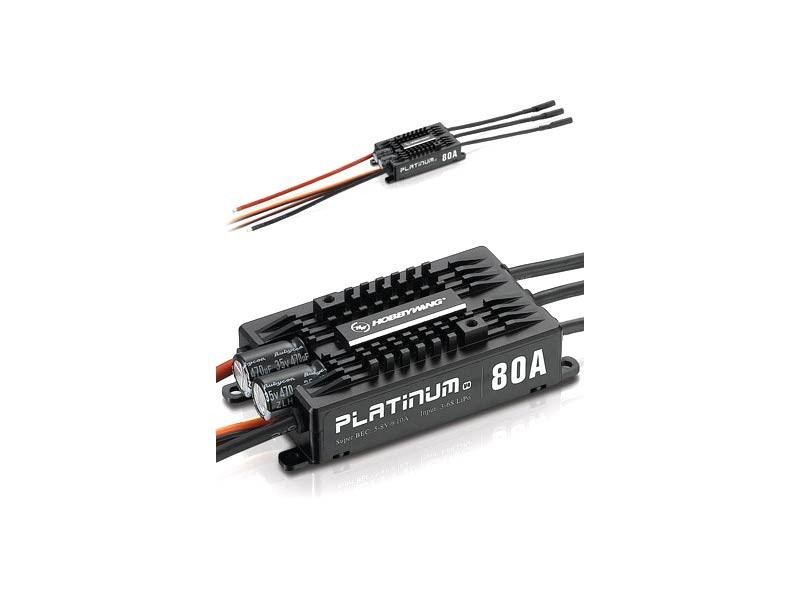

Platinum Pro V4 80A ESC, for Premium Aircraft (3S-6S)
Details
| Availability | 2 in stock | |
| Weight | 1.50 lbs | |
| SKU | HWI30203200 | |
| Market Price: | $143.00 | |
| Our Price: | $89.00 | |
Description
-
Model Platinum PRO 80A ESC V4 Application 450- 500 Class Helicopter or Premium Aircraft Input Voltage 3-6S Lipo Cont./Peak Current (10s) 80A/100A (Switch-mode) BEC Switch Mode:5-8V,10A Separate Programming Port For connecting LCD Program Box/WIFI Express Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) White Throttle Signal Wire/Red & Black and Red&Brown BEC Output Wires/Yellow RPM Signal Transmission Wire Input Wires Red-12AWG-150mm*1/Black-12AWG-150mm*1 Output Wires Black-12AWG-100mm*3 Output connector 4.0mm Gold Connectors (Female) Size 84.3x38.2x20.4mm Weight 97g / 3.42oz *Note: All the wire length above is the original length not the length you see from the outside.
