DLE 85 Engine - DLE85

Details


Availability	1 in stock
Weight	5.00 lbs
SKU	DLE-85
Our Price:	$694.99

Description

This is a special order item and is subject to manufacturer availability.
Please allow a minimum of 2 weeks for delivery.
No returns or cancellations allowed.

Giant-scale enthusiasts will love the power, performance and value of the DLE-85cc! The engineers at DLE have thought of everything in the DLE 85. Vibration — a real concern for many single cylinder engines — is checked by a vibration-dampening engine mount on the DLE 85. Plus, an exhaust extension lets the DLE 85 fit in more planes without cowl modifications. This extension will flex or pop off during a hard landing, helping to protect the DLE 85cc.

The ignition module will accept input voltages from 4.8V to 8.4V.
Suggested prop sizes: 25 x 10, 26 x 9, 27 x 8
Includes an engine mount specially designed to dampen vibration
An exhaust extension on the included muffler aids in installation and helps protect the DLE 85cc and muffler in the event of a hard landing

Download DLE 85 Mounting Template
Download DLE 85 Manual

Specifications:

Displacement: 84.88cc (5.18 cu in),
Bore: 2.047 in (52 mm)
Stroke: 1.574 in (40 mm)
Output: 8.5 hp @ 7,500 rpm
Total weight: 5.09 lb (2.31 kg)
Requires: Unleaded gasoline, oil, ignition battery and propeller
Fuel Ratio:Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in

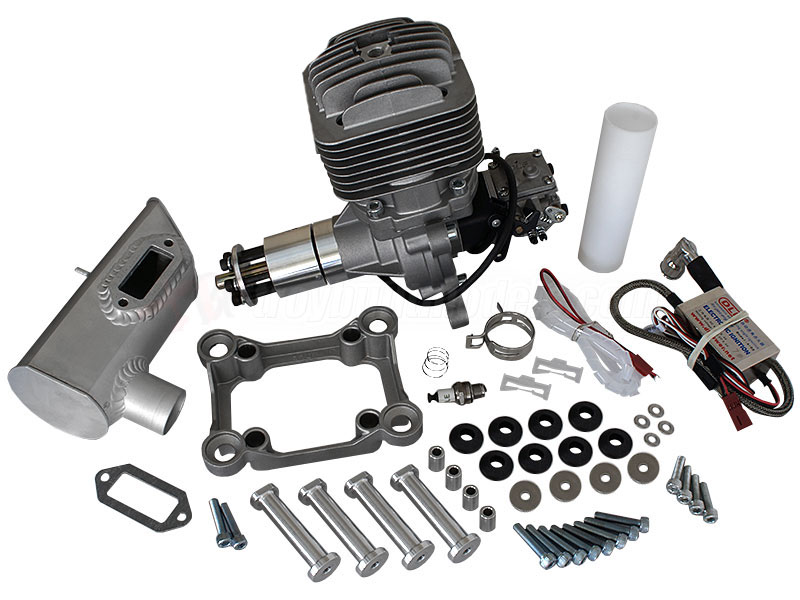

Includes: Ignition module, spark plug, engine standoffs, vibration-dampening engine mount, and muffler with exhaust extension.
