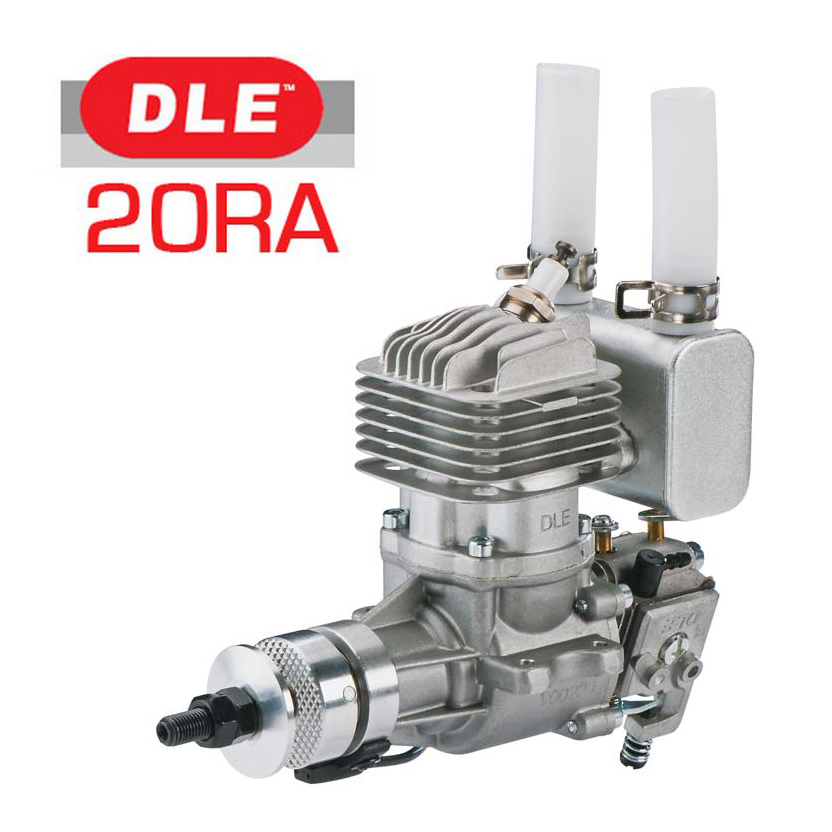

DLE 20RA Engine

Details


Availability	13 in stock
Weight	5.00 lbs
SKU	DLE-20RA
Market Price:	$328.90
Our Price:	$299.99

Description

The DLE 20RA improves upon the original 20 version by adding a rear exhaust port for a cleaner and easier install. The DLE 20RA allows you to better hide your muffler in the cowl of most planes making for a more scale appearance.

Glow power isn't the only option anymore. The DLE-20RA not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20RA. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20RA is an attractive alternative to glow…and a solid buy for value and performance.

Specifications:

Displacement: 1.22 cu in (20cc)
Bore and Stroke: 1.26 x .98 (32 x 25mm)
Compression Ratio: 10.5:1
REQUIRES: Gasoline with at least 87 octane rating; battery for ignition; Propeller
Fuel Mixture: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Fuel Octane Level: 93
Propeller Range: 14x10, 15x8, 16x6, 17x6
Ignition Battery: 4.8 - 8.4V
Replacement Spark Plug: NGK CM6
Output Power: 2.5 HP at 9,000RPM
Best Performance RPM Range:
Idle Speed: 1,700RPM
Weight, breakdown: Engine: 1.7lbs (660g); Exhaust: 2.8oz (80g); Ignition: 4.6oz (130g)
Static Thrust: 13.14lbs (6.3kg) 328ft (100m) altitude / 12.6lbs (5.6kg) 5,900ft (1800m) altitude
