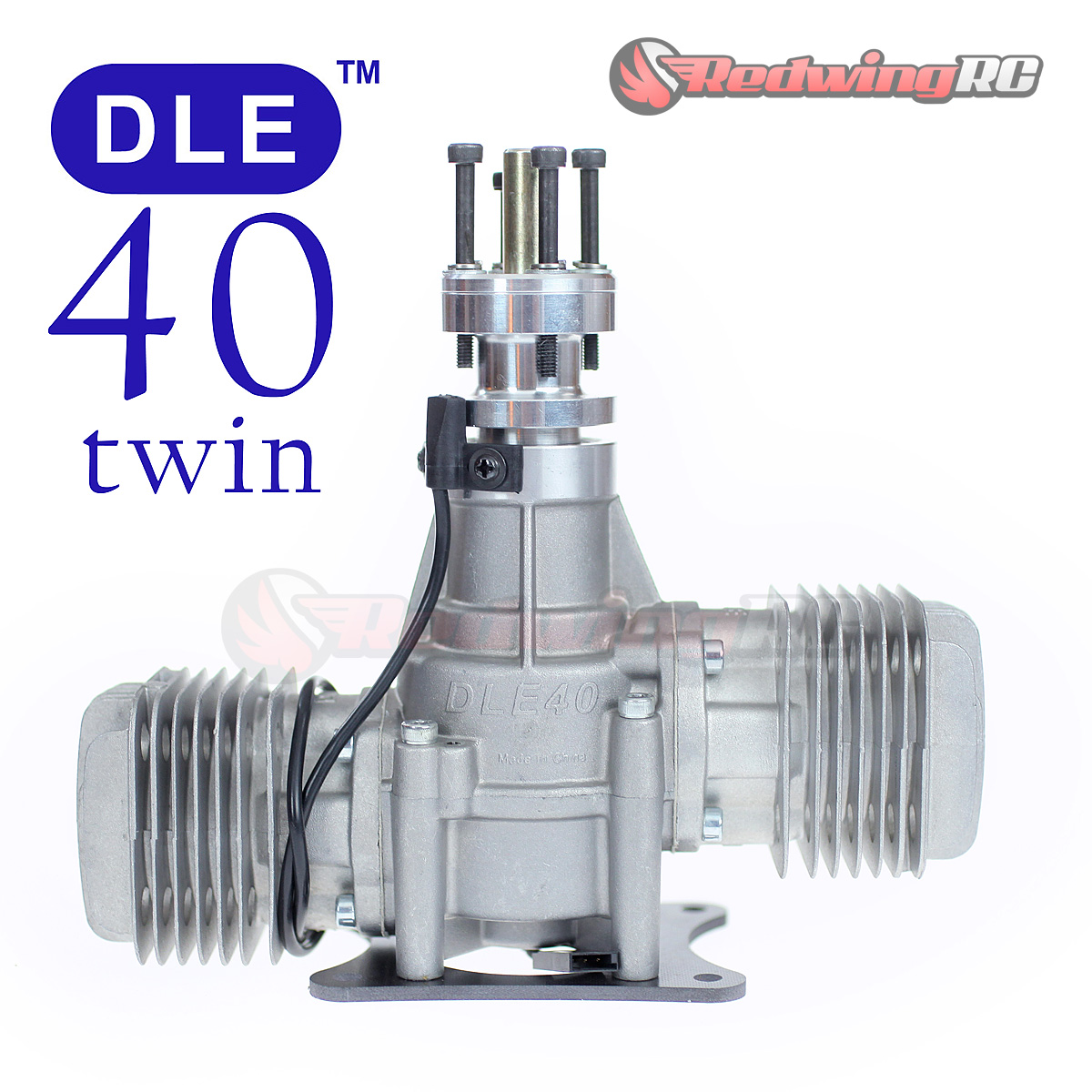

DLE 40 Twin Cylinder Engine

Details


Availability	No items available
Weight	5.00 lbs
SKU	DLE-40
Our Price:	$549.99

Description

DLE has always been trusted to be reliable in performance and sustainability within the Redwing RC family - so we've made another great gas engine available to our customers!

The DLE 40cc Twin Cylinder Gas Engine carries the same great quality and performance as our other DLE Engines with that little extra thrown in. Perfect for our 30cc planes, the DLE 40cc Twin packs the extra punch.

Enjoy the same great features as our other DLE engines such as our free 2-year warranty, free shipping within the U.S.

You can't go wrong with the DLE 40cc Twin - order yours today!

DLE 40 Twin Mounting Template

Specifications: *(More coming Soon)*

4.8HP/8500rpm
Idle Speed: 1500rpm/min.
9.5Kg Static Thrust / 100 metersAltitude
8.5Kg Static Thrust / 1800 metersAltitude
The specification of the aircraft propeller:19×8；19×10；20X8；20X10
the type of the sparking plug：NGK CM6

Parameter
Exhaust Amount : 40cm3
diameter × stroke:32mm×25mm
Ratio of compression: 10.5：1
Fuel Ratio : Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Weight: Main engine –1170g
Exhaust pipe –110g
Ignition equipment – 170g
