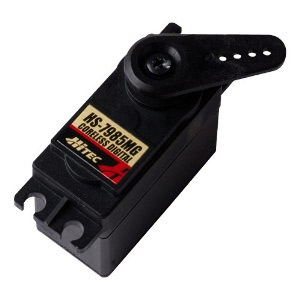

HiTec 7985mg

Details


Availability	9 in stock
Weight	0.31 lbs
SKU	HS-7985MG
Market Price:	$117.95
Our Price:	$89.99

Description

Description:
The HS-7985MG is a very high quality servo and perfect for 50cc (even for the rudder). Great in a 30cc but maybe overkill. It is fully programmable using Hi Tec's programmer. The combination of torque, speed, price and extreme holding power make it a favorite among pilots. new premium high speed HS-7985MG Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology does not stop at the circuit board, with high performance coreless motors, dual ball bearings, bushing supported gear shafts, dual ball bearing output shaft and our Heavy Duty Metal gear train the HS-7985MG will give you everything you need no matter what the demand.

Specifications:

Torque:
- 144 oz/in at 4.8V (10.4 kg/cm)
- 172 oz/in at 6V (12.4 kg/cm)
Speed:
- .16 sec at 4.8V
- .13 sec at 6V
Voltage: 4.8V - 6V
Weight: 2.18oz (62g)
Size: 1.57" x 0.78"x 1.45 in (40 x 20 x 37 mm)
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave
Operating Voltage Range: 4.8-6.0 Volts
Operating Temperature Range: -20° to +60° C (-4°F to +140°F)
Stall Torque (4.8V): 144oz/in. (10.4 kg/cm)
Stall Torque (6.0V): oz/in. (12.4 kg/cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Idle Current Drain (4.8V): 3mA at stop
Idle Current Drain (6.0V): 3mA at stop
Current Drain (4.8V): 200mA/idle and 2.0 amps at lock/stall
Current Drain (6.0V): 240mA/idle and 3.0 amps at lock/stall
Dead Band Width: 2usec
Motor Type: Coreless Carbon Brush
Potentiometer Drive: 6 Slider Indirect Drive
Bearing Type: Dual Ball Bearing MR106
Gear Type: 3 Metal, 1 Metal Karbonite Gear
Connector Wire Length: 7" (178mm)
