MPX Dual Servo Harness 6" Male 8"-24" Staggered Female (2 Channels 1 Plug) 20 AWG

Details


Availability	110 in stock
Weight	0.20 lbs
SKU	MPX-Dual-6/8-24
Market Price:	$19.99
Our Price:	$17.99

Description

MPX High Amp Dual Servo Harness with 6" Male/8"-24" Staggered Female 20 AWG 100 Strand wire

Running 4 aileron servo's or flaps and ailerons on each wing panel? Tired of marking and making 4 connections all the time? Redwing RC offers the perfect solution!

This high quality accessory provides a faster and easier field assembly with a much cleaner install. Simply attach your servo extensions to the female MPX plug extension and plug the JR connectors of the male MPX extension into the receiver. This version has a flanged male MPX connector suitable for permanently mounting to your fuselage providing a simple one plug interface for each wing and with the staggered servo leads is great for most 35%-37% wing panels.. Requires 2 sets, one for each wing panel.

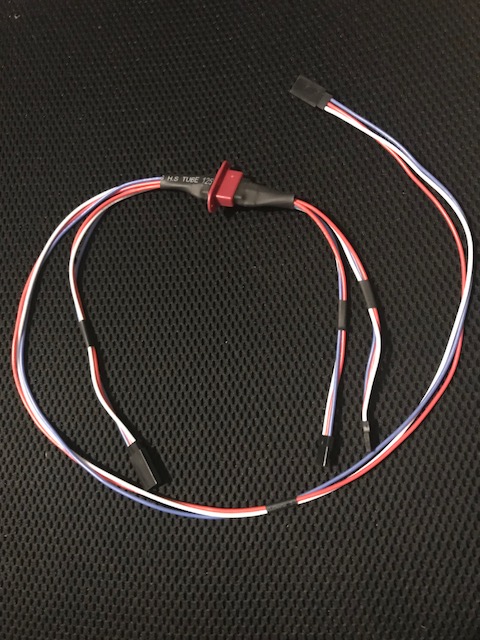

1 Set Includes: 1 male MPX with flange and (2) 6” 20 AWG wires with JR connectors and 1 female MPX with an 8” and 24" 20 AWG wire with female universal pin connectors for servos.
