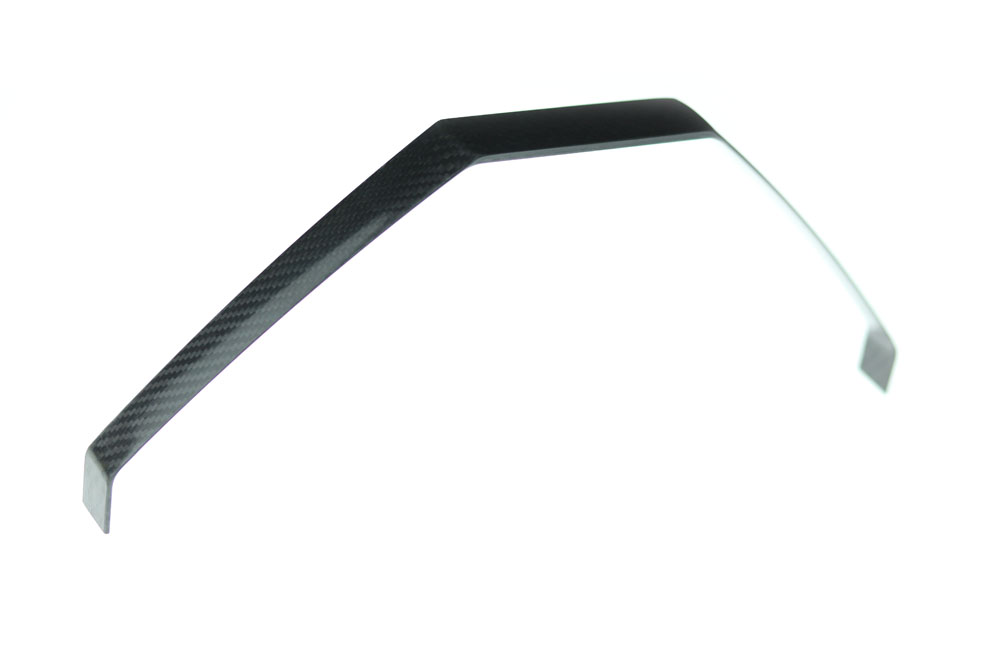

Carbon Fiber Landing Gear (30cc-120cc sizes) Angled and Curved Style

---

Description

---

Strong Carbon Fiber Replacement Landing Gear 30cc-120cc. Available in the below Styles (check your measurements with below pictures)

See the different styles below and select your gear based on your measurements. Style A and B are angled and C is curved.

PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.

Also see our 20-120cc Carbon Fber Landing Gear Extra 260 Series and Carbon Fiber Landing Gear YAK/SBach Series and Carbon Fiber LandingGear Extra 300 Series.

Dimensions (match the below information to the inset photo)

• 30cc A STYLE Angled (3.6 oz) SBACH
  • A=7.5"
  • B=16"
  • C=5.5"
  • D=1.187" taper to 1"
  • E=1.5"

• 30cc B STYLE Angled (3.8 oz) YAK
  • A=6.5"
  • B=16.75"
  • C=6.25"
  • D=1.375" taper to 1"
  • E=1"

• 30cc C STYLE Curved (3.4 oz) Extra
  • see below

• 50cc A STYLE Angled (8.2 oz) SBACH
  • A=8.75"
  • B=18.5"
  • C=6.5"
  • D=1.5" taper to 1"
  • E=1.25"

• 50cc B STYLE Angled (6 oz) YAK
  • A=9.25"
  • B=18.75"
  • C=8"
  • D=1.5" taper to 1.125"
  • E=1.5"

• 50cc C STYLE Curved (6 oz) Extra
  • see below
• 100cc-120cc A Style Angled (CF gear for 37-40% Sbach 342, Edge 540)
  • A=9.5"
  • B=26"
  • C=9"
  • D=2" taper to  1.25"
  • E=1.75"
• 100cc-120cc B Style Angled (CF gear for 37-40% YAK)
  • A=
  • B=
  • C=
  • D=
  • E=

Carbon Fiber Landing Gear Extra 300 Series (C Style) For 26-30cc, 50-80cc and 100-120cc

Dimensions (match the below information to the inset photo)



• 26-30cc
  • A=140mm 5.5"
  • B=400mm 15.75"
  • C=170mm 6.69"
  • D=28mm 1.10"

• 50-80cc
  • A=160mm 6.29"
  • B=465mm 18.30"
  • C=198mm 7.79"
  • D=40mm 1.57"

• 100-120cc
  • A=190mm 7.48"
  • B=560mm 22.04"
  • C=252mm 9.92"
  • D=50mm 1.96"
