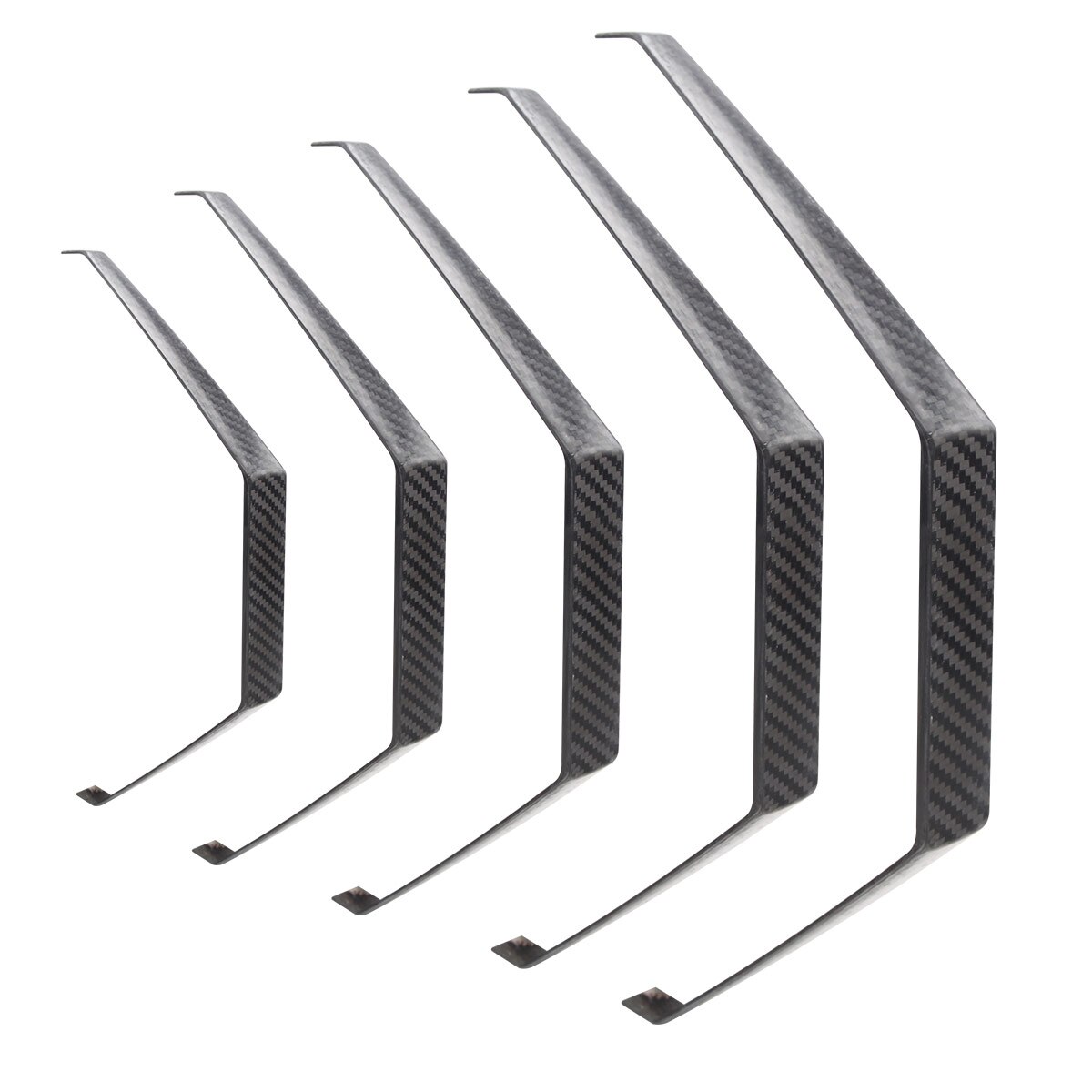

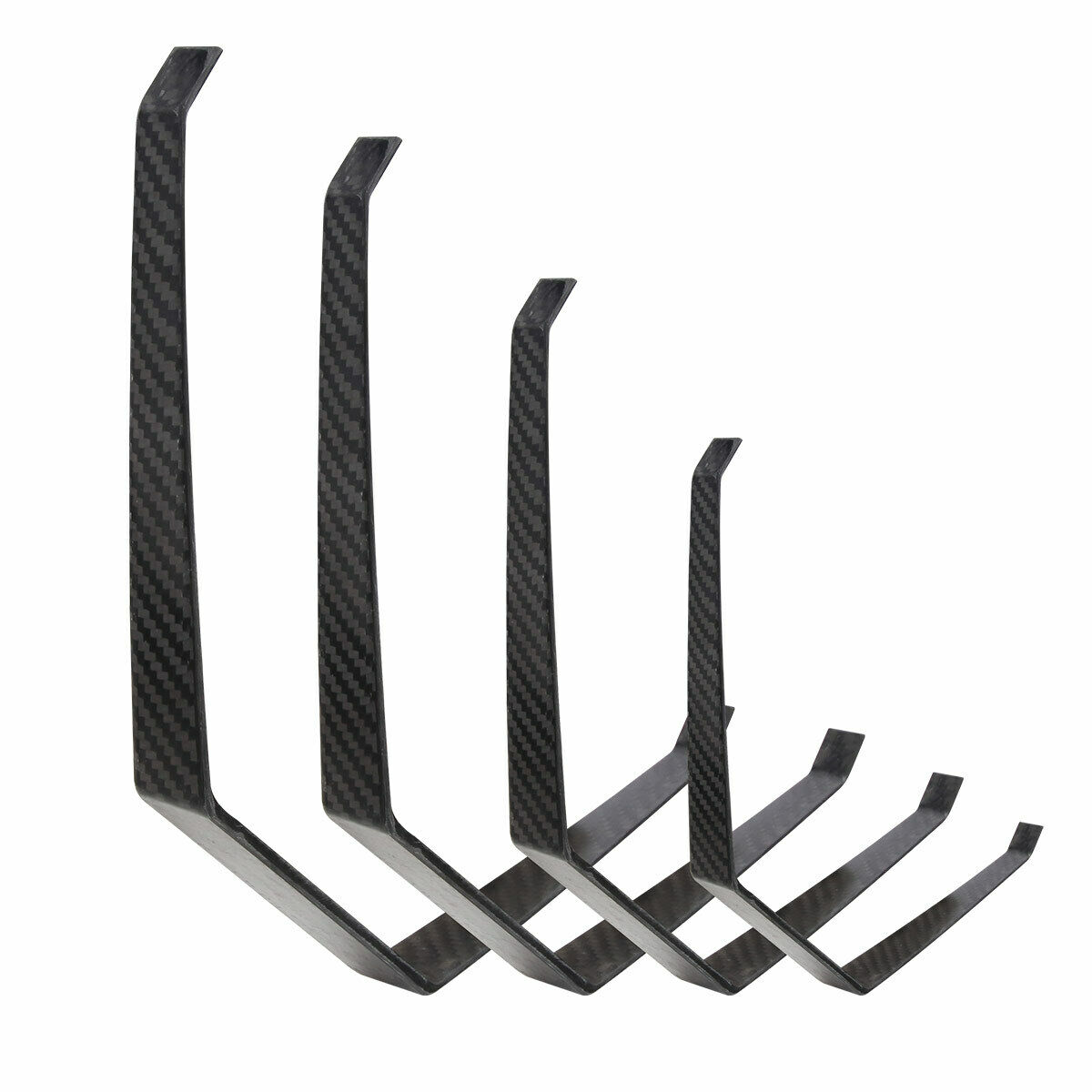

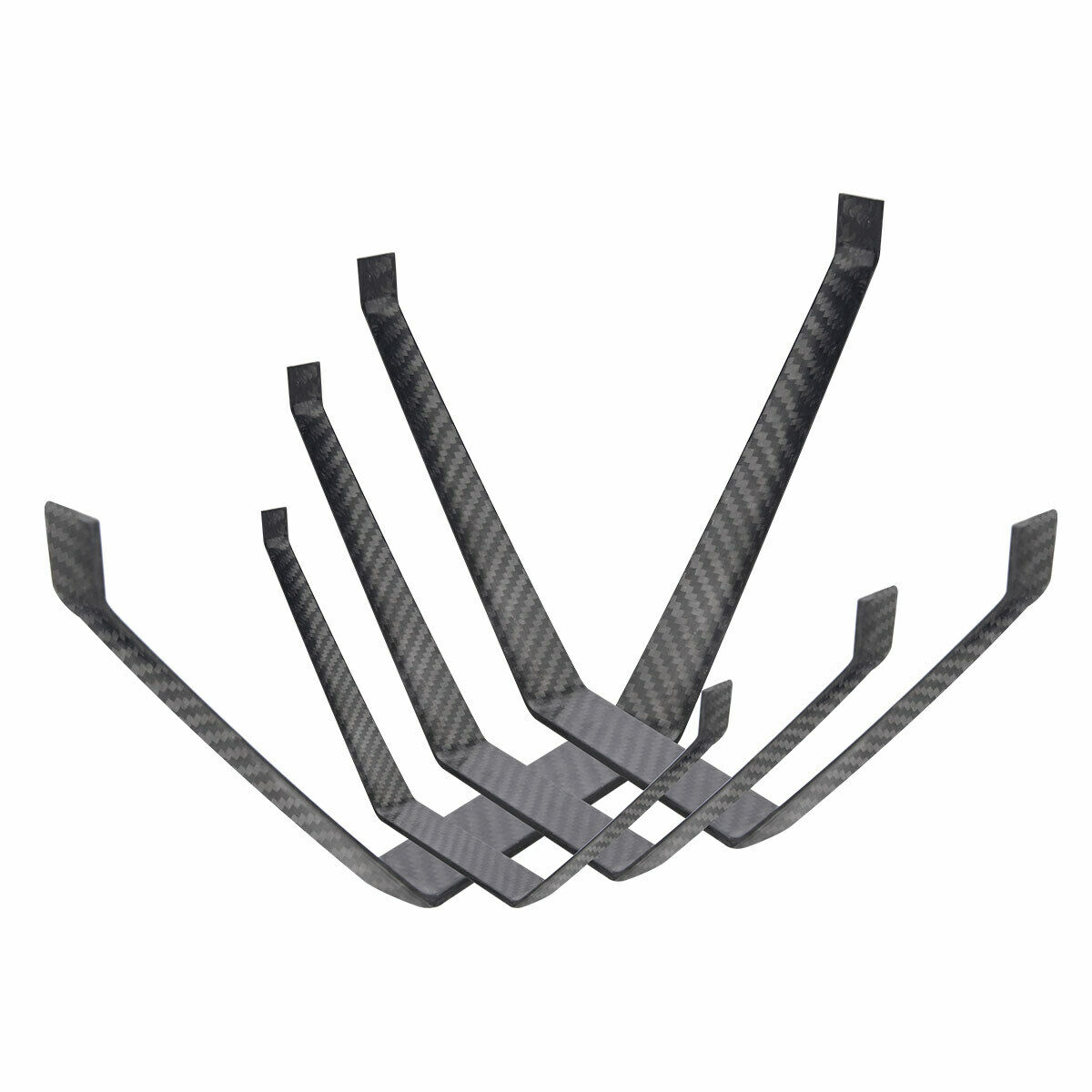

Carbon Fiber Landing Gear Yak/Sbach Series For 26cc 50cc 80cc 100cc

Contact UsCustomer Reviews

Carbon Fiber Landing Gear Yak/Sbach Series For 26cc 50cc 80cc 100cc

Our Price:

$39.99


Size
Quantity (5)

Availability 5 in stock
Weight 1.01 lbs
SKU FM-CF-LG-Yak-30

Carbon Fiber Landing Gear Yak/Sbach Series For 26cc 50cc 80cc 100cc

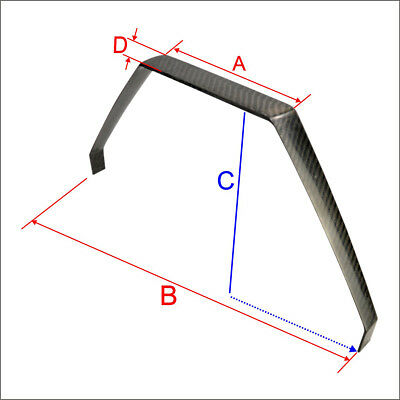

Dimensions (match the below information to the inset photo)



  • 26-30cc
    • A=135mm 5.31"
    • B=410mm 16.14"
    • C=195mm 7.67"
    • D=30mm 1.18"
  • 50cc
    • A=160mm 6.29"
    • B=475mm 18.70"
    • C=226mm 8.89"
    • D=40mm 1.57"
  • 80cc
    • A=170mm 6.69"
    • B=535mm 21.06"
    • C=252mm 9.92"
    • D=42mm 1.65"



  • 100cc
    • A=190mm 7.48"
    • B=650mm 25.59"
    • C=262mm 10.31"
    • D=50mm 1.96"
: *
: *
: *


Adjustable Push Rods (Turnbuckle)

$3.95 to $5.95

Description:
Our replacement adjustable push rods are as good as any out there at even better prices. Very similar to Hangar 9's Pro-Links, our adjustable push rods offer the ultimate in strength and security with the added bonus of ease of adjustability and ultra-light weight.

Our Pro-Links have a 4-40 right-hand thread on one side and a 4-40 left-hand thread on the other (turnbuckle). A machined hex in the middle (4mm / 5/32") allows you to make very fine length adjustments without removing the linkage from the servo arm or control horn.

They are also very lightweight, a 110mm (approx. 4.5") linkage weighs just 8 grams but has the strength to lift over 500 pounds. Pro-Links are ideal for any other 4-40 molded ball link or control horn and are available in a variety of sizes. We also have a machined-aluminum wrench that's perfect for making adjustments.


Sizes:

Metric Approx. US Standard
Non Threaded Length Entire Rod Including Threads Non Threaded Length Entire Rod Including Threads
20mm
45mm
0.79"
1.78"
30mm
55mm
1.18"
2.17"
40mm
65mm
1.57"
2.56"
80mm
110mm
3.15"
4.33"
110mm
140mm
4.33"
5.51"

(Sizes are approximate and can vary between rod length and threads as these are meant to be ADJUSTABLE)


SOLD IN PAIRS


SS-PR

$4.99

Carbon Fiber Wing Tube with Fiberglass Sleeve Matched Sets (385mm-1260mm)

Carbon Fiber Wing Tube with Fiberglass Sleeve Matched Set

RedwingRC Carbon Fiber Wing Tubes are strong and light weight, exactly the way it should be. They provide your wings with a lot of strength so you can fly till your heart's content without adding any extra weight.

Available in three sizes, a 20cc, 30cc and 50cc size.

Details (approx.):

20cc - Diameter: 3/4" / Length: 24 1/4"
30cc - Diameter: 3/4" / Length: 29 5/8"
50cc - Diameter: 1" / Length: 38 3/8"




CF-WT-Set

$31.50

Nylon Wing Bolts (4mm and 6mm) 4pcs

Nylon Wing Bolts (4mm and 6mm)
This little hard to find part is great to have on hand. These bolts fit most needs - the nylon canopy bolts are especially useful, since you won't need to have any tools on hand to quickly access your hatch!

The 3mmx16mm nylon canopy bolts are made to fit most ALL canopies out there.

The 6mmx25mm nylong wing bolts are perfect for most imported planes (most are going to be this thread size)

The 1/4-20 nylong wing bolt is for American Standard sizes, and 1/4-20 is the most common size used on wings for rc planes.

Prices

  • 3mmx16mm 1 pair - $1.99
  • 3mmx16mm 3 pair - $4.99
  • 3mmx16mm 5 pair - $7.99
  • 6mmx25mm 1 pair - $2.49
  • 6mmx25mm 3 pair - $5.99
  • 1/4-20x1" 1 pair - $2.49
  • 1/4-20x1" 3 pair - $5.99







KAGO-Wing Bolts

$4.99
