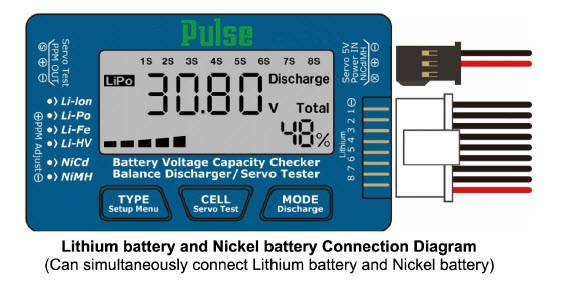

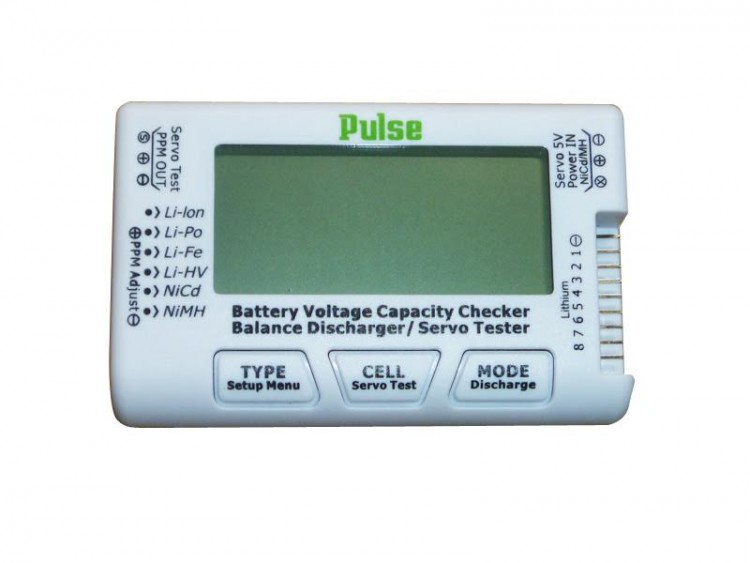

Pulse CellMeter 8 - Lipo Battery Checker & Servo Tester

Contact UsCustomer Reviews

Pulse CellMeter 8 - Lipo Battery Checker & Servo Tester

Our Price:

$14.99


Quantity

OUT OF STOCK


Availability No items available
Weight 0.40 lbs
SKU PLU-CELLMETER8
Manufacturer Pulse

Description:

The Pulse CellMeter-8 is the latest version of battery testers - and is now available to our Redwing customers! If you want a new, easy to use, digital battery and capacity tester, your search is over. The Pulse CellMeter-8 can check the overall and individual voltage of 2 through 8 celled, LiPo / LiFe / Li-Ion batteries and 4 through 8 celled, Nicd / NiMH batteries - as well as instantly provide you with your remaining capacity. Did I mention that happens INSTANTLY? We can't make this stuff up.

This nifty little checker does more than that! The cell button allows you to balance your packs as well. So this isn't your typical battery tester - but a balancer built in.



Features:

  • High visibility LCD display screen
  • Easy to use Menus
  • Full instructions included
  • Balance Mode
  • Port for balance plug for up to 8 cell Lipo, LiFe, or Li-Ion batteries
  • Instant Battery capacity graph
  • Can be used as Servo tester to test standard and narrow servo.
  • Port for discharge plug of NiMh/NiCd batteries
  • Can be used to check the battery voltage of Lithium batteries including Lipo, LiFe, Li-Ion, as well as NiMH and NiCd batteries.
  • Measure the voltage of both individual cells and full battery voltage, can also indicate the highest voltage cell, lowest voltage cell and voltage differential between cells

Specification:
Discharge Current: 1A
Balance Current: 1A
Battery Voltage Test Precision: 0.001V
Battery Type: Can test Li-Po/Li-lon/Li-Fe(2-8S),NiCd/NiMH(4-8S) battery
Servo Test Range: 1000-2000us or 500-2500us



: *
: *
: *


4S Pulse LiPo Batteries













Description:

Pulse Lithium Polymer Batteries - Setting a New Standard.

As Lithium Polymer battery technology continues to push new boundaries, Pulse Lithium Polymer Batteries bring a whole new element into the mix - power & performance at a price that simply can't be ignored.

Designed specifically for the demands of the latest power plants, not to mention the new realm of extreme 3D flight, Pulse brings a whole new battery to bear at a cost never seen before. Simply put, premium power no longer comes at a premium price.

Incorporating the latest advancements in Lithium Polymer technology, Pulse Batteries are designed to bring performance levels to a new stratosphere with 35C, 45C, and 65C battery packs in multiple capacities for the helicopter of your choice. Add the 5C charge rates, and the fun just begins.

Pulse Lithium Polymer Batteries - Can You Feel Your Pulse Quicken?

Pulse Batteries Available Individually or in a PRE-MADE System!

Take the guesswork out of your electric battery set up- we've done it for you! Check out the suggested set up systems for 30cc and 50cc.

LiPo 4500mah 5S, 18.5v - $104.99 each

30cc 10S System: Two (2) LiPo 4500mah 5S, 18.5v - $208

  • Voltage: 18.5V
  • Cell Count: 5S
  • Capacity: 4500mAh
  • Discharge Rate: 45C
  • Dimensions: 159mm x 45mm x 38mm (LxWxH)
  • Weight: 630g
  • Balance Tap: JST-XH


LiPo 3300mah 45C 6S, 22.2v - $94.99 each

30cc 12S System #1: Two (2) LiPo 3300mah 45C 6S, 22.2v - $188

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 3300mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 139mm x 42mm x 43mm  (LxWxH)
  • Weight: 567g
  • Balance Tap: JST-XH


LiPo 3700mah 45C 6S, 22.2v - $109.99 each

30cc 12S System #2: Two (2) LiPo 3700mah 45C 6S, 22.2v - $218

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 3700mAh
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 138mm x 44.5mm x 48mm (LxWxH)
  • Weight: 567g
  • Balance Tap: JST-XH


LiPo 4100mah 45C 6S, 22.2v - $119.99 each

30cc 12S System #3: Two (2) LiPo 4100mah 45C 6S, 22.2v - $238

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 4100mAh
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 137mm x 53mm x 42mm (LxWxH)
  • Weight: 680 grams
  • Balance Tap: JST-XH


LiPo 5000mah 45C 6S, 22.2v - $139.99 each

50cc 12S System #1: Two (2) LiPo 5000mah 45C 6S, 22.2v - $278

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 5000mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 158mm x 45mm x 49mm  (LxWxH)
  • Weight: 800g
  • Balance Tap: JST-XH


LiPo 5500mah 45C 6S, 22.2v - $149.95 each

50cc 12S System #2: Two (2) LiPo 5500mah 45C 6S, 22.2v - $298

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 5500mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 160mm x 44.5mm x 52mm  (LxWxH)
  • Weight: 873g
  • Balance Tap: JST-XH


LiPo 6000mah 35C 6S, 22.2v - $149.99 each

50cc 12S System #3: Two (2) LiPo 6000mah 35C 6S, 22.2v - $298

  • Cell Count: 6S 22.2V
  • Capacity: 6000mah
  • Discharge Rate: 35C
  • Charge Rate: 5C
  • Dimensions: 160mm x 49mm x 51mm  (LxWxH)
  • Weight: 884g
  • Balance Tap: JST-XH



Purchase pre-made system or buy individually! Select below.



PLU-4

$47.49

LiFe Batteries 2S

Description:
Our LiFe Batteries (also known as A123 Batteries) have huge advantages over most other options.

1) LiFe Batteries are lightweight - as light as Lipos
2) LiFes are safer than Lipos (do not combust easily like lipos)
3) LiFe Batteries supply a constant voltage (They stay right near 6volts from start to finish ensuring consistent flights)
4) Run Life batteries to your servos and ignition without regulators (For extra caution some people run a regulator to their ignition still)
5)Life's have a high Charging Capacity. Charge up to 5amps, allowing you to charge them up in MINUTES!

The 2100 or 3000 Mah can be used as a SINGLE battery system for 30cc planes. (we recommend spliting the lead and put 2 JR leads on, to run to the receiver and the other to ignition). You can also run a single 3000 Life Battery on a 50cc Plane.

The 1450mah LiFE Battery is a great option for those that want a separate battery for ignition and receiver (if you are running FM or hesitant to use a single battery system). The 1450mah Life is a great battery for the ignition for either a 30cc or 50cc sized plane

We recommend the following:
On the MXSR (2) 2100mah, or 1 3000mah placed on the mount box or front of the plane. It is a bigger plane and will do well with the extra voltage and weight.
Other 30cc planes - (1) 1450mah for ignition, (1) 2100mah for receiver or for a lighter set up
(1) 2100mah for both (split the wire to 2 leads) OR (2) 1450mah (one for ignition one for receiver).

50cc sized planes (1) 1450mah LiFe battery for ignition and (1) 3000mah LiFe battery for receiver or, for a lighter set up
(1) 1450mah for ignition, and (1) 2100 for receiver OR (1) 3000mah LiFe for both receiver and ignition



WATCH THIS VIDEO: Explains whether to use a regulator or not, 2 batteries or 1 for your plane, Redundancy and more.


Specifications:

  • Type: LiFe Battery (same technology as A123)
  • Weight:
    • 1450mah - 2.8oz,
    • 2100mah - 4oz,
    • 3100mah Life - 5.5oz
  • Size:
    • 1450mah- 15mm x 34mm x 87mm,
    • 2100mah- 12mm x 50mm x 106mm,
    • 3000mah- 130mm x 45mm x 15m
  • Voltage: 6.6Volts
  • Discharge rate:
    • 20c maximum continuous
    • 40c maximum burst
  • 2 cells (2s)
  • 14gauge Wire
  • Connectors: Two Options!
    • T Connector (T connector that fit a standard Dean)
    • XT-60 Connector. Choose Below
  • Also a balancing lead

Be sure to select the XT connector if purchasing for use with our Power Box PRO's. Please select connector type: Deans or XT.






  • 1450mah - $15.99
  • 2100mah - $25.99
  • 3000mah - $39.99


LiFe

$18.99

Pulse Ultra PLC100 AC/DC Multi-Chemistry Smart Battery Charger

Description:
With this Imax B6AC multi charger, you can charge using a battery at the feild or your ac plug at home! You can charge up to 6 cell batteries. It's capable of charging most types of batteries, LIFE LIPO LION (A123) NICAD NIMH ETC

If you have a splitter you can charge 2/3 cell batteries at once (using an adapter)



Specifications:

  • Input Voltage: DC 11-18V / AC in: 100V-240V 50-60Hz
  • Circuit power: Max Charge: 50W / Max Discharge: 5W
  • Charge Current Range: 0.1-5.0A
  • Discharge current range: 0.1-1.0A
  • Ni-MH/NiCd cells: 1-15
  • Li-ion/Poly cells: 1-6
  • Pb battery voltage: 2V-20V
  • Weight: 531g
  • Dimensions: 134x142x36mm














Features:

  • iMax B6AC 1-6 Cells Digital Multifunctional Balance Charger
  • 100-240v AC input or 11-18V DC input
  • Microprocessor controlled
  • Delta-peak sensitivity
  • Individual cell balancing
  • Li-ion, LiPo and LiFe capable
  • Ni-Cd and NiMH capable
  • Large range of charge currents
  • Store function, allows safe storage current
  • Time limit function
  • Input voltage monitoring. (Protects car batteries at the field)
  • Data storage (Store up to 5 packs in memory)
  • Battery break in and cycling.










Package Contents:

  • iMax B6AC 1-6 Cells Digital Multifunctional Balance Charger
  • 4mm Banana Plug to Male Deans style connector
  • A female Deans style connector to a pair of Alligator clips
  • A female Deans style connector to a female Futaba style servo connector
  • A female Deans style connector female JST style connector
  • A female Deans style connector to Glow Plug type connector
  • Power Cord
  • User Manual











PLC-100

$59.99

LiFe Batteries 2S

Description:
Our LiFe Batteries (also known as A123 Batteries) have huge advantages over most other options.

1) LiFe Batteries are lightweight - as light as Lipos
2) LiFes are safer than Lipos (do not combust easily like lipos)
3) LiFe Batteries supply a constant voltage (They stay right near 6volts from start to finish ensuring consistent flights)
4) Run Life batteries to your servos and ignition without regulators (For extra caution some people run a regulator to their ignition still)
5)Life's have a high Charging Capacity. Charge up to 5amps, allowing you to charge them up in MINUTES!

The 2100 or 3000 Mah can be used as a SINGLE battery system for 30cc planes. (we recommend spliting the lead and put 2 JR leads on, to run to the receiver and the other to ignition). You can also run a single 3000 Life Battery on a 50cc Plane.

The 1450mah LiFE Battery is a great option for those that want a separate battery for ignition and receiver (if you are running FM or hesitant to use a single battery system). The 1450mah Life is a great battery for the ignition for either a 30cc or 50cc sized plane

We recommend the following:
On the MXSR (2) 2100mah, or 1 3000mah placed on the mount box or front of the plane. It is a bigger plane and will do well with the extra voltage and weight.
Other 30cc planes - (1) 1450mah for ignition, (1) 2100mah for receiver or for a lighter set up
(1) 2100mah for both (split the wire to 2 leads) OR (2) 1450mah (one for ignition one for receiver).

50cc sized planes (1) 1450mah LiFe battery for ignition and (1) 3000mah LiFe battery for receiver or, for a lighter set up
(1) 1450mah for ignition, and (1) 2100 for receiver OR (1) 3000mah LiFe for both receiver and ignition



WATCH THIS VIDEO: Explains whether to use a regulator or not, 2 batteries or 1 for your plane, Redundancy and more.


Specifications:

  • Type: LiFe Battery (same technology as A123)
  • Weight:
    • 1450mah - 2.8oz,
    • 2100mah - 4oz,
    • 3100mah Life - 5.5oz
  • Size:
    • 1450mah- 15mm x 34mm x 87mm,
    • 2100mah- 12mm x 50mm x 106mm,
    • 3000mah- 130mm x 45mm x 15m
  • Voltage: 6.6Volts
  • Discharge rate:
    • 20c maximum continuous
    • 40c maximum burst
  • 2 cells (2s)
  • 14gauge Wire
  • Connectors: Two Options!
    • T Connector (T connector that fit a standard Dean)
    • XT-60 Connector. Choose Below
  • Also a balancing lead

Be sure to select the XT connector if purchasing for use with our Power Box PRO's. Please select connector type: Deans or XT.






  • 1450mah - $15.99
  • 2100mah - $25.99
  • 3000mah - $39.99


LiFe

$18.99

Miracle RC Throw Meter

Description:
Make SURE your control surfaces are moving in even amounts in ALL directions.

Quality you can count on
This high quality CNC anodized throw meter, is made to precisely measure your surface deflections. Just clip on the aileron or elevtor (with it's padded light grab clip) and then turn the dial to show zero. Move your surface up or down and record your degree of throw. Match it with your other side, AND the other direction easily, quickly and PRECISELY!

MRC-K-012

$23.95

GT Power Portable LiPo Battery Charger and Tester

















Description:

LiPo to USB Portable Battery Charger.

Oh No!.. you are at the flying field and your phone is low on battery. Do you run to your car and search for an outlet? Is the outlet too far away? RedwingRC has the answer!! Grab one of the extra batteries you brought and charge or power your device right there! So Simple.

Suitable for all kinds of cell phones and smart phones. This charger has built-in current overload protection for safety and has a digital readout.



Video



Specs:

  • USB output: 5V/ 1000 mA
  • Input voltage: DC 7.5-25.2V
  • Battery voltage meter precision: +/- 0.01
  • Test for 1-6S LiPo/Li-ion/LiMn/LiFe battery
  • The USB output will be cut off automatically if any battery's voltage is lower that 3.00V and the the LED tube will display "SOP".





GT-PBC

$9.99
