Power Boards, Kill Switches, and UBECs

Products

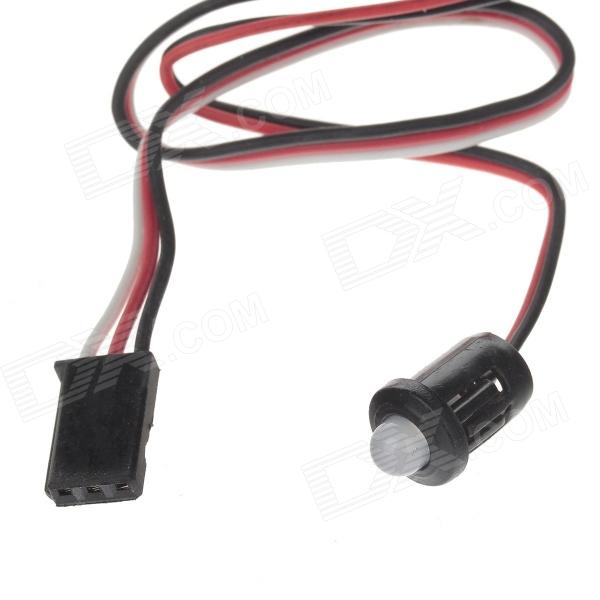

Redwing LED Power Board Display

LED display light with male JR connector for RedwingRC Power Boards.

PB-LED

$5.99

Power Board - PRO SERIES - Red (4104)

Power Board - PRO SERIES - Red (4104)



















































All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.



These new versions offer SEVERAL new features:
1) Digital read out on all models - displaying voltage going IN and OUT of all devices (see photo)
2) LED and audible alarm for all models that you can set to warn when your system drops below a voltage of your choosing
3) TOUCH button programming to select your warning voltage
4) Wires to your RX are PRE-installed
5) Enclosed lightweight and strong plastic housing
6) XT-60 Connectors





The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause).

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.



They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.





Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:

Red Power Board (4104)

  • Dual battery redundancy for safer flying
  • LCD display which shows real time info of your in and out voltages
  • Built in regulator that supplies a clean 5v to your receiver
  • Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
  • 8 channels in, 16 channels out (+ ignition)
  • Electronically isolated for interference free flying

    (We recommend our LiFe batteries and 6v servos with this unit - be sure to select ones with XT connectors for this use)



Specs:

Red Power Board (4104)

  • Input Voltage: 5-13v
  • Working load: 0A to 20A
  • Weight: 3 oz.
  • Dimensions: 4.5"x2.5"x5/8"
  • Working Temperature: -20c to -85c




Recommended Set ups: Use the Red Power Board for 30-50cc planes using 6v servos. Use 2 LiFe batteries, and "jump" power down from an open servo port on the board, to run to your ignition

PB-4104

$139.00

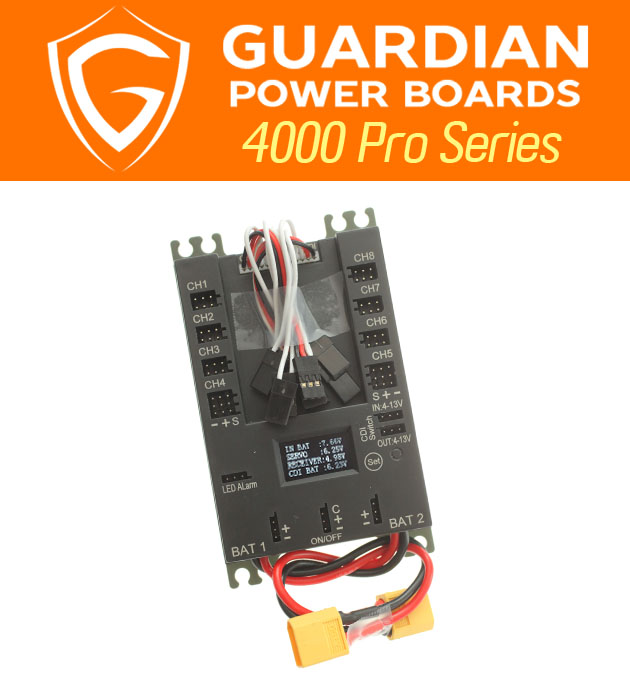

Power Board - PRO SERIES - Black (4106)

Power Board - PRO SERIES - Black (4106)











































































All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.



These new versions offer SEVERAL new features:
1) Digital read out on all models - displaying voltage going IN and OUT of all devices (see photo)
2) LED and audible alarm for all models that you can set to warn when your system drops below a voltage of your choosing
3) TOUCH button programming to select your warning voltage
4) Wires to your RX are PRE-installed
5) Enclosed lightweight and strong plastic housing
6) XT-60 Connectors





The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause).

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.



They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.





Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:


Black Power Board (4106)

  • Dual battery redundancy for safer flying
  • LCD display which shows real time info of your in and out voltages
  • Built in regulator that supplies a clean 5v to your receiver
  • Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
  • 8 channels in, 16 channels out (+ ignition)
  • Electronically isolated for interference free flying
  • Adjustable voltage selection to your servos via the dial on the side (from 4.8v to 9.7)
  • Ability to use High voltage servos while providing a clean 5v to your RX
  • Battery balancing (draws extremely evenly from your dual battery set up)
  • Short Circuit protection (in the unlikely event of a short it will protect from battery drain)

    (input voltage MUST be between 6-13v. A 4S Life would be ideal)



Specs:

Black Power Board (4106)

  • Input Voltage: 6-13v
  • Working load: 0A to 30A
  • Weight: 4.5 oz.
  • Dimensions: 4.5"x2.5"x5/8"
  • Working Temperature: -20c to -85c



Recommended Set ups: Use the Black Power Board for 50cc to 100cc or bigger.

PB-4106

$169.00

Power Board - PRO SERIES - Yellow (4105)

Power Board - PRO SERIES - Yellow (4105)











































































All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.



These new versions offer SEVERAL new features:
1) Digital read out on all models - displaying voltage going IN and OUT of all devices (see photo)
2) LED and audible alarm for all models that you can set to warn when your system drops below a voltage of your choosing
3) TOUCH button programming to select your warning voltage
4) Wires to your RX are PRE-installed
5) Enclosed lightweight and strong plastic housing
6) XT-60 Connectors





The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause).

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.



They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.





Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:

Yellow Power Board (4105)

  • Dual battery redundancy for safer flying
  • LCD display which shows real time info of your in and out voltages
  • Built in regulator that supplies a clean 5v to your receiver
  • Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
  • 8 channels in, 16 channels out (+ ignition)
  • Electronically isolated for interference free flying
  • Adjustable voltage selection to your servos via the dial on the side (from 4.8v to 9.7)
  • Ability to use High voltage servos while providing a clean 5v to your RX

    (Please note the input voltage for this unit MUST be between 7v-13v. A 4S LiFe would be ideal)




Specs:

Yellow Power Board (4105)

  • Input Voltage: 7-13v
  • Working load: 0A to 30A
  • Weight: 3.5oz.
  • Dimensions: 4.5"x2.5"x5/8"
  • Working Temperature: -20c to -85c



Recommended Set ups: Yellow board for 30cc to 100cc or larger using ANY servos.

PB-4105

$159.00

Deluxe Power Board LED light

Deluxe Power Board LED light
Super Bright!

rccskj-PB-light

$5.99

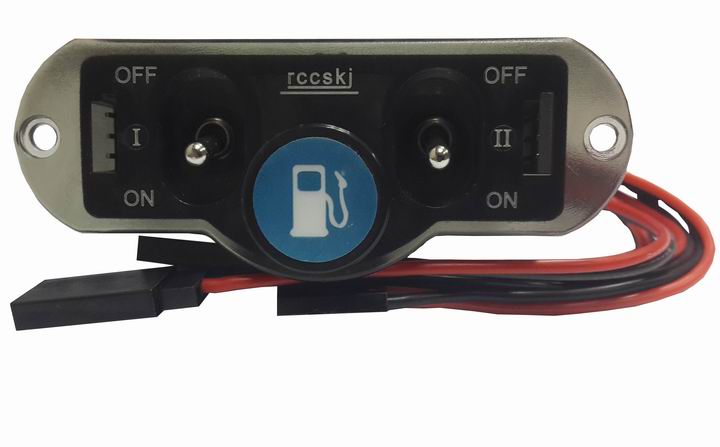

Dual Power Switch w/Charge Ports & Fuel Dot

Replacement Switch and wire for Miracle switches.

With this switch and wire, you can easily replace a switch in a Miracle RC product. Perfect for if you have a crash and you want to be sure the switch is in perfect working condition. Or if you accidently damage your Miracle switch while working with it.

Just simply unscrew your old Miracle switch, loosen the grub screw that holds the plastic plug, and place the new one in. In about 5 minutes you'll have a brand new conditioned Miracle switch


Rccskj-switch-FD-3106

$21.99

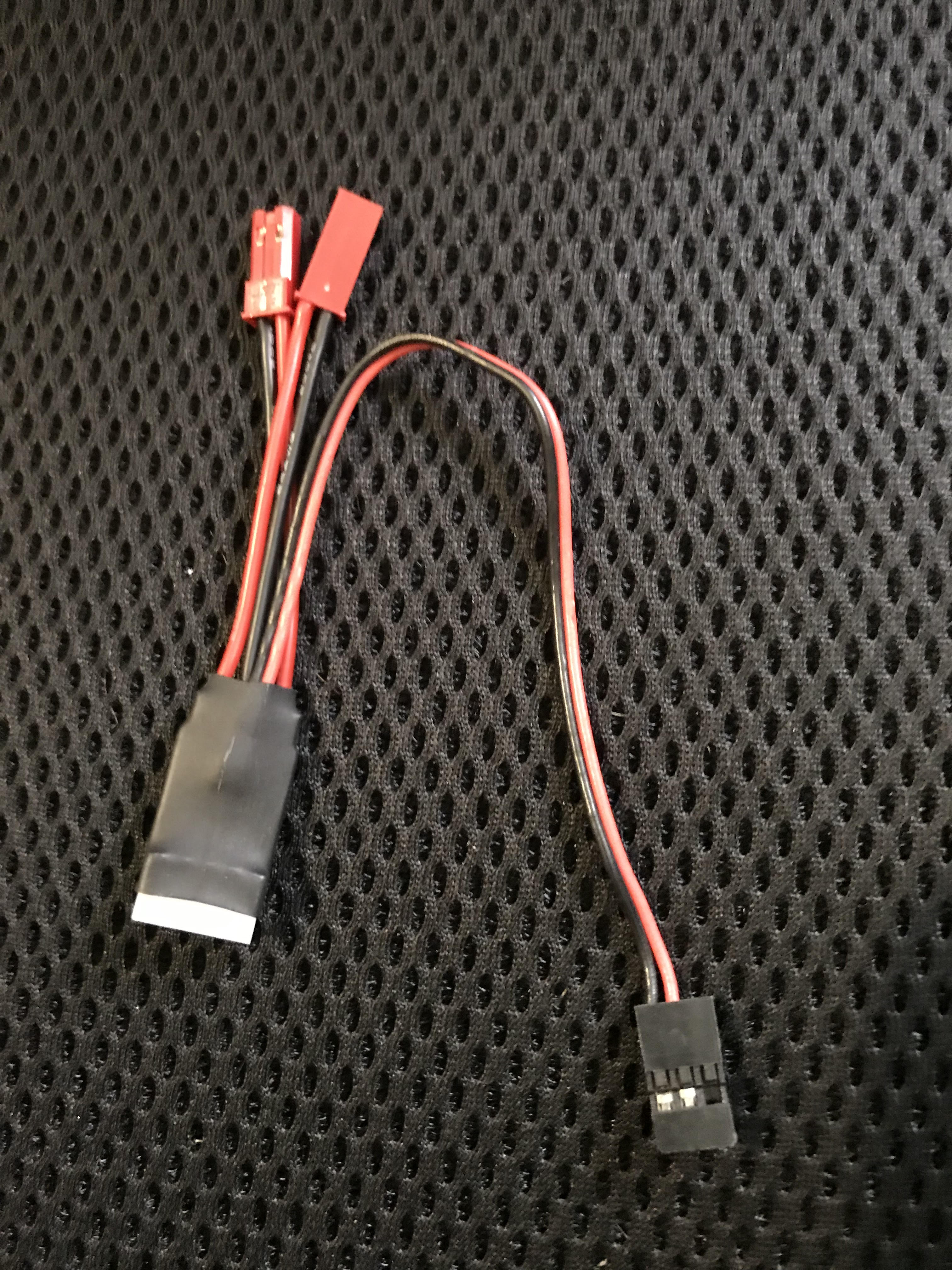

3S Li-ion Battery Controllable Power Switch




RCCSKJ-SW-3S-6102

$5.99

Gas Engine Optical Kill Switch

Description:
The Optical Kill Switch for gas rc planes, allows you to safely and remotely kill your electronic ignition. It is Fiber Optically Coupled to isolate your ignition system from your radio system so there is NO interference



Features:

  • Includes a remote mountable bright LED to indicate when the ignition is armed.
  • Fiber Optic coupled input/output.
  • Li-Po/Li-lon/A123/Ni-Mh/NiCad Input.
  • Up to 20 Volt 16 amp MOS-FET(IRF7456) output.
  • Low to 3Volt 3amp output.
  • Low Voltage Drop-Less than 150mv.
  • 100% Surface Mount Technology.
  • Heavy Gauge Wires,universal connectors.
  • Small and light weight –only 0.3 OZ!(8g)
  • Reverse Bettery input protection.
  • Shut down the transmitter power or receiver to cut off automatically when kill engine








  •
  •
  •
  •
  •
  •

RCCSKJ-SW-Kill-2117

$17.99

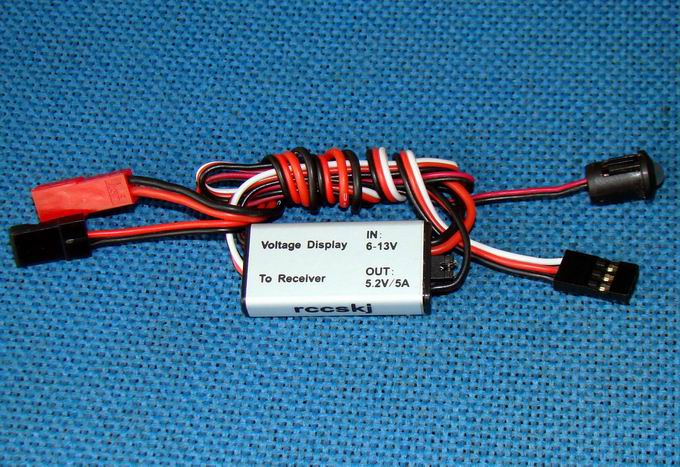

3-in-1 UBEC/CDI Kill Switch with Dual LED color Voltage Alarm

Description:
The Optical Kill Switch for gas rc planes, allows you to safely and remotely kill your electronic ignition. It is Fiber Optically Coupled to isolate your ignition system from your radio system so there is NO interference



Features:

  • Includes a remote mountable bright LED to indicate when the ignition is armed.
  • Fiber Optic coupled input/output.
  • Li-Po/Li-lon/A123/Ni-Mh/NiCad Input.
  • Up to 20 Volt 16 amp MOS-FET(IRF7456) output.
  • Low to 3Volt 3amp output.
  • Low Voltage Drop-Less than 150mv.
  • 100% Surface Mount Technology.
  • Heavy Gauge Wires,universal connectors.
  • Small and light weight –only 0.3 OZ!(8g)
  • Reverse Bettery input protection.
  • Shut down the transmitter power or receiver to cut off automatically when kill engine



  •

RCCSKJ-SW-UBEC-CDI-2122

$19.95

CDI Remote Kill Switch

Description:
The Optical Kill Switch for gas rc planes, allows you to safely and remotely kill your electronic ignition. It is Fiber Optically Coupled to isolate your ignition system from your radio system so there is NO interference



Features:

  • Includes a remote mountable bright LED to indicate when the ignition is armed.
  • Fiber Optic coupled input/output.
  • Li-Po/Li-lon/A123/Ni-Mh/NiCad Input.
  • Up to 20 Volt 16 amp MOS-FET(IRF7456) output.
  • Low to 3Volt 3amp output.
  • Low Voltage Drop-Less than 150mv.
  • 100% Surface Mount Technology.
  • Heavy Gauge Wires,universal connectors.
  • Small and light weight –only 0.3 OZ!(8g)
  • Reverse Bettery input protection.
  • Shut down the transmitter power or receiver to cut off automatically when kill engine






  •
  •
  •
  •

RCCSKJ-SW-CDI-Kill-4112

$17.99

Smart BUS DB Box

Replacement Switch and wire for Miracle switches.

With this switch and wire, you can easily replace a switch in a Miracle RC product. Perfect for if you have a crash and you want to be sure the switch is in perfect working condition. Or if you accidently damage your Miracle switch while working with it.

Just simply unscrew your old Miracle switch, loosen the grub screw that holds the plastic plug, and place the new one in. In about 5 minutes you'll have a brand new conditioned Miracle switch


Rccskj-SBUS-8105

$59.99

20A UBEC

Replacement Switch and wire for Miracle switches.

With this switch and wire, you can easily replace a switch in a Miracle RC product. Perfect for if you have a crash and you want to be sure the switch is in perfect working condition. Or if you accidently damage your Miracle switch while working with it.

Just simply unscrew your old Miracle switch, loosen the grub screw that holds the plastic plug, and place the new one in. In about 5 minutes you'll have a brand new conditioned Miracle switch


Rccskj-UBEC-8106

$39.99
