Redwing RC is an authorized Futaba, Hitec, MKS, Savox, PowerHD, BoomaRC/AR, servo

dealer. If you do not see the size and type of servo you need please email us. We can

get almost any servo you need and have it shipped directly to you. We can also ship

 internationally just let us know your address so we can calculate shipping.

Please let us know how we can help you.



Products

HiTec 5645mg

Description:
The HS-5645MG is one of the best choices you can make for a 50cc sized plane for the cost. They will also work well in 30cc planes. It is fully programmable using Hi Tec's programmer. The combination of torque, speed, price and extreme holding power make it a favorite among pilots. Special alloy gears called “Alumite” offer tremendous strength yet are lightweight as well.


Specifications:

  • Torque:
    • 143 oz/in at 4.8V (10.3 kg/cm)
    • 168 oz/in at 6V (12.1 kg/cm)

  • Speed:
    • .23 sec at 4.8V
    • .18 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2.11oz (59.82g)
  • Size: 40.6 x 19.8 x 37.8mm (1.59 x 0.77 x 1.48in)

  • Motor Type: 3 Pole Ferrite
  • Bearing Type: Dual Ball Bearing
  • Gear Type: 3 Metal Gears and 1 Resin Metal Gear
  • Connector Wire Length: 11.81" (300mm)
  • Control System: +Pulse Width Control 1500usec Neutral
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Operating Temperature Range: -20 to +60 Degree C
  • Operating Angle: 45 Deg. one side pulse traveling 400usec
  • 360 Modifiable: Yes
  • Direction: Clockwise/Pulse Traveling 1500 to 1900usec
  • Dead Band Width: 8usec
  • Potentiometer Drive: Indirect Drive
  • Current Drain (4.8V): 8.8mA/idle and 400mA no load operating
  • Current Drain (6.0V): 9.1mA/idle and 500mA no load operating

HS-5645mg

$45.99

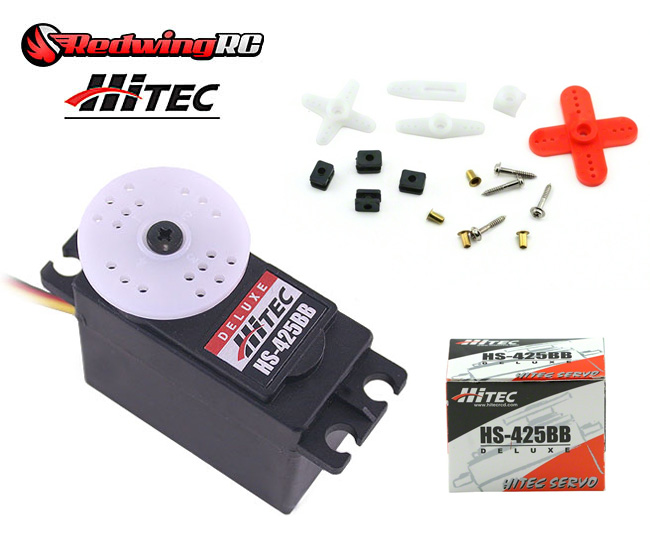

HiTec 425BB

Description:
This is the HS-425BB Pro Dual Ball Bearing Servo from Hitec. The HS-425BB is one of the most durable and reliable servos Hitec has ever offered. With its dual ball bearings, high impact resin gear train and high performance circuitry, the HS-425BB features excellent centering and resolution.



Specifications:

  • Torque:
    • 46 oz/in at 4.8V (3.3kg/cm)
    • 57 oz/in at 6V (4.1 kg/cm)

  • Speed:
    • .21 sec at 4.8V
    • .16 sec at 6V

  • Voltage: 4.8V to 6V
  • Weight: 1.6 oz ( 45.5g)
  • Size: 1.57 x .78 x 1.45 in (40 x 20 x 37 mm)

HS-425

$17.99

Out of stock

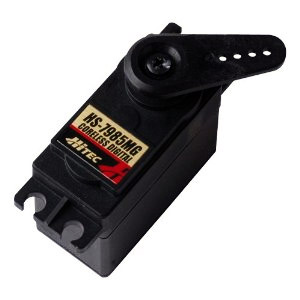

HiTec 7985mg

Description:
The HS-7985MG is a very high quality servo and perfect for 50cc (even for the rudder). Great in a 30cc but maybe overkill. It is fully programmable using Hi Tec's programmer. The combination of torque, speed, price and extreme holding power make it a favorite among pilots. new premium high speed HS-7985MG Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology does not stop at the circuit board, with high performance coreless motors, dual ball bearings, bushing supported gear shafts, dual ball bearing output shaft and our Heavy Duty Metal gear train the HS-7985MG will give you everything you need no matter what the demand.



Specifications:

  • Torque:
    • 144 oz/in at 4.8V (10.4 kg/cm)
    • 172 oz/in at 6V (12.4 kg/cm)

  • Speed:
    • .16 sec at 4.8V
    • .13 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2.18oz (62g)
  • Size: 1.57" x 0.78"x 1.45 in (40 x 20 x 37 mm)

  • Control System: +Pulse Width Control 1500usec Neutral
  • Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave
  • Operating Voltage Range: 4.8-6.0 Volts
  • Operating Temperature Range: -20° to +60° C (-4°F to +140°F)
  • Stall Torque (4.8V): 144oz/in. (10.4 kg/cm)
  • Stall Torque (6.0V): oz/in. (12.4 kg/cm)
  • Operating Angle: 45 Deg. one side pulse traveling 400usec
  • 360 Modifiable: Yes
  • Direction: Clockwise/Pulse Traveling 1500 to 1900usec
  • Idle Current Drain (4.8V): 3mA at stop
  • Idle Current Drain (6.0V): 3mA at stop
  • Current Drain (4.8V): 200mA/idle and 2.0 amps at lock/stall
  • Current Drain (6.0V): 240mA/idle and 3.0 amps at lock/stall
  • Dead Band Width: 2usec
  • Motor Type: Coreless Carbon Brush
  • Potentiometer Drive: 6 Slider Indirect Drive
  • Bearing Type: Dual Ball Bearing MR106
  • Gear Type: 3 Metal, 1 Metal Karbonite Gear
  • Connector Wire Length: 7" (178mm)

HS-7985MG

$89.99

HiTec 5625mg

Description:
The HS-5625MG is great for those applications that require a fast standard size servo. With a custom designed programmable digital circuit and the unique M/P and metal gear train technology, the HS-5625MG will deliver powerful high speed results!


Specifications:

  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP Gear Technology
  • Dual Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit Provides Fine Resolution and Centering



Specifications:

  • Torque:
    • 110 oz/in at 4.8V (7.9 kg/cm)
    • 131 oz/in at 6V (9.4 kg/cm)

  • Speed:
    • .17 sec at 4.8V
    • .14 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2.11 oz (59.82g)
  • Size: 1.59 x .77 x 1.48 in (40.39 x 19.56 x 37.59 mm)

  • Motor: 3 Pole Ferrite
  • Bearing Type: Dual Ball Bearing

HS-5625mg

$45.99

HiTec 7245 MH





The PERFECT 30cc Dual Elevator Servo

Description:


At ONLY 1.2 oz PER servo, or 2.4 oz for 2 - delivering 150 or 180 oz-in in tandem (6v/7.4v) The Hitec 7245 MH is a perfect option for 30cc elevator servos. The 7245MH gives you the tornque you need while being nice and lightweight for tail heavy models (Sbachs tend to be tail heavy for example due to the scale shape). Saving you 2 oz in the tail of the plane can save you as much as 6 oz in the nose!

Watch out, here it comes! Our new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. The 7245 is built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH.

Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of the Hitec 7245 MH servo will make you the master of your RC domain.

Exceeding Your Expectations Is What We Do! Hitec 7245MH


Specifications

  • Torque:
    • 72 oz/in at 6V (5.2 kg/cm)
    • 89 oz/in at 7.4V (6.4 kg/cm)

  • Speed:
    • .13 sec at 6V
    • .11 sec at 7.4V

  • Voltage: 6V - 7.4V
  • Weight: 1.20 oz (34g)
  • Size: 1.28 x 0.66 x 1.29 in (32.4 x 16.8 x 32.8 mm)

  • Motor Type: Coreless
  • Bearing Type: Dual Ball Bearings

HS-7245 MH

$75.99

HiTec 645 MG


Description:

The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.

Specifications - Hitec 645 MG

  • Torque:
    • 107 oz/in at 4.8V (7.7 kg/cm)
    • 133 oz/in at 6V (9.6 kg/cm)

  • Speed:
    • .24 sec at 4.8V
    • .20 sec at 6V

  • Voltage: 4.8V to 6V
  • Weight: 1.94 oz (55g)
  • Size: 1.59 x 0.77 x 1.48 in (40.39 x 19.56 x 37.59 mm)

  • Motor Type: 3 pole
  • Dual Ball Bearings







HS-645 MG

$35.99

HiTec 5585 MH

Product Description

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5585MH is rated for  7.4 volt, 2S LiPo operation (or NEAR the same performance with a Redwing LIFE battery.  The HS-5585MH, supplies your airplanes up to 35 percent with outstanding strength and precision.

Get all the muscle you need without straining your wallet! Hitec is proud to introduce our economical, premium digital, high voltage, coreless motor servos, the HS-5585MH

Specifications

  • Torque:
    • 194 oz/in at 6V (14 kg/cm)
    • 236 oz/in at 7.4V (17 kg/cm)

  • Speed:
    • .17 sec at 6V
    • .14 sec at 7.4V

  • Voltage: 6V - 7.4V
  • Weight: 2.10oz (60g)
  • Size: 1.57 x 0.78 x 1.49 in (39.8 x 19.8 x 37.8 mm)

  • Motor Type: Standard HV Digital
  • Bearing Type: 6.0 - 7.4 Volts DC



Advanced Servo Specifications Hitec 5585 MH

  • Control System: Standard HV Digital
  • Operating Voltage Range: 6.0 - 7.4 Volts DC
  • Operating Temperature Range: -4° - 140° Fahrenheit
  • Idle Current: 4 mA
  • No Load Running Current (6.0V/7.4V):
  • Stall Current (6.0V/7.4V): 2100 / 2700 mA
  • Dead Band Width: 2 µs
  • Potentiometer Type: 4 Slider 1M Cycle
  • Connector Wire Length: 11.8 in. / 300 mm.
  • Connector Wire Gauge: 25 AWG


HS-5585MH

$69.99

Hitec 7954 SH HV (High Voltage Servo)

Product Description

The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor. With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilizing a heavy duty case that incorporates an aluminum heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can't be beat.

Features

  • G2 Digital Circuit
  • HV Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Steel Gear Train (MK first gear)

Programmable Features Include:

  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point
  • Resolution* (default is high resolution)
  • Overload Protection* (default is off)

*These features are only programmable with the HFP-20 field programmer.



Specifications

  • Torque:
    • 333 oz/in at 6V (24 kg/cm)
    • 403 oz/in at 7.4V (29 kg/cm)

  • Speed:
    • .15 sec at 6V
    • .12 sec at 7.4V

  • Voltage: 6V - 7.4V
  • Weight: 2.30oz (65.2g)
  • Size: 39.9 x 19.8 x 36.8mm (1.57 x 0.78 x 1.45)

  • Motor Type: Coreless
  • Bearing Type: Dual Ball Bearings


HS-7954 SH

$99.99

Out of stock

HiTec HSB-9370TH Digital Brushless Servo (25kg/347.0oz [email protected])

Description:

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9370 is a perfect match for the most discriminating pilots.

Features:

  • Power Efficient Brushless Motor Controller
    Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
  • Custom NeuMotor
    Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
  • Constant Torque Output:
    Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
  • Hybrid MPD 1st Gear:
    Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
  • Industry-Leading Titanium Gear Train
    Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
  • 25-Tooth Standard Spline
    Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.


    Specifications:

    • Torque:
      • 347 oz/in at 6V (25.0 kg-cm)
      • 347 oz/in at 7.4V (25.0 kg-cm)

    • Speed:
      • .12 sec at 6V
      • .10 sec at 7.4V

    • Voltage: 6V - 7.4V
    • Weight: 2.40oz (68g)
    • Size: 40 x 20 x 68 mm (1.57 x 0.79 x 1.50in)

HRC39373S

$189.99

HiTec HSB-9360TH High Speed, Brushless, Titanium Gear Servo (17kg/236oz [email protected])

Description:

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for pilots with the need for speed!

Features:

  • Power Efficient Brushless Motor Controller
    Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
  • Custom NeuMotor
    Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
  • Constant Torque Output:
    Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
  • Hybrid MPD 1st Gear:
    Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
  • Industry-Leading Titanium Gear Train
    Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
  • 25-Tooth Standard Spline
    Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.


    Specifications:

    • Torque:
      • 236 oz/in at 6V (17.0 kg-cm)
      • 236 oz/in at 7.4V (17.0 kg-cm)

    • Speed:
      • .08 sec at 6V
      • .06 sec at 7.4V

    • Voltage: 6V - 7.4V
    • Weight: 2.40oz (68g)
    • Size: 40 x 20 x 38 mm (1.57 x 0.79 x 1.50in)

HRC3936S

$189.99

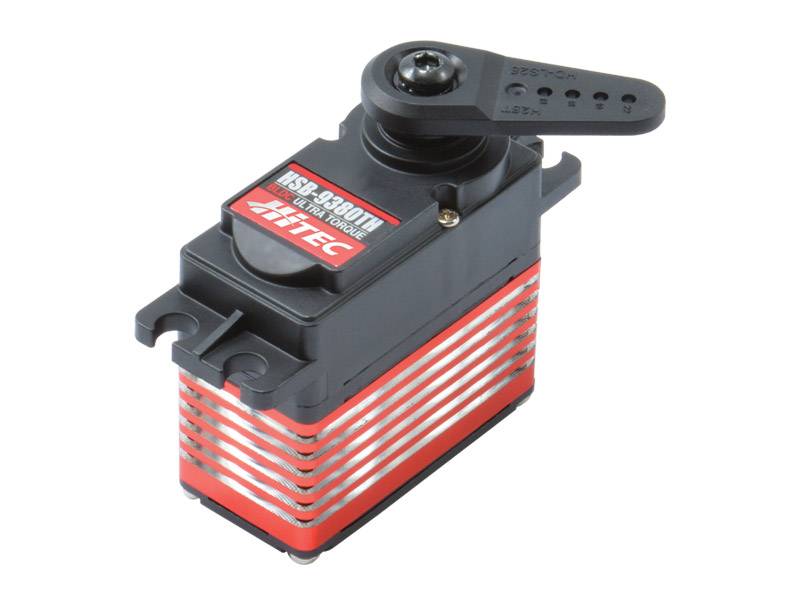

HiTec 9380 Digital Brushless Servo (34kg/472oz [email protected])

Description:

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9380 is a perfect match for the most discriminating pilots.

Features:

  • Power Efficient Brushless Motor Controller
    Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
  • Custom NeuMotor
    Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
  • Constant Torque Output:
    Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
  • Hybrid MPD 1st Gear:
    Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
  • Industry-Leading Titanium Gear Train
    Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
  • 25-Tooth Standard Spline
    Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.


    Specifications:

    • Torque:
      • 472 oz/in at 6V (34.0 kg-cm)
      • 472 oz/in at 7.4V (34.0 kg-cm)

    • Speed:
      • .17 sec at 6V
      • .14 sec at 7.4V

    • Voltage: 6V - 7.4V
    • Weight: 2.40oz (68g)
    • Size: 40 x 20 x 68 mm (1.57 x 0.79 x 1.50in)

HRC39383S

$189.99

Hitec HS-65HB

Product Description

The HS-65 HB+ is a great choice because it is one of Hi-Tec's strongest micro servo and it has a very long life due to the durable Karbonite gears. The HS-65 HB+ can provide over 30 oz/in of power at 6 volts. Created for higher performance micro helicopters, electric park flyers, & 1/18 scale cars. This servo features a top ball-bearing for long life and positive centering.

Arms included: Single arm, Double arm, Quad arm

Features

  • High Efficiency Neodymium Magnet Motor
  • Ball Bearings
  • Karbonite Gears



Specifications

  • Torque:
    • 24.99 oz/in at 4.8V (1.8 kg/cm)
    • 30.55 oz/in at 6V (2.2 kg/cm)

  • Speed:
    • .14 sec at 4.8V
    • .11 sec at 6V

  • Voltage:
  • Weight: 0.39 oz (11.2 g)
  • Size: 23.6 x 11.6 x 24 mm (0.92 x 0.42 x 0.94 in)

  • Motor Type: Neodymium Magnet
  • Bearing Type: Yes


HS-65HB

$29.99
