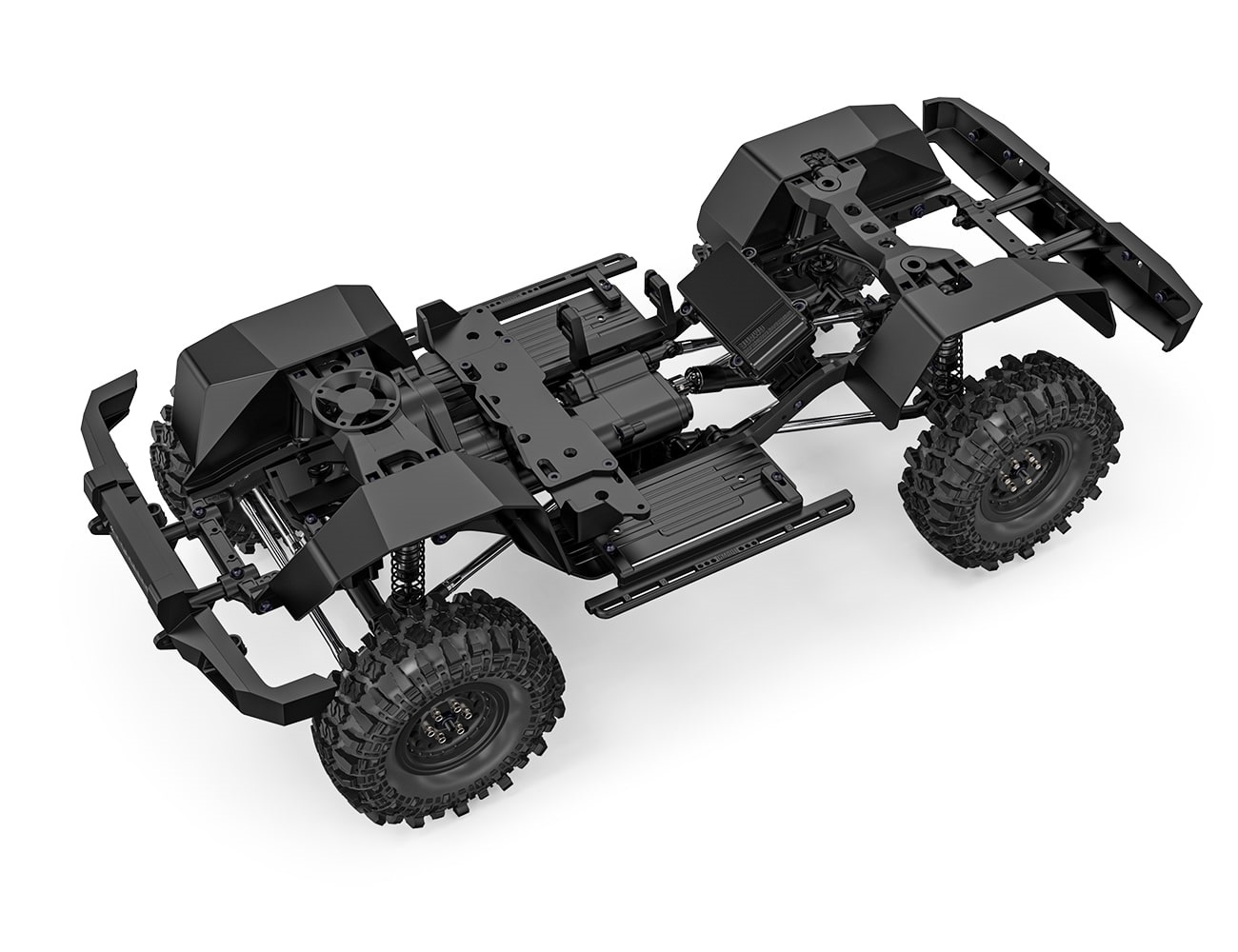

1/10 GS02F Buffalo Pickup TS Crawler Kit STEEL LADDER FRAME
The frame of GS02F chassis is designed to look like a real truck's frame. It is made of high strength steel, and the C-channel side rail with bolt-in crossmembers make it resistant to twisting and warping. The steel parts are finished with powder coating to prevent rusting.
INNER FENDERS
The inner fenders are directly fixed to the frame to reduce flex and bend of the chassis and parts. They also prevent objects from entering into the chassis during the driving.
ADJUSTABLE WHEELBASE
The GS02F chassis allows two wheelbases: 313mm out of the box,or 324mm with optional links (sold separately). The kit also includes universal shafts with different lengths to accomodate different wheelbases.
FRONT WEIGHT BALANCE
Weight balance of the GS02F chassis is forward biased. This increases traction of the front wheels and provides better crawling performance on steep hills or rocks. It also minimizes rolling over backwards when climbing.
FRONT MOUNTED MOTOR
The front mounted motor helps with the vehicle's weight balance. Either a 540 or 550 size motor can be mounted, and a cooling fan will be easily fitted to the incorporated structure.
MULTIPLE BATTERY SIZE AND LOCATIONS
The battery tray of the GS02F chassis can hold all sizes of Lipo and Ni-MH batteries, and can be fitted to various locations for adjusting weight bias or increased clearance.
CHASSIS MOUNTED SERVO SYSTEM WITH PANHARD BAR
The steering servo mount in the GS02F chassis is located on the frame, eliminating bump steering effects caused by front suspension movements. Additionally the panhard-bar is cleverly designed to avoid any interference with nearby parts, so the front suspension and shocks can move freely.
TORQUE TWIST REDUCE TRANSMISSION
TTR(Torque Twist Reduce) transmission is designed to reduce unnecessary torque so the vehicle will drive with more stability. From the transmission, the front and rear universal shafts rotates clockwise and counterclockwise, and these opposite rotations compensate for rotational forces (torque) and reaction(reverse torque). Drivelines to the front and rear axles are designed to operate in a straight-line to reduce fatigue and stress on the hardened carbon steel universal shafts, and to reduce loss of power delivery. A dual slipper clutch is designed to hold the spur gear evenly, and allows for more precise settings. With all metal internal gears, the two-speed transmission in the GS02F is designed to provide the best performance for every driving situation. With the overdrive system, the front and the rear wheels can rotate for different speeds. Vehicles with overdrive front wheels turn with shorter steering radius compared with non-overdrive vehicles. The overdrive also makes the control easier when the car is driving on rough surfaces. Overdrive ratios can be adjusted to best suit the terrain you are running on (requires optional gears, sold separately). GA44 AXLE
The GA44 axle, with a metal diff locker and hardened carbon steel CVAs, is designed for hard core rock crawlers in mind. This high endurance one-piece axle is made of high strength materials and looks very "scale". It is equipped with uniquely designed tilted differential covers to help decrease damage to the differential covers. THe kingpin angle is set to keep the scrub radius to a minimum, allowing your steering servo work at it's full potential. This is combined with a Zero-Ackerman steering system to ensure maximum turning radius and smooth motion even on rough off-road terrain.Adjustable caster angle can also help in tight radius turns. A "High steer" knuckle arm system increases the approach angle, so the vehicle can climb over the obstacles more easily than typical trucks.
SD SCALER SHOCK ABSORBER
SD scale shock is a coil-over style shock absorber which is optimized for scale trucks. High durability aluminum shock bodies and 3.5mm heavy duty shock shafts will ensure smooth driving on rough surfaces. Spring adjusters make it easy to change the ride-height of the vehicle so you can quickly adapt settings to any driving conditions. MT-1903 1.9 INCH M/T OFF-ROAD TIRE
The MT 1903 off-road tires, made of super soft compound material, provide great traction. The tread patterns are suitable for off-road driving, and the large diameter of the tires enables it to run smoothly on any uneven road surfaces.
Tire Height: 109mm
Tire Width: 40mm Inner Diameter: 48mm (1.9")
1.9INCH NR01 BEADLOCK WHEEL
Width : 22mm
Diameter : 48mm (1.9")
Offset : Zero offset
Hex mount : 12mm

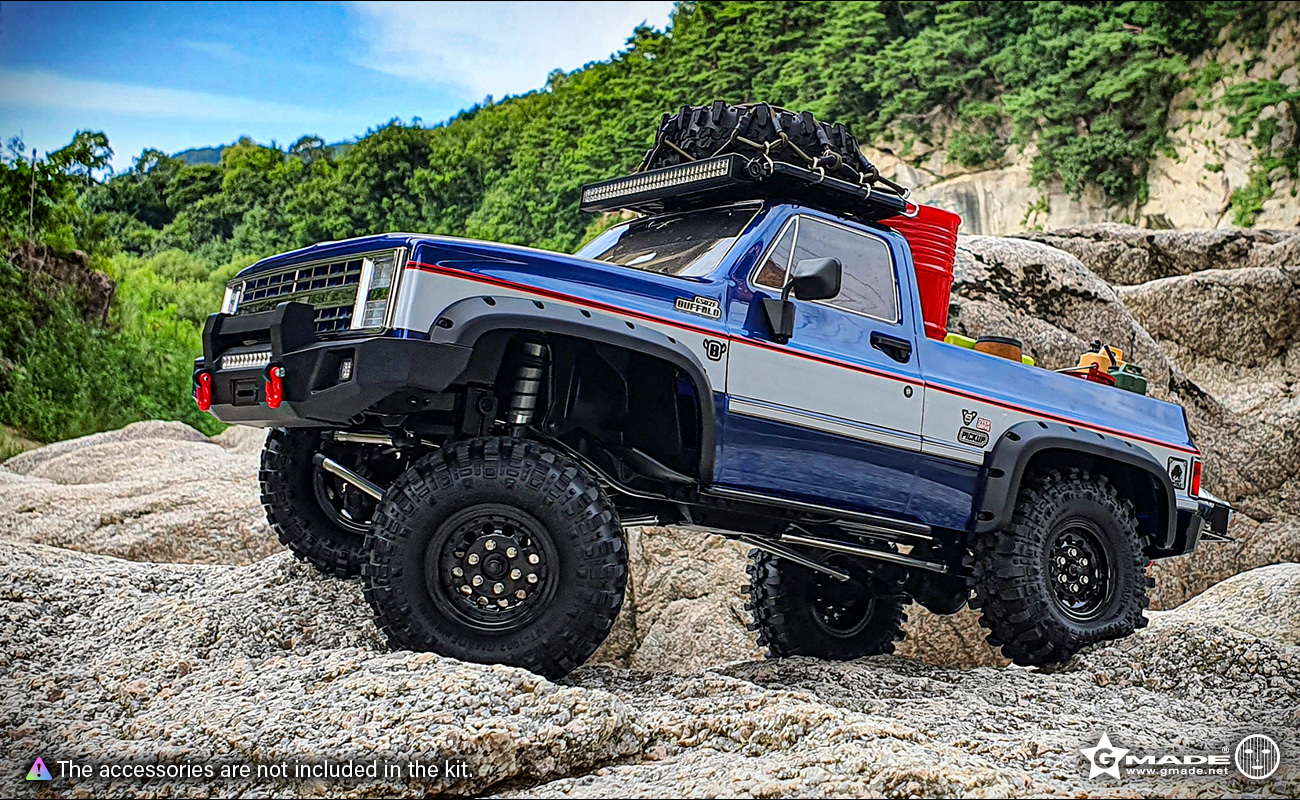

BUFFALO PICKUP LEXAN BODY
The Buffalo pickup comes with a high quality, detailed, 1.5mm thick polycarbonate body. To add realistic details it includes high-strength plastic accessories: a front grille, light buckets, side mirrors, wipers, door handles, fender flares, and a roof rack with an LED light bar, so you can have a realistic off-road vehicle to match the concept of true off-road adventures (LED lights sold separately). The kit also includes decals with realistic details.The stealth body mount system allows the body to be secured to the chassis without drilling holes in the body surface, improving the realistic looks of the vehicle.
- Width : 237mm
- Height : 249mm
- Height(without roof rack) : 242mm
- Length : 542mm
- Wheel base : 313mm
- Ground clearance : 73mm
- Weight (no electronics) : 2.16kg
Requires assembly, paint, and additional accessories. Shown assemble for display purposes only. Specifications: - Width : 237mm
- Height : 249mm
- Length : 542mm
- Wheel base : 313mm
- Ground clearance : 73mm
- Weight (no electronics) : 2.16kg
|
