1/16 R/C Leopard 2 A7V w/ Option Kit

Tariff Information update

more offers

1/16 R/C Leopard 2 A7V w/ Option Kit

Ask a question about this product

Printable version

Options

Market Price: $1704.00

Our Price:

$1099.00

You Save

36%

Quantity (1)

Details


Availability	1 in stock
Weight	10.00 lbs
SKU	TAM56047

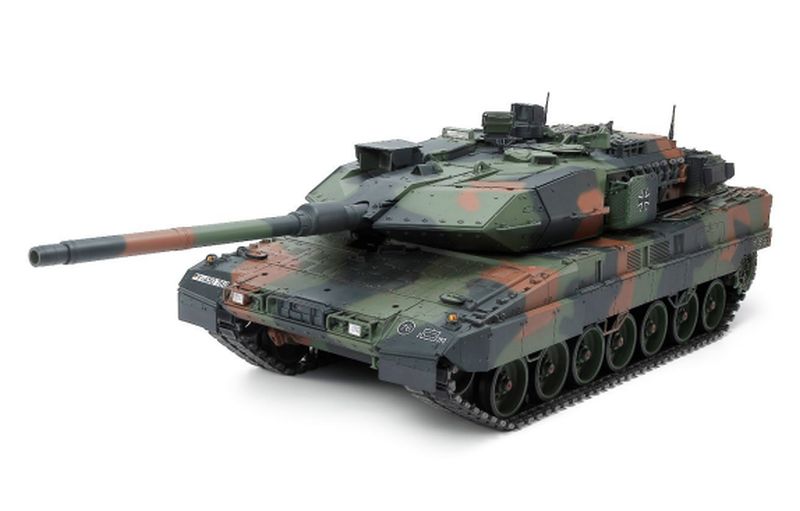

1/16 R/C Leopard 2 A7V w/ Option Kit--Last one!!

Tamiya continues to develop its 1/16 R/C Tank Series. Not only can the model move forward and backward and turn with a great sense of power, but the turret can be rotated and the 88mm gun raised and lowered. This large scale 1/16 radio control tank recreates the German Main Battle Tank Leopard 2 A7V. Thanks to extensive research of the actual tank, Tamiya's designers have faithfully depicted the updated square headlights, front additional armor plate and updated turret rear shape.

Features:

Just like the full-size tank, this model has all-wheel independent suspension with torsion bars for superior mobility. Suspension arms are die-cast (plastic for Item 56020 (1/16 R/C Leopard 2 A6)) for higher quality and reliability.
Pre-assembled tracks have inserted rubber pads.
The gun barrel is aluminum, and the chassis is ABS plastic.
The DMD T-12 control unit provides a gun barrel control system. Features volume adjustment using transmitter, which was not possible for Item 56020.
Gun barrel control system controls gun elevation and turret direction, keeping the gun trained in a single direction.
Control Unit uses 4 channels to control forward/back movement, sharp and pivot turning at any speed. Gun elevation, recoil and turret rotation can also be controlled. Engine sounds are synchronized with model speed, while main gun and machine gun firing are realistically accompanied by lights and sound (facilitated by DMD Multi-Function Unit).
DMD control unit and battery pack are installed inside the turret. The pin-attached upper turret allows easy replacement of battery pack. Also, the magnet-attached hatch at the turret rear allows quick access to power and setup switches.
Features Type 540 motors (x2, running), type 130 motor (x1, turret rotation), TSU-03 servo (x1, gun elevation) and type 130 motor (x1, recoil).
Compatible with Item 53447 (Battle System)

Specifications:

1/16 scale R/C model assembly kit
Length: 701mm
Width: 241mm
Height: 190mm
Weight: 4,900g

Required to Complete:

Tamiya 4-channel Attack radio
7.2volt battery with compatible charger
Tamiya modeling paints

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$279.99 279.99

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1.65 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 23x8, 24x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:

Two crankshaft bearings-simple design for lighter weight
Aluminum alloy crankcase
Four petal V-type reed valve bottom induction system
Walbro carburetor
Fully automatic electronic ignition
Two year limited warranty through Hobby Services beginning at date of purchase
INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$429.00 429.00

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
