Power Board - PRO SERIES - Yellow (4105)

All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.

The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause). Note: the 4th and 5th channel has 3 outputs allowing control of 3 servos at the sametime, for example [(1) left flap/lower dive brake, (2) center flap and (3) right flap/lower dive brake]

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.

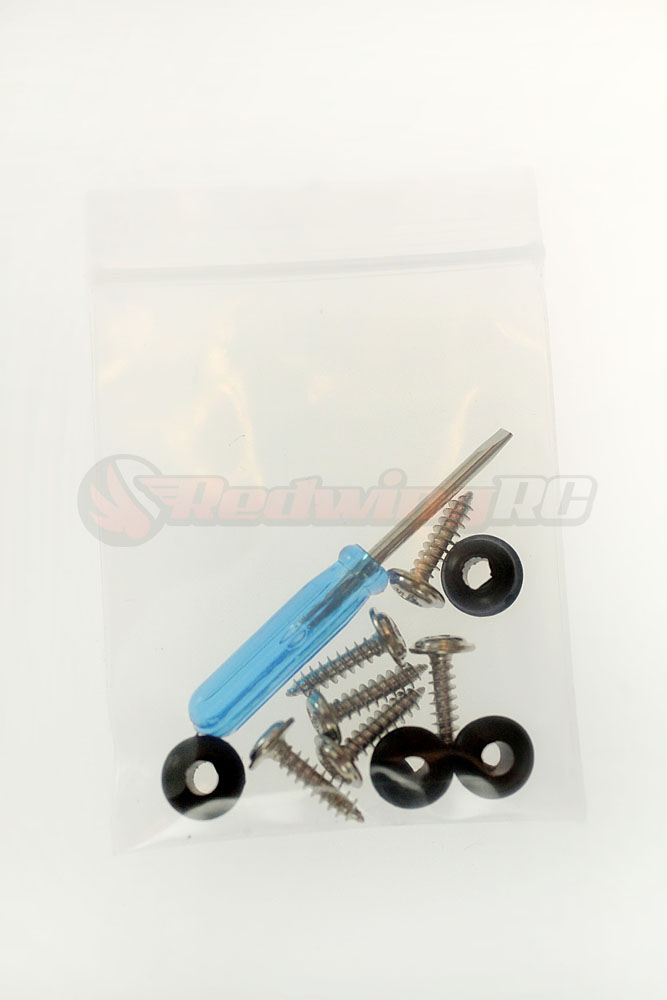

They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.

**Please note the input voltage for this unit MUST be between 7v-13v. Our 4S LiFe batteries would be ideal for this unit, providing selectable voltage from 4.8v to 10.9v to the servos. If using 3S LiFe (9.9v), the approximate adjustable voltage to servos would be 4.8v-7.6v and 3S LiPo (11.1v) will provide approximate selectable voltage 4.8v-9.7v to the servos.



Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:

Yellow Power Board (4105)

• Dual battery redundancy for safer flying

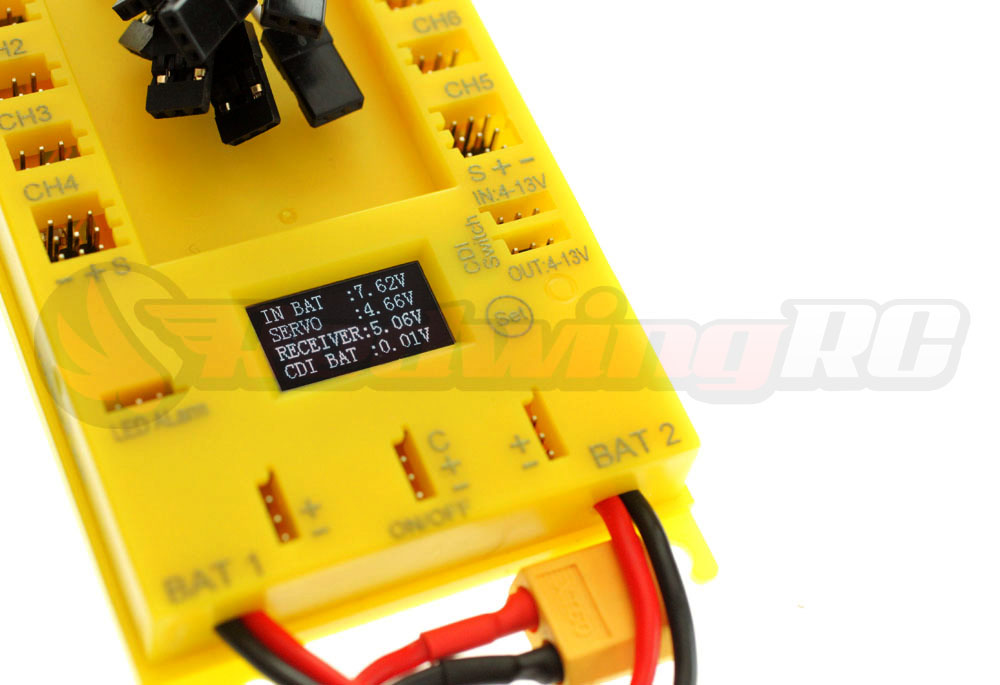

• LCD display which shows real time info of your in and out voltages
• Built in regulator that supplies a clean 5v to your receiver
• Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
• 8 channels in, 16 channels out (+ ignition)
• Electronically isolated for interference free flying

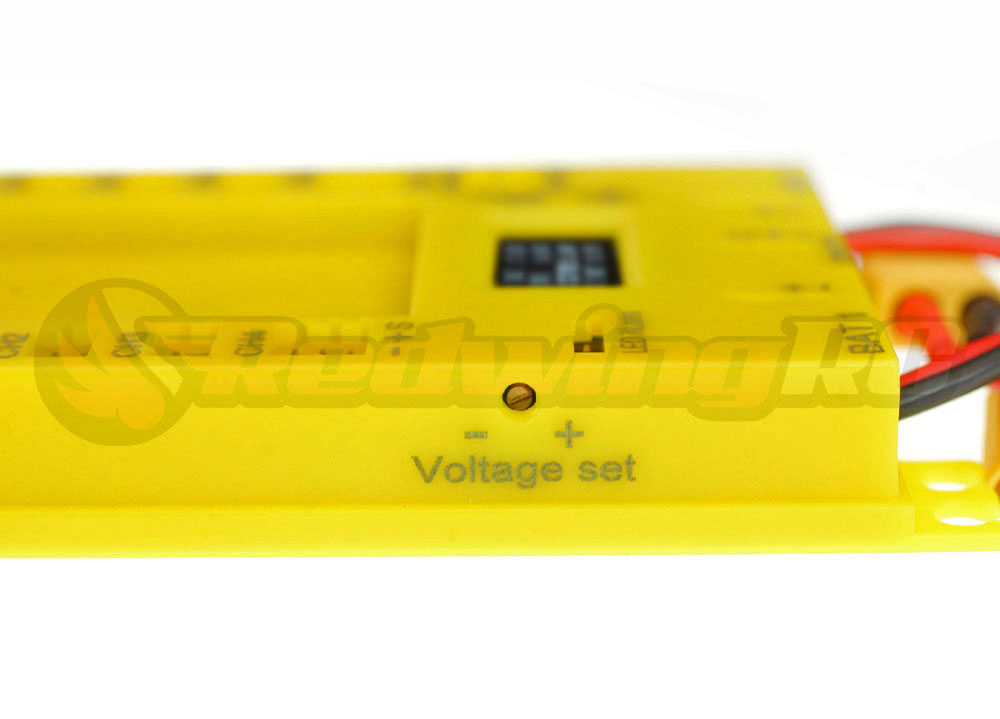

• Adjustable voltage selection to your servos via the dial on the side (from 4.8v to 9.7)
• Ability to use High voltage servos while providing a clean 5v to your RX

  **Please note the input voltage for this unit MUST be between 7v-13v. Our 4S LiFe batteries would be ideal for this unit, providing selectable voltage from 4.8v to 10.9v to the servos. If using 3S LiFe (9.9v), the approximate adjustable voltage to servos would be 4.8v-7.6v and 3S LiPo (11.1v) will provide approximate selectable voltage 4.8v-9.7v to the servos.

Specs:

Yellow Power Board (4105)

• Input Voltage: 7-13v
• Working load: 0A to 30A
• Weight: 3.5oz.
• Dimensions: 4.5"x2.5"x5/8"
• Working Temperature: -20c to -85c

Recommended Set ups: Yellow board for 30cc to 100cc or larger using ANY servos.
