Vogee-16 Gas or Electric Sport Trainer (63"/1600mm) Balsa ARF-PNP

NGH GT9-Pro 9cc engine option
Fuel Tank Kit option
Ask a question about this product
Printable version

Share

Options

Market Price: $499.00
Our Price:

$299.00
You Save

40%
Optional Versions
Gas Engine Combo
Gas Power Combo
Quantity (9)

Details

Availability 9 in stock
Weight 5.00 lbs
SKU DW-TCG1601-Vogee

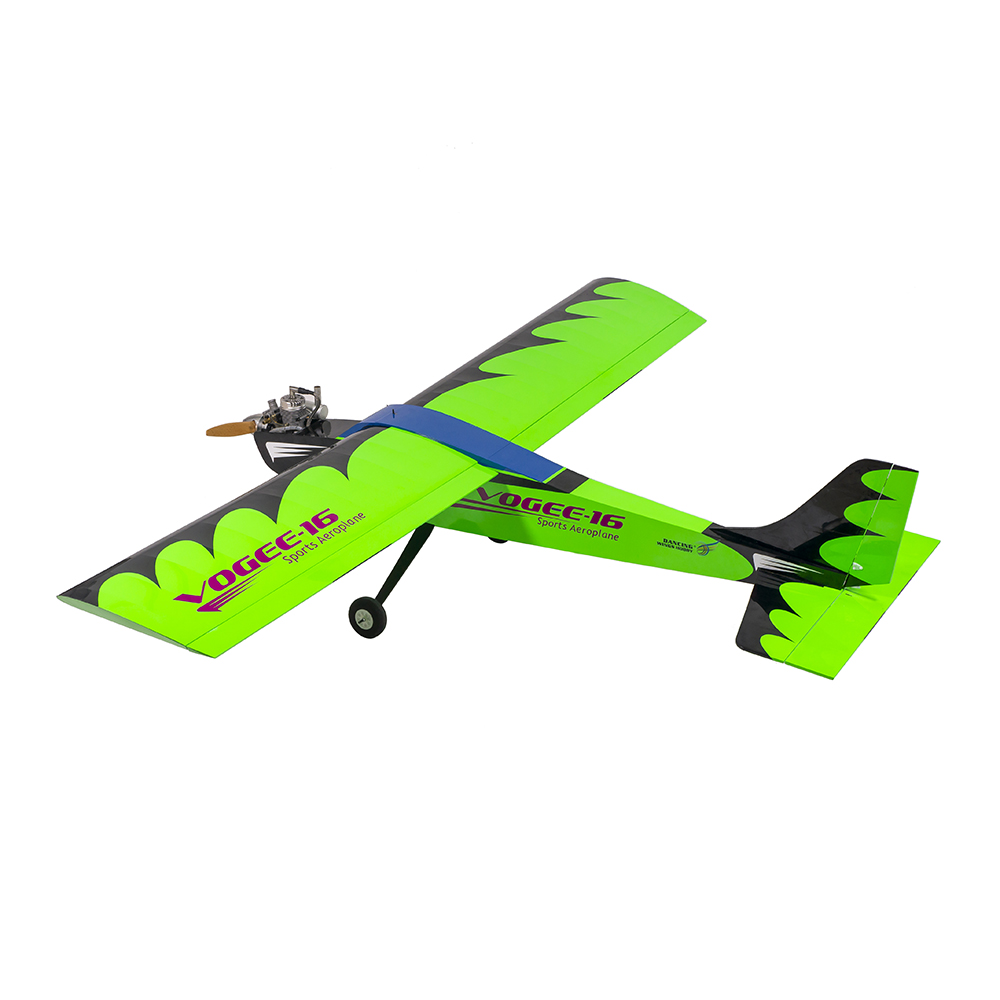

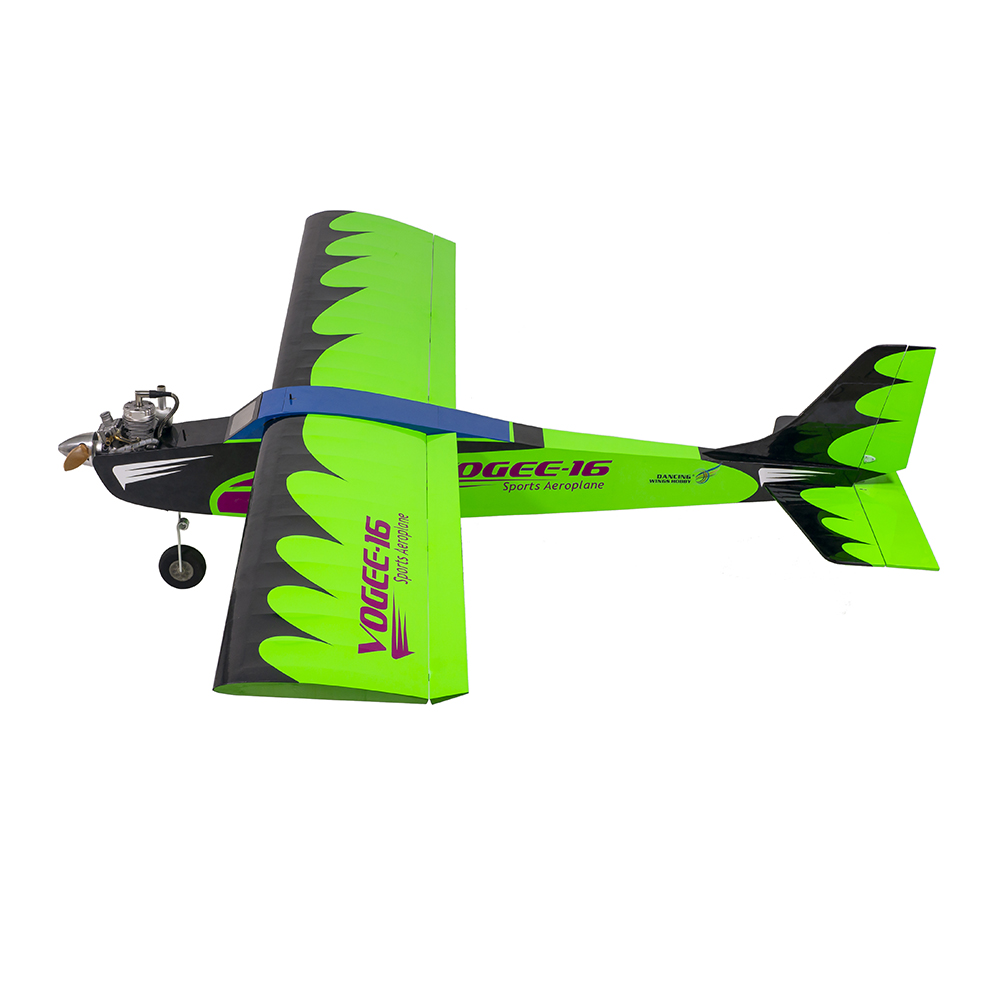

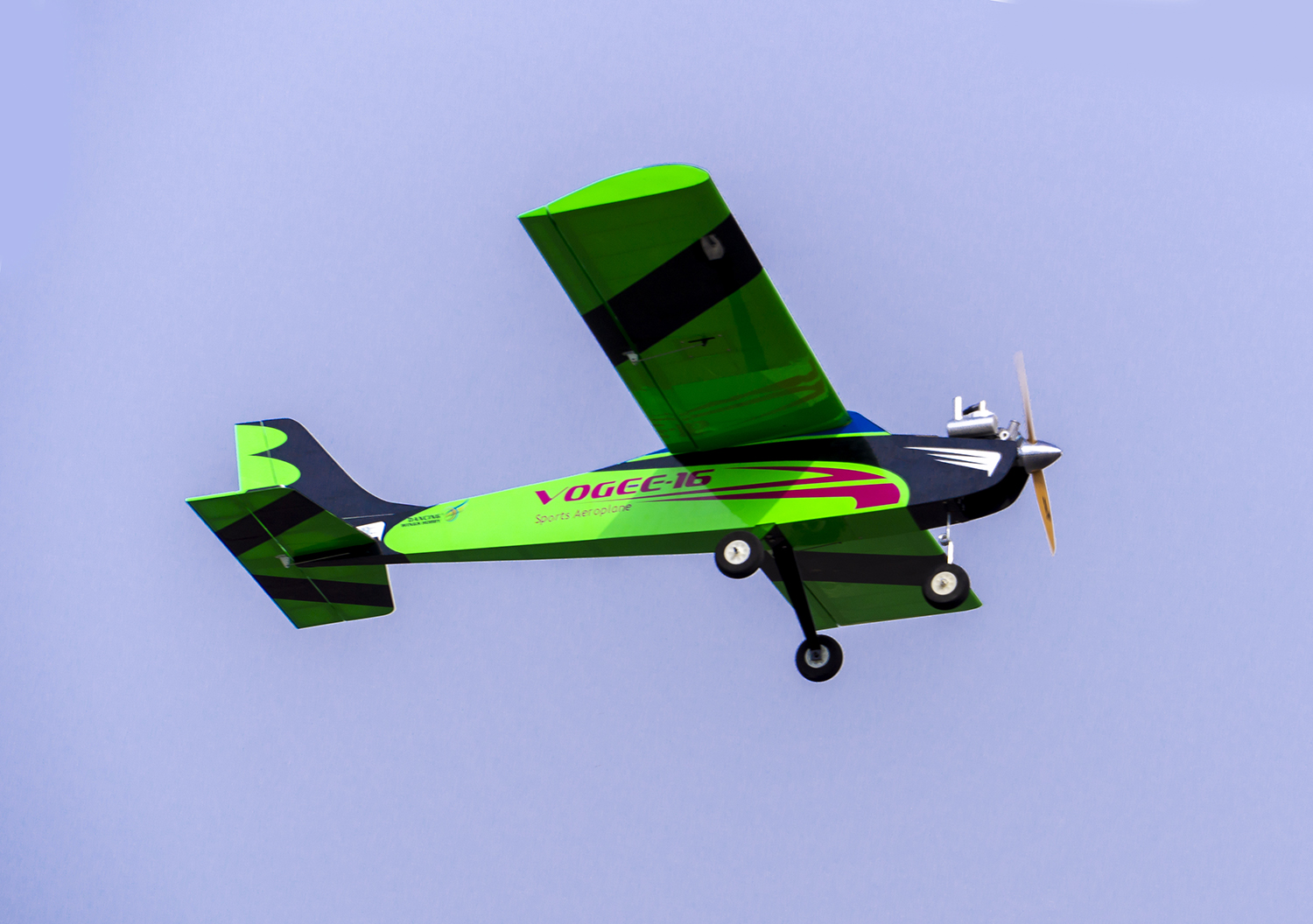

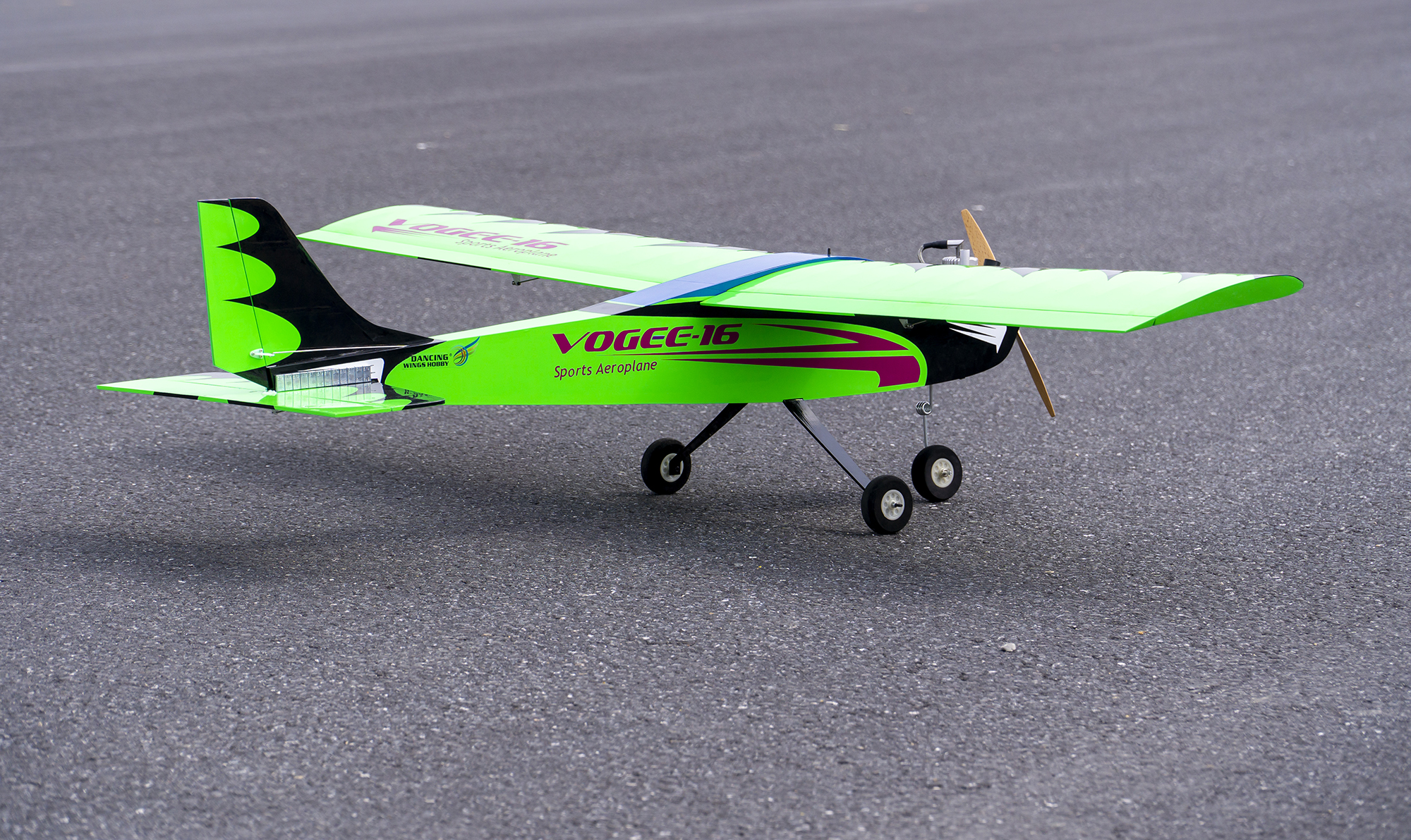

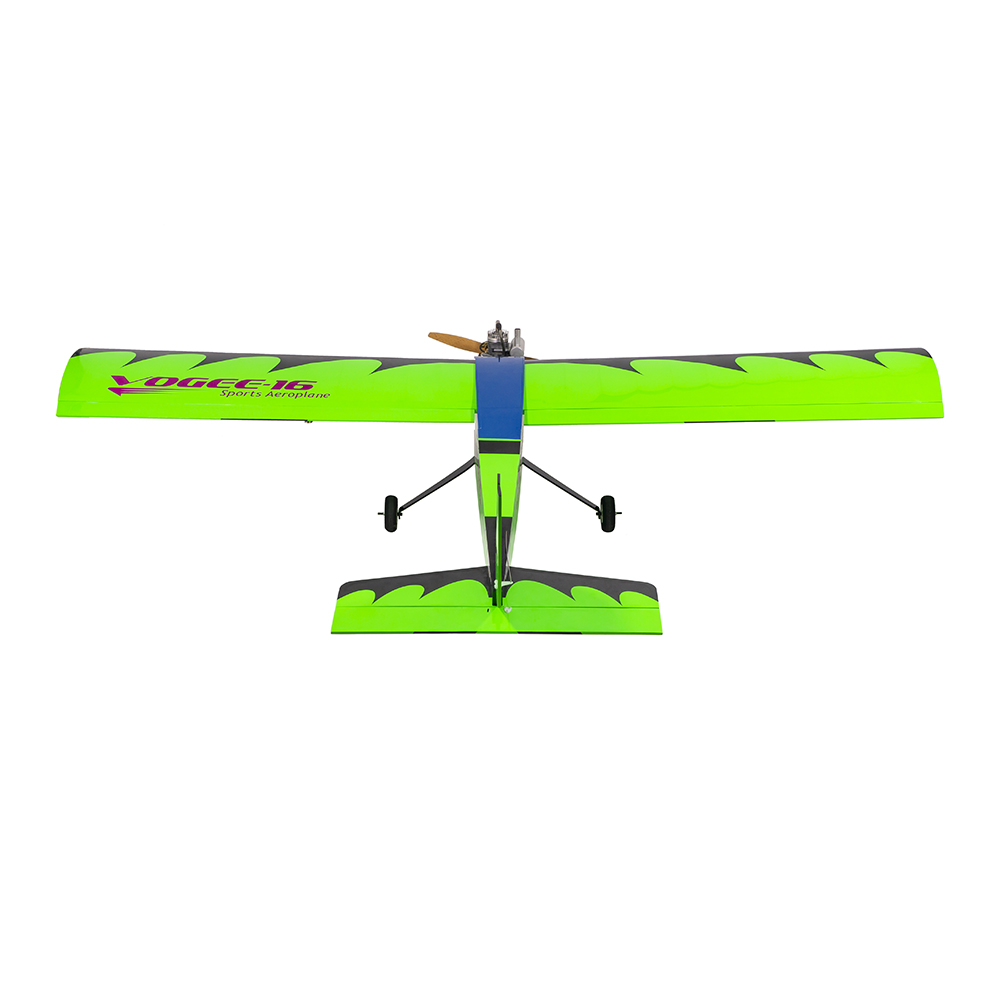

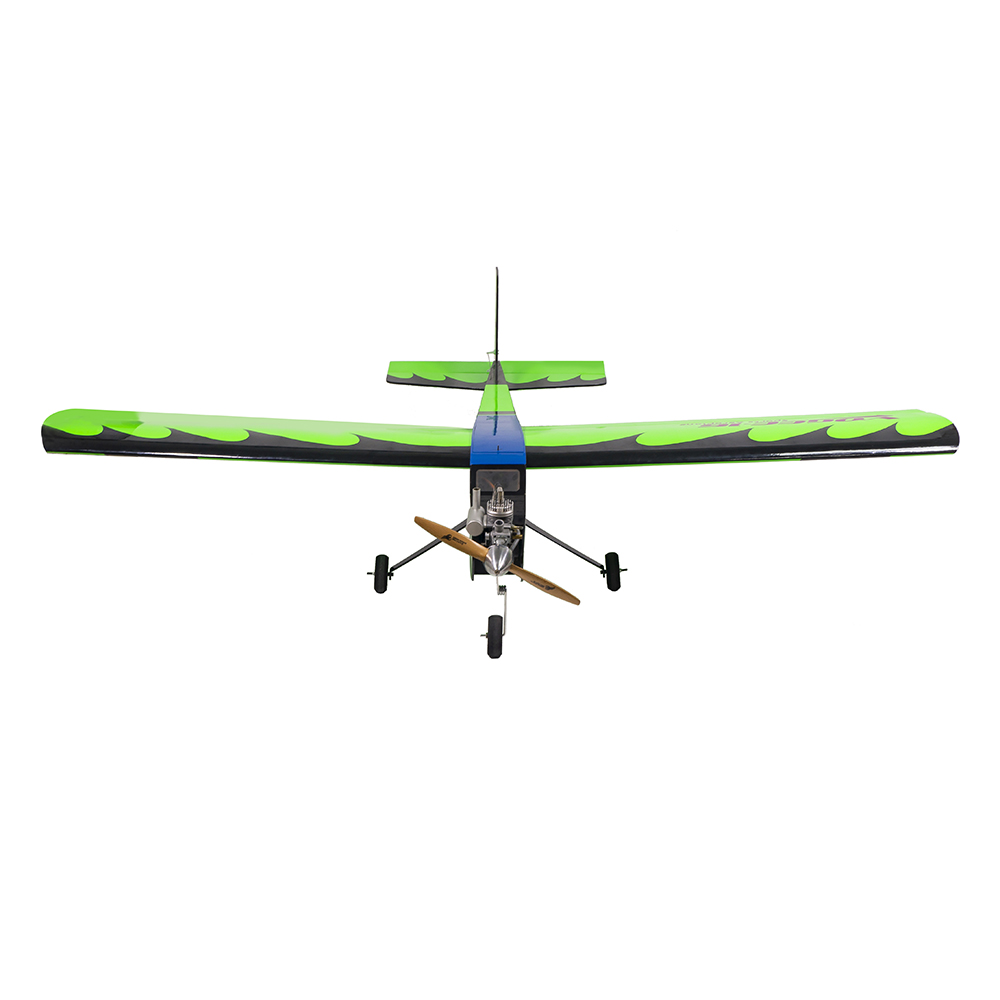

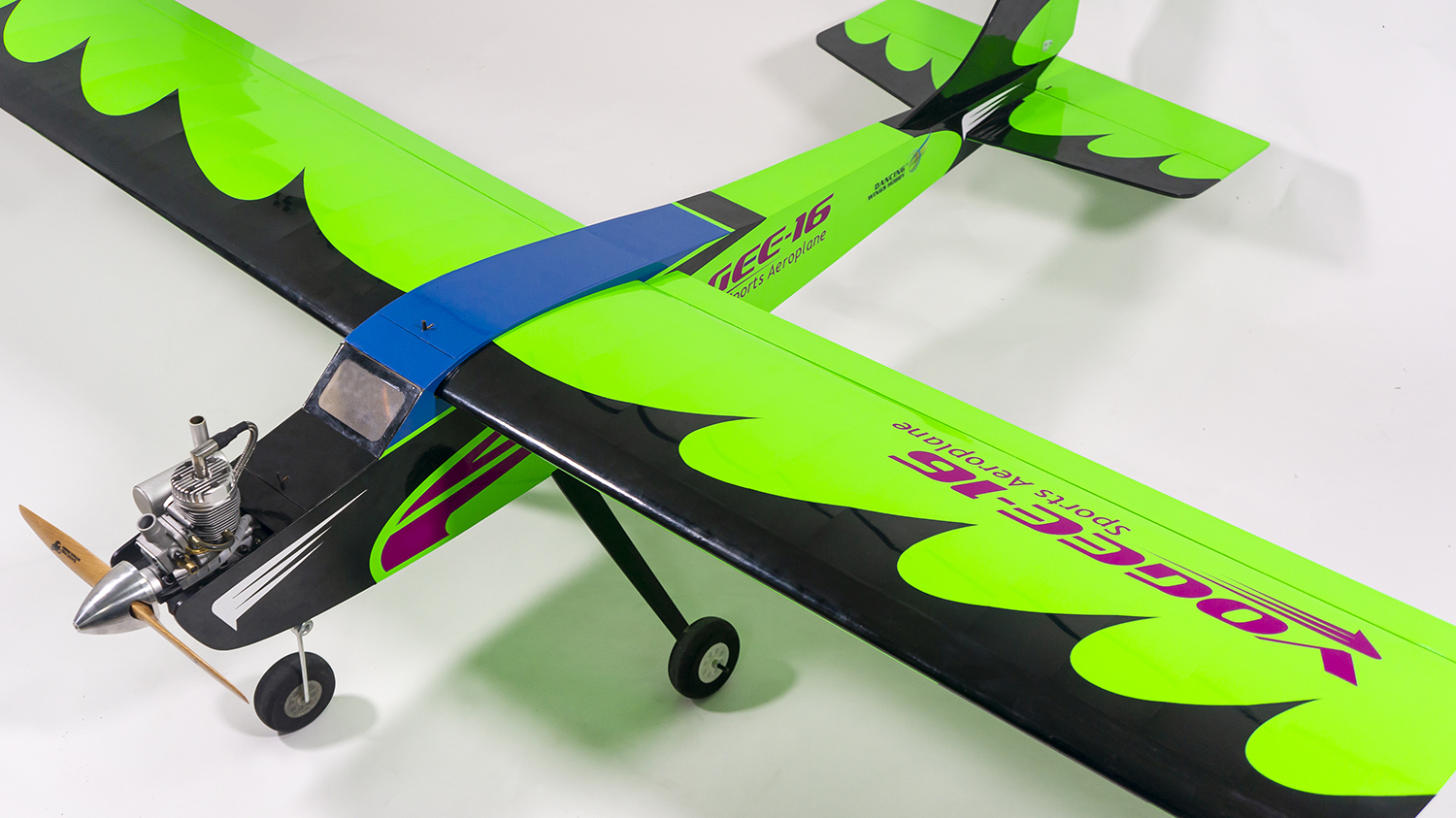

Vogee-16 Sport Trainer (63"/1600mm) Balsa ARF-PNP

Redwing RC is proud to offer The Vogee-16 Almost-Ready-to-Fly (ARF) High-Wing Sport Trainer. This model with its giant scale 1.6M wingspan captures the very essence of an entry level Trainer aircraft and can be gas or electric powered. Made from light balsa and hardwoods with all parts pre-covered with vibrant color scheme makes the perfect model. This Kit is easy to assemble and pilots only need to assemble the pre-covered peices, install the elctonics and power system.  The large High-Wing surface helps make this aircraft very stable for beginner pilots or seasoned pilots as a sport trainer aircraft. The pre-covered kit has a vibrant Black/Green color scheme which help pilots with visibilty and tracking the plane. See our price saving Combo deals!

Features:

  • Extra large wing area provides optimal lift allowing short distance take-offs and landings and stable flight!
  • Increased servo areas by 30%, provides more maneuverability than traditional trainers
  • Optimized Center of Gravity, allows this large model to operate on 9-10cc gas engine
  • Made with 53% light wood, take-off weight ~2.1-2.7kg (about 10-15%) lighter than similar models with the same size wingspan
  • Lighter weight allows better flight performance and longer flight times

Kit Versions:

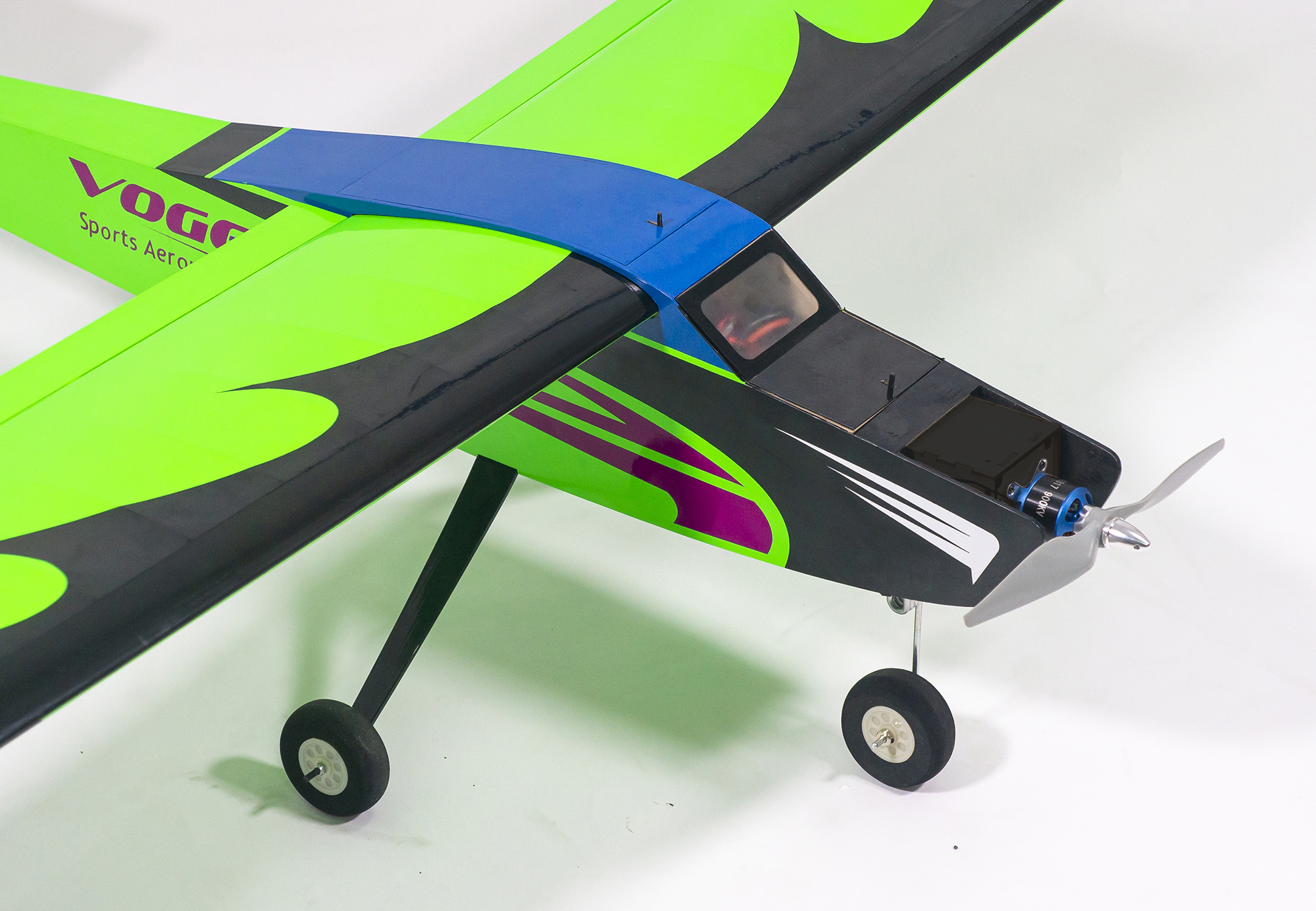

  • ARF+Power Pack=ARF Kit+ 2x37g and 2x17g metal servos, Brusless MO2817 900KV, 60A (4S) ESC and 11" prop

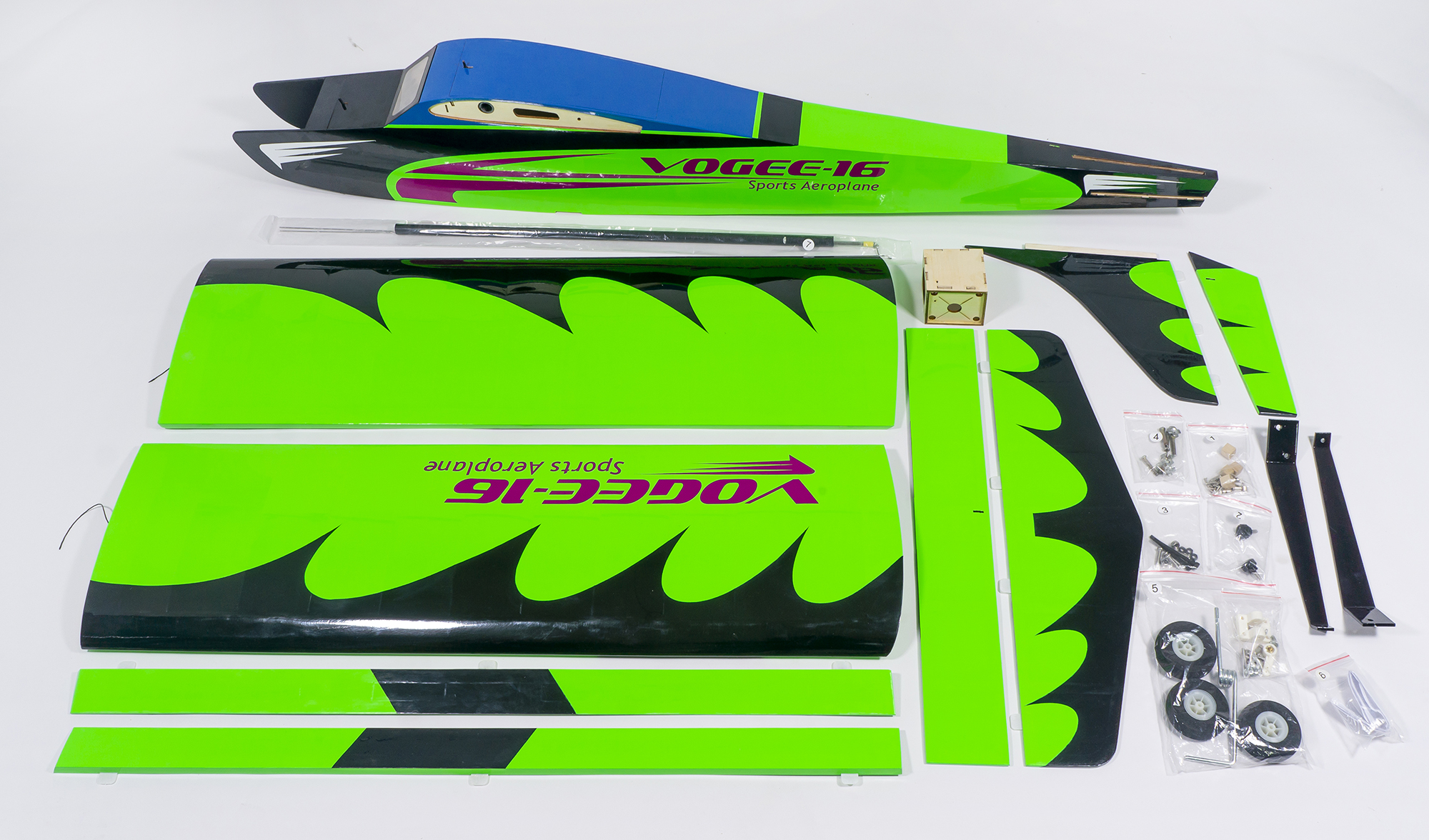

  • ARF=Pre-covered Balsa Airplane Kit only (no electronics)

What is required:

  • 4-Channel or above transmitter
  • 4-Channel receiver
  • 4S 14.8V 2200-2800mAh XT60 connector,  Li-Po battery and charger

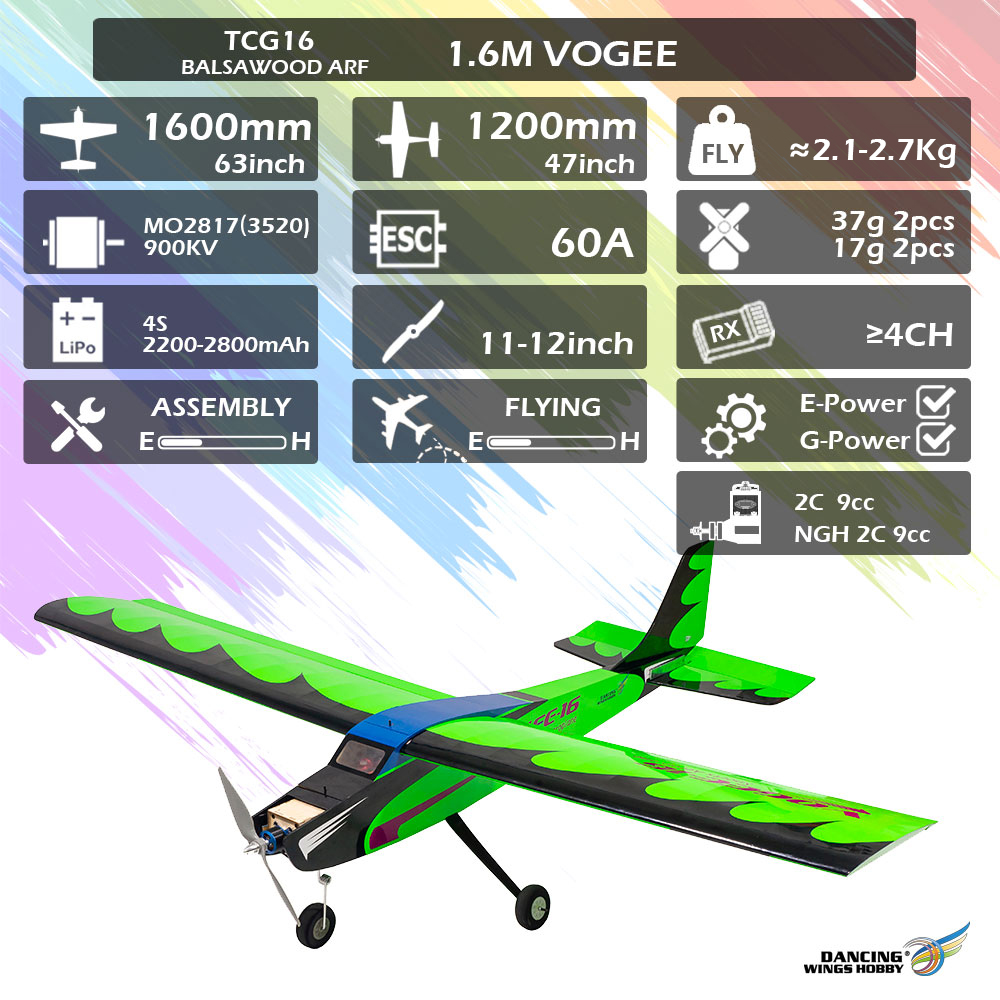

Specifications:

  • Material: Balsa Wood
  • Wing Span: 1600mm (63 in)
  • Flying Weight: ~EP 2.1kg / GP-2.7kg
  • Fuselage Length: 1200mm (47 in)
  • Electric Motor: MO2817 900KV Equivalent Brushless Motor
  • ESC: 60A (4S) ESC
  • Propeller: 11 inch
  • Servo: 37g 2 pcs and 17g 2 pcs
  • Gas Engine: NGH 9cc or Stinger 10cc SE
  • Elevator: Yes
  • Rudder: Yes
  • Ailerons: Yes
  • Flaps: No
  • Landing Gear: Fixed

$20 Flat Shipping US only--contact us at [email protected] to calculate international shipping cost

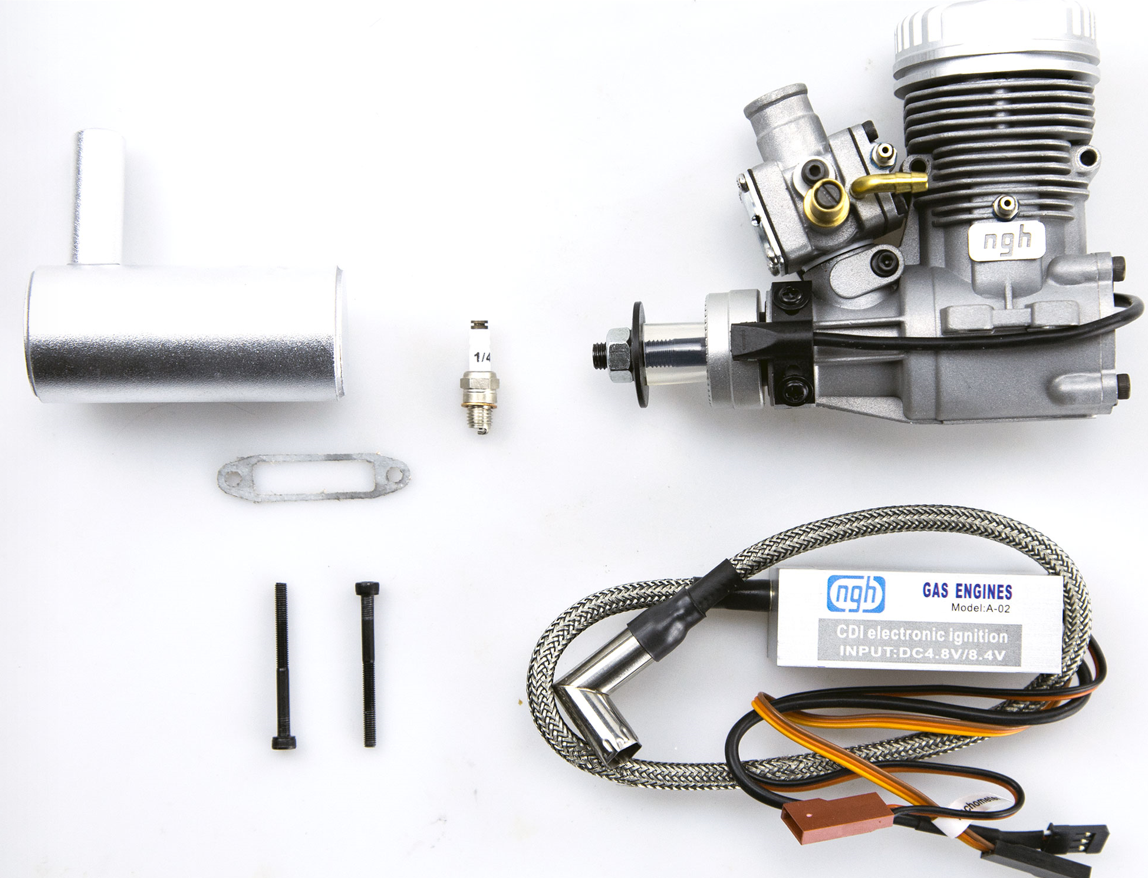

NGH GT9-Pro 9cc engine option

NGH GT9-Pro 9cc engine option

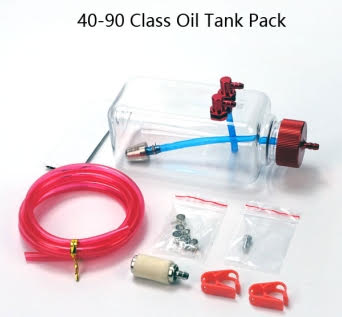

Fuel Tank Kit option

Fuel Tank Kit option


: *
: *
: *

DLE 35RA Engine

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00

DLE 55cc Engine

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$429.00

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle long fuel filling nozzle with fuel filter.
Available in Red, Gold, and Blue.
Please make a note of your color choice.

MRC-H-010

$5.00
