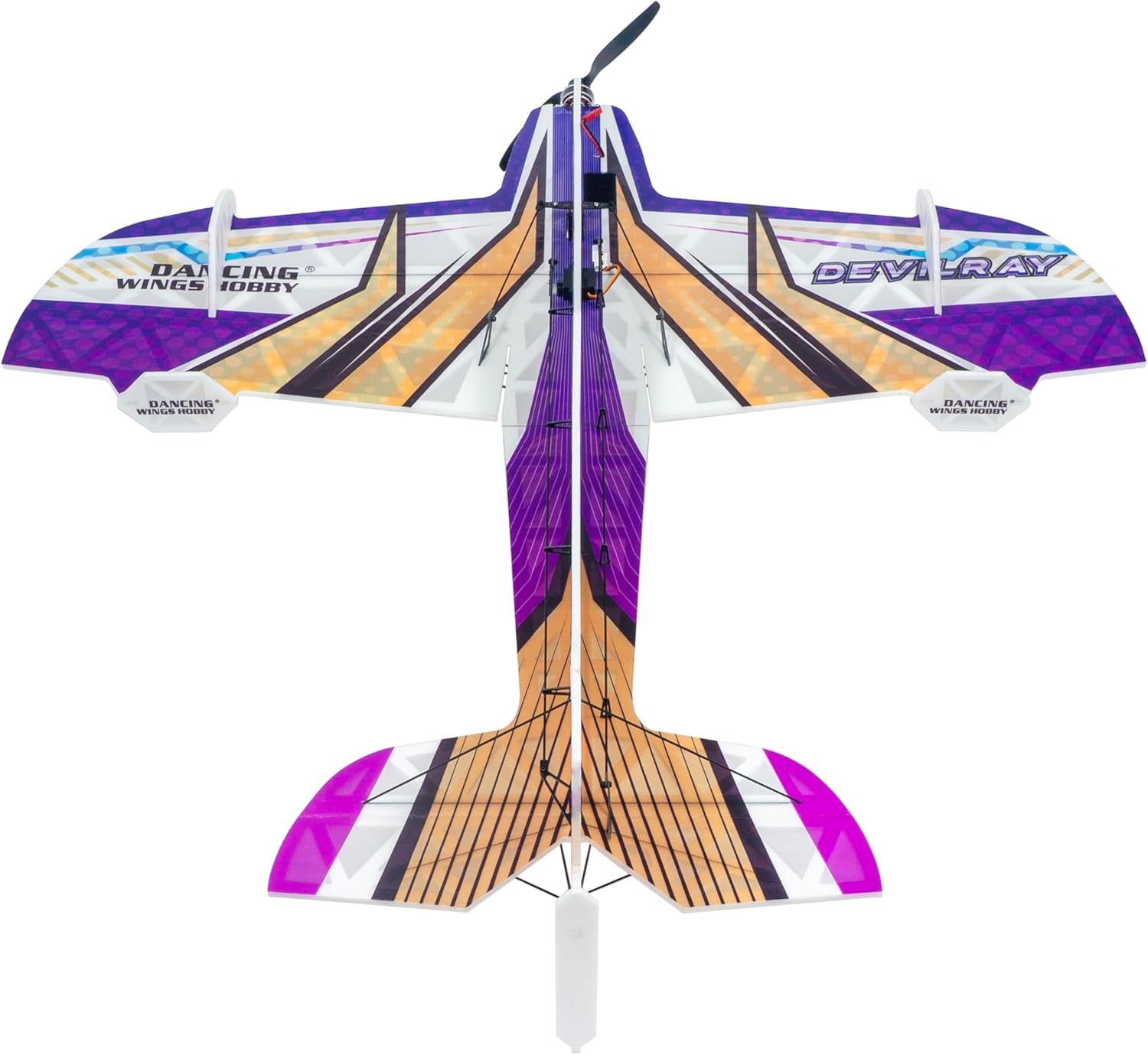

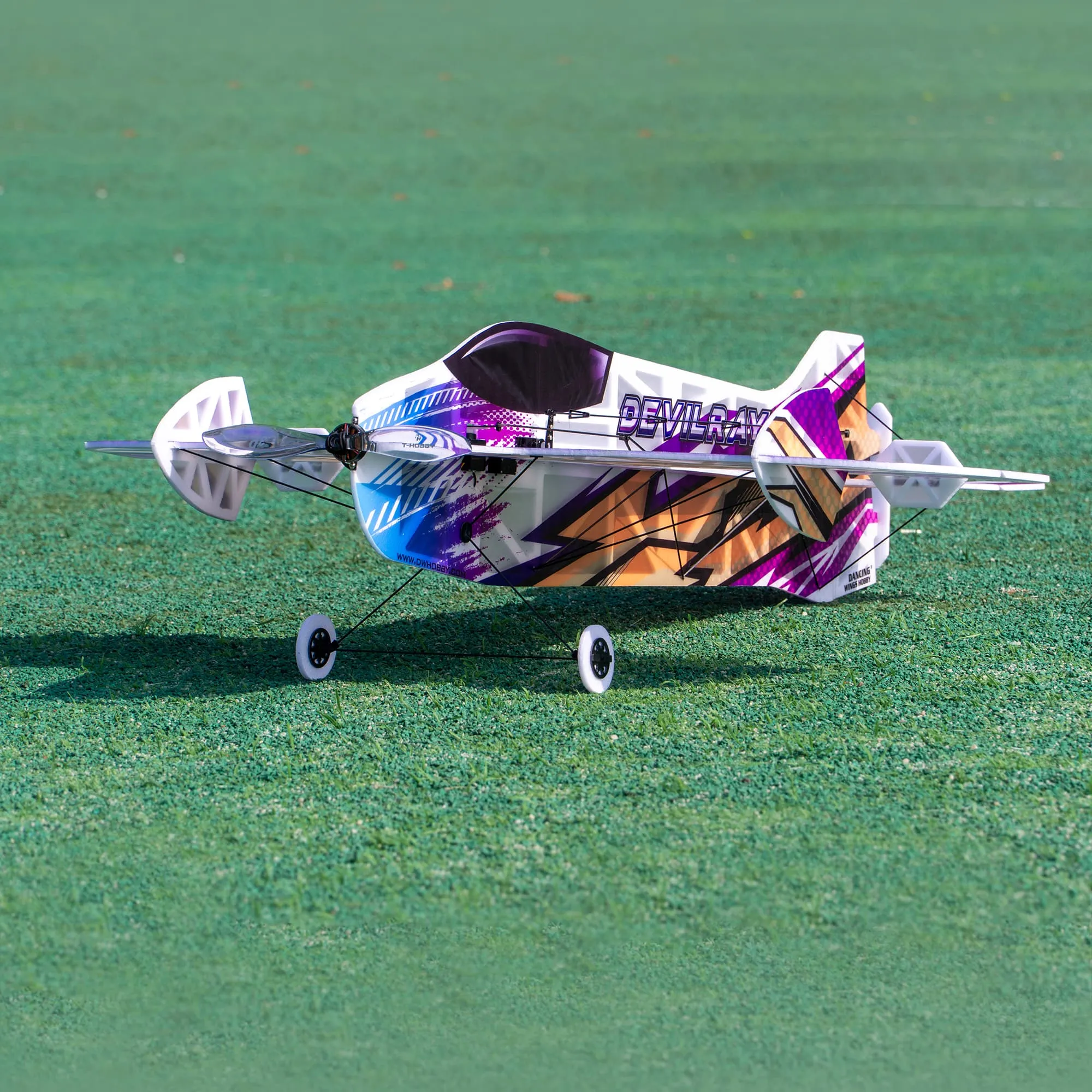

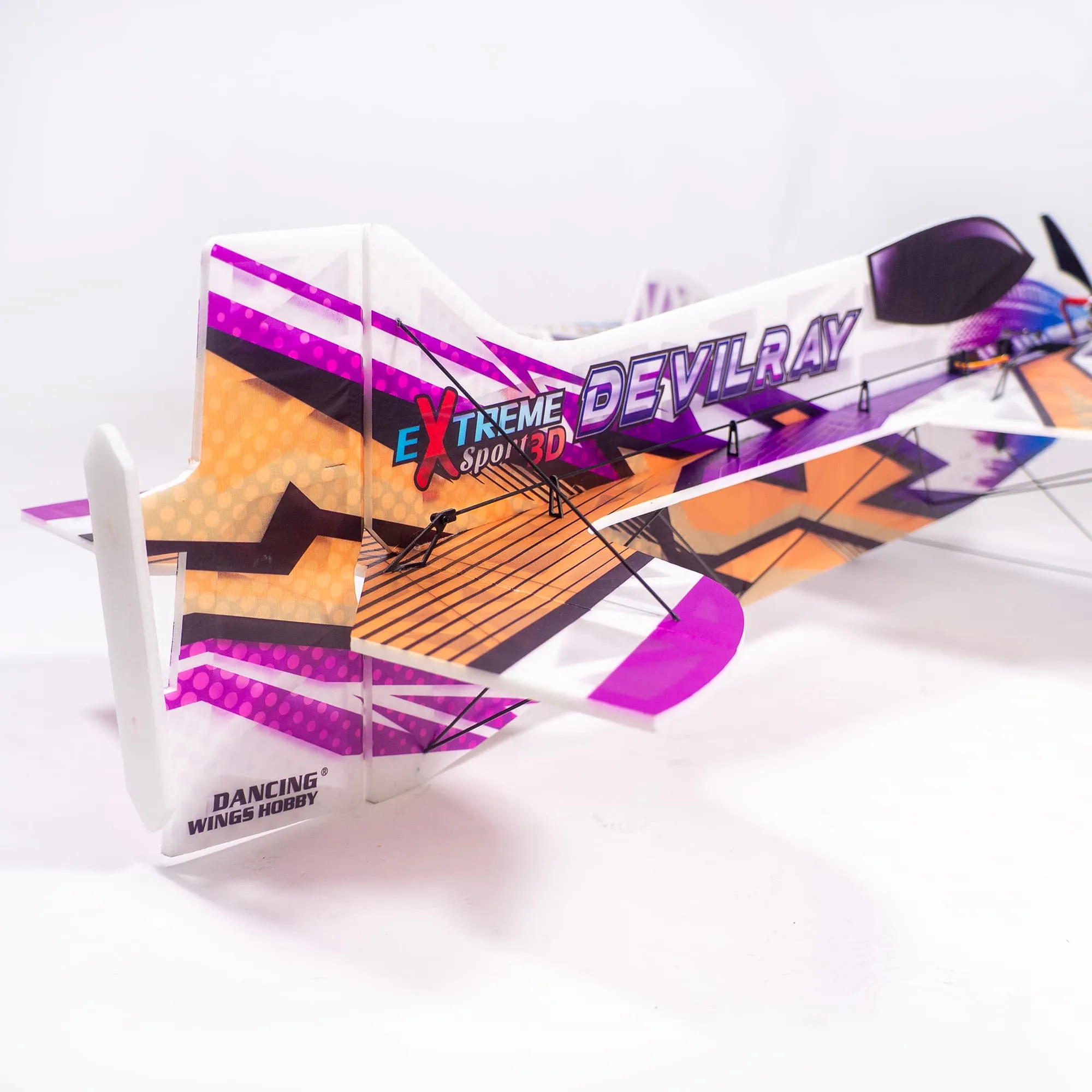

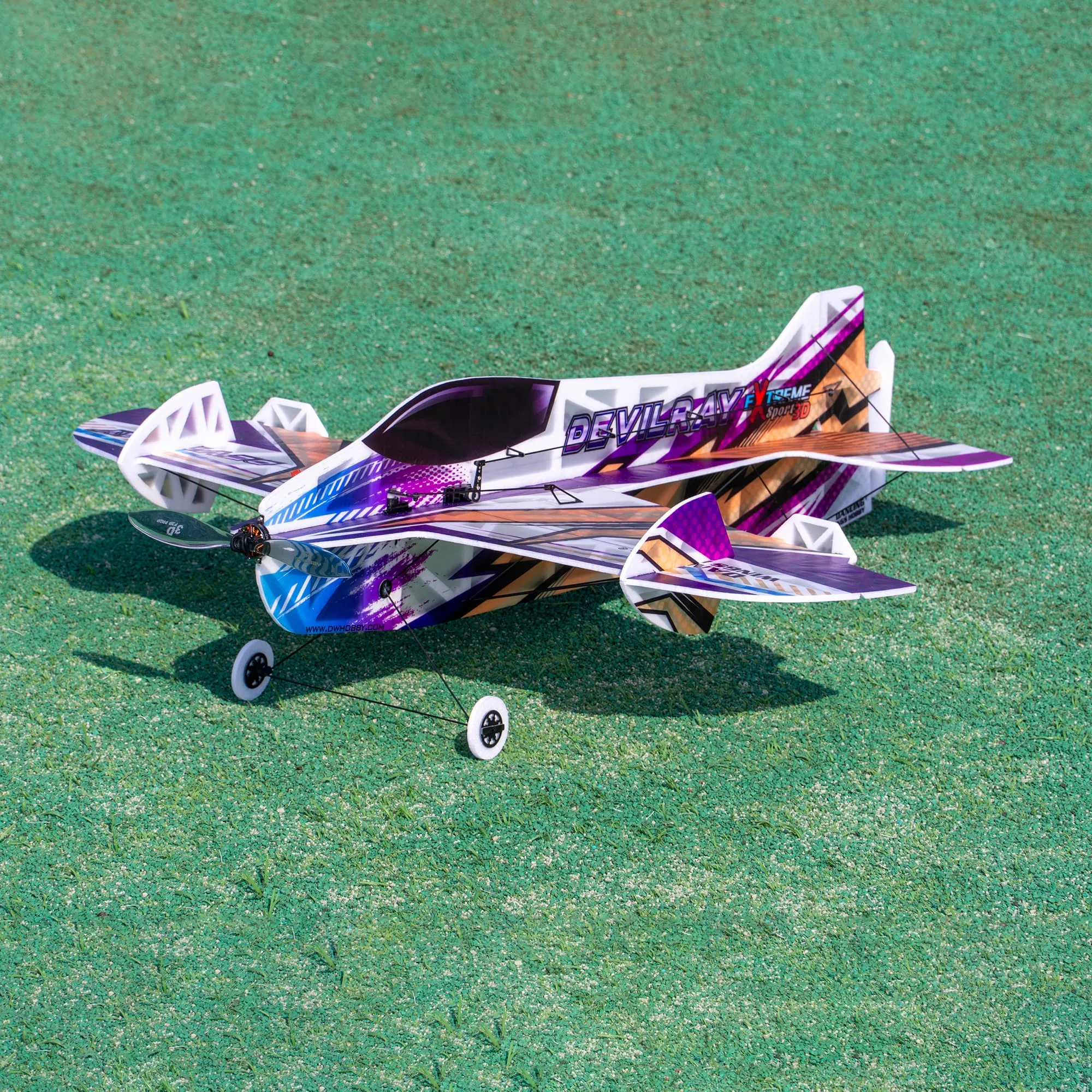

Ultra-Light F3P 3D/4D Devil Ray 800mm (31.5") Wingspan 3D or 4D version Extreme Aerobatic Trainer (UV-Printed Film Covering) | Pre-order sale $25 off! Estimated Arrival Jul - This is an EXTREMELY popular product and quantiities limited and will likely sell out before they arrive, so we STRONGLY recommend pre-ordering if you wish to receive one from the first shipment.

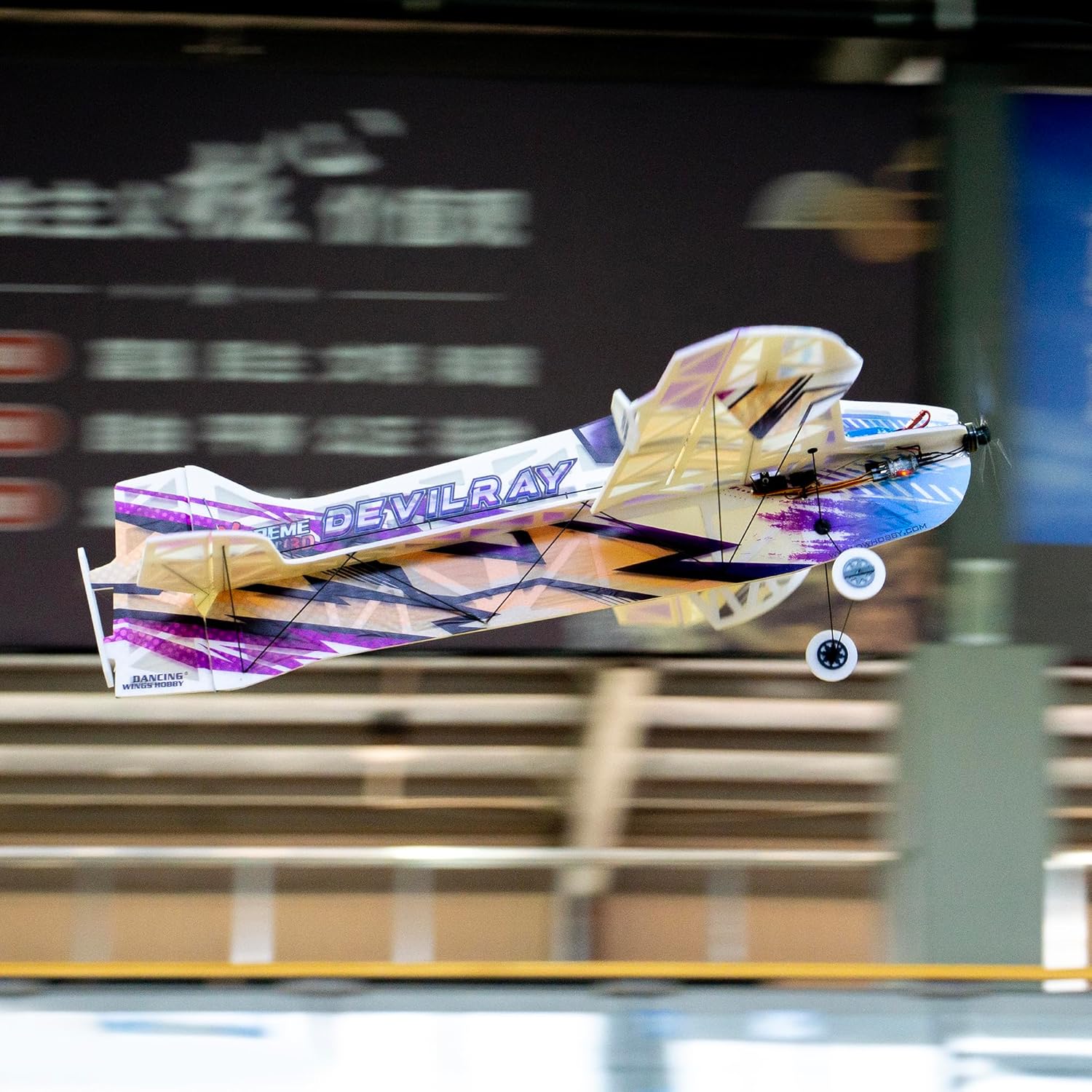

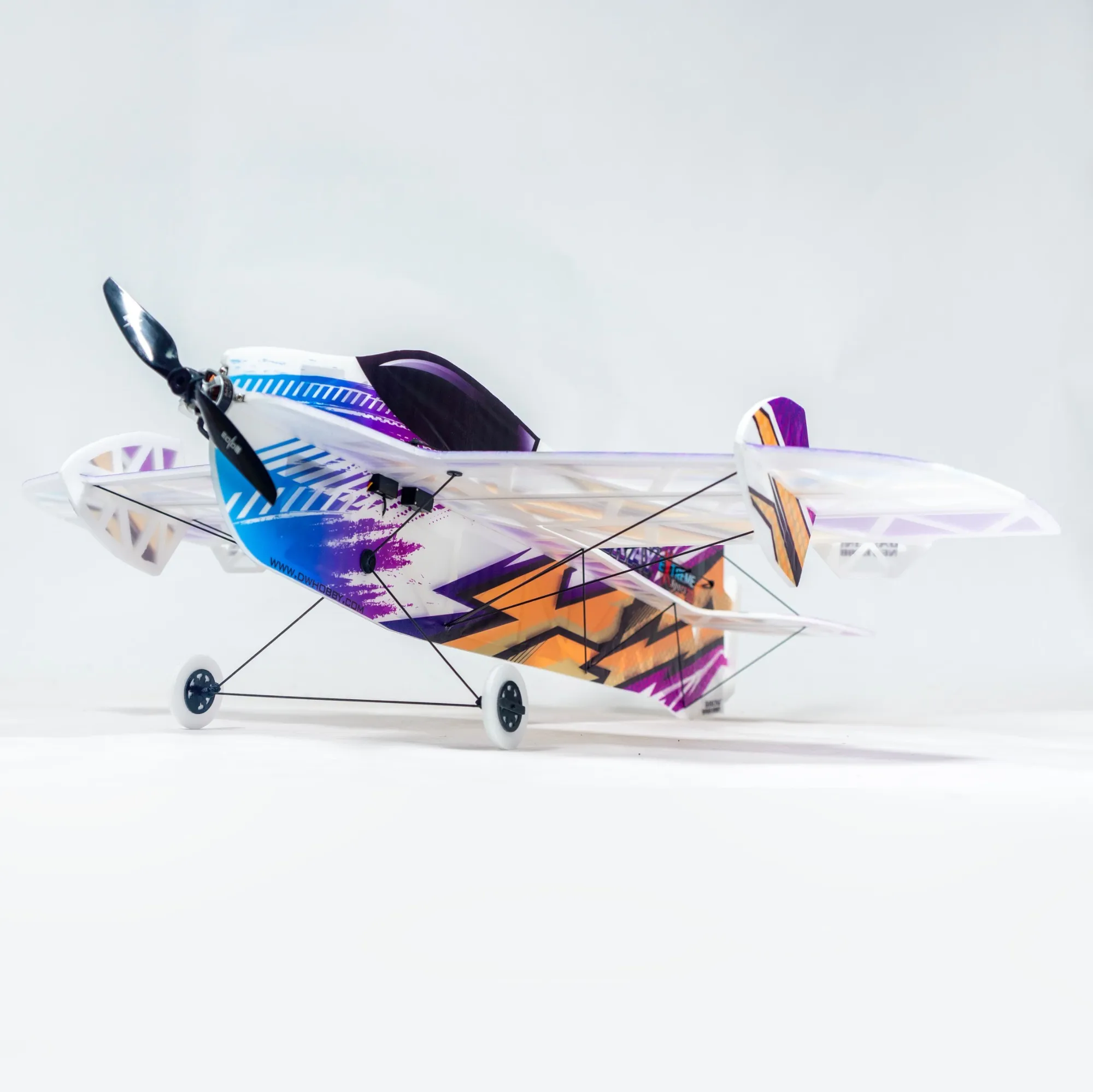

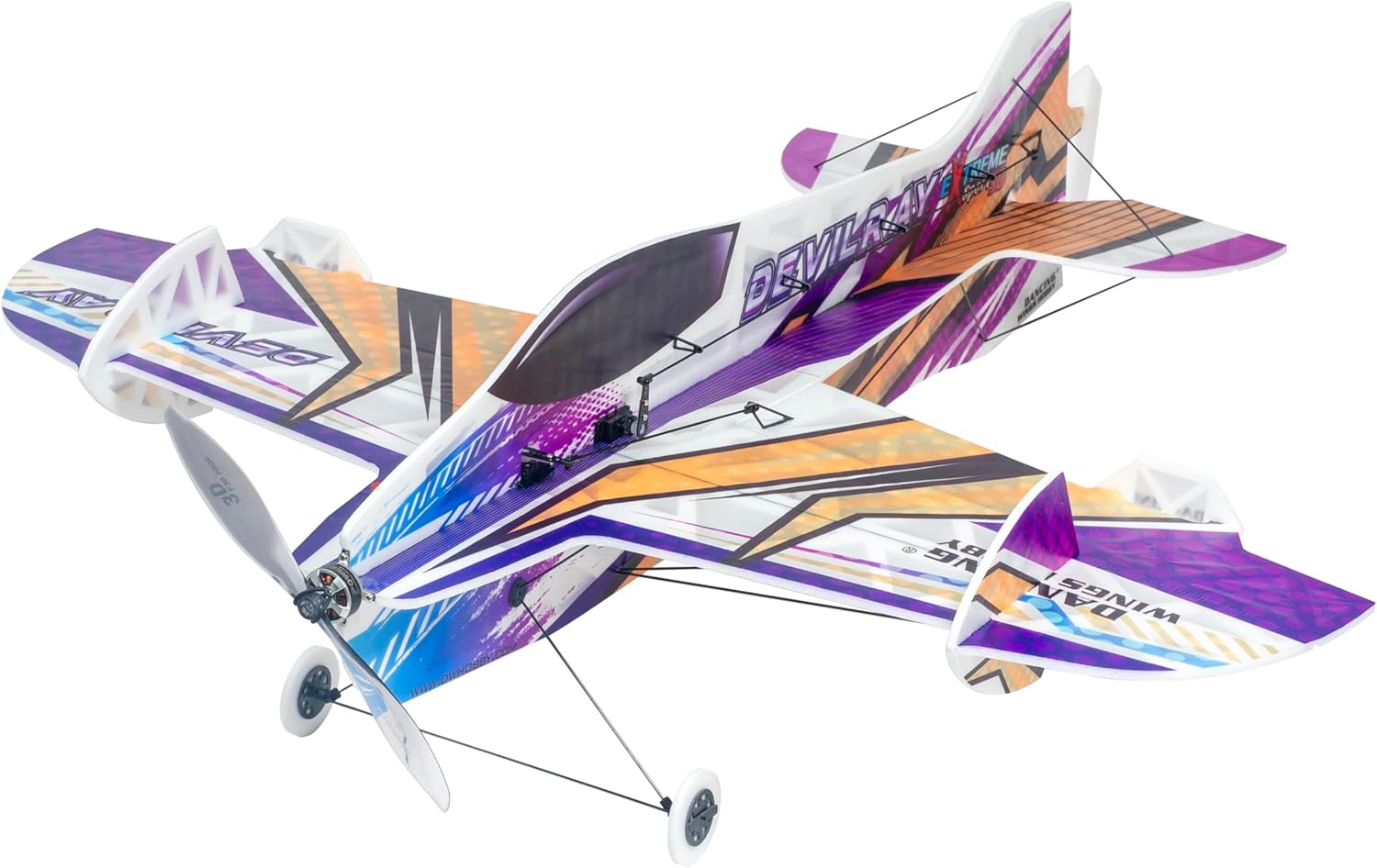

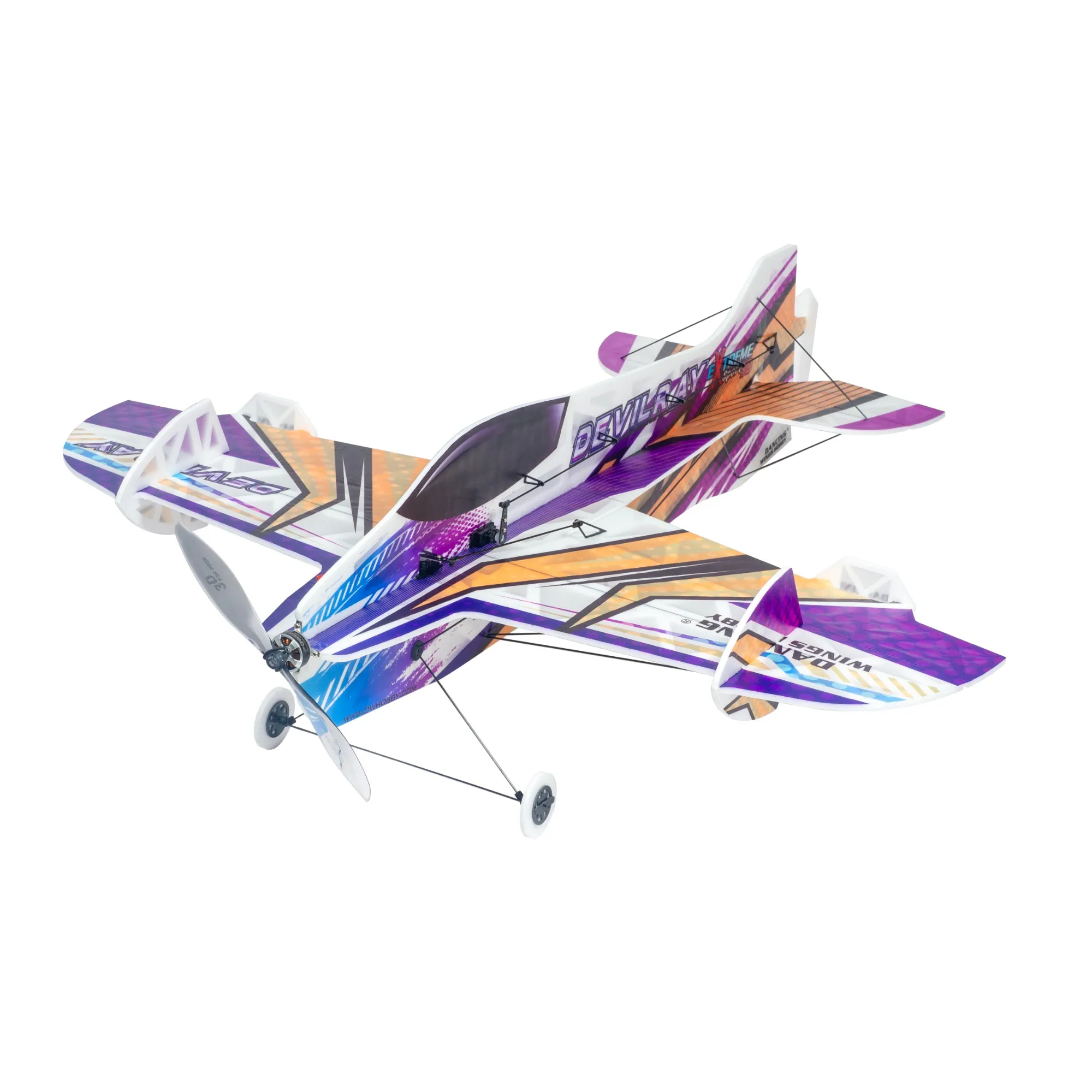

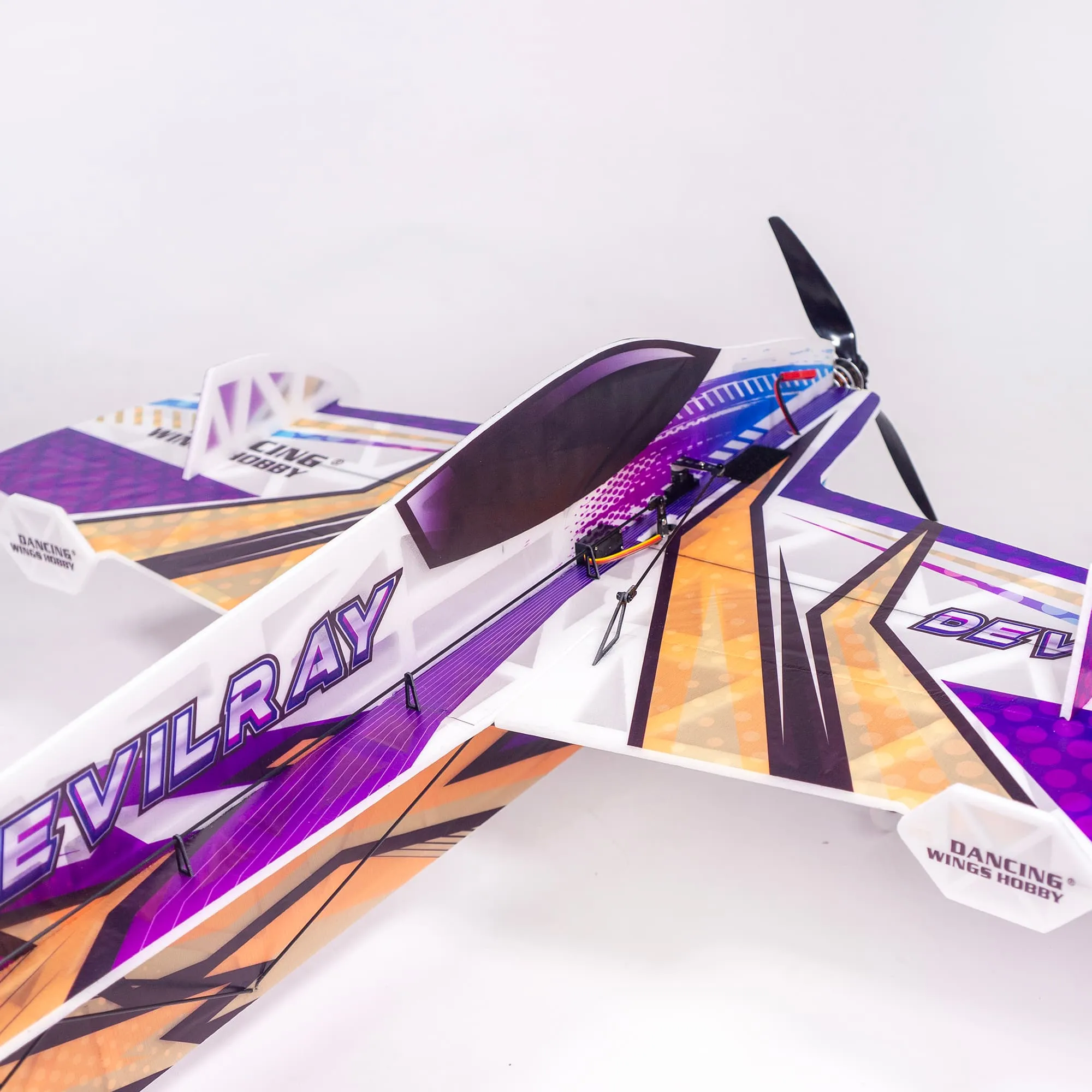

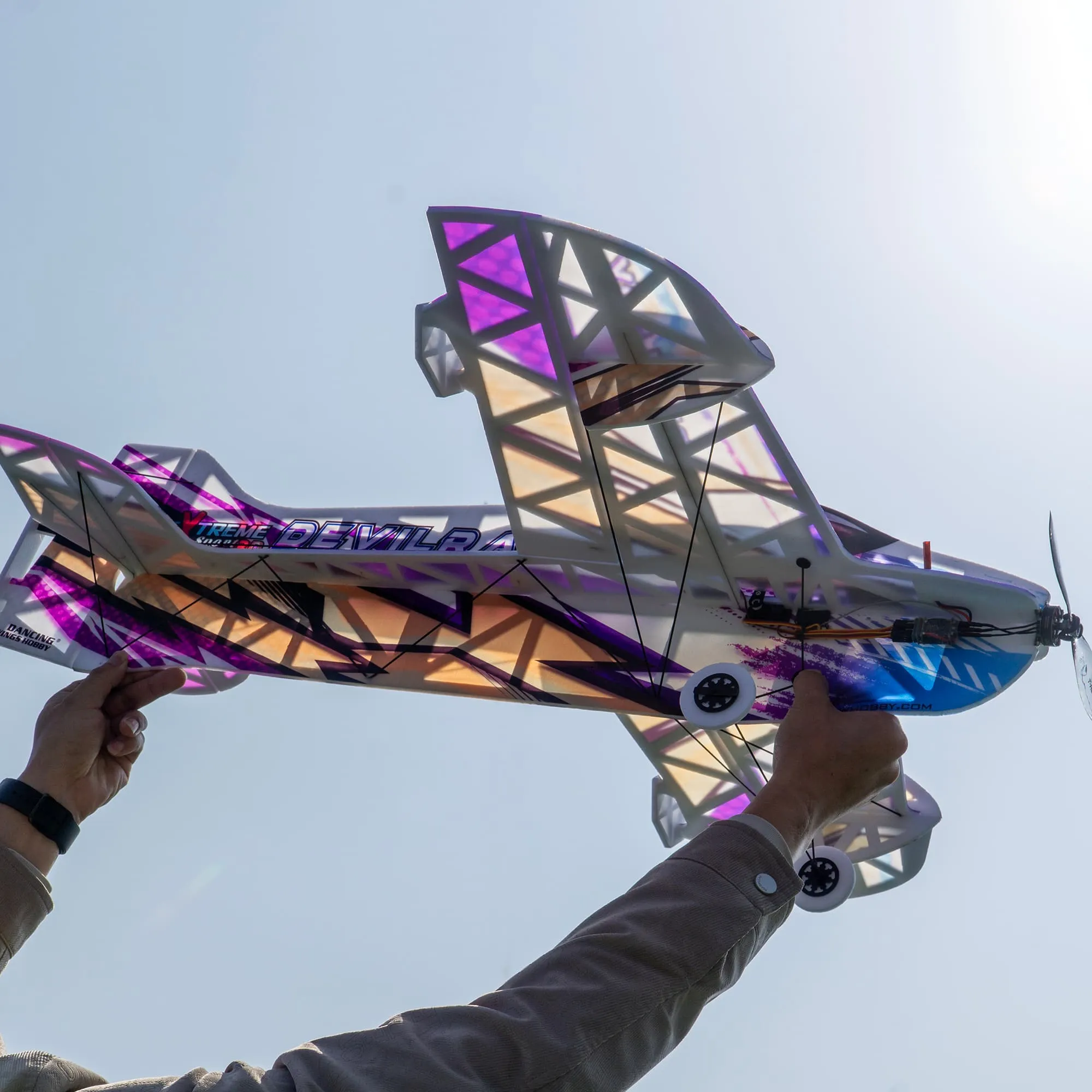

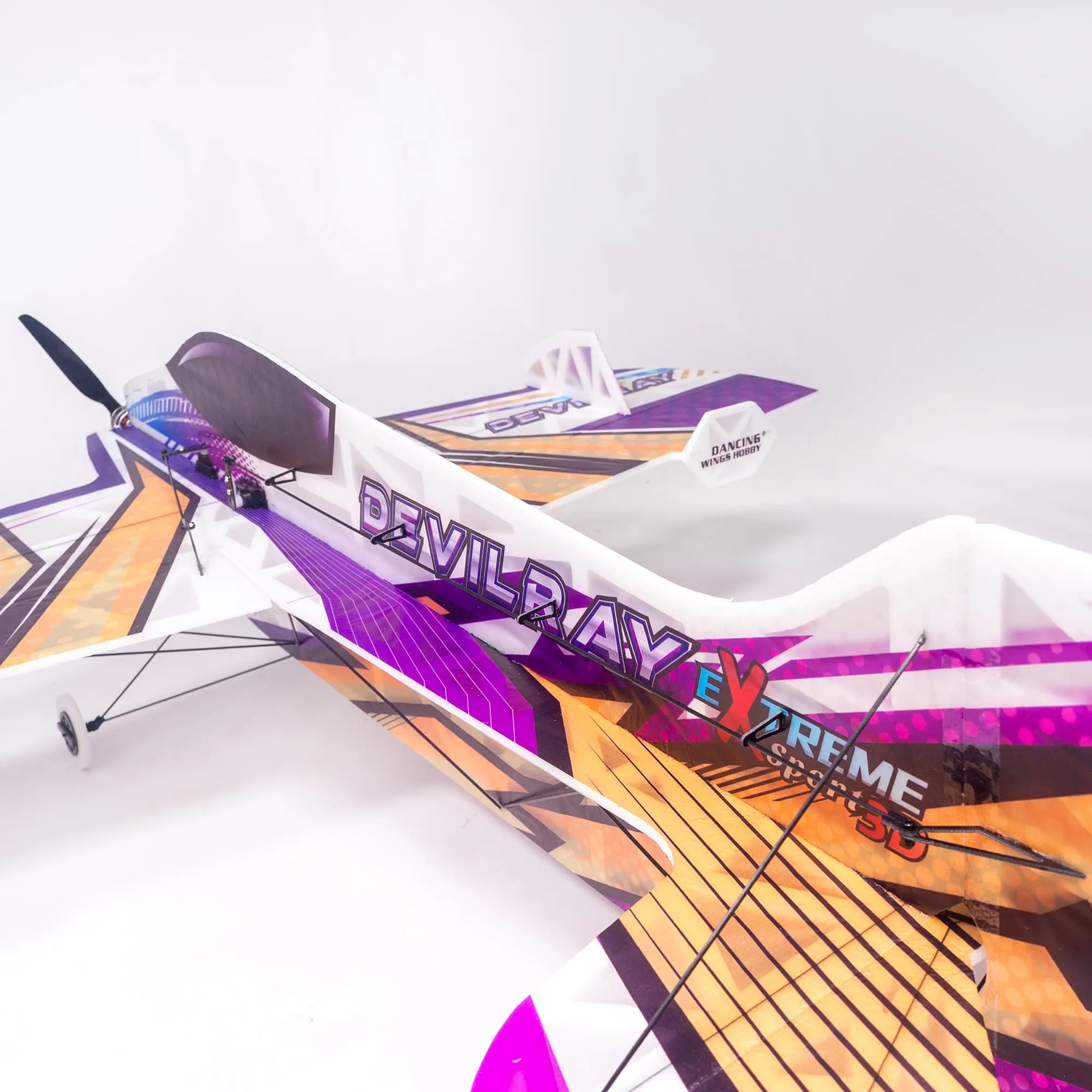

Pre-order today to reserve your model at this special introductory price, Credit Card or other payment will be charged at the time of order. | RWRC is thrilled to present the latest 4D capable F3P Compliant Foam plane, designed by Dancing Wings. This ultra-light aircraft is the perfect fusion of 3D/4D excitement and F3P precision, offering an extraordinary flying experience. The goal with the Devil Ray was to create an aircraft that embodies the best of both blends 3D/4D and F3P (Indoor Aerobatic Model Aircraft) competition planes that are ultra-lightweight, high-precision aircraft designed to fly in confined indoor spaces like gymnasiums or sports arenas. They are built to execute complex, slow-speed aerobatic 3D and 4D maneuvers with extreme exactness. The Devil Ray meets F3P competition rules (max weight under 300g) with a rigid foam structure covered with transparent UV-Film and a flying weight of only 210g! The larger control surfaces provide superior control authority, while the elongated fuselage enhances maneuverability and stability during slower F3P-style flights. This aircraft opens the door to the exhilarating world of reverse-facing 4D flying, delivering not just a sense of achievement but also an undeniable wow factor. KIT Features: - Enhanced 3D/4D Aerobatic Performance
- Light Foam Structure with UV-Printed Eye-Catching Color Scheme Film

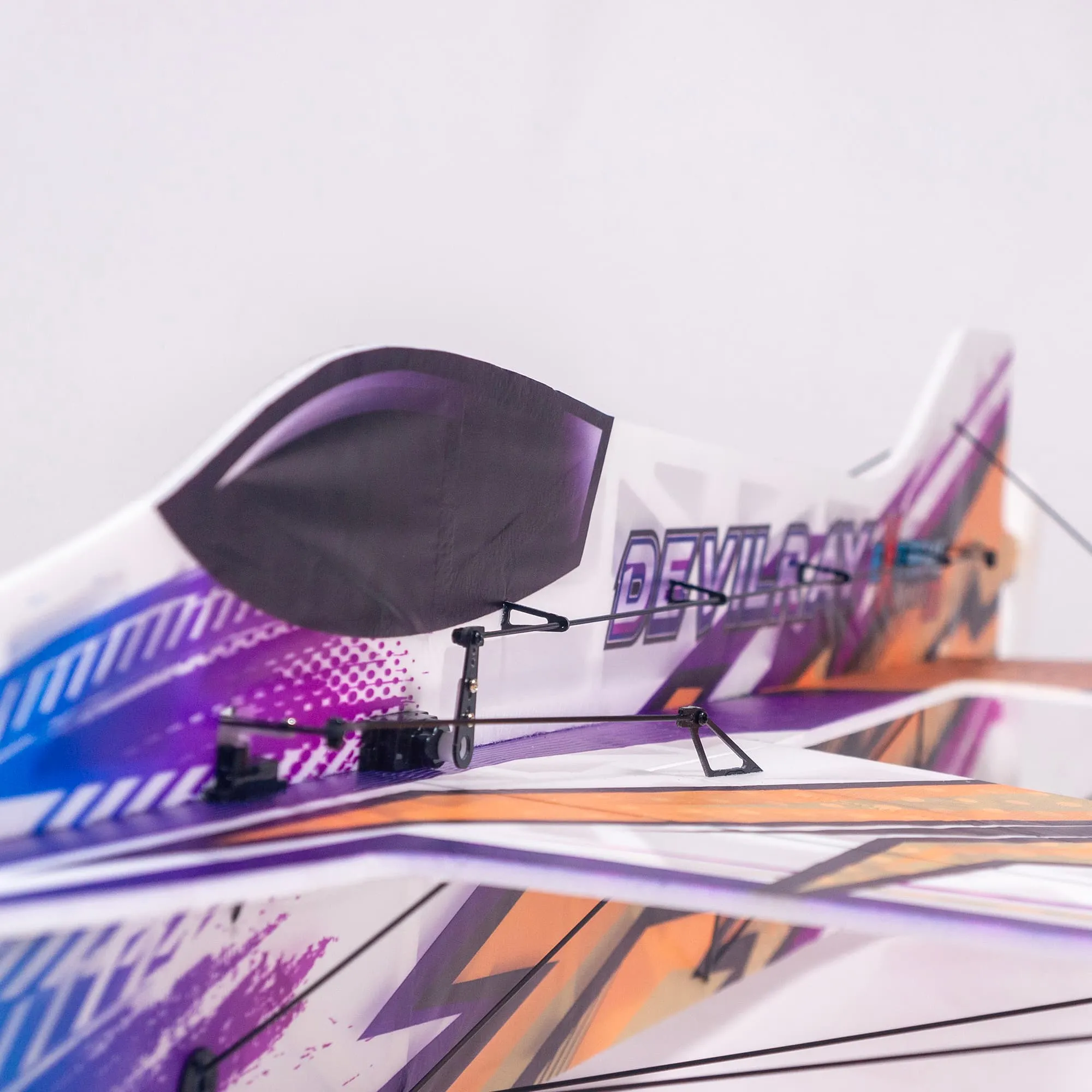

- Carbon Reinforced Braces for Wings, Fuselage and Suspension Mounts
- F3P Competition Compliant Capable of Impressive Indoor 3D/4D Maneuvers

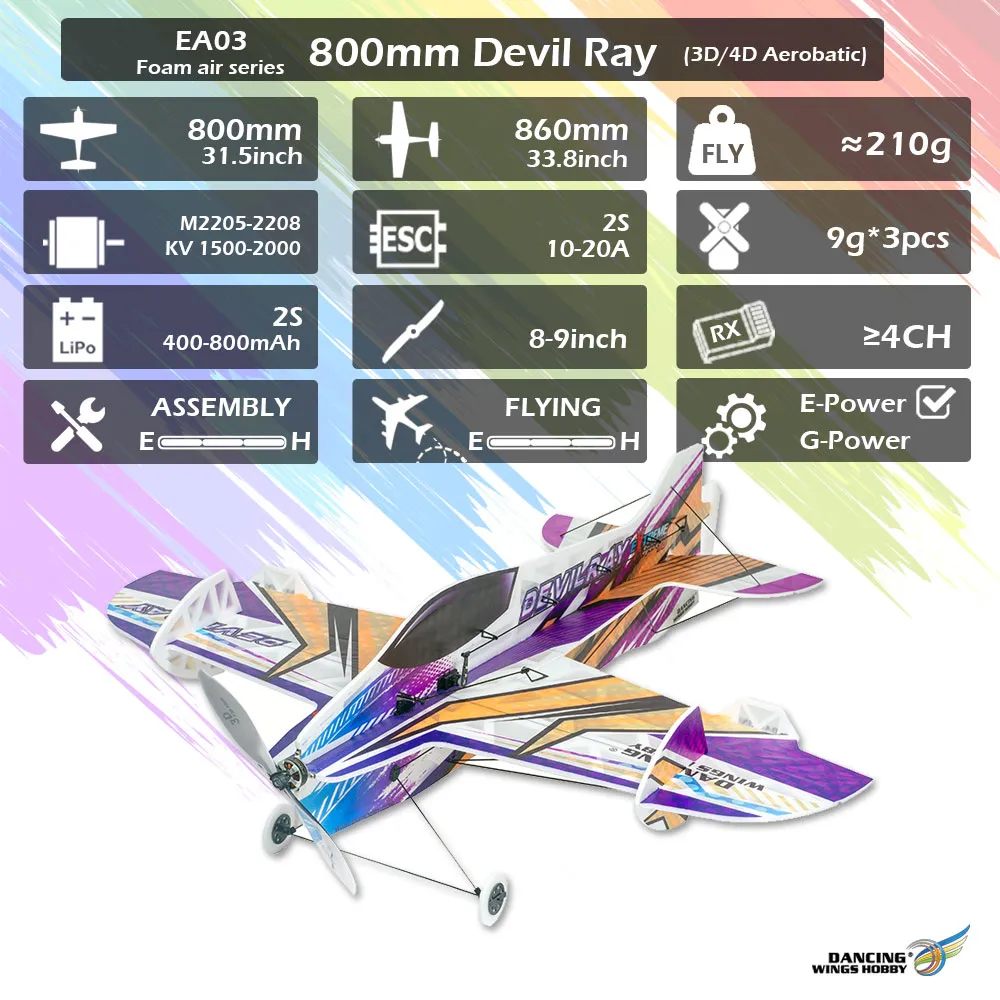

Specs: - Wingspan : 800mm (31.5")
- Length : 860mm (33.8")
- Flying weight: 210g
Recommended Setup: - 1 X T-Motor AM40 4D Brushless Motor (1850Kv)
- 1 X T-Motor AM16A 4D Electronic Speed Controller or 20A ESC for 3D
- 1 X T-Motor F3P 4D T8542 Plastic Propeller
- 1 X T-Motor F3P 3D T9048 Plastic Propeller
- 3 X 9g Servos
3D Flight:
8" Prop + 3S LiPo
9" Prop + 2S LiPo 4D Flight: (Voltage & prop selection impact reversing speed—8" 4D props recommended for best performance.) Versions: - KIT only
- KIT+Motor+ESC+Servo (AM40-1850KV+Prop T9048+20A ESC+9g servo*3pcs) ---3D Flying
- KIT+Motor+ESC+Servo (AM40-1850KV+4D Prop T8542+AM 16A ESC+9g servo*3pcs)---4D Flying


|

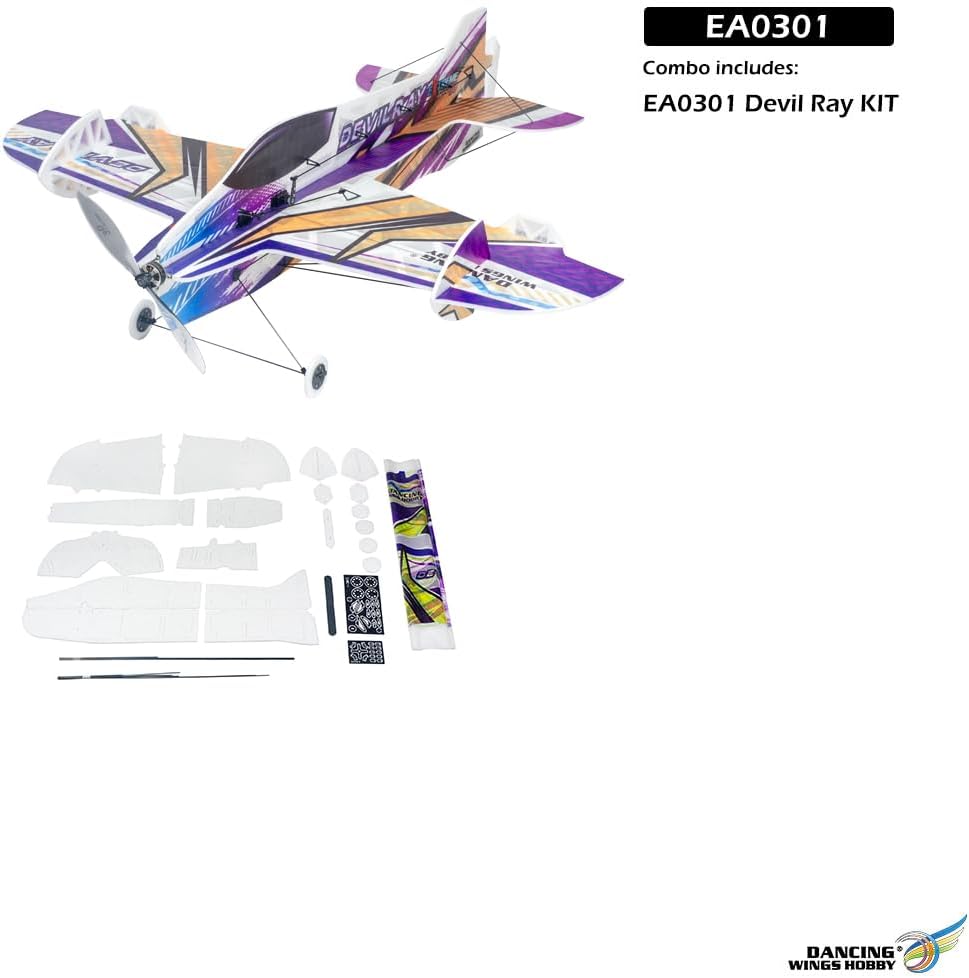

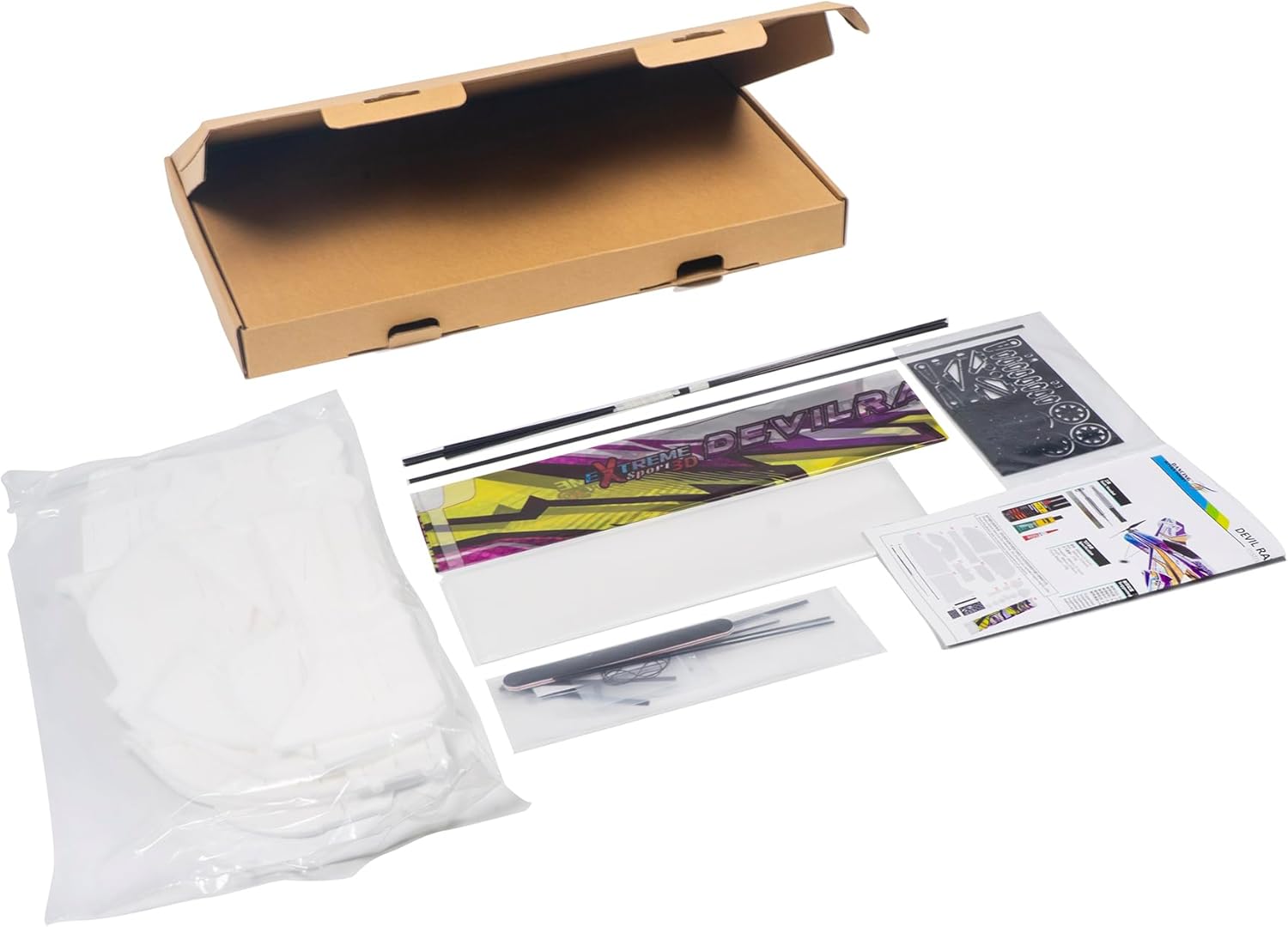

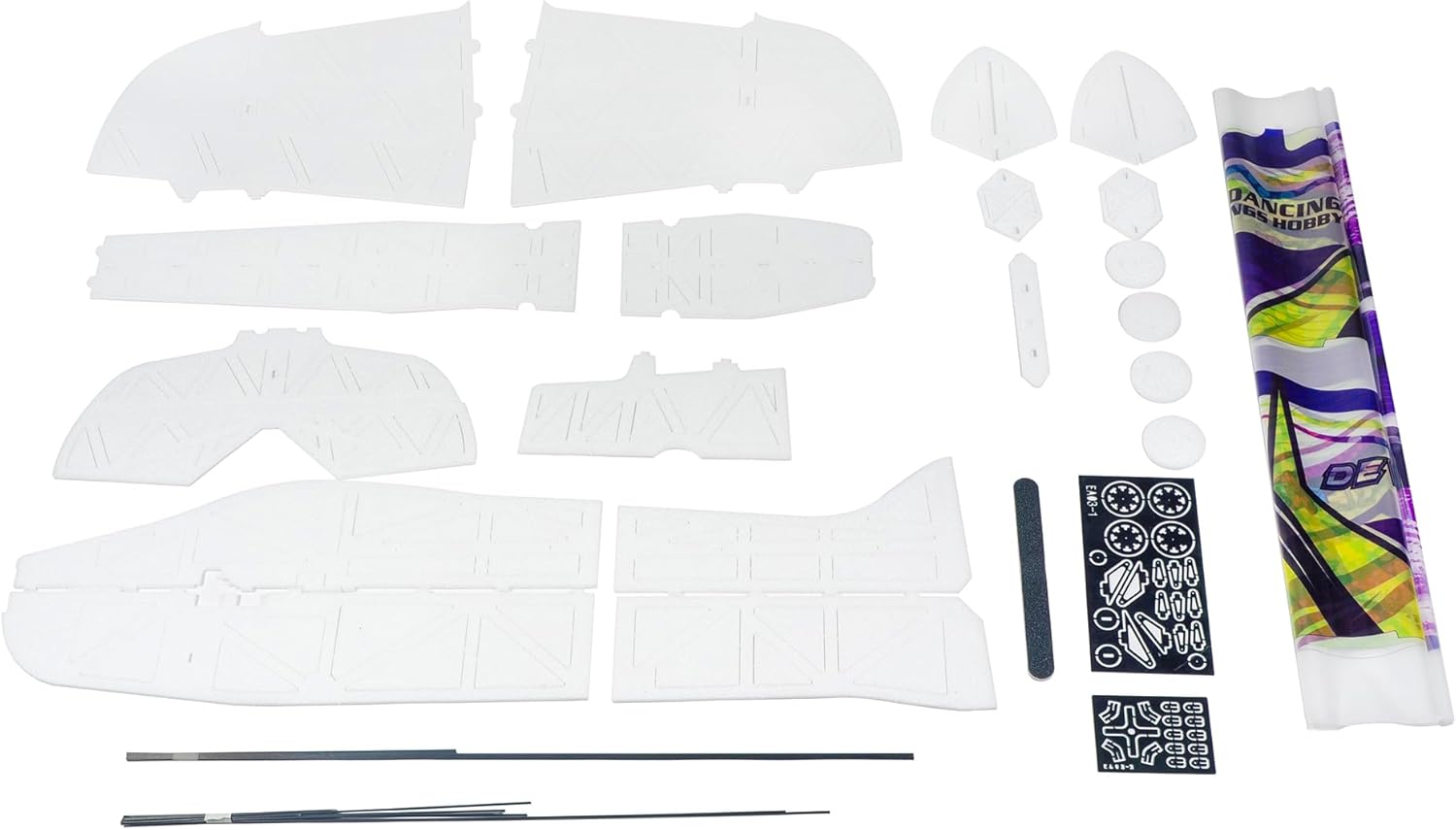

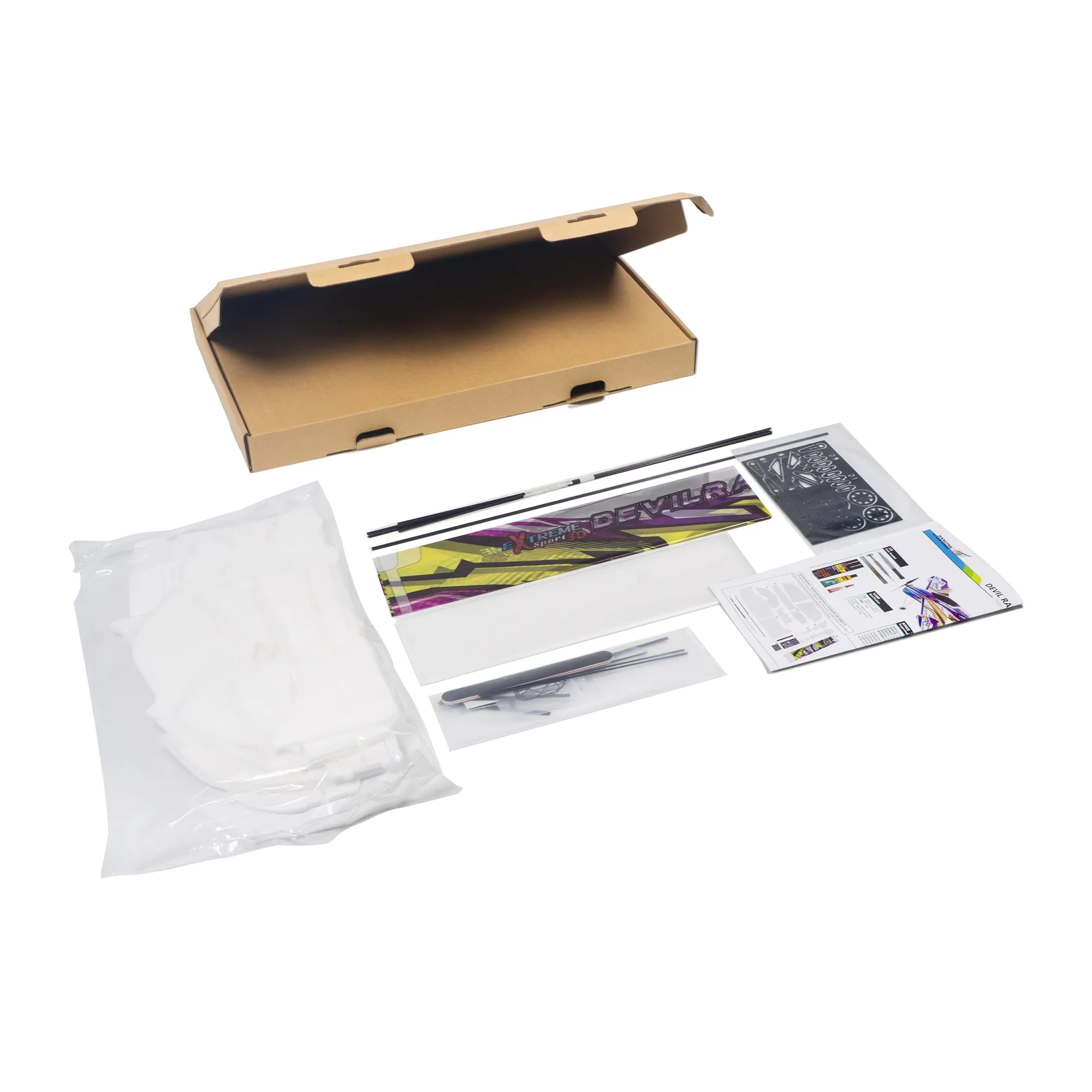

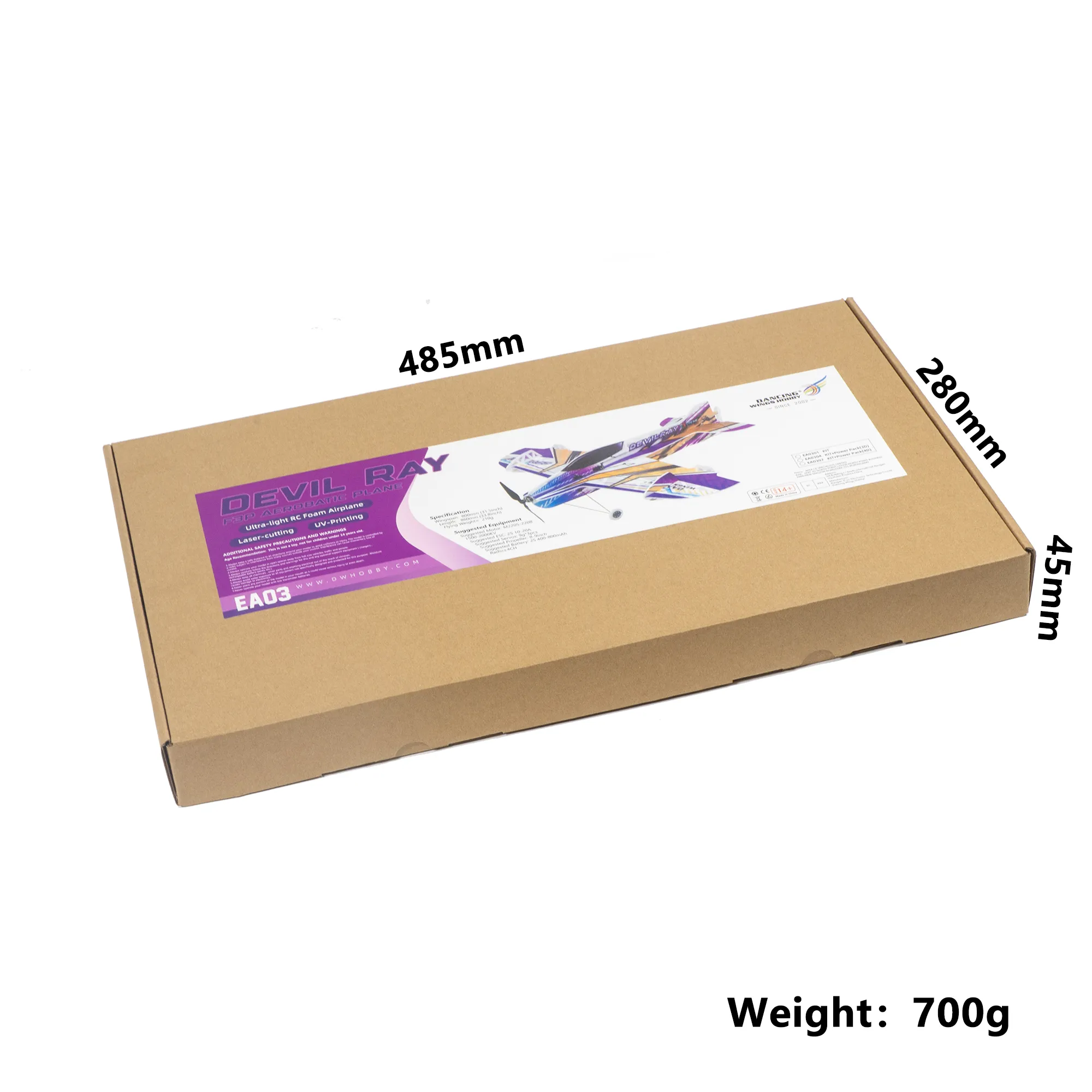

Kit only version

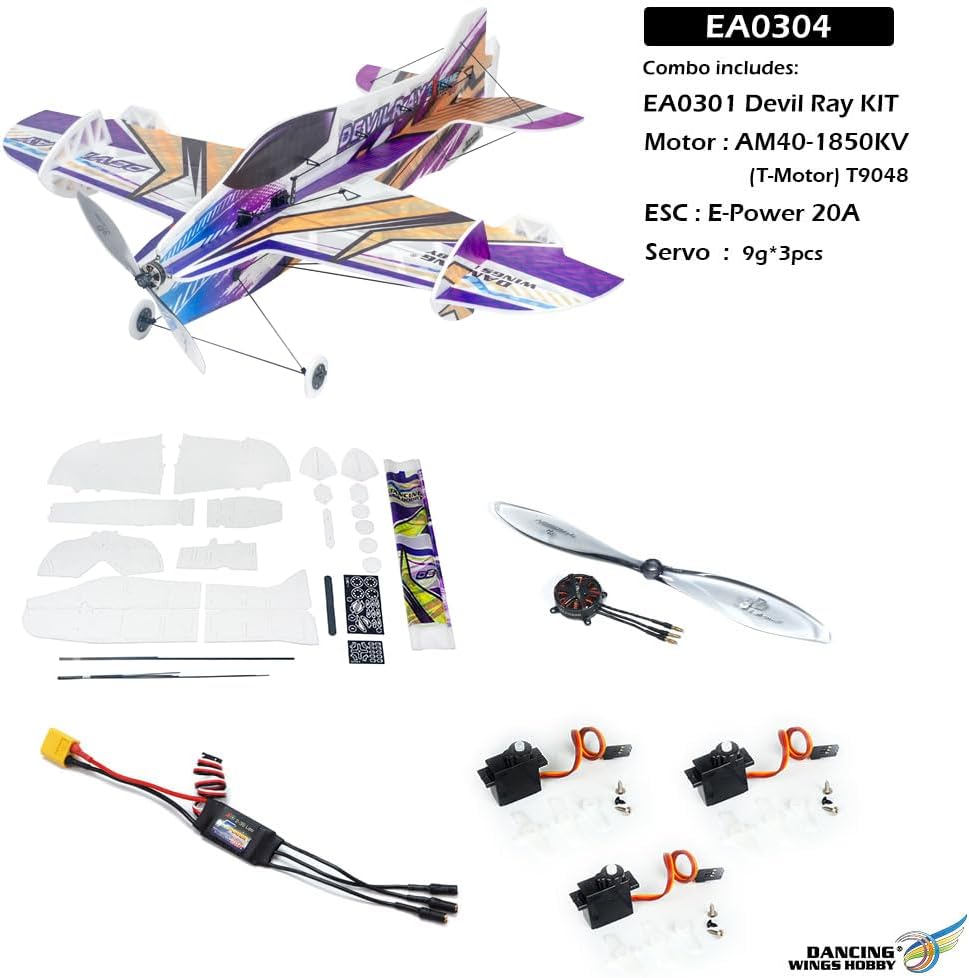

3D Power Version

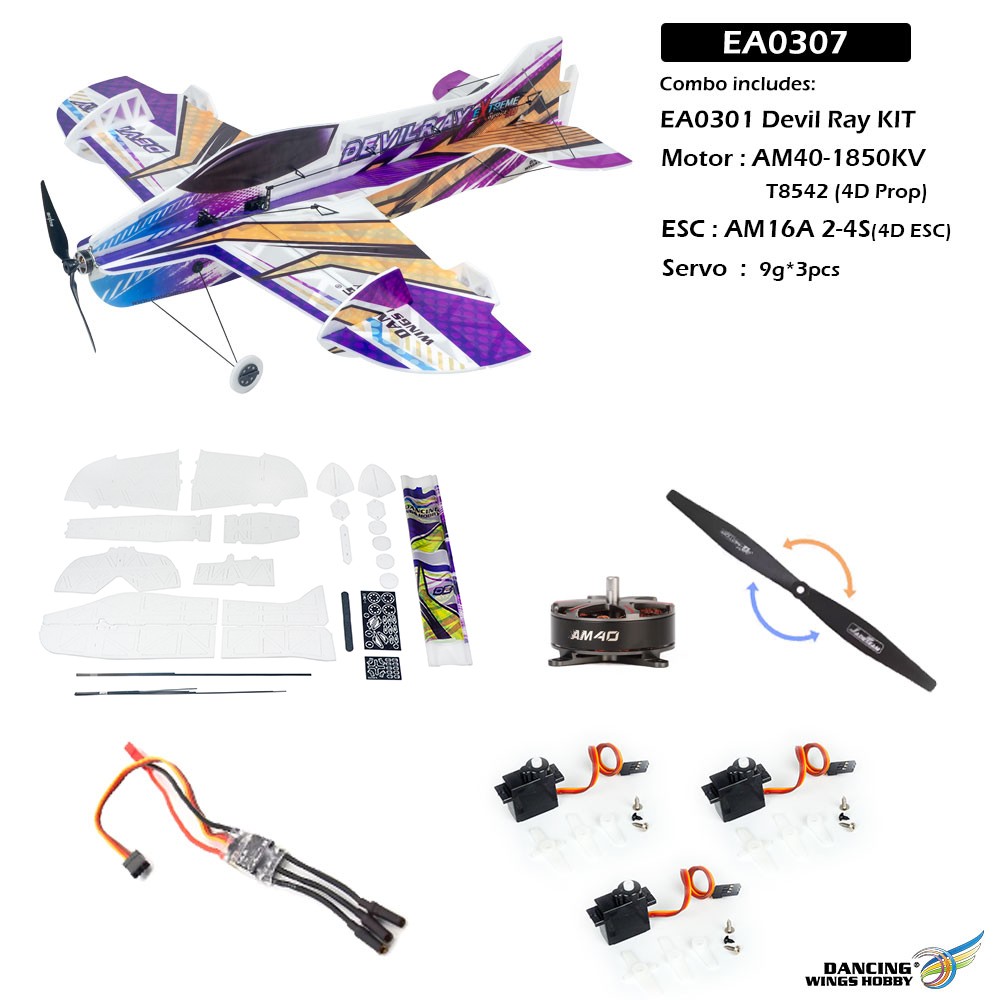

4D Power Version
Intro video but more coming showing 4D!
2025 FAI F3P World Championship
XQ 4013 digital 6v
Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.
The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.
The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.
Specifications: - Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
- Speed:
- .13 sec at 4.8V
- .11 sec at 6V
- Voltage: 4.8V - 6V
- Weight: 2 oz (59g)
- Size: 40x20x39mm
- Gear Style: Futaba Arms
- Modulation: Coreless Digital
- Gear Type: Titanium
- Weight: 2oz (59g)
- Size: 40x20x39mm
Watch this video of the XQ 4013 beating the Hitec 7985mg
Features: - Titanium Gears
- Waterproof
- Coreless
- Digital
- High Torque/High Speed
- Smooth resolution
Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!
|
DLE 20cc Engine
+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty
Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.
We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.
Download DLE 20 Manual
Specifications: - Stock Number: DLEG0020
- Displacement: 20 cc (1.22 cu in)
- Bore: 1.3 in (32 mm)
- Stroke: 1.0 in (25 mm)
- Weight: 28.9 oz (820 g)
- RPM Range: 1,750-9,000
- Output: 2.5 hp @ 9,000 rpm
- Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
- Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
- Suggested Propellers: 16x8 17x6
- Suggested Break-in Prop: 16x8
- Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
- Compression Ratio: 10.5:1
- Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
- Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
- Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
- Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)
|
SmartDesign V3 "Trouble Free" Tail Wheel Assembly
Description: This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!! CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc
Features: - Extremely Reliable
- Mechanically Efficient Design
- Simple and Solid Construction
- Fewer parts needed for install
- Ball Bearings
Pricing - 20-40cc: $27.00
- 50-70cc: $34.99
- 85-120cc: $44.99
- 150cc-220cc: $54.00
Weight - 20-40cc: 1.2 oz
- 50-70cc: 1.6 oz
- 85-120cc: 2.2 oz
- 150cc-220cc: 2.6 oz
Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.
|
