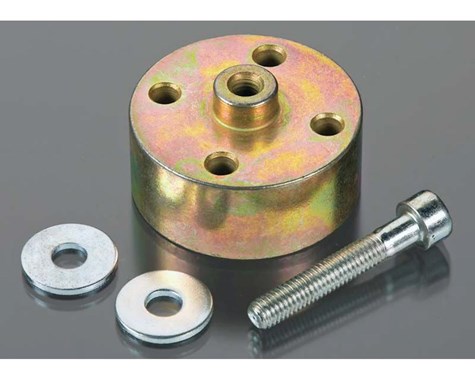

DLE Prop Drill Guide DLE30 DLE35RA DLE40T

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

• Torque:
  • 166.7 oz/in at 4.8V (12.0 kg/cm)
  • 197.2 oz/in at 6V (12.8 kg/cm)

• Speed:
  • .13 sec at 4.8V
  • .11 sec at 6V

• Voltage: 4.8V - 6V
• Weight: 2 oz (59g)
• Size: 40x20x39mm

• Gear Style: Futaba Arms
• Modulation: Coreless Digital
• Gear Type: Titanium
• Weight: 2oz (59g)
• Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

• Titanium Gears
• Waterproof
• Coreless
• Digital
• High Torque/High Speed
• Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

• Stock Number: DLEG0020
• Displacement: 20 cc (1.22 cu in)
• Bore: 1.3 in (32 mm)
• Stroke: 1.0 in (25 mm)
• Weight: 28.9 oz (820 g)
• RPM Range: 1,750-9,000
• Output: 2.5 hp @ 9,000 rpm
• Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
• Suggested Propellers: 16x8 17x6
• Suggested Break-in Prop: 16x8
• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
• Compression Ratio: 10.5:1
• Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
• Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
• Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
• Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:

• Extremely Reliable
• Mechanically Efficient Design
• Simple and Solid Construction
• Fewer parts needed for install
• Ball Bearings

Pricing

• 20-40cc: $27.00
• 50-70cc: $34.99
• 85-120cc: $44.99
• 150cc-220cc: $54.00

Weight

• 20-40cc: 1.2 oz
• 50-70cc: 1.6 oz
• 85-120cc: 2.2 oz
• 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.
