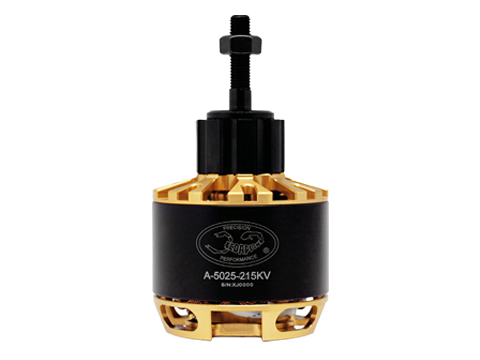

Scorpion A-5025-215KV (12s / 30-35cc / 4000+w) 19-21" Props

DLE Muffler Extensions

Description:

Choose from 5 sizes!

These extensions fit over the exhaust exits on your DLE muffler. Below are some size dimensions and the muffler that each will fit. It is still a good idea to measure the exits on your muffler.

FORMAT: LxW (width is inside diameter)

A: 63x15 mm : DLE 20RA

B: 64x17 mm : DLE 35RA/40

C: 78x20 mm : DLE 55RA

D: 96x25 mm : DLE 55, DLE 111, DLE 120

E: 121x31 mm : DLE 61, DLE 85

*Sold individually- if you have a twin engine, you will need two extensions

*Each Hose extension comes with a metal clamp to tightly secure it to the muffler.

Redwing RC Fuel Tanks

The NEW Redwing RC gas tanks are here!!!

*Fourtitude has amended their fuel tanks due to federal regulations on shipping fuel containers. Check out the video below to see just how easy it is to assemble the tank!

Make sure to upgrade asap as this new and improved design is the cutting edge of next generation RC gas tanks. You are probably familiar with the old design- with the the line-in and the vent nozzle on the top of the tank and the line running to the engine on the cap. Because there are so many different fitting and sealants, there are alot of places where something can go wrong or start leaking.

The V2 design eliminates ALL of these problems with ONE SIMPLE DESIGN..... ALL nozzles are in the removable cap which has TWO rubber gaskets and is ONE SOLID PIECE, which includes the vent tube and filling tube. Fewer parts = Fewer problems.

Fortitude has hit the target with the V2 Tank and as always, is the best quality you can get!

Fortitude (or 4titude) gas tanks are high quality, crystal clear plastic tanks, that take the guesswork and worry out of your tanks. You can clearly see into the 4titude tank to know if your line is still flexible and your clunk is in place! Fortitude tanks include the foam, the Velcro and the tubing to hook to your engine!

4titude tanks are SUPER light, in fact, the lightest commercially available tanks on the market. They use aerospace grade adhesives to ensure long life. 4titude tanks are also made of seamless plastic, making them fully resistant to splitting!

The included clunk is filtered as well.

Video:

Video:

V2 Features:

• Injection Molded Single piece glass filled nylon fitting manifold. Light weight extremely strong material that creates a very easy to plumb and compact fuel tank.


• Dual static O-ring seals, designed utilizing the latest aerospace engineering technology, to seal fluid even under high pressure.  V2 has one potential leak point and with the redundant static seals we have double assurance it will never leak.


• Plumbed with a filtered clunk and an extended fill/ drain tube to make it easy to drain the tank completely.


• Zero protrusions/ fittings on the outside of the tank to interfere with tight airframe installations.


• We took care of making sure there is zero guess work involving installation. 3D diagram included with each tank showing how to properly plumb your fuel system for the best results.

Note the length dimension is from the back of the tank to the front of the fitting/tubing barbs.

Specs:

• Size: 8 ounce (236 ML)
  • Length 5 3/8” x Width 1 7/8" x Height 1 7/8” (136.5 x 49.5 x 49.5 mm)
• Weight: 1 ounce
• Fittings are part of the cap/ internal tubing
• Filtered clunk
• Super light!
• Crystal clear
• Seamless
• Includes: Tank/foam/velcro
• Fourtitude Tanks are compatible with gas engines only. (Not compatible with Glow fuel)

Fortitude tanks are compatible with ALL oils, synthetic and non-synthetic. Fortitude uses PPG Class B sealant. The expert below explains how high tech and quality of a sealant it is:

“PPG Class B is an aircraft integral fuel tank sealant. It has a service temperature range from - 65°F (-54°C) to 250°F (121°C), with intermittent excursions up to 275°F (135°C). This material is designed for fillet sealing of fuel tanks and other air- craft fuselage sealing applications. The cured sealant maintains excellent elastomeric properties after pro- longed exposure to both jet fuel and aviation gas. "
