Spot On Exhaust Extension

Market Price: $26.60
Our Price:

$22.99


You Save

14%

Ext Size
Color
Red Thread Locker
Quantity (29)

Availability 29 in stock
Weight 0.10 lbs
SKU SPO-TRA-038-Black
Manufacturer SpotOn RC / Flywheelz

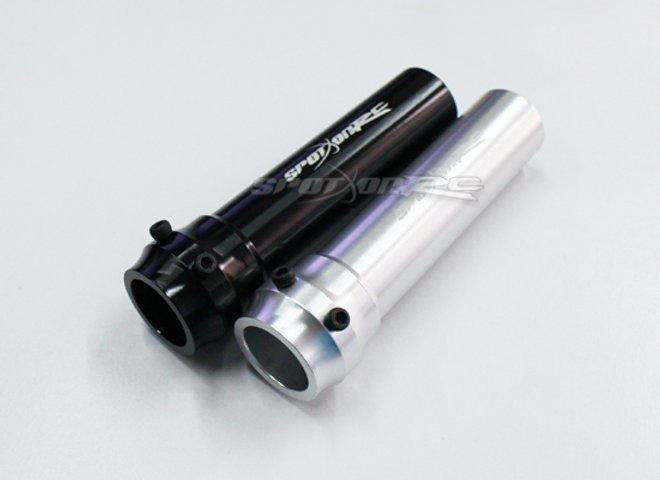

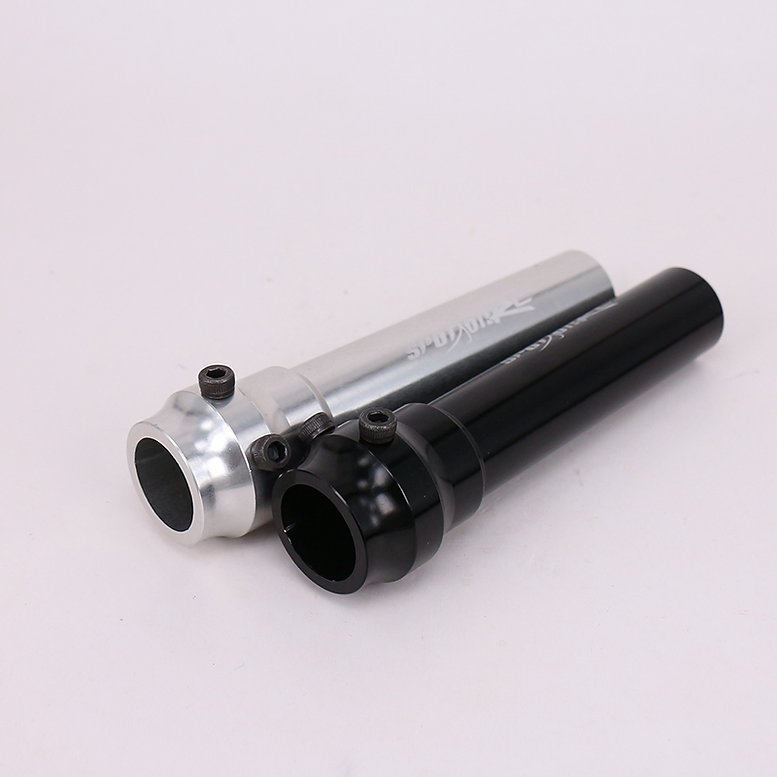

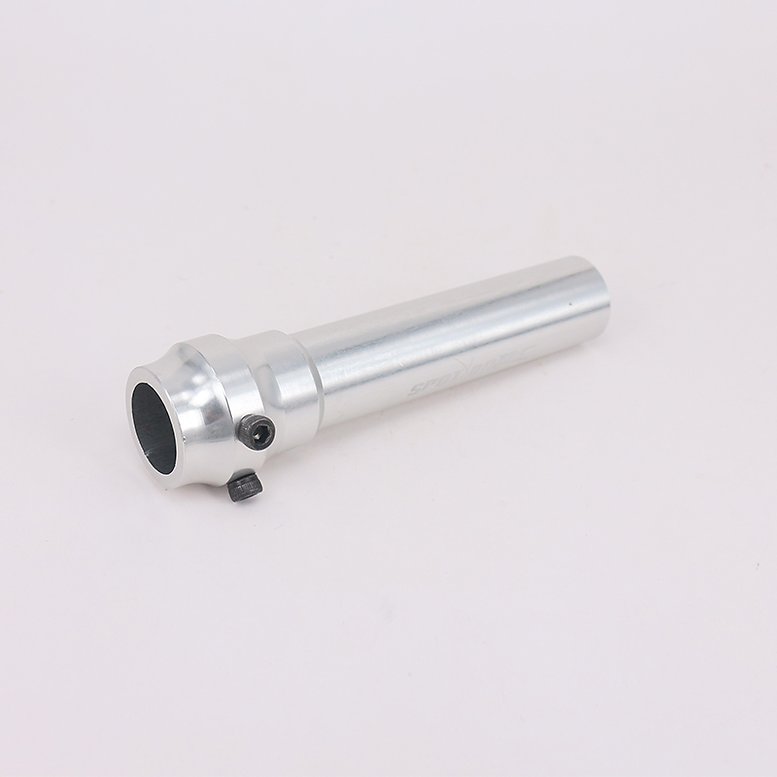

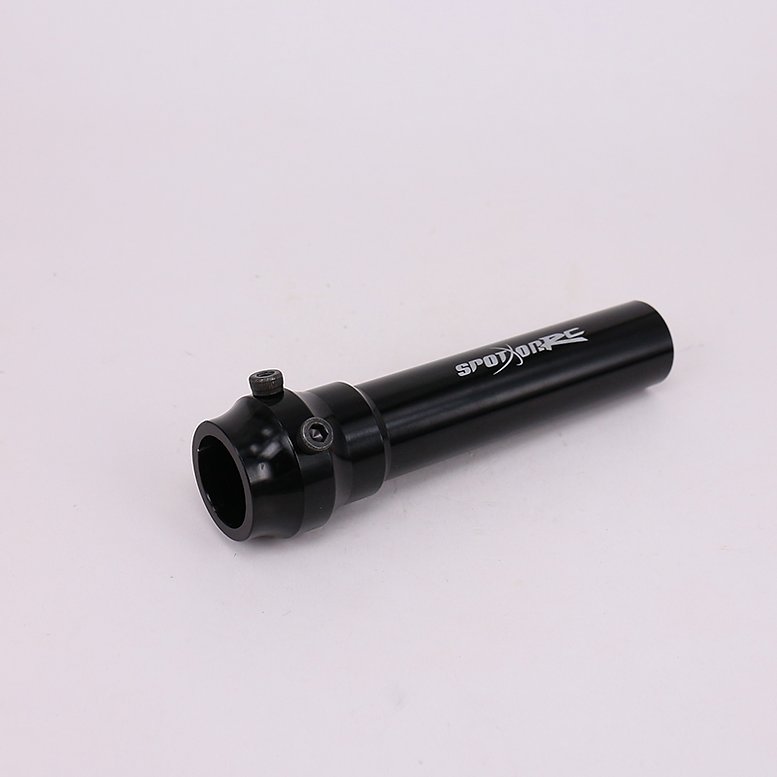

High Quality Aluminum Exhaust Extension

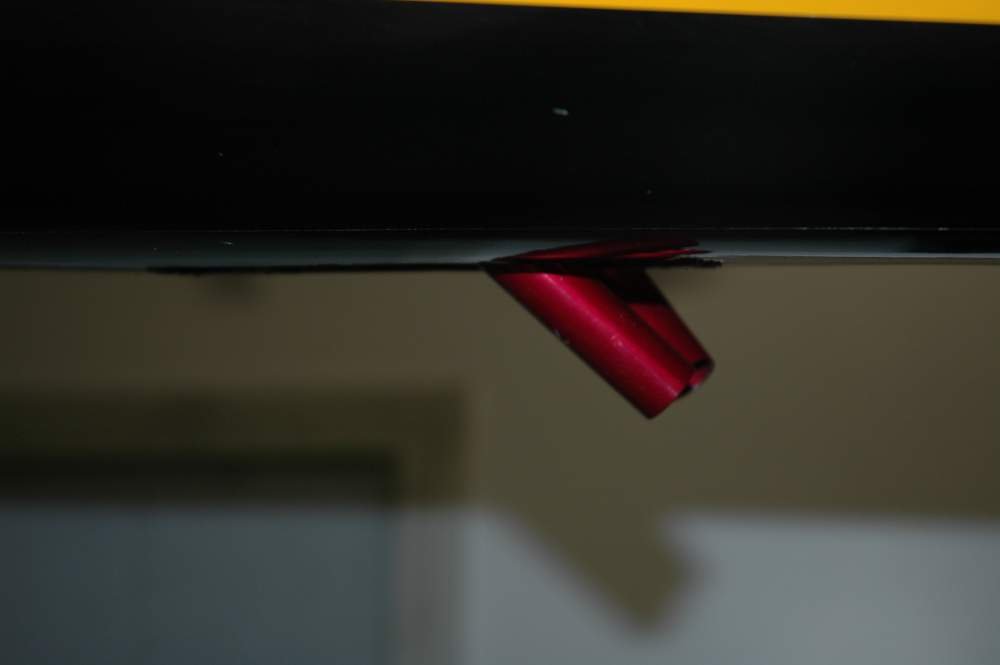

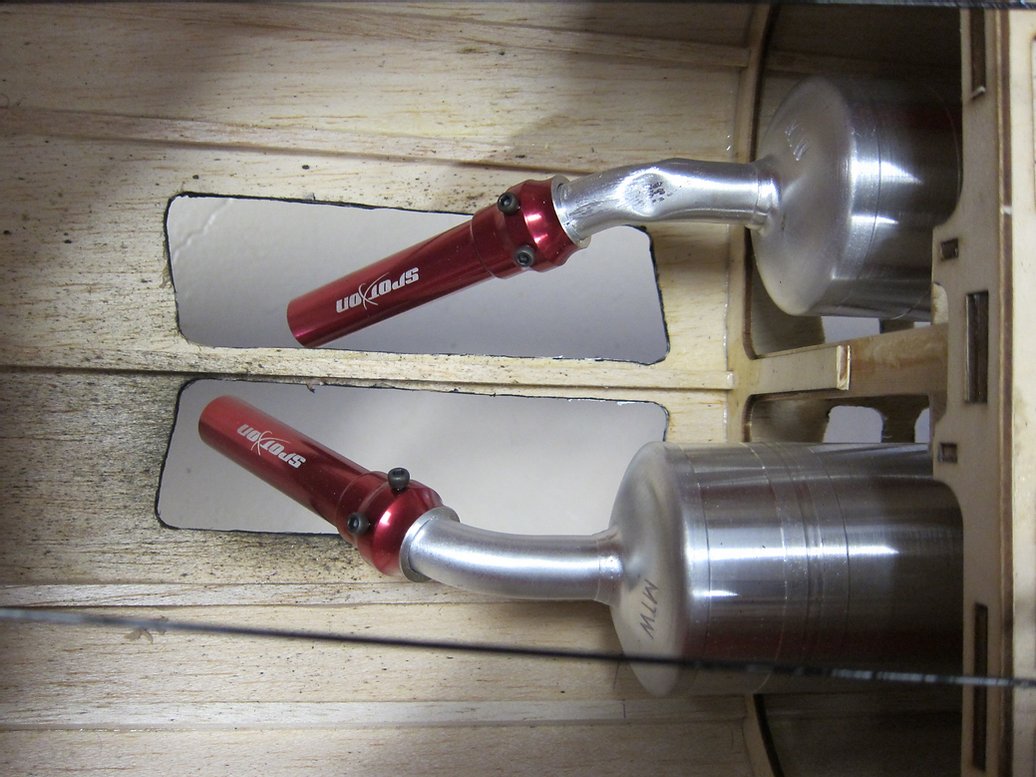

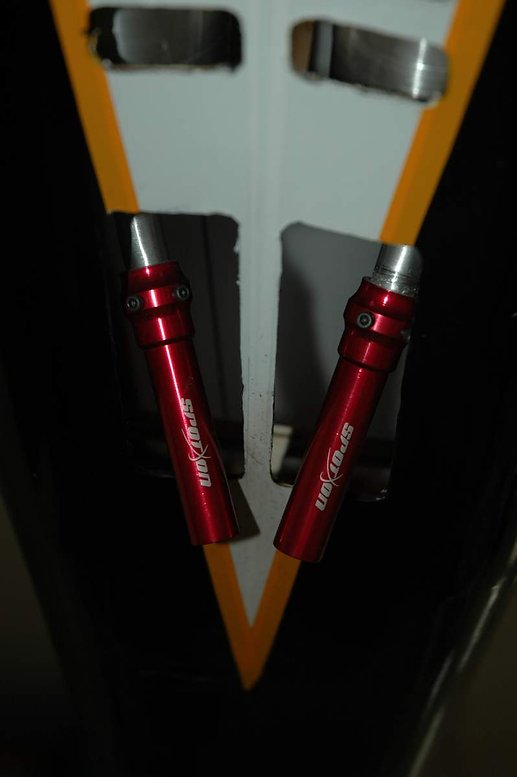

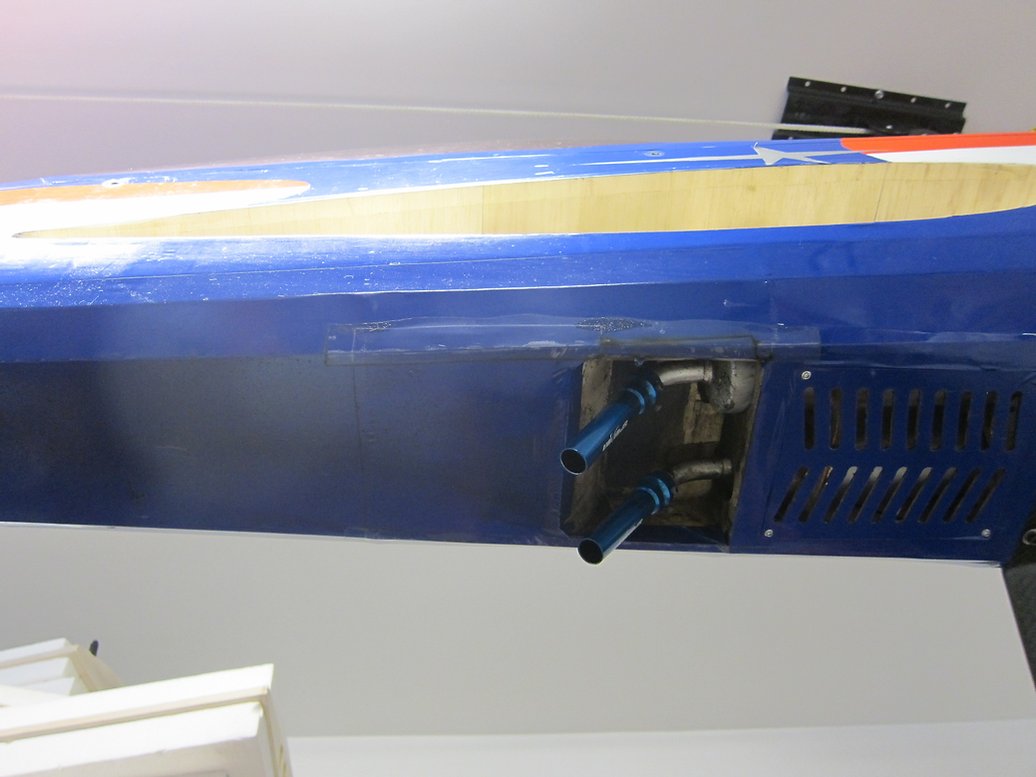

These exhaust extensions work great to keep your aircraft clean!  Install the Spot On Exhaust Extension to your existing muffler to direct your engines exhaust oils and gases away from your model. Helps add years to your model's covering! Made of high quality 6063-T6 aluminum, one of the highest strength alloys available for this purpose and are also sand blasted and anodized for a beautiful appearance.

This extensions are held in place to the exhaust tubes using two "jam" bolts that are 60 degree apart. There is no need to drill holes in the exhaust tubes. Apply a little red loctite on the two jam bolts and the extensions will stay on. To remove, unbolt when the exhaust is still warm. These have been field tested extensively and are confident you will be satisfied!

Specs:

  • Material: Aluminum

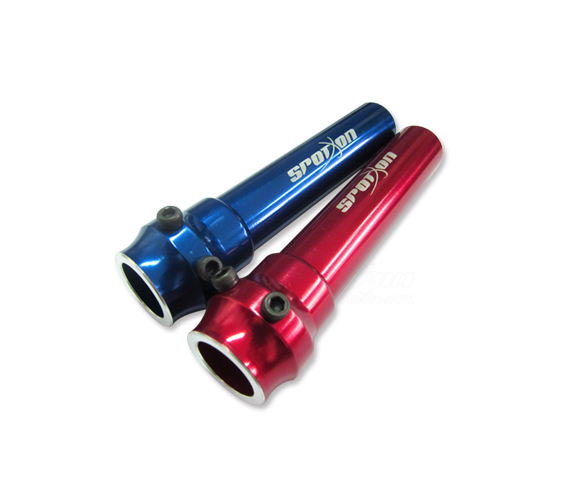

  • Colour: Black, Silver, Blue or Red
  • Full Length: 4.1in/104mm and  3.5 in/89mm
  • Stinger Extension: 3.1in/78mm and 2.5in/64mm
  • Inner Diameter: 0.60in/15.2mm (Fits RE3, RE2, and most MTW canisters) and 0.79in/20.2mm (Fits KS1090 and KS95)
: *
: *
: *


Carbon Fiber Landing Gear (30cc-120cc sizes) Angled and Curved Style

Available in styles for

  • Yak carbon fiber replacement gear Sbach carbon fiber replacement gear MXSR/MX2 carbon fiber replacement gear Extra carbon fiber replacement gear Edge carbon fiber replacement gear etc

    A - Sbach, MXSR, Slick, Edge, Extra 260
    B - Yak, Sukoi
    C - Yak also
    PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.



Dimensions (match the below information to the inset photo)

  • 30cc A STYLE (3.6 oz)
    • A=7.5"
    • B=16"
    • C=5.5"
    • D=1.187" taper to 1"
    • E=1.5"
  • 30cc B STYLE (3.8 oz)
    • A=6.5"
    • B=16.75"
    • C=6.25"
    • D=1.375" taper to 1"
    • E=1"
  • 30cc C STYLE (3.4 oz)
    • A=6.5"
    • B=15.5"
    • C=5.5"
    • D=1.125" taper to .75
    • E=1"
  • 50cc A STYLE (8.2 oz)
    • A=9.25"
    • B=18.75"
    • C=8"
    • D=1.5" taper to 1.125"
    • E=1.5"
  • 50cc B STYLE (6 oz)
    • A=8.75"
    • B=18.5"
    • C=6.5"
    • D=1.5" taper to 1"
    • E=1.25"
  • 50cc C STYLE (6 oz)
    • A=7.75"
    • B=18.5"
    • C=6.25"
    • D=1.5" taper to 1"
    • E=1.0"
  • 50cc A STYLE (8.2 oz)
    • A=9.25"
    • B=18.75"
    • C=8"
    • D=1.5" taper to 1.125"
    • E=1.5"
  • 50cc B STYLE (6 oz)
    • A=8.75"
    • B=18.5"
    • C=6.5"
    • D=1.5" taper to 1"
    • E=1.25"

Carbon Fiber Landing Gear Extra 300 Series For 26-30cc, 50-80cc and 100-120cc

Dimensions (match the below information to the inset photo)



  • 26-30cc
    • A=140mm 5.5"
    • B=400mm 15.75"
    • C=170mm 6.69"
    • D=28mm 1.10"
  • 50-80cc
    • A=160mm 6.29"
    • B=465mm 18.30"
    • C=198mm 7.79"
    • D=40mm 1.57"
  • 100-120cc
    • A=190mm 7.48"
    • B=560mm 22.04"
    • C=252mm 9.92"
    • D=50mm 1.96"






SS-CF-LG

$39.99

Spot On 1.5" Servo Arm

Spot On 1.5" Servo Arm

High Quality 1.5" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.




SPO-SA-56b90992ed6d8

$10.00

Spot On Extension Arm for Carburetor or Throttle

Spot On Extension Arm for Carburetor or Throttle

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.




SPO-TRA-030

$9.99
