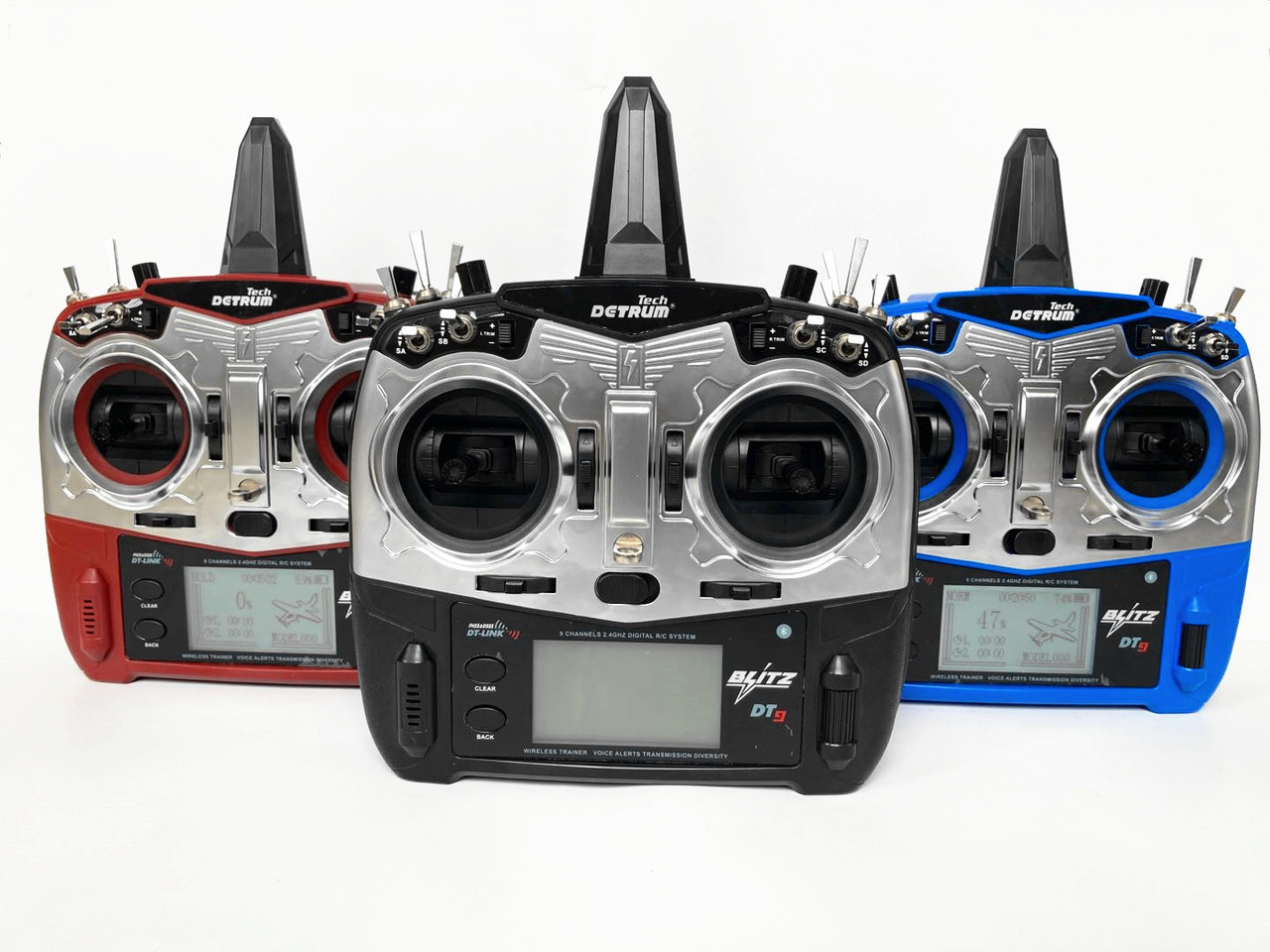

Detrum Blitz-DT9 9CH Smart Programming/Telemetry Transmitter Set (TX+RXC9M)
Simple and Powerful, Detrum Blitz DT9 is a 2.4GHz 9-channel smart transmitter with telemetry and programming capabilities. With one transmitter, you can take full control of your flying from all aspects, whether it is ESC settings, gyro receiver programming, BNP with various types of receivers, or wireless training. With full telemetry function, the Blitz Dt9 can receive temperature, altitude, GPS, voltage, current, and telemetry data to keep you more connected to your flying than ever. The blitz DT9 works with all Detrum stabilizer receivers and backs the telemetry data. Experience the latest Detrum Blitz!
Detrum RXC9M is a 2.4GHz 9-channel receiver with integrated full-range telemetry. 9 PWM outputs. Using a diversity antenna, it can automatically switch the signals to ensure the stability of the received signal. When the receiver does not receive a signal, the RXC9M will set the output according to the transmitter's Fail-Safe function. Blitz-DT9 Online Firmware Upgrade to Sep 25th, 2024 Version 1.0.8 Dynam Planes Gyro Data for Blitz-DT9 We have fully upgraded the DT9 transmitter, adding a feature to pre-store all Dynam airplanes (Gyro) data on an SD card. After the upgrade, you can quickly select the preset Gyro settings for the corresponding aircraft on the DT9 transmitter, and the system will automatically load the data, eliminating the need for manual adjustments. Once you select the Dynam planes, the Gyro stabilization data will load instantly, significantly improving flight efficiency and control precision. How to upgrade the Blitz DT9 9CH long-range transmitter? This optimized technology is designed for RC enthusiasts who prioritize efficiency and precise control. It simplifies operations, makes flights smoother, and offers a seamless flight experience. - Dual Antenna Diversity
Vertical antenna on top and horizontal antenna inside the handle ensure multi-angle and omnidirectional signal coverage. This design minimizes signal blind spots and reduces the risk of control loss, enhancing flight safety. - SR86A-G Telemetry Receiver
It provides real-time flight information and supports GPS for one-button return and automatic return on signal loss. - Innovative ESC Programming Design
The BLITZ-DT9 transmitter allows you to program the ESC and stabilized receiver online, making setup simple and intuitive without the need for an additional programming card. - Friendly Human-machine Interaction
BLITZ-DT9 offers menu broadcasting and programmable voice alerts for telemetry data. With alarms, you'll stay focused on flying as the synthesized voice broadcasts through the built-in speaker or audio interface, perfect for noisy environments. Vibration alerts are also available for alarm conditions. - Opitimizing Intelligent Flight with Diverse Selection
This groundbreaking transmitter is compatible with multiple receiver types, enabling Auto Balance Mode, Acro Mode, Altitude Hold Mode, POI (Point of Interest) Mode, Return-to-Home Mode, and more. It effectively addresses aircraft crashes caused by improper transmitter operation. - Real-time Monitoring
The transmitter can monitor real-time flight data including speed, altitude, position, GPS, battery voltage, and signal strength. - Black Box
Telemetry data is recorded on the SD card, allowing easy access to flight information and convenient maintenance. - Built-in Wireless Trainer System - 30m
The BLITZ-DT9 transmitter features a built-in wireless trainer system, allowing instructors to teach flight skills wirelessly up to 30 meters, in addition to using a training cable to connect trainer and student transmitters. - Long Standby Time
Powered by a 7.4V 3000mAh Li-Po battery, it operates for over 15 hours continuously and supports online charging. - Straightforward Human-machine Setting Interface
The setting interface uses characters and drawings, making it more vivid. - RXC9M Receiver
9 PWM outputs
1 PPMD.Bus output (S.Bus compatible)
1 DATA IN interface for flight controller or telemetry sensor connection
Input voltage: 4~16V - Supporting various RC models
Supporting a variety of RC models including rc airplanes, boats, drones, tanks, and excavators.
Features - Nine fully-proportional channels
- Model type: airplane, helicopter, multi-rotor, and glider
- Frame rate: 2.6ms
- Can store up to 250 models
- Synthesized voice broadcasting
- Vibration alert for alarm conditions and low battery
- Trainer system
- High resolution 192*96 backlit LCD screen
- Dual antenna diversity
- Multiple flight mode settings
- Telemetry
- Four stick modes
- Fail-safe
- Audio interface
- Set the programming parameters of ESC online by this transmitter
- Set the programming parameters of stabilized receiver online by this transmitter
- SD card support for backing up files, firmware updates, and import/export model data
- 3-position switches: 6
- 2-position switches: 1
- Momentary switches: 1
- Knobs: 2
- Thumbwheels: 2
- Digital trims: 6
- Roll the scroll wheel to move through the screen content or change programming values. Press the scroll wheel to make a selection.
- End point adjustment
- Sub Trim adjustment
- Channel monitoring
- Programmable mixes
- 7.4V 3000mAh Li-Po rechargeable battery
- Charge online
- Superior ergonomics that fit the way you fly
- The stick lever tension can be adjusted
- 4096 high-section precision sticks
- Two timers
Airplane - Servo delay
- Throttle hold
- Programmable mixings
- Throttle to Balance mixing
- Veer to Elevator mixing
- V-tail mixing
- Delta mixing
- Flaperon mixing
- Three tail types: normal, V-tail, and delta
- 9-point elevator curves
- 9-point throttle curves
- 9-point rudder curves
- 9-point aileron curves
Helicopter - Servo delay
- Throttle hold
- Swash mixing
- 9-point elevator curves
- 9-point throttle curves
- 9-point rudder curves
- 9-point aileron curves
Specifications Blitz-DT9 9CH TX - Number of Channels: 9
- Modulation / Protocol: DSSS&FHSS
- Band: 2.4GHz
- Frame Rate: 2.6ms
- Telemetry: Yes
- Voice Alerts: Yes
- SD Card Support: Yes
- Upgradeable Firmware: Yes
- Trainer System: Yes (both wired and wireless)
- ESC Parameter Setting Support: Yes
- Stabilized Receiver Setting Support: Yes
- Black Box: Yes
- Built-in Charging Module: Yes
- Battery: 7.4V 3000mAh Li-Po (included)
- Charging Voltage: DC 12V/1.5A
- Consuming Current < 300mA
- Size: 204×246×122mm
- Net Weight: 693g (without battery) /834g (with battery)
RXC9M Receiver
- Number of Channels: 9
- Frequency: 2.4GHz
- Communication Distance: >1.6Km
- Power Supply: 4V~16V
- Output Signal: PWM/ PPM/ D.Bus
- Assembly time: 5~12 minutes
- Dimension (L x W x H): 42.6 x 27.4 x 12.9mm
- Weight: 10g
- Output Signal: 9 PWM
|
