FrSky Horus X12S Transmitter (Silver)

Contact UsCustomer Reviews
  0
  5. FrSky Horus X12S Transmitter (Silver)
Tariff Information update
more offers

FrSky Horus X12S Transmitter (Silver)

Ask a question about this product
Printable version

Share

Options

Our Price:

$529.99


FREE SHIPPING
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 3.00 lbs
SKU FRK-03010040
Manufacturer FrSky

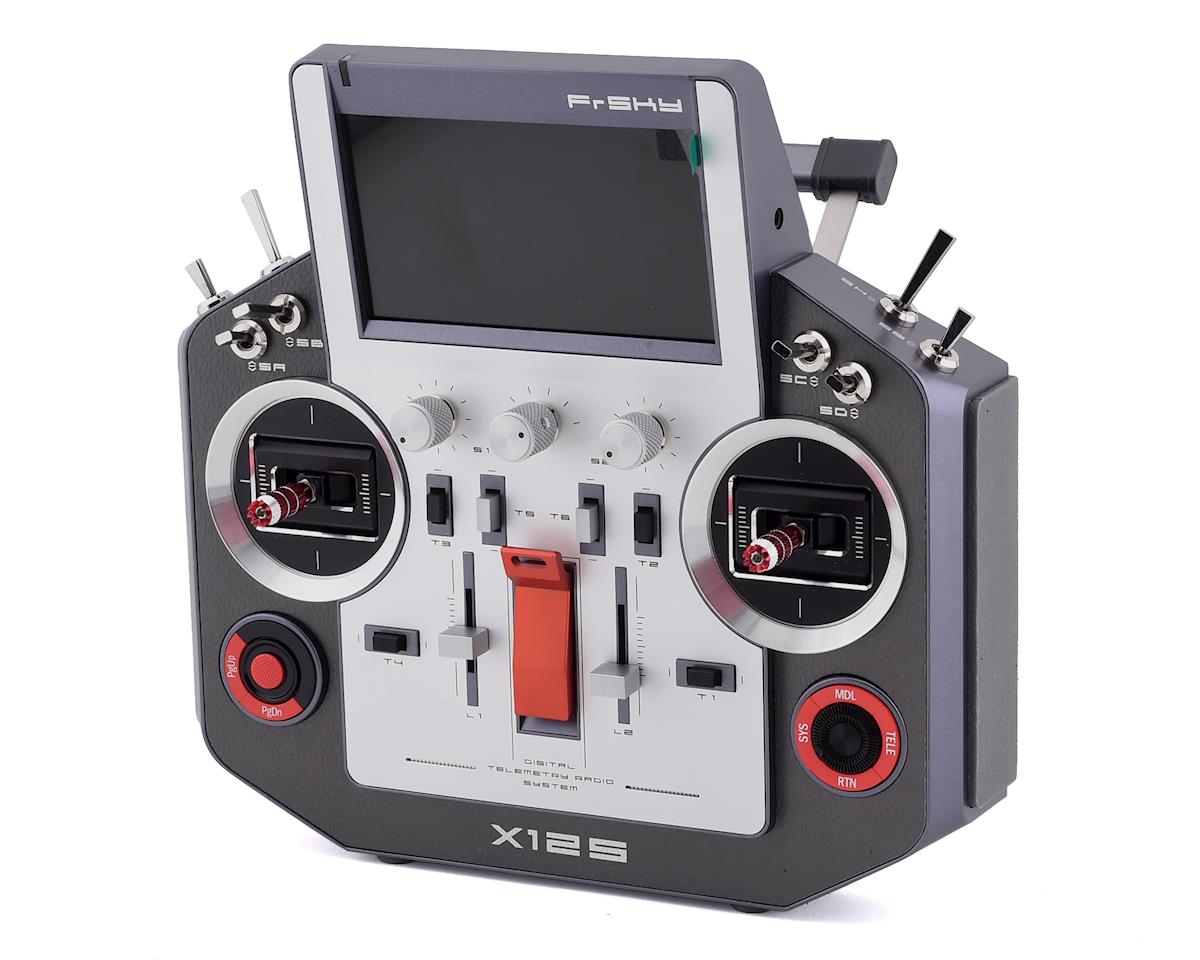

FrSky Horus X12S Transmitter (Silver)

FrSky introduces the newest and most powerful radio, the horus x12s. The Horus is the new flagship radio from FrSky with premium gimbals, pots, switches and components. The radio also has a built in GPS module, speaker, haptic feedback and more. The X12S features a full color LCD screen with an easy to navigate UI system. Each radio comes with a high quality hard case for transportation.

Features:

  • Audio Speech Outputs (values, alarms, settings, etc.)
  • Full telemetry and real-time data logging
  • Antenna detection and SWR warning
  • Integrated GPS module and 6-axis sensor (3-axis gyro and 3-axis accelerator)
  • All CNC 6 ball bearings gimbals with accuracy hall sensor and extensible by stick ends
  • Safe power switch with integrated strap base
  • Two types trainer ports
  • Inbuilt wireless trainer system
  • 6 position encoder for easier flight modes switch
  • FrSky FrTX operation system
  • MP3 Player
  • Industrial High Resolution TFT Screen Readable Outdoor
  • Internal and External Antenna selectable



Horus X12S Specifications:

  • Operating Voltage: 9.6V DC
  • Operating Temperature: -10-60*C
  • Operating Current: 360mA @ 9.6V
  • Number of Channels: 16 (Up to 32)
  • Flash Memory: 16MB (Extendadble w/ external card)

**FREE Shipping USA only. Email us at [email protected] for international shipping.






: *
: *
: *

POWERBOX CORE 26-CHANNEL 2.4GHZ TELEMETRY TRANSMITTER, (Tray Version)

POWERBOX CORE 26-CHANNEL 2.4GHZ TELEMETRY TRANSMITTER, (Tray Version)

POWERBOX CORE 26-CHANNEL 2.4GHZ TELEMETRY TRANSMITTER

PBS-8105

$2712.00

Canopy Latch (Long Pin Heavy Duty)

Canopy Latch (Long Pin Heavy Duty)

Canopy Latch (2Pcs)
This little hard to find part is great to have on hand. These bolts fit most needs - the nylon canopy bolts are especially useful, since you won't need to have any tools on hand to quickly access your hatch!

The 3mmx16mm nylon canopy bolts are made to fit most ALL canopies out there.

The 6mmx25mm nylong wing bolts are perfect for most imported planes (most are going to be this thread size)

The 1/4-20 nylong wing bolt is for American Standard sizes, and 1/4-20 is the most common size used on wings for rc planes.

Prices

  • 3mmx16mm 1 pair - $1.99
  • 3mmx16mm 3 pair - $4.99
  • 3mmx16mm 5 pair - $7.99
  • 6mmx25mm 1 pair - $2.49
  • 6mmx25mm 3 pair - $5.99
  • 1/4-20x1" 1 pair - $2.49
  • 1/4-20x1" 3 pair - $5.99







1305 Canopy Latch

$5.99

Lemon RX DSMP 10-CH TELEMETRY STABILIZER & VOLTAGE PROBE (DSMX/DSM2 COMPATIBLE)

Lemon RX DSMP 10-CH TELEMETRY STABILIZER & VOLTAGE PROBE (DSMX/DSM2 COMPATIBLE)

Lemon RX DSMP 10-CH TELEMETRY STABILIZER & VOLTAGE PROBE (DSMX/DSM2 COMPATIBLE)



















Description:

Lemon Rx DSMX Compatible 6-Channel Receiver + Lemon DSMX Compatible Satellite



Type: DSMX Compatible Full Range Receiver
Number of Channel: 6
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4 GHz
Dimension: 25(L) x 18(W) x 11(H)  mm
Weight: 4.5 grams + 2.5 grams
Voltage Range: 3.45 - 8.4 V



Highlight
- FailSafe for all channels via press of a button
- DSMX Satellite port



Understanding the receiver



Setup Instruction

Binding

  1. Plug bind plug to the receiver.
  2. Provide power to the unit. LED flashes quickly.
  3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
  4. Remove bind plug.

Setting Failsafe

  1. Start by binding the receiver to the transmitter in the normal way and proceed as follows to set failsafe
  2. Ensure that transmitter and receiver are turned on.
  3. Insert bind plug into the receiver (Note: to set failsafe, bind plug is applied only when the receiver is turned on).
  4. Set transmitter controls to the desired failsafe positions.
  5. Press the side pushbutton to memorize failsafe settings.
  6. Observe that the green light at the end of the receiver turns on to indicate failsafe is set. (Repeat step 4 will cause the LED to turn off which means failsafe is disabled).
  7. Remove bind plug.
  8. Disconnect the power for at least 2 seconds and then reconnect the power again. Test failsafe by turning off the transmitter.







LM-0087VP

$52.90
