Available in styles for

• Yak carbon fiber replacement gear Sbach carbon fiber replacement gear MXSR/MX2 carbon fiber replacement gear Extra carbon fiber replacement gear Edge carbon fiber replacement gear etc

  A - Sbach, MXSR, Slick, Edge, Extra 260
  B - Yak, Sukoi
  C - Yak also
  PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.

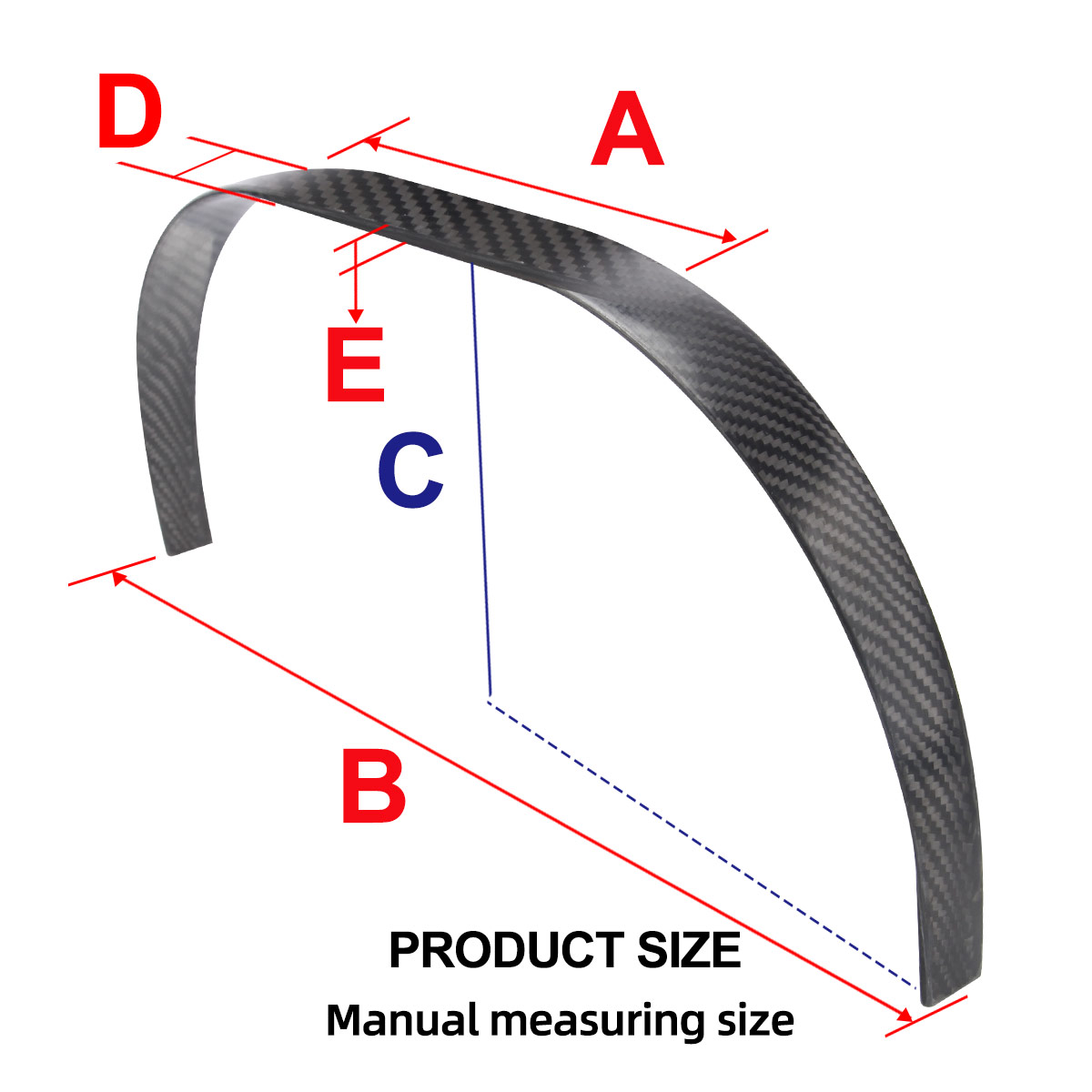

Dimensions (match the below information to the inset photo)

• 30cc A STYLE (3.6 oz)
  • A=7.5"
  • B=16"
  • C=5.5"
  • D=1.187" taper to 1"
  • E=1.5"

• 30cc B STYLE (3.8 oz)
  • A=6.5"
  • B=16.75"
  • C=6.25"
  • D=1.375" taper to 1"
  • E=1"

• 30cc C STYLE (3.4 oz)
  • A=6.5"
  • B=15.5"
  • C=5.5"
  • D=1.125" taper to .75
  • E=1"

• 50cc A STYLE (8.2 oz)
  • A=9.25"
  • B=18.75"
  • C=8"
  • D=1.5" taper to 1.125"
  • E=1.5"

• 50cc B STYLE (6 oz)
  • A=8.75"
  • B=18.5"
  • C=6.5"
  • D=1.5" taper to 1"
  • E=1.25"

• 50cc C STYLE (6 oz)
  • A=7.75"
  • B=18.5"
  • C=6.25"
  • D=1.5" taper to 1"
  • E=1.0"

• 50cc A STYLE (8.2 oz)
  • A=9.25"
  • B=18.75"
  • C=8"
  • D=1.5" taper to 1.125"
  • E=1.5"

• 50cc B STYLE (6 oz)
  • A=8.75"
  • B=18.5"
  • C=6.5"
  • D=1.5" taper to 1"
  • E=1.25"

Carbon Fiber Landing Gear Extra 300 Series For 26-30cc, 50-80cc and 100-120cc

Dimensions (match the below information to the inset photo)

• 26-30cc
  • A=140mm 5.5"
  • B=400mm 15.75"
  • C=170mm 6.69"
  • D=28mm 1.10"

• 50-80cc
  • A=160mm 6.29"
  • B=465mm 18.30"
  • C=198mm 7.79"
  • D=40mm 1.57"

• 100-120cc
  • A=190mm 7.48"
  • B=560mm 22.04"
  • C=252mm 9.92"
  • D=50mm 1.96"

The NEW Fortitude V2 gas tanks are here!!!

*Fourtitude has amended their fuel tanks due to federal regulations on shipping fuel containers. Check out the video below to see just how easy it is to assemble the tank!

Make sure to upgrade asap as this new and improved design is the cutting edge of next generation RC gas tanks. You are probably familiar with the old design- with the the line-in and the vent nozzle on the top of the tank and the line running to the engine on the cap. Because there are so many different fitting and sealants, there are alot of places where something can go wrong or start leaking.

The V2 design eliminates ALL of these problems with ONE SIMPLE DESIGN..... ALL nozzles are in the removable cap which has TWO rubber gaskets and is ONE SOLID PIECE, which includes the vent tube and filling tube. Fewer parts = Fewer problems.

Fortitude has hit the target with the V2 Tank and as always, is the best quality you can get!

Fortitude (or 4titude) gas tanks are high quality, crystal clear plastic tanks, that take the guesswork and worry out of your tanks. You can clearly see into the 4titude tank to know if your line is still flexible and your clunk is in place! Fortitude tanks include the foam, the Velcro and the tubing to hook to your engine!

4titude tanks are SUPER light, in fact, the lightest commercially available tanks on the market. They use aerospace grade adhesives to ensure long life. 4titude tanks are also made of seamless plastic, making them fully resistant to splitting!

The included clunk is filtered as well.

Video:

Video:

V2 Features:

• Injection Molded Single piece glass filled nylon fitting manifold. Light weight extremely strong material that creates a very easy to plumb and compact fuel tank.


• Dual static O-ring seals, designed utilizing the latest aerospace engineering technology, to seal fluid even under high pressure.  V2 has one potential leak point and with the redundant static seals we have double assurance it will never leak.


• Plumbed with a filtered clunk and an extended fill/ drain tube to make it easy to drain the tank completely.


• Zero protrusions/ fittings on the outside of the tank to interfere with tight airframe installations.


• We took care of making sure there is zero guess work involving installation. 3D diagram included with each tank showing how to properly plumb your fuel system for the best results.

Note the length dimension is from the back of the tank to the front of the fitting/tubing barbs.

Specs:

• Size: 8 ounce (236 ML)
  • Length 5 3/8” x Width 1 7/8" x Height 1 7/8” (136.5 x 49.5 x 49.5 mm)
• Weight: 1 ounce
• Fittings are part of the cap/ internal tubing
• Filtered clunk
• Super light!
• Crystal clear
• Seamless
• Includes: Tank/foam/velcro
• Fourtitude Tanks are compatible with gas engines only. (Not compatible with Glow fuel)

Fortitude tanks are compatible with ALL oils, synthetic and non-synthetic. Fortitude uses PPG Class B sealant. The expert below explains how high tech and quality of a sealant it is:

“PPG Class B is an aircraft integral fuel tank sealant. It has a service temperature range from - 65°F (-54°C) to 250°F (121°C), with intermittent excursions up to 275°F (135°C). This material is designed for fillet sealing of fuel tanks and other air- craft fuselage sealing applications. The cured sealant maintains excellent elastomeric properties after pro- longed exposure to both jet fuel and aviation gas. "

BMS-20630 Aluminum Servo Arm, Dual Sided, 8 hole, 4.00", 25T Futaba Spline
