Scorpion A-4225 PNP Combo (6s / 20-25cc+ /90E+ / 3100+w)

Our Price:

$479.99


Add a Battery
Quantity

OUT OF STOCK


Availability No items available
Weight 5.00 lbs
SKU combo-A-4225-PNP-6S
Manufacturer Scorpion

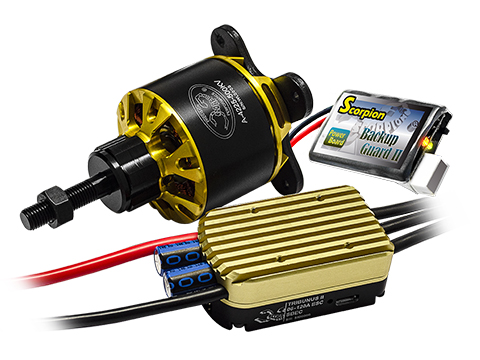

Scorpion A-4225 PNP Combo (6s / 20-25cc+ /90E+ / 3100+w) PERFECT for our 20cc Profile Planes

In combination with the new A-Series motor line debut, RWRC is also pleased to announce the new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 90E /20cc-25cc sized airplanes. The A-4225 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.

Scorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) featuresScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) features

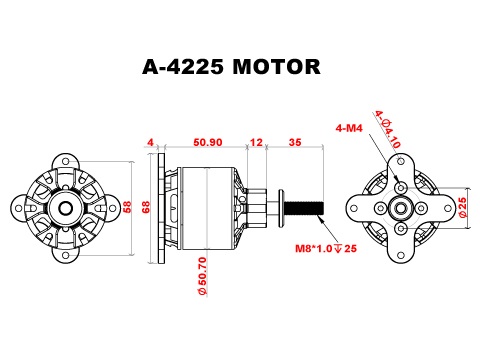

Full Dimension

Scorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Full Dimension

Specifications

Total Power System Weight (Motor+ESC+Cross Mount) 528g (18.62 oz)



MOTOR SPECIFICATIONS :
Motor Kv 500 RPM / Volt
Weight (including cross mount + Prop mount accessories) 398g ( 14.04oz)
Motor Body Dimensions 50.7mm x 50.9mm (+12.0mm prop spacer) (1.99" x 2.00" (+ 0.47") )
External Shaft Diameter 8mm
Continuous Current 100A
Continuous Power 2220 Watts
Peak Current* 140A
Peak Power* 3108 Watts
Max Rated Lipo Cell 6s
Stator Arms 12
Magnet Poles 14



ESC SPECIFICATIONS :
Max Continuous Current 120 Amps
Peak Current 160Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage***: OFF/5.1/6.1/7.1/8.1
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
Size 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors) 120g (4.23 oz)
Drive frequency 8kHz - 32kHz
Cable gauge 12 AWG



Back Up Guard II (Power Board) SPECIFICATIONS :
Weight 10 grams (without battery)
Dimension 44mm x 25.2mm x 10.5mm
Li-Po input 2S/7.4V (500~1000mah recommended)
Output DC 5V/ 10 Amp Continues Current.
Charging Plug JST-XHR
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*

Performance Charts

Scorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Data chartScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Data chartScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Data chartScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Data chartScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Data chartScorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) Data chart

Scorpion A-4225-500kv + A-4225 PNP Combo {Official Promo Video}



7 minutes of 3D flight! A-4225 {Official Promo Video}



Santiago Perez - A-4225 PNP Combo - 70" EF Extra (6s)

Use Case Applications

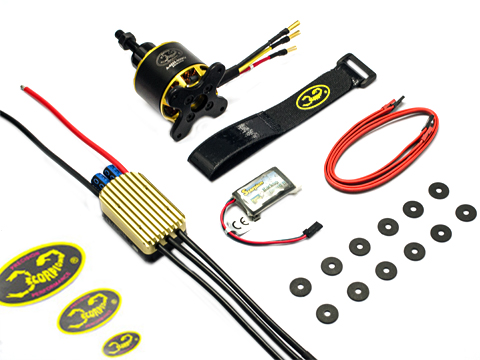

Included in the Box

1 x Scorpion A-4225 BLDC Motor
1 x A-42 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
12 x 4x16x1 Thrust Shims
1 x M8 Nut + prop washer
1 x Tribunus II 06-120A ESC SBEC
2 x BEC Cables
1 x Backup Guard II (power board)
1 x Scorpion Lock Strap (L)
3 x Scorpion Stickers

: *
: *
: *
