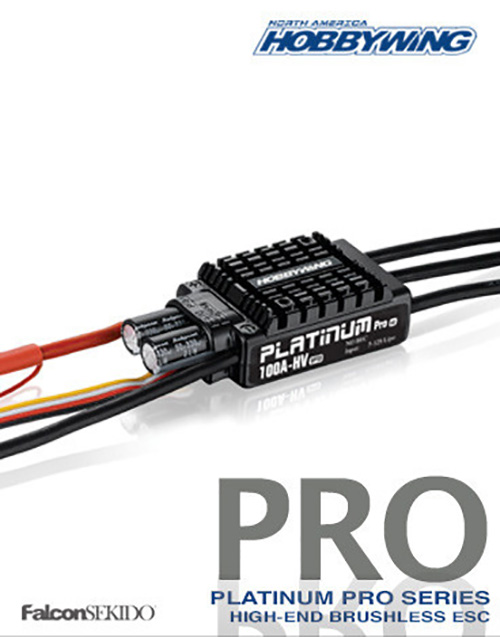

Platinum Pro V3 100A HV ESC, for Premium Aircraft (5S-12S)

Ask a question about this product
Printable version

Share

Options

Market Price: $191.00
Our Price:

$129.99
You Save

32%
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 1.50 lbs
SKU HWI30203600
High-performance microprocessor with the operating frequency up to 50MHz brings excellent compatibility (with most motors in the market) and high driving efficiency.
  • The maximum motor speed can reach 210000 RPM (for 2-pole), 70000 RPM (for 6-pole) and 35000 RPM (for 12-pole).
  • Multiple flight modes: Airplane Fixed Wing / Heli Governor Off / Heli Governor (Elf) / Heli Governor Store.
  • Adjustable throttle range, compatible with various transmitters.
  • Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control.
  • Brand new governor program brings excellent speed-governing effect.
  • ”Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.
  • Independent output port for RPM (that is: motor speed) signals.
  • Compatible LCD program box (optional accessory), its simple and visual interface allows users to set/revise all the ESC parameters easily. (For detailed information, please refer to User Manual of LCD Program Box.)
  • Upgradeable firmware, you can upgrade the ESC after connecting it to a PC via the USB cable on the program box.
  • The independent port, for connecting the program box and setting parameters, can also be the output port of the running status data of the ESC. When coordinating with the data transmission module, it can make the real-time data monitoring and logging possible.
  • Low-voltage cutoff protection / Throttle signal loss protection effectively prolong the service life of the ESC.
  • The anti-spark circuit on the input wires eliminates the electro spark created when connecting the battery pack to the ESC.

Bottomline:
  • High Voltage (5S-12S LiPo) capability
  • 100 Amp continuous, Burst 140A peak
  • GOVERNOR STORE mode
  • 50MHz processor
  • The maximum motor speed can reach up to 210000 RPM*
  • PWM adjustable up to 32KHz
  • Industry's BEST throttle response in governor mode
  • Separate output for reading / recording engine RPM
  • Official Manufacture Limited Warranty
  • Completely customizable by Professional LCD Program (purchase separately)

Download

: *
: *
: *

XQ 4013 digital 6v

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 35RA Engine

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00

Redwing RC Aluminum Servo Circle Arms

Redwing RC Aluminum Servo Circle Arms

Description: DID YOU GET COOL ALUMINUM OR CARBON FIBER ARMS WITH YOUR KIT, BUT DON'T WANT TO USE THE PLASTIC CIRCLE ARMS THAT COME WITH YOUR SERVOS? FINALLY! THE SOLUTION IS HERE!!

Now made to fit Hitec, OR XQpower/Futaba/PowerHD

Made to line up with Redwing, Goldwing, and MOST other ARFS that include servo arms. The holes pre drilled are threaded for a 2mm bolt, so that you do NOT have to use a nut on the bottom. Just a little loc tite on the servo arm threads, and tighten. YOUR DONE!

Not sure if it's the best thing since sliced bread, but it's close!

1 circle $4.99
5 = $19.95
10= $38.90


RW-Circle-Arm

$4.99
