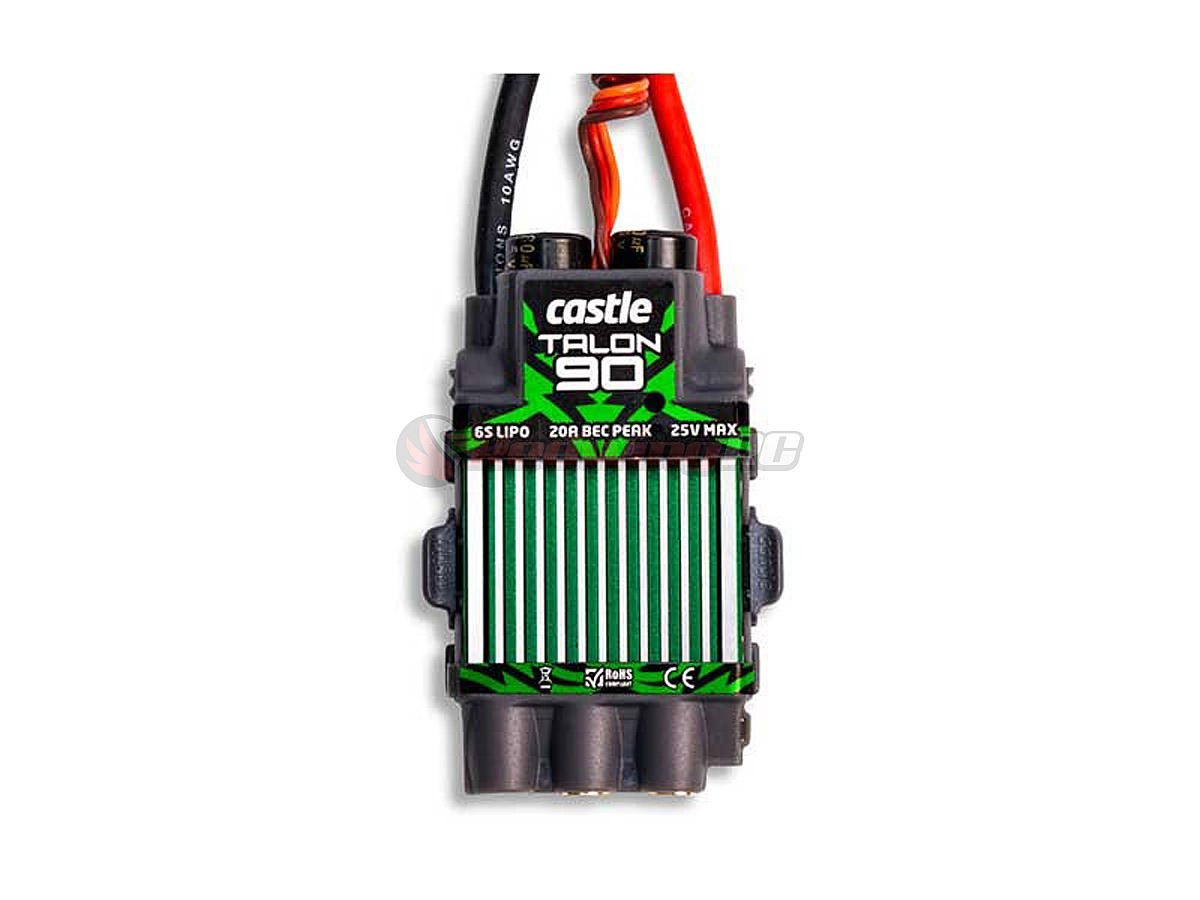

Talon 90 ESC

Ask a question about this product

Printable version

Options

Our Price:

$109.95

Quantity (9)

Details


Availability	9 in stock
Weight	1.50 lbs
SKU	CCTALON90

Overview

Castle's Talon 90 ESC with heavy duty BEC is designed for today's servos - producing 9 amps of continuous power and its potential power peaking* at 20 amps!

Fixed wing - applications drawing up to 90 amps continuously on 6S. BEC is capable of powering most servo sets in planes - Talon 90 is ideal for our 30cc planes! The innovative case ensures cooling in even the toughest mounting locations.

*Peak indicates amperage susatainable for 0.5 seconds - long enough for most servos' current draw transients. Your setup may vary. Always confirm servo current draw befire the first flight.

Specs

Amperage:	60 & Up
Auto Cutoff:	Programmable
BEC Voltage:	6V or 8V, user selectable; 9A continuous, 20A peak output
Brake:	Programmable
Continuous Maximum Current:	90A
Height:	0.7 in (18mm)
Input Connector Types:	Bare wire
Input Voltage:	3S-6S LiPo
Length:	3.14 in (80mm)
Output Connector Types:	5mm female bullets
PWM Frequency:	Programmable
Type:	Brushless
Weight:	3.0 oz (84.5 g)
Width:	1.7 in (43mm)
