Hobbywing 3A Power Regulator 5/6V UBEC (2-6S Input)

Contact UsCustomer Reviews

Hobbywing 3A Power Regulator 5/6V UBEC (2-6S Input)

Our Price:

$7.99


Quantity

OUT OF STOCK


Availability No items available
Weight 0.10 lbs
SKU QX-10788-HW-3A-UBEC

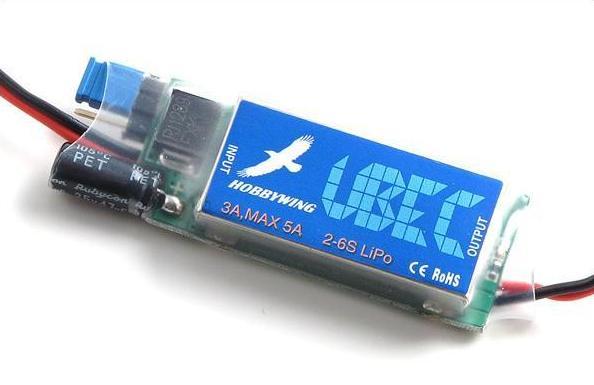

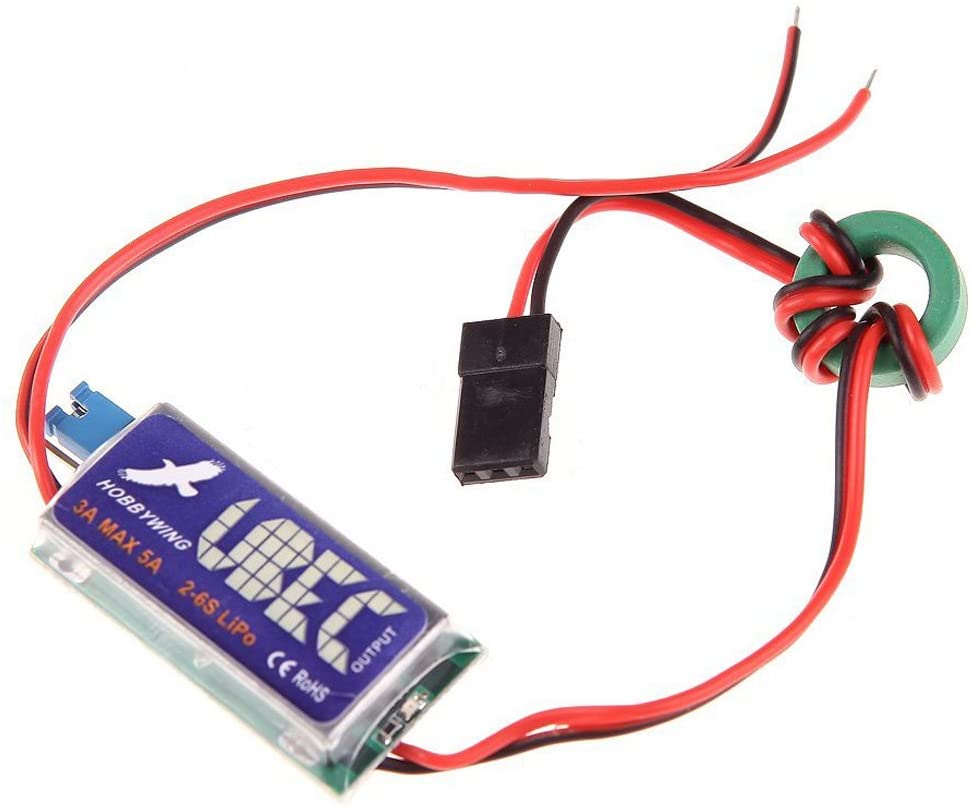

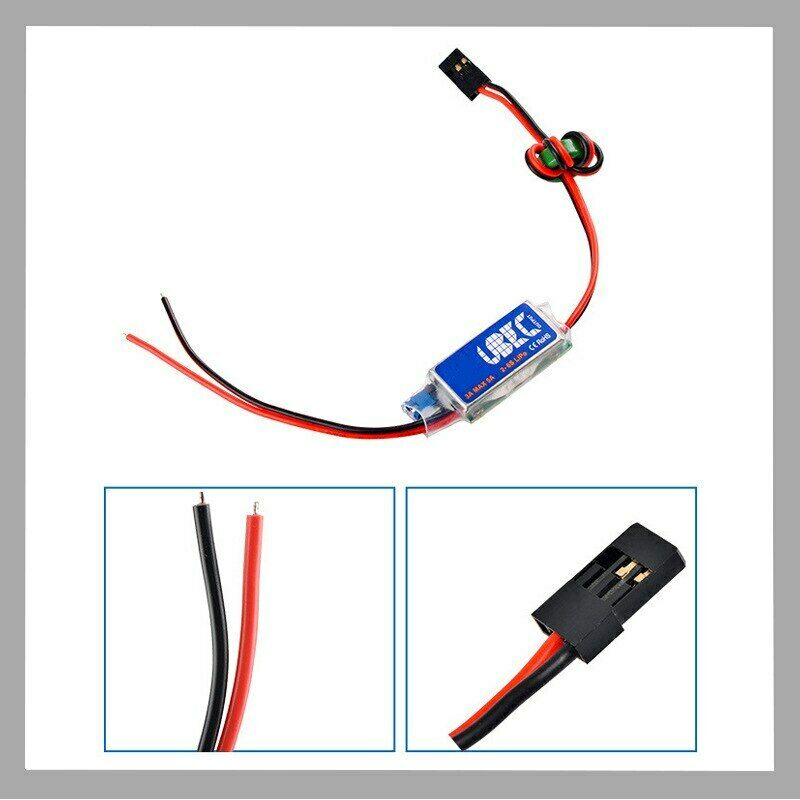

Hobbywing 3A Power Regulator 5/6V UBEC (2-6S Input)

The 3A-UBEC is a switch-mode DC-DC regulator supplied by a 2-6S (6.6v-28v) lithium battery pack (or 5-18 cells NiMH /NiCd battery). The output is either 5v or 6v slectable via jumper to provide consistent safe voltage to your receiver, gyro and servos. Compared with the linear mode UBEC, the overall efficiency of the switch-mode UBEC is much higher and provides longer battery life. This UBEC is equipped with intrgrated noise reduction circuits and a shielded housing to reduce any electromagnetic interference. Suitable for RC aircraft or helicopter.

Specifications:

  • Output Voltage: 5V@3A or 6V@3A (Changeable with an output-voltage jumper switch )
  • Continuous output current: 3 Amps, 5A burst
  • Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMH /NiCd battery)
  • Size: 43mm*17mm*7mm (L*W*H)
  • Weight: 11g

Features:

  • Designed with an advanced switch mode DC-DC regulator IC.
  • Powerful output even working with 4 to 6 cells Lipo battery.
  • Battery polarity reversal protection.
  • A metal shield covers almost all the electronic components, and a specially made filter is attached to the output wires to significantly reduce the electromagnetic interference.
  • The working status is shown by an indicator (LED), lights when the output is in normal range.




: *
: *
: *


Miracle RC Aluminum Spinners (Spinner)

Description:

All NEW design! These Miracle aluminum spinners have back plates which have extensive lightening, the spinners are cut for a large 3d style prop, and the back plates are drilled for multiple engine sizes!

FOR ENGINE SIZE:

  • 2.5" Spinner : DLE 20, Enya FS120, All YS Four Strokes and any that match these
  • 2.5" Spinner : DLE 20, Enya FS120, All YS Four Strokes and any that match these
  • 3" Spinner: DLE 30, DLE 35RA, DLE 55, DLE 55RA, MLD 28, DA 50, 56, 58, and EVO 54 (and any other engines that fit these templates
  • 3.5" DLE 30, DLE 35RA, DLE 55, DLE 55RA, MLD 28, DA 50, 56, 58, and EVO 54 (and any other engines that fit these templates

    SPECS:
  • 2.5": Height 2.7", weight 2.7oz, includes 30mm bolt.
  • 3": Height - 3.1", weight 3.2 oz, includes 55mm bolt.
  • 3.5" : Height 3.7", weight 3.6oz, includes 60mm bolt.





Miracle RC Aluminum Spinners are high quality CNC Machined spinners. Very light, with a lightened back plate included. Very accurate, very beautiful, and a great value!



  • 2.5" - $16.95
  • 3" - $20.95
  • 3.5" - $27.95
  • 3.75"- $31.95
  • 4.0" - $38.95
  • 4.5" - $44.95
  • 5" - $50.95

MRC-Spinner

$21.95

Savox SB2292SG - Monster Performance Brushless Servo, Black Edition

Savox SB2292SG, Monster Performance, Brushless Servo Black Edition 0.055sec / 624.9oz @ 8.4v



























































Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230.

The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 416.6 oz/in at 4.8V
    • 500 oz/in at 6V

  • Speed:
    • .20 sec at 4.8V
    • .16 sec at 6V

  • Voltage: 4.8V to6V
  • Weight: 2.78 oz (79 g)
  • Size: 1.6 x .79 x 1.77 in (40.3 x 20.2 x 45.0 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAVSB2292SG

$145.99

Hitec HS-65MG

Hitec HS-65MG

The HS-65 HB+ is a great choice because it is one of Hi-Tec's strongest micro servo and it has a very long life due to the durable Karbonite gears. The HS-65 HB+ can provide over 30 oz/in of power at 6 volts. Created for higher performance micro helicopters, electric park flyers, & 1/18 scale cars. This servo features a top ball-bearing for long life and positive centering.

Arms included: Single arm, Double arm, Quad arm

Features

  • High Efficiency Neodymium Magnet Motor
  • Ball Bearings
  • Karbonite Gears



Specifications

  • Torque:
    • 24.99 oz/in at 4.8V (1.8 kg/cm)
    • 30.55 oz/in at 6V (2.2 kg/cm)

  • Speed:
    • .14 sec at 4.8V
    • .11 sec at 6V

  • Voltage:
  • Weight: 0.39 oz (11.2 g)
  • Size: 23.6 x 11.6 x 24 mm (0.92 x 0.42 x 0.94 in)

  • Motor Type: Neodymium Magnet
  • Bearing Type: Yes


HRC32065S

$32.99
