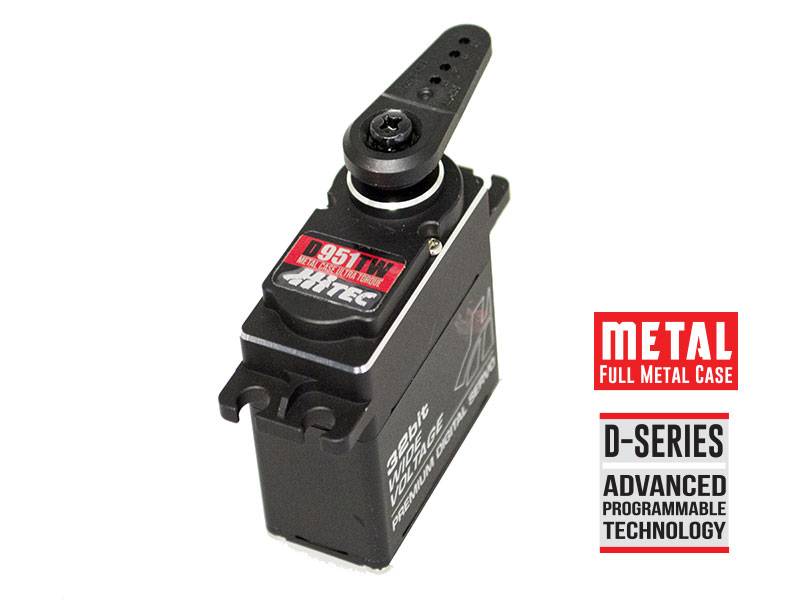

HiTec D-951TW 32-Bit, Ultra Torque, Titanium Gear Servo (35kg/486oz [email protected])

Contact UsCustomer Reviews
  0
  4. HiTec D-951TW 32-Bit, Ultra Torque, Titanium Gear Servo (35kg/486oz [email protected])
Tariff Information update
more offers

HiTec D-951TW 32-Bit, Ultra Torque, Titanium Gear Servo (35kg/486oz [email protected])

Ask a question about this product
Printable version

Share

Options

Market Price: $233.95
Our Price:

$149.99
You Save

36%
Quantity (15)

Details

Availability 15 in stock
Weight 0.38 lbs
SKU HRC36951S
Manufacturer Hitec

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by their 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

Features:

  • High Response Circuitry
  • Wide Voltage Capabilities
  • 32-Bit MCU Technology
  • Full Programmability
  • Smart Sense Technology for Servo Analytics
  • 25-Tooth Output Spline

Programmable Features:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset
Dimensions 1.57" x 0.79" x 1.50" (40 mm x 20 mm x 38 mm)
Product Weight 2.4 oz (68 g)
Output Shaft Style 25 tooth (H25T) spline
Voltage Range 4.8 V - 7.4 V
No-Load Speed (4.8V) 0.23 sec/60°
No-Load Speed (6.0V) 0.17 sec/60°
No-Load Speed (7.4V) 0.14 sec/60°
Stall Torque (4.8V) 292 oz-in. (21.0 kg.cm)
Stall Torque (6.0V) 403 oz-in. (29.0 kg.cm)
Stall Torque (7.4V) 486 oz-in. (35.0 kg.cm)
Max PWM Signal Range (Standard) 750-2250 μsec
Pulse Amplitude 3-5 V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 1 µs
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Type Straight Cut Spur
Gear Material Titanium
Wire Length 11.81" (300 mm)
Wire Gauge 20 AWG






: *
: *
: *
