Power HD 1370A - Micro Servo - 0.6 kg (8.3 oz/in), .010/sec - 3.7g

Power HD DSM44
Our Price:

$5.99


Quantity

OUT OF STOCK


Availability No items available
Weight 0.03 lbs
SKU HD-1370A
Manufacturer Power HD

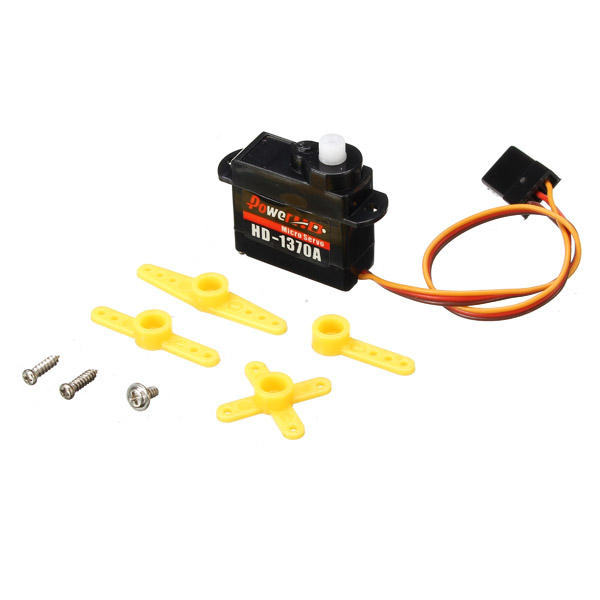

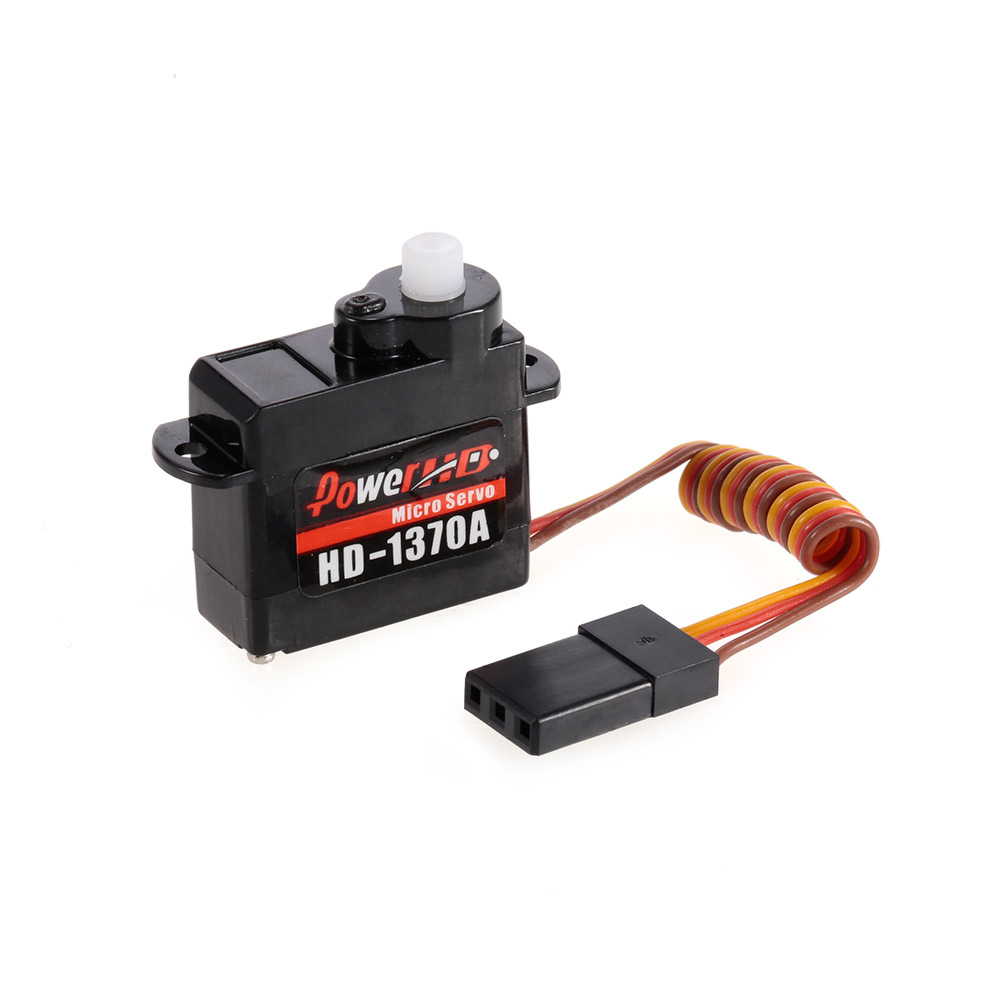

The Power-HD 1370A Micro Servo is designed from the ground up with small models in mind.  This is by far the lightest servo at RedwingRC- weighing only 3.7g!!! The lead is terminated with a Futaba-compatible standard “JR”-style connector. Servo horns and associated hardware are included.

It is important to note that stalling or back-driving this servo can strip its gears.

Specifications:

  • Torque:
    5.60 oz/in at 4.8V (0.4 kg/cm)
    8.30 oz/in at 6V (0.6 kg/cm)

  • Speed:
    .12 sec at 4.8V
    .10 sec at 6V

  • Voltage: 4.8v to 6v
  • Weight: .13oz (3.7g)

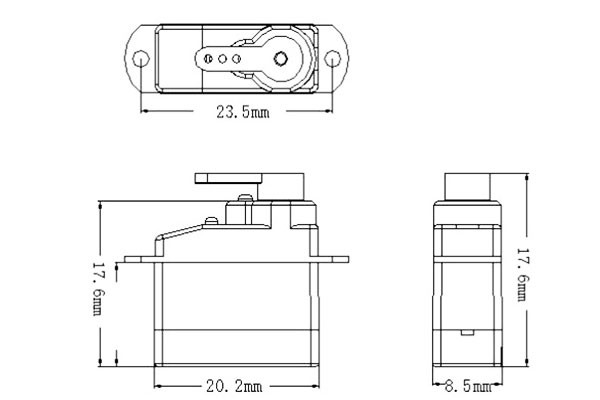

  • Size: .78 x .31 x .69in (20 x 8 x 17.5mm)

  • Analog
  • Lead Length: 150 mm
  • Gear Type Plastic
  • Operating Temperature: -10℃~50℃
  • Hardware included
  • Suitable for F3P/EPP/KT Airplanes
: *
: *
: *
