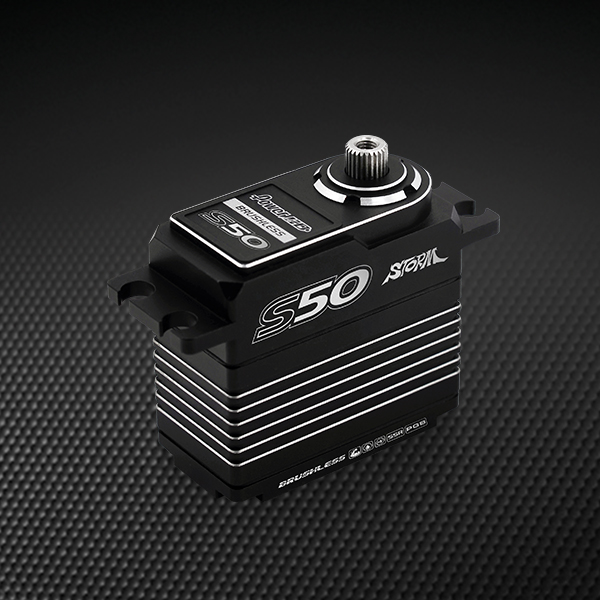

Power HD S50 Storm Brushless HV Ultra Torque 50.0 kg/ 694.4 oz 0.10 sec 8.4V

Ranger 1600 4CH FPV Carrier 1.6M Glider (PNP)

*Free shipping is for continental US only

RedwingRC Plug-and-Play aircraft!

Now this is a unique plane for sure! Upgrade that asphalt runway of yours to a pond, lake or pool! The PBY Catalina seaplane is something you have to experience! It took months of flight testing and designing to produce this amazing aircraft. The Catalina is capable of stable flight at really slow speeds making it perfect for any skill level. Get ready for some really neat details and a large 55 inch wingspan! The Catalina is blast to fly and and landing on on water is a piece of cake.

Key Features:

• Powerful twin 480 size (1100kv) outrunner brushless power system w/ 3-bladed props
• Twin 30A Brushless ESC with Switch-Mode BEC
• Durable and lightweight EPO construction with many surface details
• Excellent Flight Performance
• Detailed Body Structure
• Suitable for Both Intermediate and Experienced Pilots.
• Removable / detachable wing. (4 screws)



Specifications:

Wingspan:	58 inches / 1470mm
Overall Length:	37 inches / 940mm
Flying Weight:	45oz  / 1275 w/Battery
Motor Size:	Twin 480 size (2814-1100kv) outrunner brushless motors (installed)
Propeller:	2 x 3 blade props 8 x 6 x 3
Radio / Transmitter	4 Channel (NOT INCLUDED)
Receiver	+4 Channel (NOT INCLUDED)
Servos:	4 servos installed ( 2 x 9g - 2 x 17g)
Speed Control :	1 x Dectrum 30A Brushless with Switch-Mode BEC (installed)
Battery:	11.1V 2200 mah (not included)
Charger:	3S+ (11.8v) Lipo Charger (NOT INCLUDED)
Flight Times	Average (8-12 mins)
Assembly Time	Approx 45min



FREE Shipping US only--contact us at [email protected] to calculate international shipping cost



Lemon RX DSMP (DSMX/DSM2 COMPATIBLE) MICROBRICK WITH 2 ON-BOARD SERVOS and MOLEX 1.25MM CONNECTOR PACKAGE



















Description:

Lemon Rx DSMX Compatible 6-Channel Receiver + Lemon DSMX Compatible Satellite



Type:	DSMX Compatible Full Range Receiver
Number of Channel:	6
Modulation:	DSMX Compatible (Also DSM2 backward Compatible)
Band:	2.4 GHz
Dimension:	25(L) x 18(W) x 11(H)  mm
Weight:	4.5 grams + 2.5 grams
Voltage Range:	3.45 - 8.4 V



Highlight
- FailSafe for all channels via press of a button
- DSMX Satellite port

Understanding the receiver



Setup Instruction

Binding

1. Plug bind plug to the receiver.
2. Provide power to the unit. LED flashes quickly.
3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
4. Remove bind plug.

Setting Failsafe

1. Start by binding the receiver to the transmitter in the normal way and proceed as follows to set failsafe
2. Ensure that transmitter and receiver are turned on.
3. Insert bind plug into the receiver (Note: to set failsafe, bind plug is applied only when the receiver is turned on).
4. Set transmitter controls to the desired failsafe positions.
5. Press the side pushbutton to memorize failsafe settings.
6. Observe that the green light at the end of the receiver turns on to indicate failsafe is set. (Repeat step 4 will cause the LED to turn off which means failsafe is disabled).
7. Remove bind plug.
8. Disconnect the power for at least 2 seconds and then reconnect the power again. Test failsafe by turning off the transmitter.







FUTABA GYC470 All-Purpose Car Gyro































































































































































































Product Description

With 4 times the resolution of its predecessor, the Aurora 9, the Aurora 9X is sure to become a favorite among the most demanding pilots. It is HiTec's first triple protocol radio which allows selection from the G1 and G2 Adaptive Frequency Hopping Spread Spectrum (AFHSS) or Secure Link (SLT) 2.4GHz technologies. It features dual processors for fast low latency response and ultra-smooth 4096 resolution. With more than 30 additional programming enhancements and new dynamically assignable switches, it is sure to thrill sport and professional level airplane and helicopter pilots alike.



Features



• Built in AFHSS 2.4GHZ / SLTTM Module (Single / Bi-Directional Selectable)
• 4096 Resolution
• Improved Latency (Dual Processor 7ms Frame Rate)
• Vibration Mode
• Included Touch Screen Stylus
• Easy-to-Read, Easily Accessible 5.1-inch Wide Backlit LCD Touch Screen (320 x 80 Pixels)
• Customizable Menu
• One-Stop Model Type Setting
• 3 Multi-Tasking Digital Trims
• Fully Assignable Control Switches, Knobs, Sticks and Digital Trims
• Ultra-Smooth Quad Ball Bearing Gimbals
• Full-Size Comfortable Hand Grips (Top Quality Elastomer)
• Selectable 4 Different Control Stick Modes, Plus 2 Additional Manual Modes (Software)
• Easy Gimbal Mode Change and Tension Adjustment (Hardware)
• Power Management System (Adjustable Backlight & Auto Shut-off Time)
• Digital Trim Nano-Adjuster (200 Adjustable Trim Steps)















•
•
•
•
•
•
•
•
•
•
•
•

Standard Programming

• 9 Assignable Control Channels
• 3-Model Type Programming (ACRO/GLID/HELI)
• 30-Model Memory
• 20 Character Model Naming
• 8 Flight Conditions with 10 Characters
• Fail-Safe
• Channel Function
• EPA
• Dual Rate & EXP*
• Sub-Trim
• Servo Reverse
• Servo Speed (up to 25 sec. in each direction)*
• Servo Monitor (Monitor & Servo Test)
• 8 Programmable Mixes (5x 2-Point, 3x 7-Point Curves)**
• Trainer
• Throttle Lock

* Capable of a Maximum of 24 rates by 8 flight conditions and 3 switch positions
** Capable of a Maximum of 8 Rates by 8 Flight Conditions
