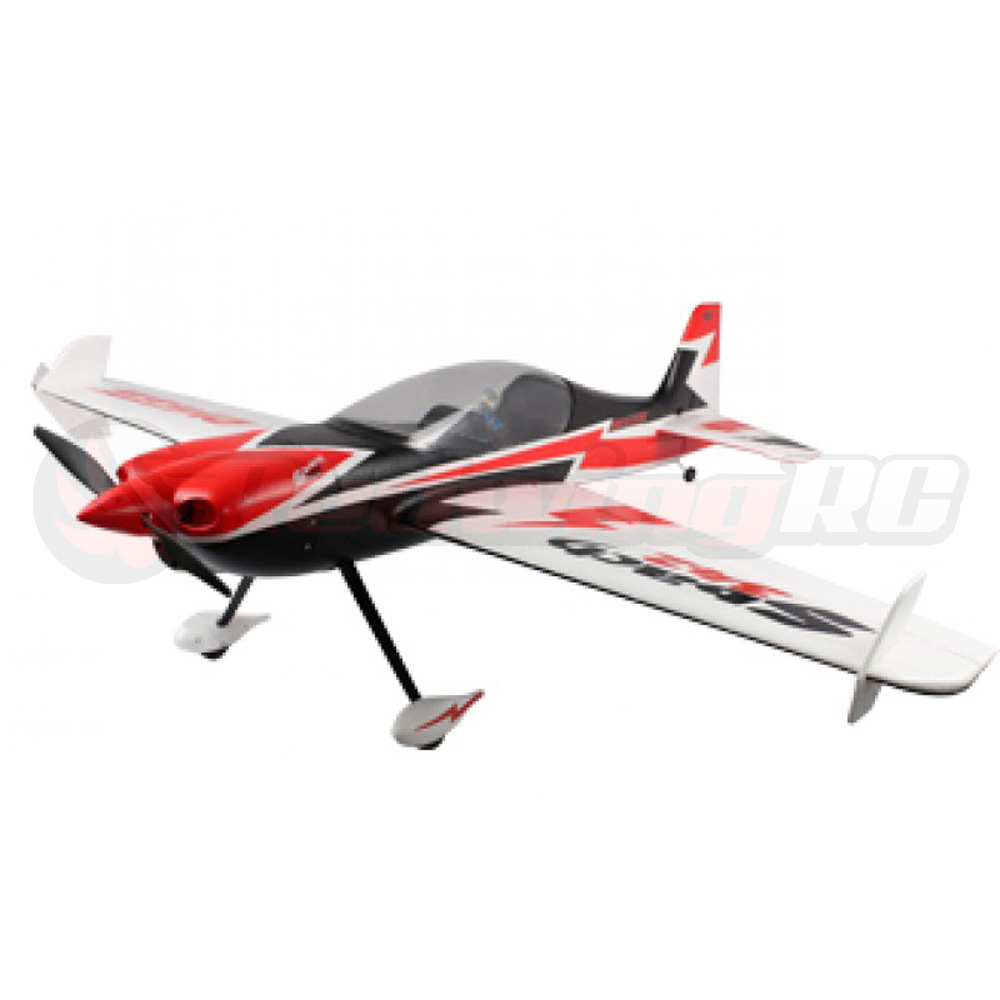

Dynam Sbach 342 Aerobatic 3D Sport Plane 4S 1250mm (49") Wingspan

The Dynam RC Sbach 342 is a high-performance aerobatic 3D airplane designed for intermediate to advanced pilots. It features a sleek and streamlined design with a wingspan of 1250mm and a fuselage length of 1235mm. A lightweight EPO foam construction for durability and maneuverability. The Sbach 342 RTF version comes with a powerful Detrum BM3720A-KV650 brushless motor, a TomCat Skylord-50A ESC, four servos, a 4S 14.8V 2200mAh 25C LiPo battery, and a GAVIN 6-channel radio system, providing precise control and speed. The Dynam Sbach 342 can perform various aerobatic maneuvers, including rolls, loops, spins, and inverted flight.

Features

• Durable and lightweight EPO construction.
• Realistic scale features include an attractive Sbach 342 paint scheme, a hand-painted pilot figure, and molded panel lines.
• A composite structure low-wing monoplane with a fixed conventional landing gear with a tailwheel.
• Powerful BM3720A-KV650 Brushless Outrunner motor.
• TomCat Skylord-50A 5A-BEC ESC.
• GAVIN 6CH 2.4Ghz radio system.
• Detrum MSR66A 6CH 2.4Ghz Mini Receiver iStone 6-Axis Gyro Stabilizer w/ ABS System.
• 4S 14.8V 2200mAh 25C Li-Po battery w/ XT60 Connector.
• Elevator, aileron, and elevator controls.
• Comes with a decal set.
• Suitable for intermediate or experienced pilots.

Specifications

• Wingspan: 1250mm (49in)
• Overall Length: 1235mm (48.6in)
• Flying Weight: 1450g (51.14oz)
• Wing Loading: 46.5g/dm²
• CG (Center of Gravity): 75-80mm from the leading edge of the wing at the root
• Power System: Detrum BM3720-KV650 Brushless Outrunner motor - (pre-installed)
• Electronic Speed Control: TomCat Skylord-50A 5A-BEC ESC - (pre-installed)
• Propeller: 13*6 2-Blade Prop
• Servo: 4x 9g micro servos - (pre-installed)
• Landing Gear: Fixed
• Required Transmitter: GAVIN-6C 2.4Ghz 6-Channel or above
• Required Receiver: MSR66A 6CH 2.4Ghz (iStone 6-Axis Gyro Stabilizer w/ ABS System)
• Required Battery: 4S 14.8V 2200mAh 25C Li-Po w/ XT60 Connector
• Aileron: Yes
• Elevator: Yes
• Rudder: Yes
• Flaps: No
• Approx. Flying Time: 7 minutes
• Material: EPO Foam
• Skill Level: Intermediate
• Assembly Time: 1 hour
• Age Level: 14+
• Recommended Environment: Outdoor
• Aircraft Type: Aerobatic

What's the difference between RTF, BNF, SPNP and PNP?

PNP (Plug-N-Play) RC airplanes have everything you need EXCEPT a transmitter, receiver, and battery pack (battery & charger). It contains model kits, Detrum motors, TomCat Skylord ESCs, and servos.

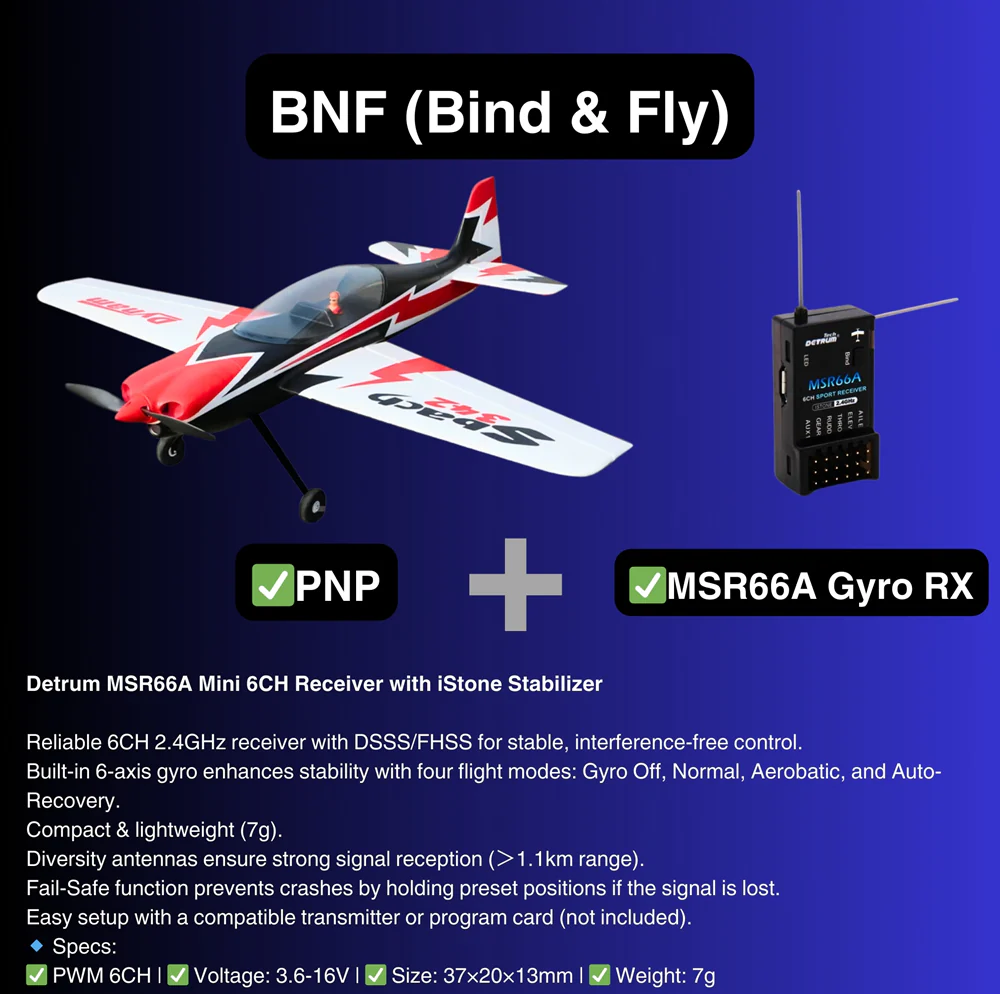

BNF (Bind-N-Fly) RC airplanes come with everything you need to get in the air EXCEPT the Transmitter and battery pack (battery & charger). It contains model kits, Detrum motors, TomCat Skylord ESCs, servos, and an iStone gyro receiver. They are easy to use, versatile, and safe, making them the perfect choice for beginners and experienced pilots. The BNF (Bind and Fly) version, receivers such as the MSR66A work exclusively with Detrum transmitters.

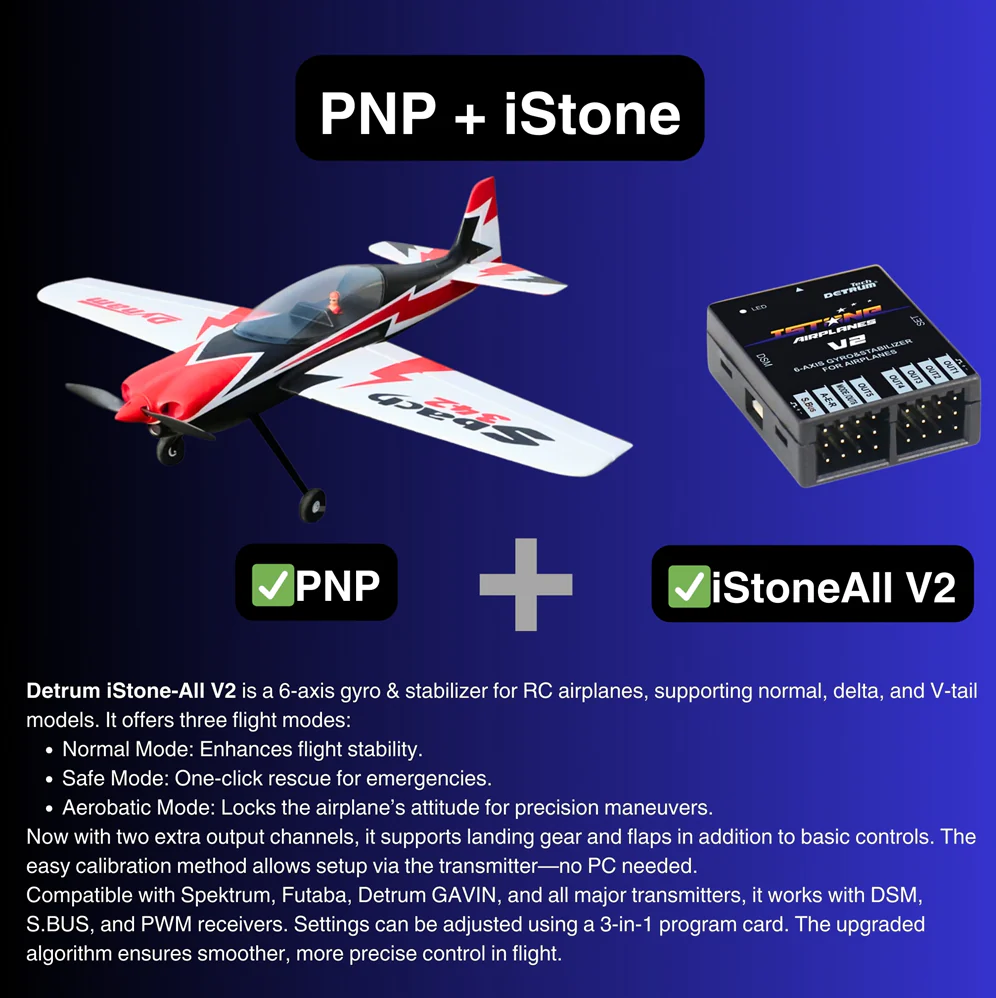

Dynam SPNP (PNP + iStone All V2) RC airplane is a versatile and user-friendly aircraft designed for RC enthusiasts. Combining an easy plug-and-play setup with the advanced iStone stabilization system, it suits a wide range of pilots. The PNP + iStone version includes the iStoneAll V2 6-axis gyro stabilizer, compatible with major radio transmitter brands like Futaba, Spektrum, Detrum, and etc., providing excellent versatility and flight performance.

iStone All V2 Gyro Stabilizer Features:

• 6-axis high-precision stabilization
• Auto-recovery and one-click rescue
• Compatible with most receivers
• Adjustable parameters and sensitivity via 3-in-1 programming card with LCD
• Gyro-off mode for manual flight

The PNP configuration and iStone All V2 stabilization system make this plane ideal for beginners, while offering features appreciated by intermediate pilots.

Dynam SRTF version is based on the standard RTF (Ready to Fly), which integrates the iStone 6-Axis Gyro Stabilizer w/ ABS System: RC airplanes get everything in a box to fly. The radio system (Transmitter and receiver), battery pack (battery and charger), and all other required electric parts are included and pre-installed. It contains model kits, Detrum motors, TomCat Skylord ESCs, servos, Detrum transmitters, iStone gyro receivers, battery, charger, and adapter. RTF planes are a great way to enjoy the thrill of flying without too much hassle.

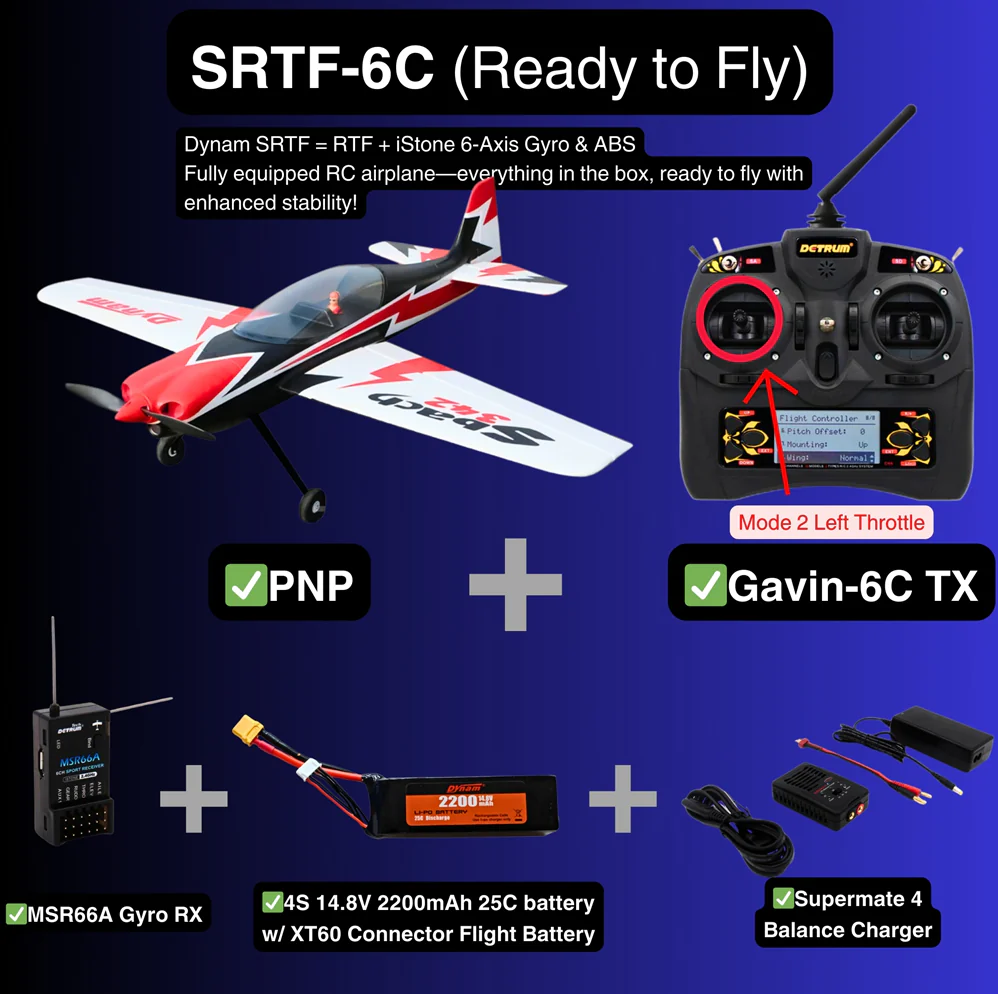

SRTF-6C Version: Includes a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Gavin-6C transmitter, MSR66A iStone gyro receiver, battery, charger, and adapter.

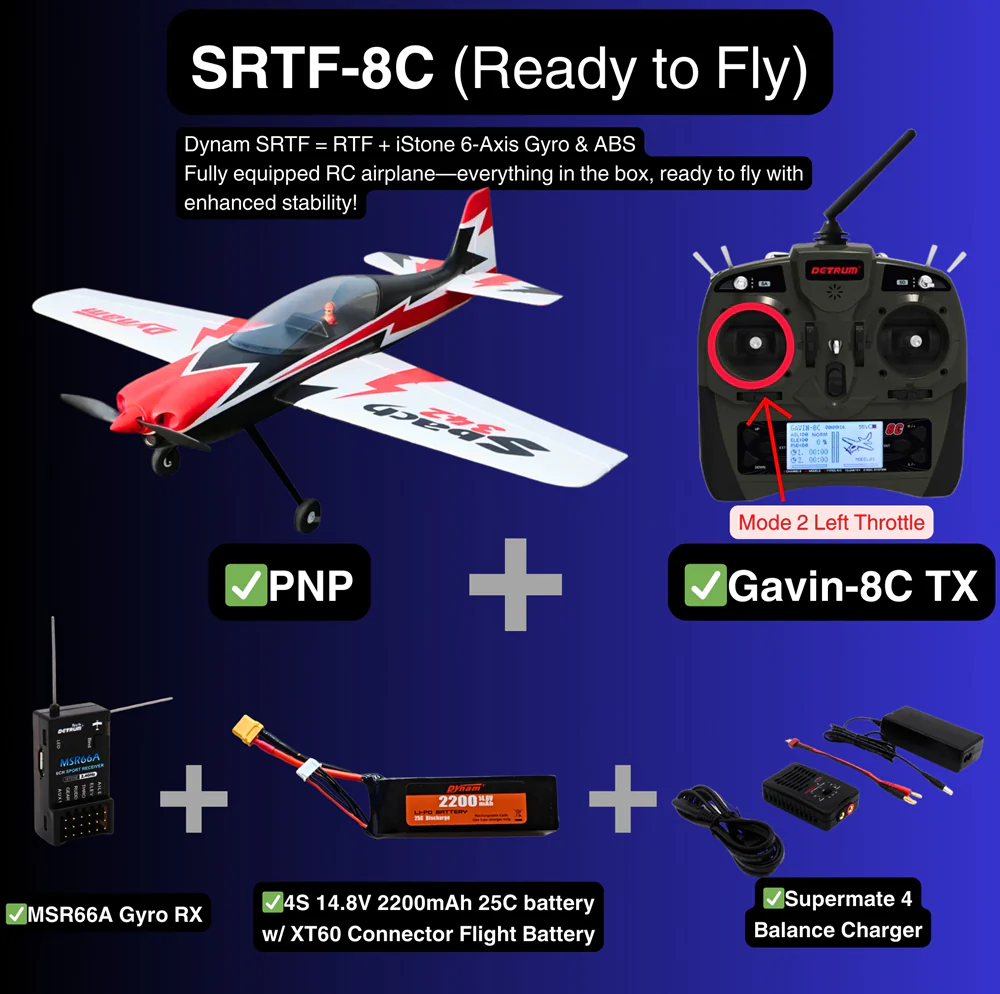

SRTF-8C Version: Features a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Gavin-8C transmitter, MSR66A iStone gyro receiver, battery, charger, and adapter.

SRTF-DT9 Version: Comes with a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Blitz-DT9 transmitter (programming & telemetry), SR86A-G 8-channel gyro receiver, battery, charger, and adapter.

iStone Gyro Receiver (The receiver integrated with iStone stabilizer):

• Six-axis gyro high-precision stabilization function, auto-recovery, one-click rescue. Incredibly accurate and greatly improves the flying experience.
• Regarding different aircraft, the parameter and sensitivity of the gyro receiver can be programmed with a Detrum transmitter (Gavin6C/Gavin8C/Blitz DT9) directly.
• Quick and easy setup process. If you don't want Gyro to join the flight, just choose Gyro off mode on Transmitter.
