Micro RX DSMX/DSM2 4CH with Telemetry

Contact UsCustomer Reviews
  0
  4. Micro RX DSMX/DSM2 4CH with Telemetry
Tariff Information update
more offers

Micro RX DSMX/DSM2 4CH with Telemetry

Ask a question about this product
Printable version

Share

Options

Market Price: $39.99
Our Price:

$29.99
You Save

25%
Quantity (7)

Details

Availability 7 in stock
Weight 0.25 lbs
SKU DW-RX144T

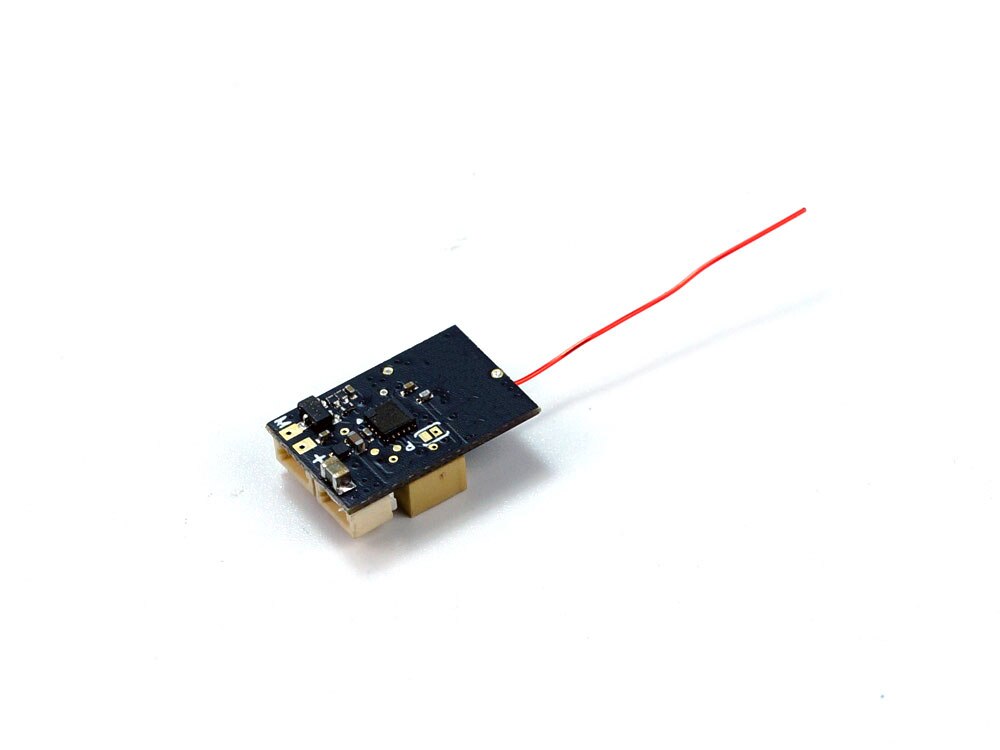

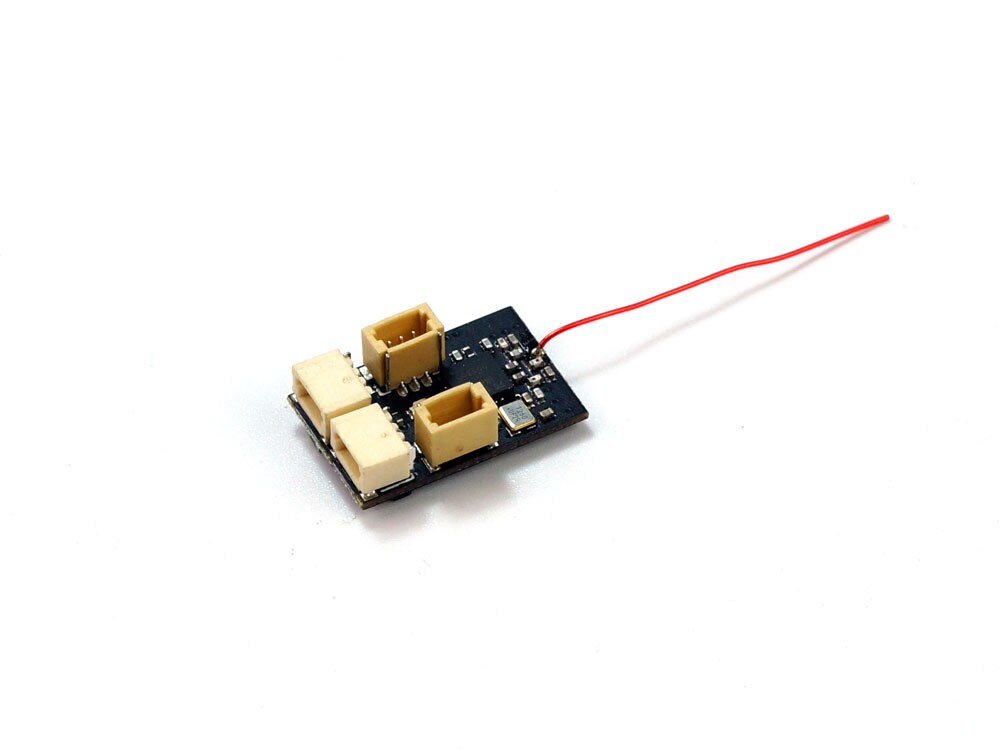

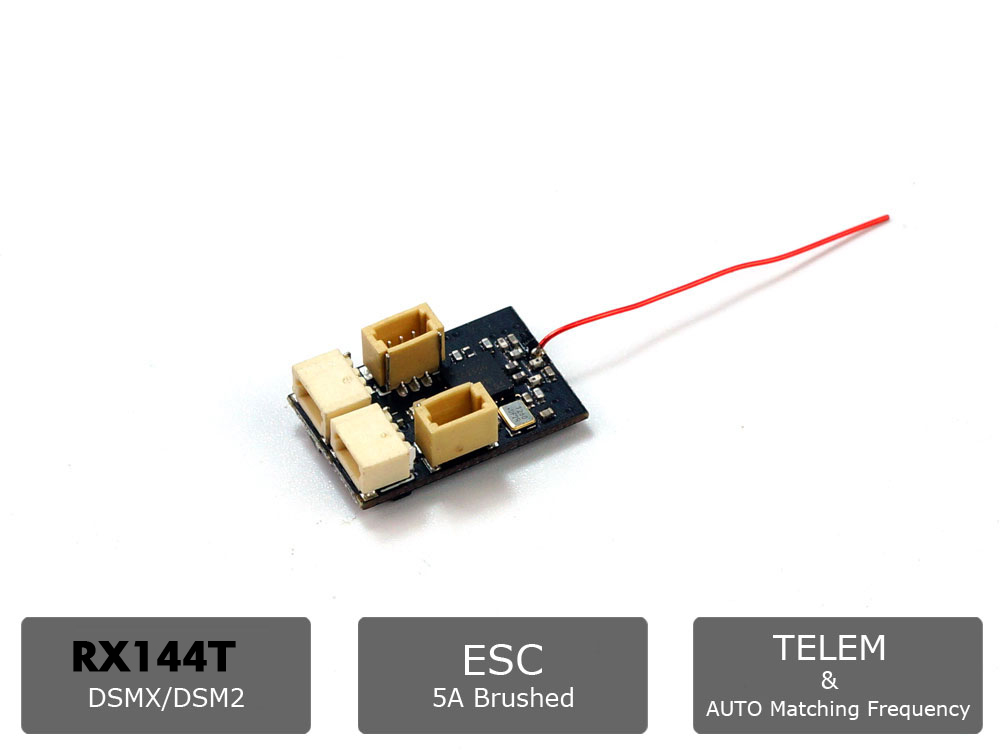

Micro RX DSMX/DSM2 4CH receiver 1.00 Pin Plug with Telemetry

This Micro RX is perfect for RWRC indoor EPP Profiles and light Aircraft where pilots are wanting to reduce weight. This is RWRC's lightest RX, weighing only 0.9g (including the antenna wire)!

Type: DSMX Compatible Satellite Full Range Micro Receiver w Telemetry function
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4 GHz

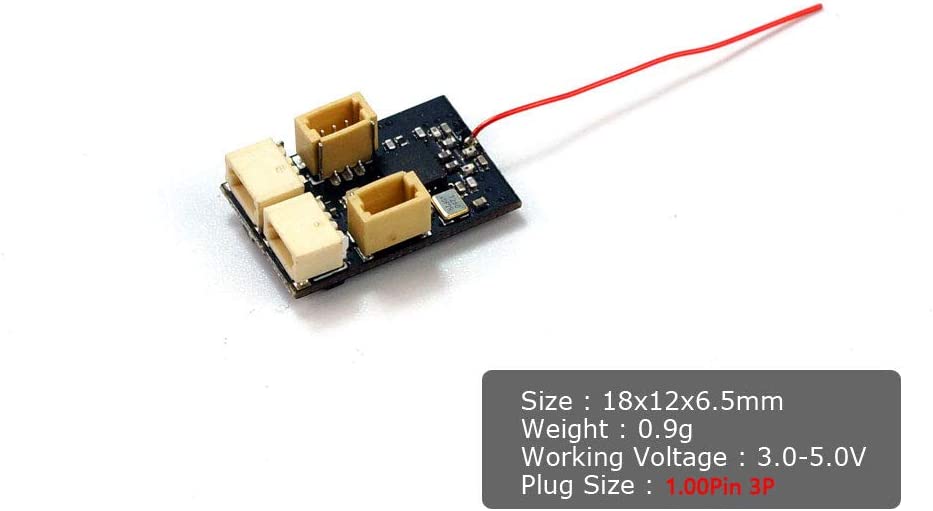

Dimension: 18.5(L) x 13(W) x 6.5(H)  mm
Weight: 0.9 gram (including antenna wire)
Voltage Range 3.0-5.0V from Receiver

Servo Plug: 1.00Pin 3P

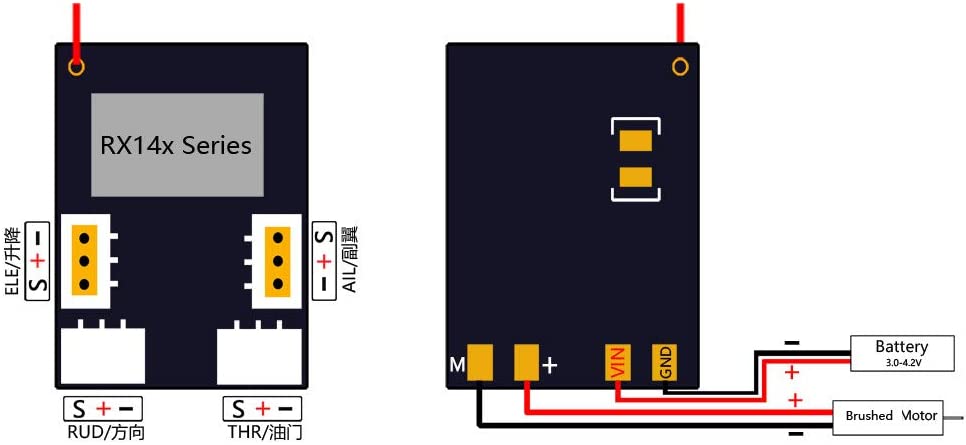

  • Supports exteranal brushed or brushless ESC
  • Supports 2S brushless ESC (BEC output 5v)
  • Automatically will match frequency (DSMX/2)
  • Support TELM function (Optional)

Auto Frequency Match: If the RX does not receive the signal after power on for 15 seconds, the RX will switch to "Auto Match Frequency" mode. The LED light on the RX will flash from slow to quick flashing, then complete binding procedures according to TX manual.

TELEM Function: Transmitters with TELEM function can receive real time battery voltage, RX voltage, RX signal intensity and RX temperature data from the aircraft. (If you require RPM of motor or altitude data, recommend choosing a more advanced RX like our Lemon RXs with Telementry)

ESC Locking Function:  This safety feature prevents accidental motor start-up when the receiver is powered on and throttle stick is on. After powering on the RX keep the TX throttle stick off for at least 2 seconds. The RX LED will turn off for 2 seconds, then turn on indicating the ESC locking is off and normal throttle engaged.

Note:

  • This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX and DSM2 brand is a trademark of Horizon Hobby, Inc.

  • Product is tested to be compatible with Spektrum's DSMX and or DSM2 product (Spketrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.).





: *
: *
: *

DLE 20cc Engine

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

DLE 35RA Engine

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
