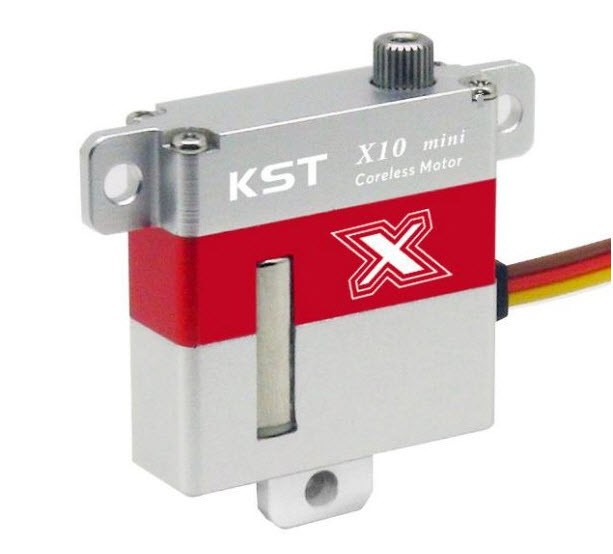

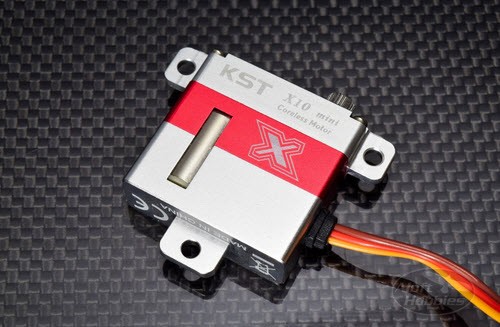

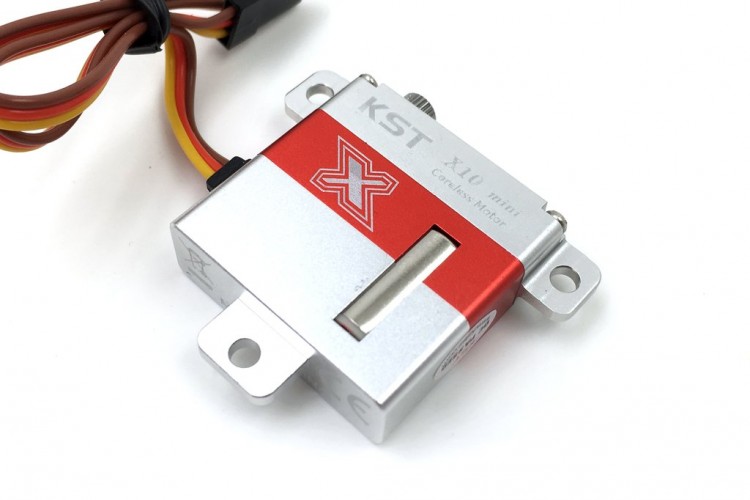

KST X10 Mini Wing Servo

Ask a question about this product
Printable version

Share

Options

Our Price:

$45.00
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 0.35 lbs
SKU PRS-X10-MINI

A perfect fit for aircraft like the SAB Avio KR84 Tortuga, the KST X10 Mini servo utilizes an improved motor controller that drives a coreless motor, which in turn rotates a minimal backlash hardened steel dual ball bearing gear train encased within a heat dissipating 7075 aluminum CNC machined enclosure for maximum levels of servo performance.

Digital, high torque, ultra fast and HV ready, the KST Mini is the perfect thin wing servo for multitudes of fixed wing applications with KST quality that is proven and ready for high performance flight.

Features:

- Digital Servo
- High Torque Coreless Motor
- Excellent Torque & Speed
- HV 8.4V Ready w/ Wide 6V - 8.4V Voltage Range
- Ultra Thin Profile
- CNC Machined 7075 Aluminum Case
- Designed for Thermal Dissipation via Aluminum Case
- Hardened Steel Ultra Strong Servo Gears

Specifications:

- Servo Type: Digital
- Gear Type: Hardened Steel
- Stall Torque: 5.5Kg.cm (76.38 oz. in) @ 6.0V / 6.8Kg.cm (94.43 oz. in) @ 7.4V / 7.5Kg.cm (104.16 oz. in.) @ 8.4V
- Speed: .13 sec / 60 Degrees @ 6.0V / .11 sec / 60 Degrees @ 7.4V / .09 sec / 60 Degrees @ 8.4V

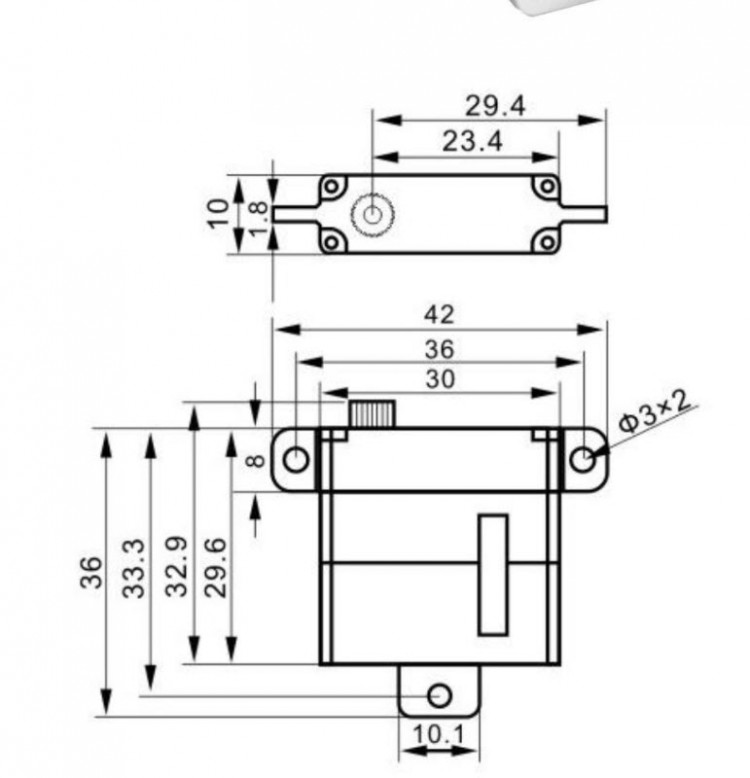

- Dimensions: 30mm x 10mm x 30mm (W x L x H)
- Weight: 23g
- Operating Voltage: 6.0V - 8.4V

Mini Thin Wing Servos for Ailerons for the KR84 Tortuga Jet






: *
: *
: *
