1KG Torque Hi-Speed Micro 120 Degree Digital Coreless 5g Nano Servo

Contact UsCustomer Reviews

1KG Torque Hi-Speed Micro 120 Degree Digital Coreless 5g Nano Servo

Our Price:

$9.99


Quantity (8)

Availability 8 in stock
Weight 0.10 lbs
SKU AGF-C05CLS
Manufacturer AGFRC Servos

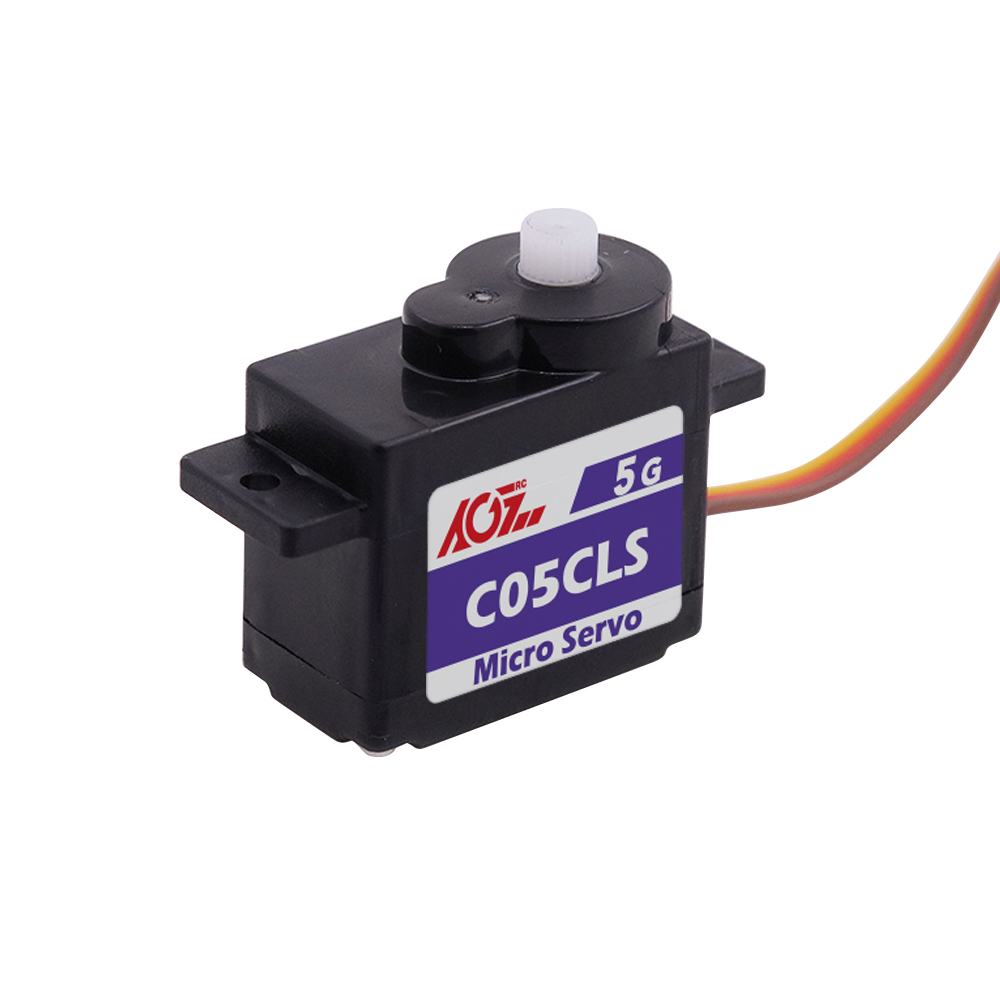

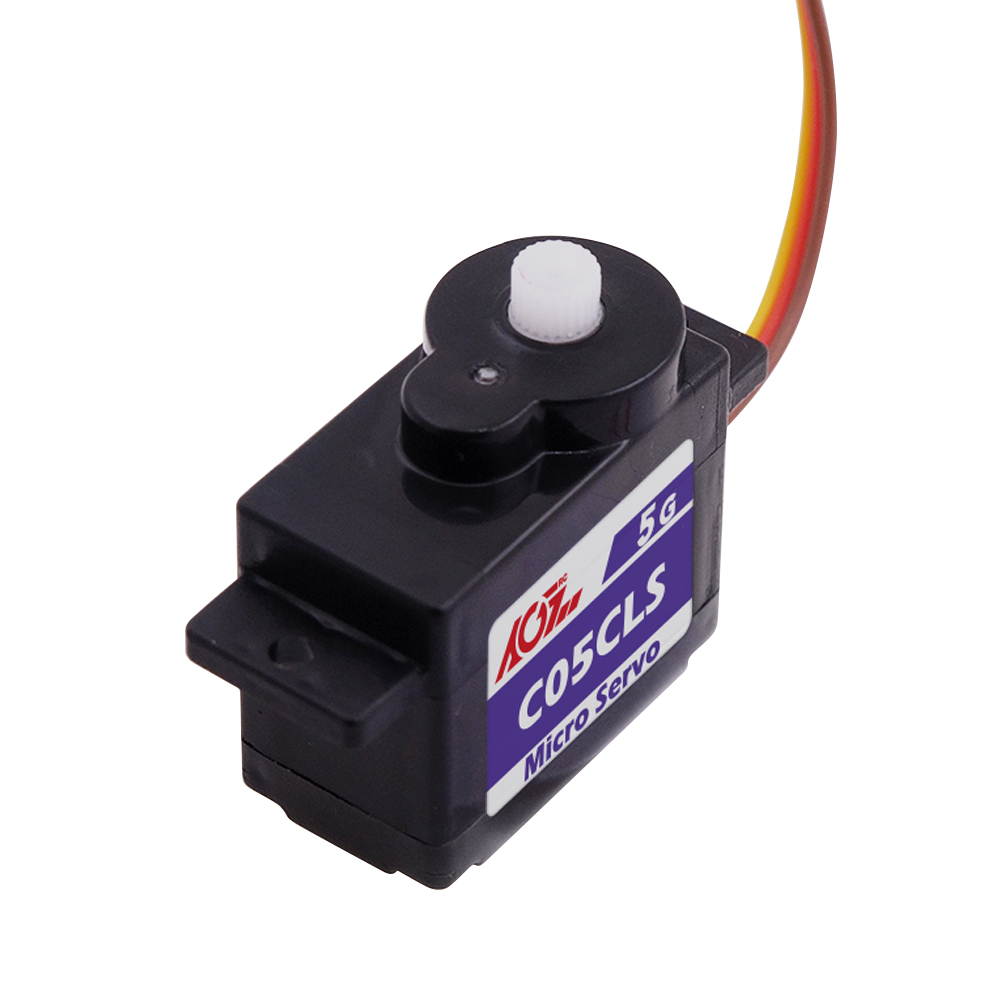

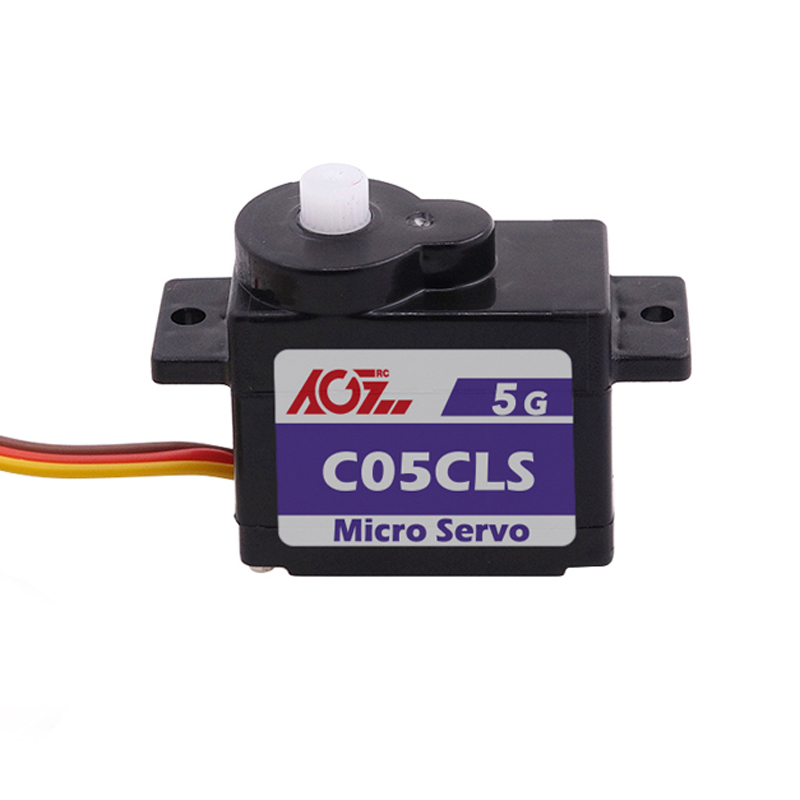

1KG Torque Hi-Speed Micro 120 Degree Digital Coreless 5g Nano Servo

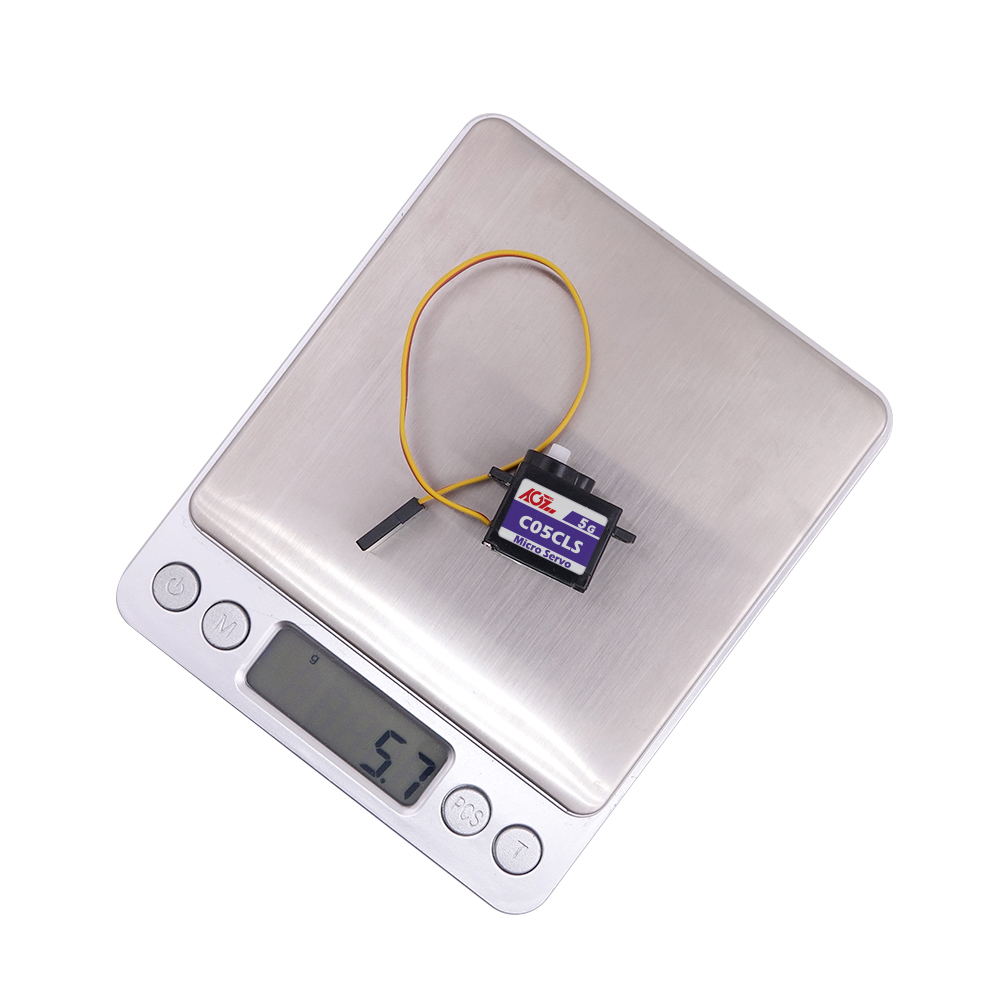

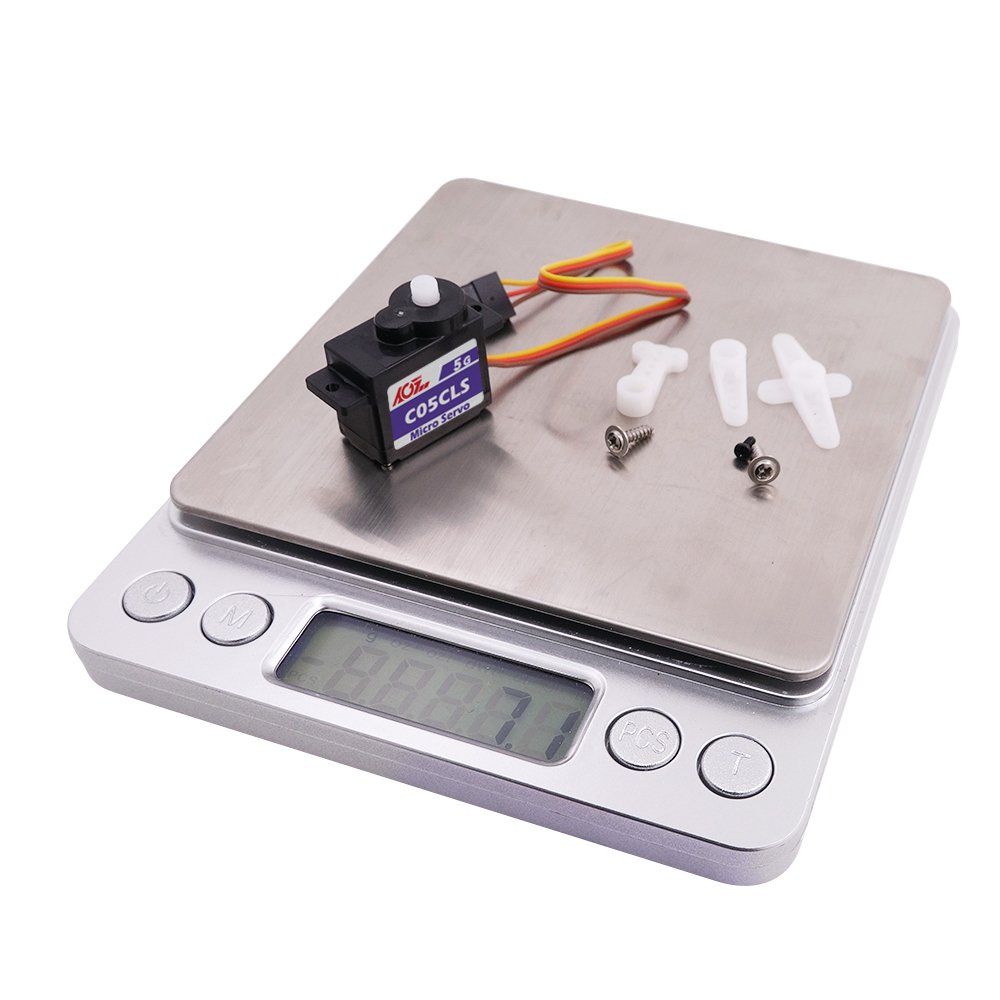

Weighing only 6 grams, these servos are incredibly lightweight and one of the lightest servos Redwing RC carries!

Features:

  • High performance Ultra Micro Digital Coreless Servo
  • Ultra small size
  • High precision nylon gear
  • Super Micro high quality Coreless motor
  • Ideal for Electric Fixed-wing Small 3D plane, airplane, helicopter, car and boat

Specifications:

  • Operating Voltage: 3.6-6.5V
  • Operating Speed: 0.085sec/60° @ 4.8V
  • Operating Speed: 0.075sec/60° @ 6.0V
  • Stall Torque: 1.0 kg-cm @ 4.8V
  • Stall Torque: 0.9 kg-cm @ 6.0V
  • Motor Type: Coreless
  • Gear Type: Plastic
  • Size: 21.3*11.5*17.6mm (0.84 x 0.45 x 0.69 in)
  • Weight: 6.2g
  • Connector Wire:JR 150mm



: *
: *
: *


1 Pair, 1.5g Digital Ultra Micro Linear Servos (Left and Right)

1.5g Digital Ultra Micro Linear Servo

AGF-C1.5CLS

$19.99

1.7g Ultra Micro Digital Servo 0.075kg / 0.05sec For 1:35 Scaler

1.7g Mini JST Ultra Micro Digital Servo 0.075kg / 0.05sec For 1:35 Scaler

AGF-C017CLS

$9.99

2.2g Low Voltage Sub-Micro Nano Digital Servo 0.11kg / 0.06sec

2.2g Low Voltage Sub-Micro Nano Digital Servo 0.11kg / 0.06sec

AGF-C02CLS

$9.99

Super Light 3.7g Fast Response Micro Servo 0.55kg / 0.06Sec

Super Light 3.7g Fast Response Micro Servo 0.55kg / 0.06Sec

AGF-C037CLS

$9.99

4.3g High Speed Digital Ultra Micro Servo 6V / 0.75KG / 0.07Sec

4.3g High Speed Digital Ultra Micro Servo 6V / 0.75KG / 0.07Sec

AGF-C04CLS

$9.99

Crimper

Description:

Crimper

Use this heavy duty crimper to crimp pin/socket onto your wires. Easy to use and comes with step by step instructions.

Also works as a wire cutter. (see image)



ACC175

$17.99

SCORPION COMMANDER 15V 35A ESC SBEC (V3)

SCORPION COMMANDER 15V 35A ESC SBEC (V3)

ESC-0007

$49.99

Spot On Exhaust Extension

Exhaust Extension

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.




SPO-TRA-038

$22.99
