GliderCG Scale Landing Gear Version (Center of Gravity (CG) digital balance device, Designed for Large Models up to 66 lbs (30 kg) with fixed landing gear)

GliderCG Scale Landing Gear Version (Center of Gravity (CG) digital balance device, Designed for Large Models up to 66 lbs (30 kg) with fixed landing gear)

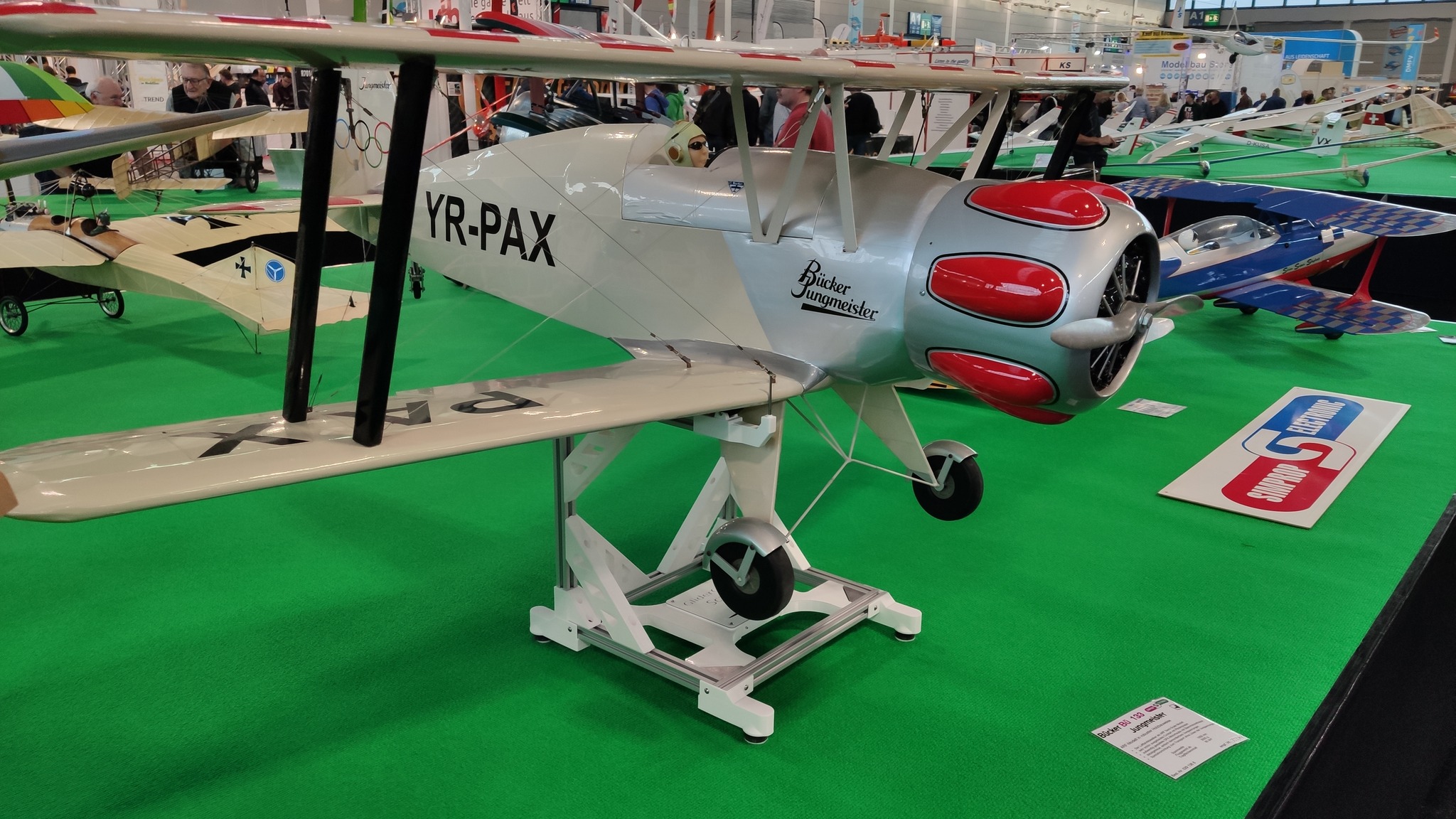

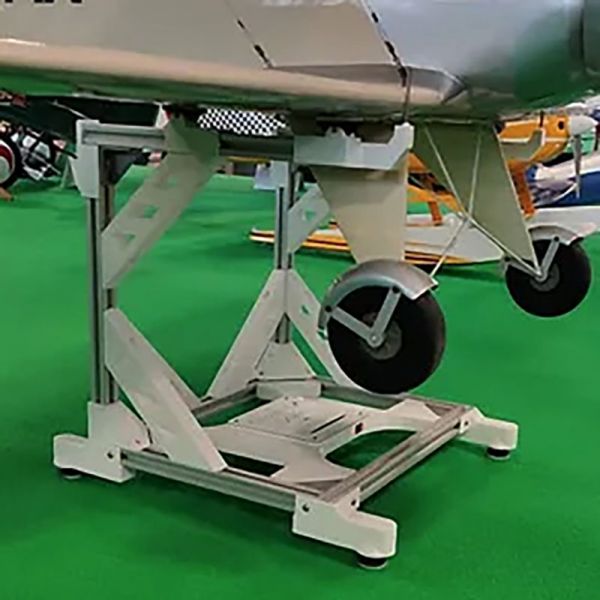

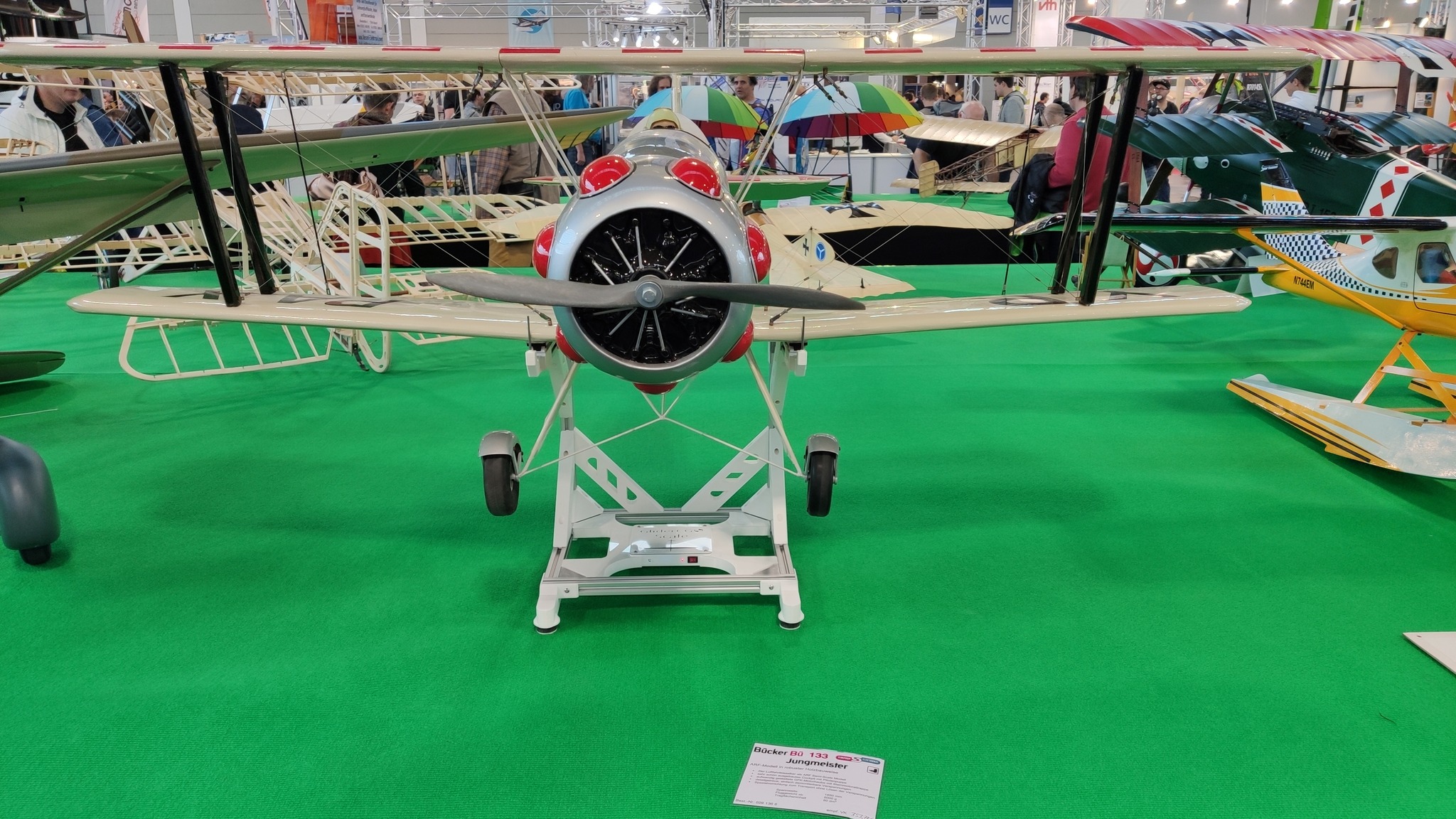

GliderCG Scale Landing Gear Version is a special version of GliderCG Scale, with the same functionalities, but designed to be used with airplanes that incorporate a landing gear.

Although GliderCG Scale devices can be used to measure airplanes with landing gear (by turning the plane upside down), not in all models can be measured in this fashion.

This special version can accurately measure the CG, weight and weight differential between the sides of your model.

SPECIFICATIONS

• Dimensions: 15.75"h x 16.15"w x 14.5"d
• Weight: ~4 lbs / 2 kg
• Maximum weight: 66 lbs / 30 kg
• Maximum fuselage width: 14.2 in / 360 mm
• Maximum fuselage height (from bottom fuselage to wing bottom): 13.75 in / 350 mm
• Leading edge to rear support pad distance: 11.4 in / 290 mm
• Power: 800mAh rechargeable Lithium battery (provides ~2 hours of continuous operation)
• Charge port: USB-C
• Charge time: ~1 hour

DOCUMENTATION

• GliderCG Landing Gear Version Manual (PDF)

$20 Flat Rate Shipping for USA only. Contact us at [email protected] to calculate international shipping cost. Shipped directly from Europe to the customer. However, for customers with a USA shipping address, there will be a 15% tariff paid directly to the shipper (e.g. UPS): About $89.85 tariff.
