Scorpion A-4220 Sport PNP Combo (6s/70E/2109w)

Ask a question about this product
Printable version

Share

Options

Our Price:

$319.99
Add a Battery
Quantity (3)

Details

Availability 3 in stock
Weight 5.00 lbs
SKU combo-A-4220-PNP-sport-70e
Manufacturer Scorpion

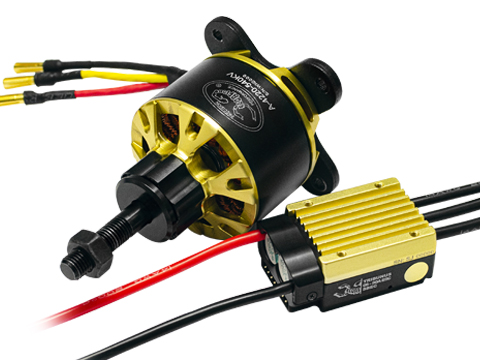

Scorpion A-4220 Sport PNP Combo (6s/70E/2109w) PERFECT for our Extra and Laser 70E Planes

n combination with the new A-Series motor line debut, RWRC is pleased to announce the new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 70E / 15cc sized airplanes commonly used in 60"-64" Acrobatic Airplanes or Sport planes up to 90". The A-4220 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, preprogrammed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.

The A-4220 PNP Combo comes in 2 variations. A "Sport" version and a "Pro" version. The Sport version is useful on sport airplanes using lower power servos, and smaller prop, whereas the Pro version can handle high torque servos and larger props for extreme use cases!

Scorpion A-4220 (Pro) PNP Combo (6s/70E+/2553w) featuresScorpion A-4220 (Pro) PNP Combo (6s/70E+/2553w) featuresScorpion A-4220 (Pro) PNP Combo (6s/70E+/2553w) featuresScorpion A-4220 (Pro) PNP Combo (6s/70E+/2553w) features



Full Dimension

Scorpion A-4220 (Pro) PNP Combo (6s/70E+/2553w) Full Dimension

MOTOR SPECIFICATIONS :
Motor Kv 540 RPM / Volt
Weight (including cross mount + Prop mount accessories) 336g ( 11.96oz)
Motor Body Dimensions 45.8mm x 50.7mm (+12.0mm prop spacer) (1.80" x 2.00" (+ 0.47") )
External Shaft Diameter 8mm
Continuous Current 80A
Continuous Power 1776 Watts
Peak Current* 95A
Peak Power* 2109 Watts
Max Rated Lipo Cell 6s
Stator Arms 12
Magnet Poles 14


ESC SPECIFICATIONS :
Max Continuous Current 80 Amps
Peak Current 100 Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: OFF/5.1/6.1/7.1
Max Continuous BEC Output 8 Amps @ 7.1 V
Peak BEC Output 12 Amps/1s @ 7.1 V
Size 47.1x31x20mm (1.85 x 1.22 x 0.79 in)
Weight (Without Connectors) 60g (1.98 oz)
Drive frequency 8kHz - 32kHz
Cable gauge 14 AWG


*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*

Performance Charts

Scorpion A-4220 (Sport) PNP Combo (6s/70E/2109w) Data chartScorpion A-4220 (Sport) PNP Combo (6s/70E/2109w) Data chartScorpion A-4220 (Sport) PNP Combo (6s/70E/2109w) Data chart
