2.5 Gallon Red Fuel Tank with Voltage Regulator (VR) 2 speed electric pump (Gas)

Contact UsCustomer Reviews

2.5 Gallon Red Fuel Tank with Voltage Regulator (VR) 2 speed electric pump (Gas)

2.5 with No-Spill Cap
2.5 with No-Spill Cap
2.5 with Fuel Level window
With ESC
Without ESC
No-Spill Cap
Our Price:

$259.00


Quantity

OUT OF STOCK


Availability No items available
Weight 7.20 lbs
SKU JMR 2.5NS

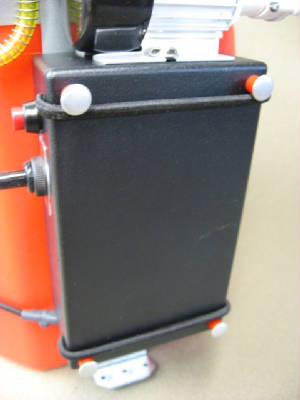

2.5 Gallon Red Fuel Tank with Voltage Regulator (VR) 2 speed electric pump (Gas)

Features Voltage Regulator 2 speed electric pump, fuel probe filler and return line to return the gasoline to fuel tank with no waste or spill. Inline fuel filter traps contaminants before they can be introduced into plane's fuel system! System comes with 2 speed electric pump and are fully assembled. May be used for Gas, Smoke, Kero or Diesel.

All Electric Pumps are 12vdc pumps with 2 switches, one controls flow IN & OUT, the other controls speed SLOW & FAST. Can use any 6.6<12vdc battery with XT60 plug (Ex. 7.2<12v NiMh or 7.4<11.1v LiPo), recoomend using 11.1v/2200-2300mah LiPo.

New VR (Voltage Regulator) System with 2x Switch Speeds!

  • “VR” provides 2x speeds to pump.
    SLOW = Approx: ½ speed & FULL = Full voltage of battery used.
  • “Fill” or “Drain” selected by moving top switch Left or Right.
  • Use any battery 6.6 < 12v's
    EX: 7.2<12v NiMH or 7.4<11.1v LiPo
  • All Pumps are rated for 12vdc.
  • Note: If any battery over 12v is used; Example: If a 14.8v LiPo is used you must keep the switch in “SLOW”. The VR's can accept up to 24v's @ Input.
: *
: *
: *


DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

BMS-A920+ HV MINI, DIGITAL, CORELESS (60" 3D Airframes)

BMS-A920+ HV MINI, DIGITAL, CORELESS (New Faster and more Torque w/ Soft Start Protection)

BBR-BMS-A920+

$69.99

Spot On Exhaust Extension

Exhaust Extension

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.




SPO-TRA-038

$22.99
