MKS 30mm (1.2") 25T Carbon Arm

MKS 40mm (1.6") 25T Carbon Arm

MKS 50mm (2") 25T Carbon Arm

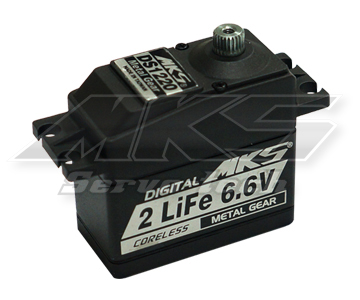

MKS DS1220

Description:

The MKS DS1220 is a high quality "Coreless" Servo.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 346 oz/in at 6V (24.9 kg/cm)
  • 422 oz/in at 6.6V (30.4 kg/cm)

• Speed:
  • .159 sec at 4.8V
  • .14 sec at 6V

• Voltage: 4.8V to 6.6V
• Weight: 2.03oz (57.70 g)
• Size: 1.57 x .78 x 1.45 in (40.0 x 20.0 x 37.0 mm )

• Operating Temp- -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.0008ms (Default)
• 15 cm connector wire
• CORELESS Motor
• Double Ball Bearings
• FET Driver
• Direct Drive Potentiometer
• Titanium gears

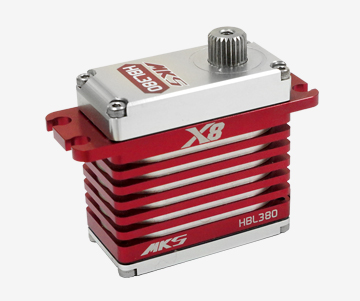

MKS HBL380

Description:

The MKS HBL350 is a high quality Digital "Brushless" Servo with all aluminum casing and metal gears. The heat sink on the outside of this servo is very helpful for dissipating the heat and keeping your system cool.

NOTE: This high torque servo uses a large 8mm output shaft. Traditional servo arms will not fit.

New and Improved Technology!

Why choose brushless servos? They have many benefits, one being that they only use the power necessary to get the job done. If the servo encounters resistance then more power is given, if it senses less resistance then less power is given. With brush servos, full power is used no matter what the situation.

Specs:

• Torque:
  • 430.51 oz/in at 6V (31 kg/cm)
  • 541.61 oz/in at 7.4V (39 kg/cm)
  • 569.38 oz/in at 8.4V (41 kg/cm)

• Speed:
  • .114 sec at 6V
  • .092 sec at 7.4V
  • .082sec at 8.4V

• Voltage: 3.5V to 8.4V
• Weight: 2.57 oz (73g)
• Size: 1.57 x .78 x 1.51 in (40 x 20 x 38.5 mm)

• Operating Temp: -10~60centigrade
• Working Frequencya: 1520μs / 333hz
• Dead Band: 0.0008ms
• 24.0 cm (9.4 in) connector wire
• BRUSHLESS Motor
• Indirect Potentiometer Drive
• Double ball bearings 12x8mm
• All Aluminum casing
• Chrome-Titanium alloy gears

MKS HV69 Digital Super-Torque Micro HV Servo, with Metal Gears

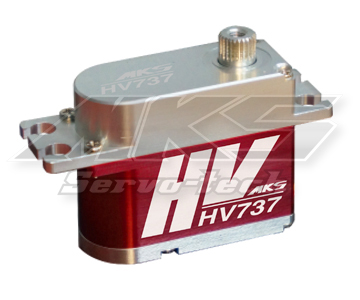

MKS HV737

Description:

The MKS HV737 is a high quality digital "Coreless" Servo. It has a unique shape that works in conjunction with it's aluminum casing to dissipate heat quickly, just like heat sink would. Another great feature is the two sets of housing screws. With two sets, you can remove the top for easy access to the gears without worrying about the bottom coming apart.

This servo is equipped with a 9mm VR ultra high resolution potentiometer to provide accurate movement and holding power.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 115.2 oz/in at 6V (8.3kg/cm)
  • 126.3 oz/in at 7.4V (9.1kg/cm)
  • 141.6 oz/in at 8.4V (10.2kg/cm)

• Speed:
  • .12 sec at 6V
  • .10 sec at 7.4V
  • .09 sec at 8.4V

• Voltage: 5.5V to 8.4V
• Weight: 1.36 oz (38.55g)
• Size: 1.57 x .78 x 1.45 in (40.0 x 20.0 x 37.0 mm )

• Operating Temp >- -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.001ms
• 29.5 cm connector wire
• CORELESS Motor
• Double ball bearings
• FET Driver
• 9mm VR ultra high resolution potentiometer
• Double Ball Bearings
• All Aluminum casing (CNC machined 6061 aluminum
• Chrome-Titanium alloy gears

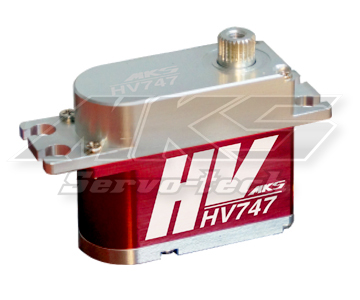

MKS HV747

Description:

The MKS HV747 is a high quality digital "Coreless" Servo. It has a unique shape that works in conjunction with it's aluminum casing to dissipate heat quickly, just like heat sink would. Another great feature is the two sets of housing screws. With two sets, you can remove the top for easy access to the gears without worrying about the bottom coming apart.

This servo is equipped with a 9mm VR ultra high resolution potentiometer to provide accurate movement and holding power.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 164 oz/in at 6V (11.8kg/cm)
  • 191.6 oz/in at 7.4V (13.8kg/cm)
  • 208.3 oz/in at 8.4V(15kg/cm)

• Speed:
  • .17 sec at 6V
  • .14 sec at 7.4V
  • .13 sec at 8.4V

• Voltage: 5.5V to 8.4V
• Weight: 1.36 oz (38.55g)
• Size: 1.4 x .6 x 1.12 in (35.5 x 15.0 x 28.5 mm )

• Operating Temp - -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.001ms
• 29.5 cm connector wire
• CORELESS Motor
• Double ball bearings
• FET Driver
• 9mm VR ultra high resolution potentiometer
• Double Ball Bearings
• All Aluminum casing (CNC machined 6061 aluminum
• Chrome-Titanium alloy gears

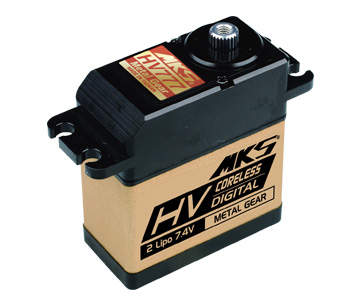

MKS HV777

Description:

The MKS HV777 is a high quality "Coreless" Servo.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 388 oz/in at 6V (28.0 kg/cm)
  • 506 oz/in at 7.4V (36.5 kg/cm)
  • 527 oz/in at 8.4V (38.00 kg/cm)

• Speed:
  • .14 sec at 6V
  • .11 sec at 7.4V
  • .10 sec at 8.4V

• Voltage: 6v to 8.4V
• Weight: 2.87 oz (81.4 g)
• Size: 1.57 x 0.79 x 1.77 in (40.0 x 20.0 x 45.0mm)

• Operating Voltage - 6.0 ~ 8.4 V
• Operating Temp - -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.0008ms (Default)
• 15 cm connector wire
• CORELESS Motor
• Double Ball Bearings
• FET Driver
• Indirect Drive Potentiometer
• Titanium gears

MKS HV777

Description:

The MKS HV777 is a high quality "Coreless" Servo.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 388 oz/in at 6V (28.0 kg/cm)
  • 506 oz/in at 7.4V (36.5 kg/cm)
  • 527 oz/in at 8.4V (38.00 kg/cm)

• Speed:
  • .14 sec at 6V
  • .11 sec at 7.4V
  • .10 sec at 8.4V

• Voltage: 6v to 8.4V
• Weight: 2.87 oz (81.4 g)
• Size: 1.57 x 0.79 x 1.77 in (40.0 x 20.0 x 45.0mm)

• Operating Voltage - 6.0 ~ 8.4 V
• Operating Temp - -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.0008ms (Default)
• 15 cm connector wire
• CORELESS Motor
• Double Ball Bearings
• FET Driver
• Indirect Drive Potentiometer
• Titanium gears

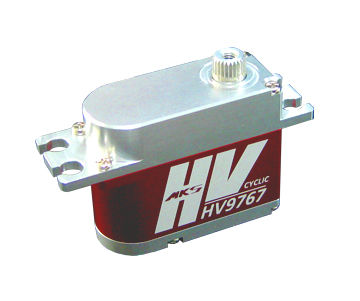

MKS HV9767

Description:

The MKS HV9767 is a high quality Digital "Coreless" Servo. It has a unique shape that works in conjunction with it's aluminum casing to dissipate heat quickly, just like heat sink would. Another great feature is the two sets of housing screws. With two sets, you can remove the top for easy access to the gears without worrying about the bottom coming apart.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 94.4 oz/in at 6V (6.8 kg-cm)
  • 118 oz/in at 7.4V (8.5 kg-cm)
  • 130.5 oz/in at 8.4V (9.4 kg-cm)

• Speed:
  • .09 sec at 6V
  • .078 sec at 7.4V
  • .07 sec at 8.4V

• Voltage: 5.5V to 8.4V
• Weight: 1.36 oz (38.55g)
• Size: 1.57 x .78 x 1.45 in (40.0 x 20.0 x 37.0 mm )


• Operating Temp - -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Size - 40.0 x 20.0 x 37.0 mm
• Dead Band- 0.001ms
• CORELESS Motor
• Double Ball Bearings
• All Aluminum casing
• Chrome-Titanium alloy gears

MKS X8/X6 1.5" Carbon Arm
