MKS HV737

Description:

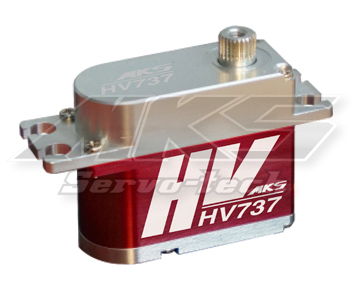

The MKS HV737 is a high quality digital "Coreless" Servo. It has a unique shape that works in conjunction with it's aluminum casing to dissipate heat quickly, just like heat sink would. Another great feature is the two sets of housing screws. With two sets, you can remove the top for easy access to the gears without worrying about the bottom coming apart.

This servo is equipped with a 9mm VR ultra high resolution potentiometer to provide accurate movement and holding power.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

  • Torque:
    • 115.2 oz/in at 6V (8.3kg/cm)
    • 126.3 oz/in at 7.4V (9.1kg/cm)
    • 141.6 oz/in at 8.4V (10.2kg/cm)

  • Speed:
    • .12 sec at 6V
    • .10 sec at 7.4V
    • .09 sec at 8.4V

  • Voltage: 5.5V to 8.4V
  • Weight: 1.36 oz (38.55g)
  • Size: 1.57 x .78 x 1.45 in (40.0 x 20.0 x 37.0 mm )

  • Operating Temp >- -10~60centigrade
  • Working Frequency - 1520μs / 333hz
  • Dead Band- 0.001ms
  • 29.5 cm connector wire
  • CORELESS Motor
  • Double ball bearings
  • FET Driver
  • 9mm VR ultra high resolution potentiometer
  • Double Ball Bearings
  • All Aluminum casing (CNC machined 6061 aluminum
  • Chrome-Titanium alloy gears
: *
: *
: *

Standoff (25mm) 100-120CC (Anodized Gas Engine 25mm Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

Standoff (25mm) 100-120CC (Anodized Gas Engine 25mm Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

Standoff (25mm) 100-120CC (Anodized Gas Engine 25m Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.
