60" (1520mm) Pitts 3D Bipe ARF

Contact UsCustomer Reviews

60" (1520mm) Pitts 3D Bipe ARF

Market Price: $799.00
Our Price:

$449.00


You Save

44%

Kit Version
Battery Combo
Charger Combo
Radio Combo
Quantity (1)

Availability 1 in stock
Weight 55.00 lbs
SKU DW-XCG03-Extra26011

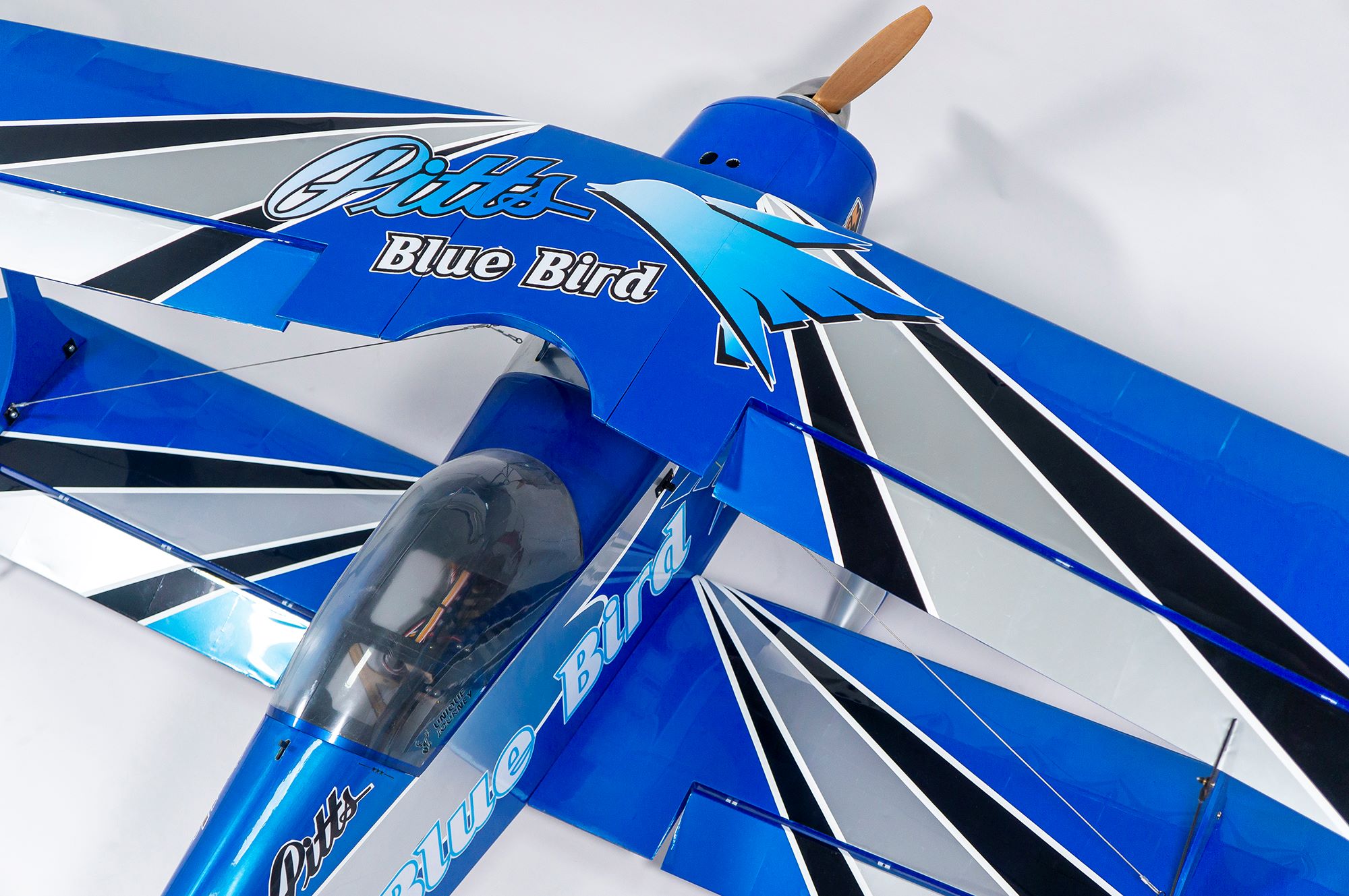

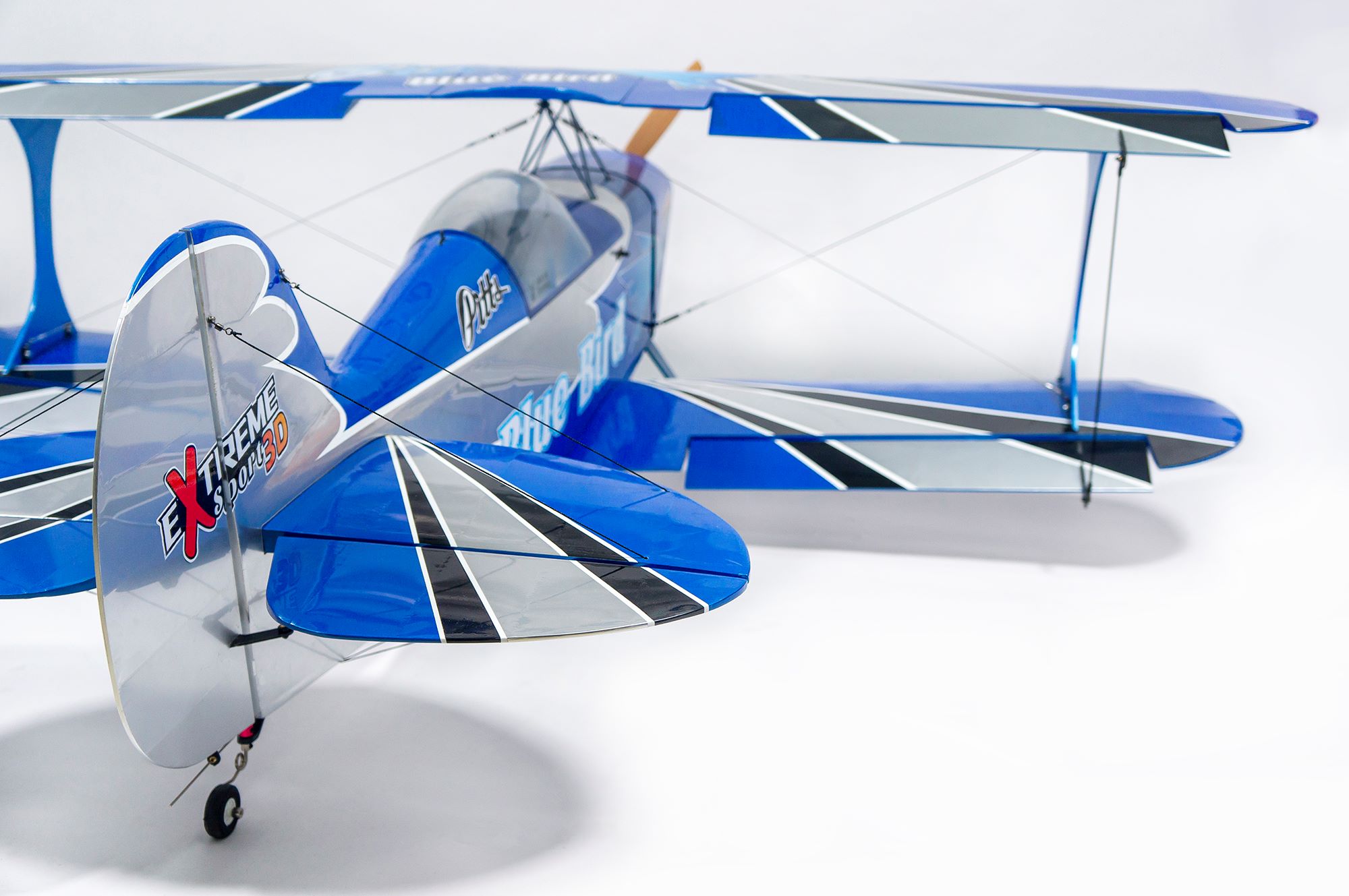

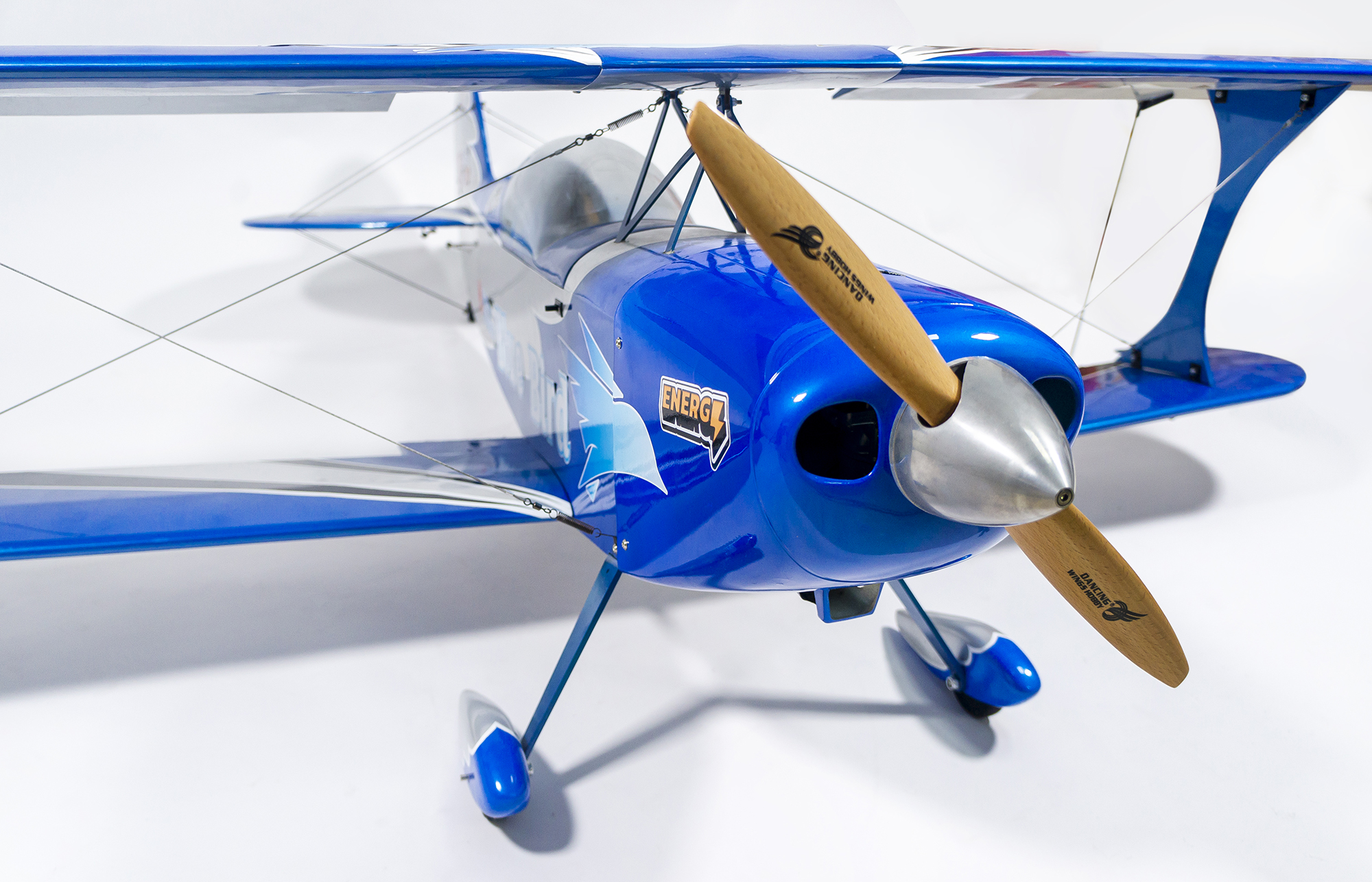

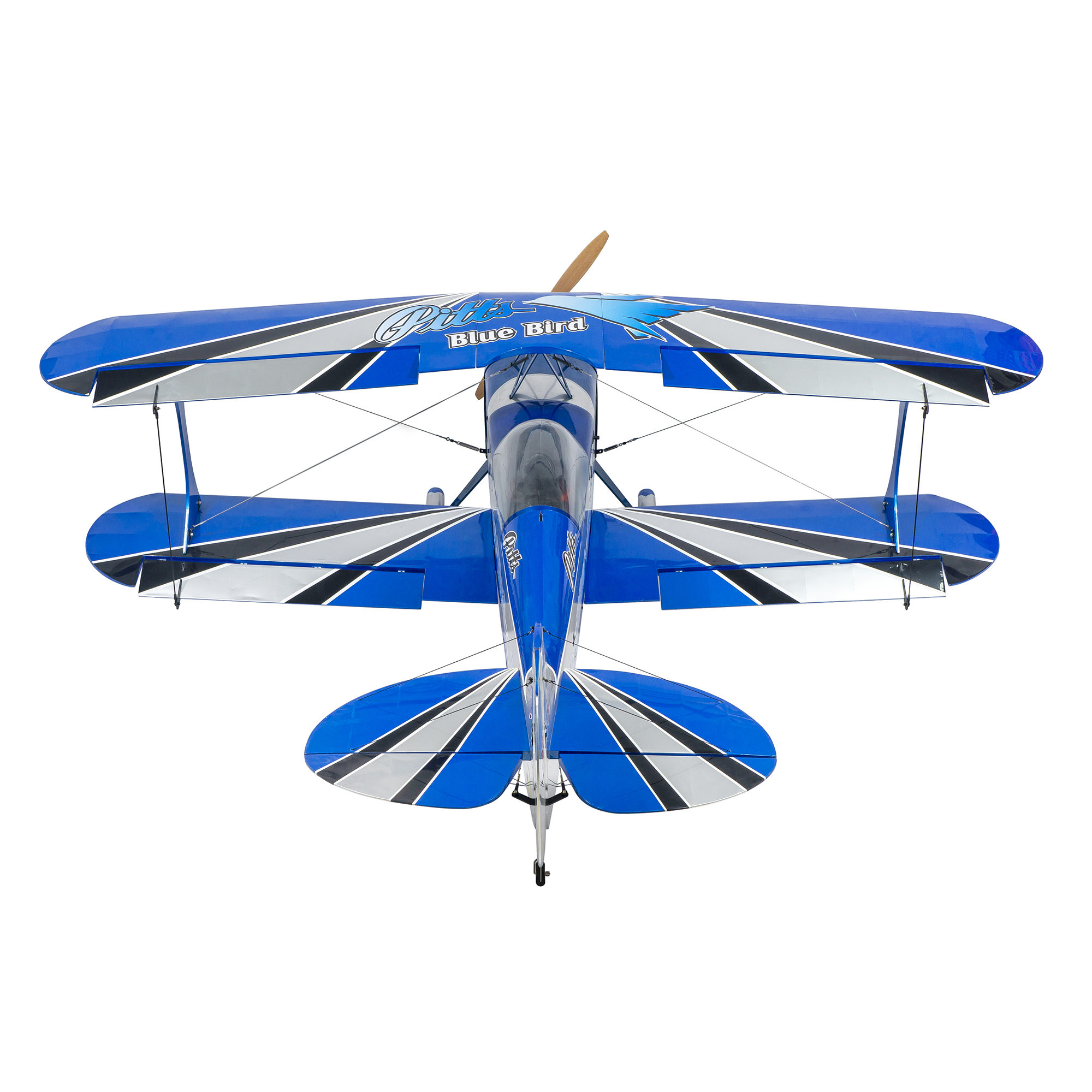

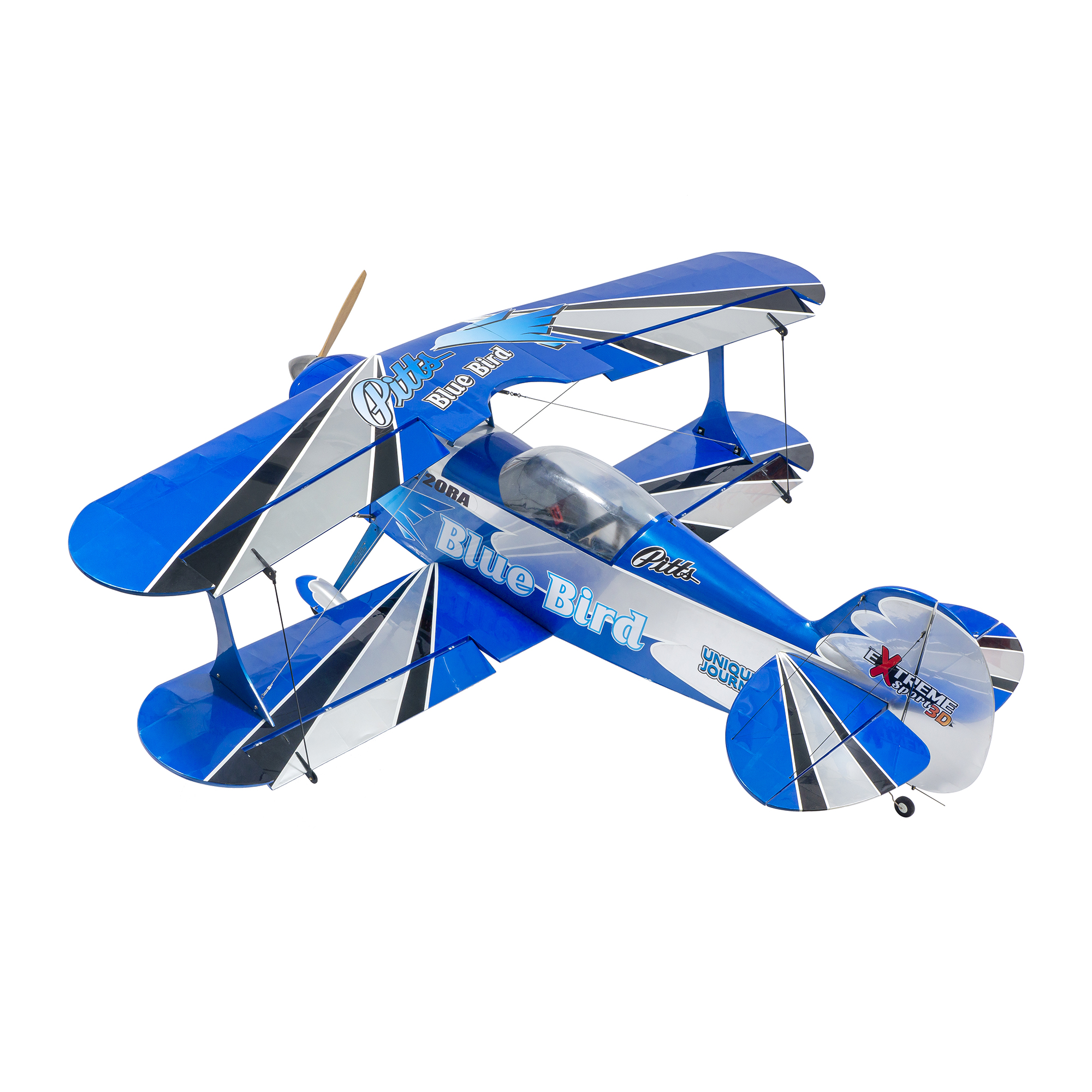

Redwing RC has partnered with Dancing Wings to bring you this new 60" (1520mm) Pitts 3D Aerobatic Bi-plane available as an ARF or ARF with Electric Power Pack.

This 60" wingspan Pitts is one of the best planes for all around flying. The durable and lightweight Pitts does everything well: high and low-speed flying, advanced 3D aerobatics, anything you throw at it and the Pitts will do it. With the Bi-Plane design, it is more stable and easier to maneuver than most other remote controlled planes. The Pitts can also take off faster due to the extra lift supported by the 2 wings. This model is well suited for pilots wanting to learn 3D flying and do all kind of aerobatics!

This amazing performer will fit assembled in a truck bed easily and will perform all the high energy maneuvers such as: Torque Rolls, Hovers, Precision manevuers, Knife Edge spins, Crankshafts and more! This bird will perform everything you can throw at it amazingly well and comes at an affordable price in an easily transportable size.

The 60" Pitts works well with an AT4125 540KV motor that can swing a 16 inch prop with a 80Amp ESC. A 6S 3800-6000 mah battery is ideal for a 7 to 8 minute flight.
Flying weight is about 8-9 lbs (depending on motor) but the double-decker wing design keeps it super sharp and precise.

Specifications:

  • Wing span: 59.8" (1520mm)
  • All up flying weight: 8-9lbs depending on electric /gas
  • Length: 53.5" (1360mm)
  • Motor: AT4125 540KV
  • ESC: 80A (6S)
  • Recommended Prop Size: 16" EP or 17" GP
  • Servos: 25g Metal servo x5
  • Battery: 6S-3800-6000mah
  • Radio: 4ch+

Kit Versions:

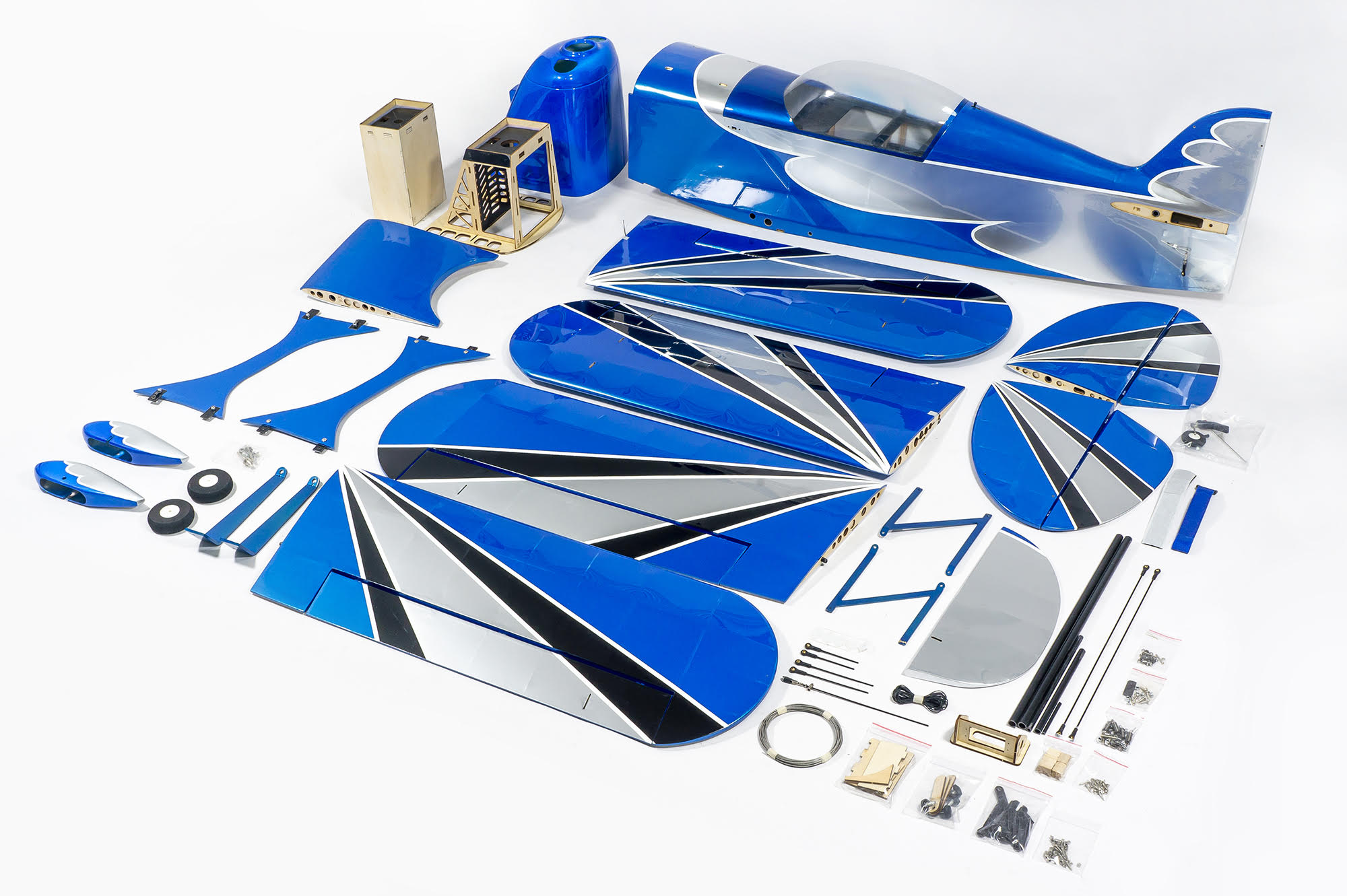

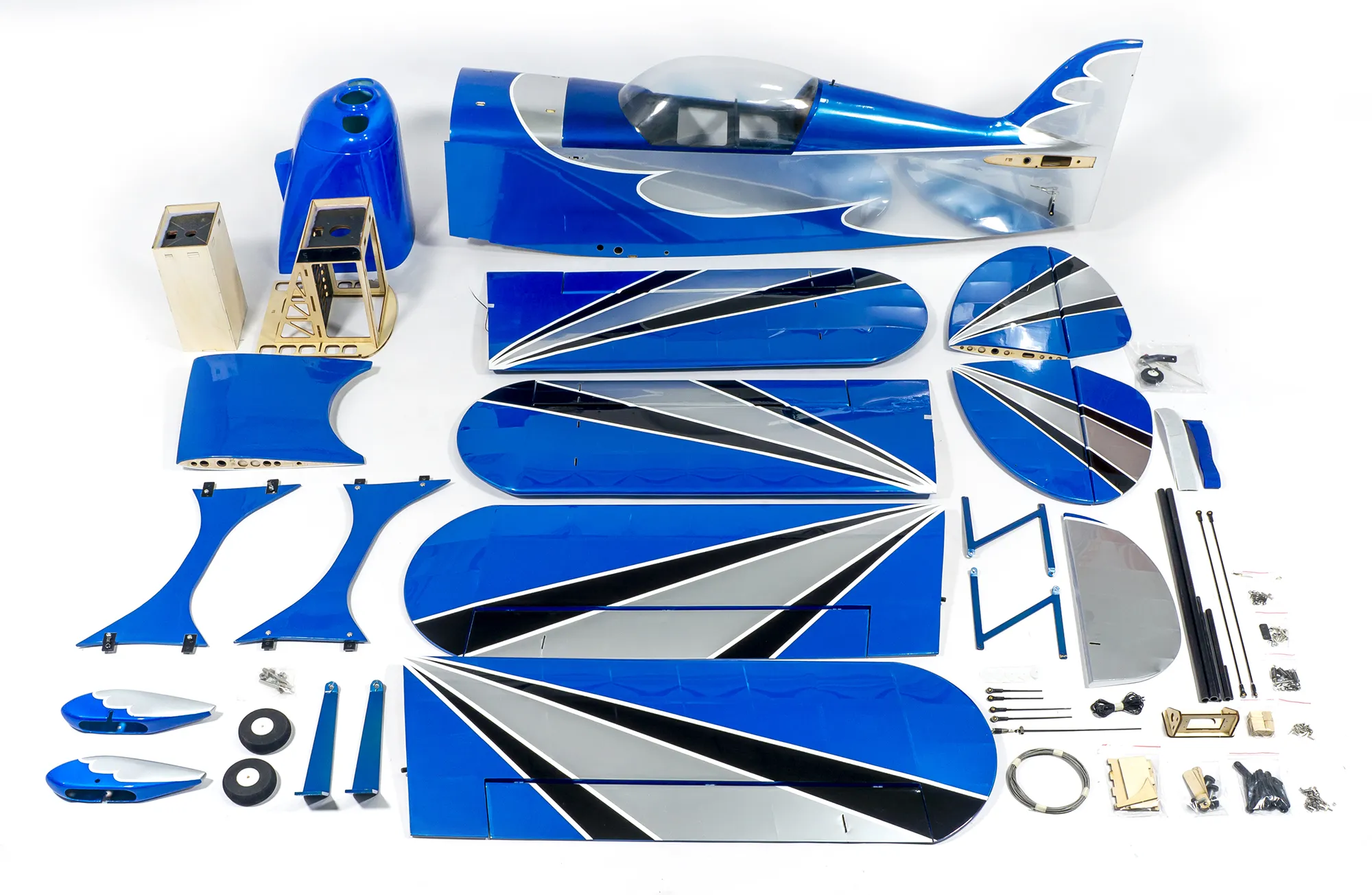

  • ARF kit (no electronics)
  • ARF with Power Pack=Motor+ESC+Servo+Prop (AT4125 540kv+16inch wooden prop and spinner+80A ESC+25g Metal servo*5pcs)




: *
: *
: *


Aluminum Louver Cooling Vent Small

Description:

Needing a sweet looking ventilation set up on your cowl so that your engine can purr with ease? Don't worry - we got this. Check out this lightweight, aluminum cooling vent! Not only will it look sleek on any plane - but it also offers twice as much cooling as those make-shift modifications to your cowl.

Stop spending all that time cutting up your cowl when you could just install these bad boys and have an even greater ventilation system! Why hassle over keeping your engine cool with your tedious, unnecessary alterations when these vents do that for you with ease?

Do yourself and your cowl a favor and pick up a few of these vents. Your bird will thank you.

2,7/8” x 2,1/2” (01)


More sizes mean better variety of use! Try it out on any sized plane!

*SOLD INDIVIDUALLY*

SS-CV-01

$4.99

RCGF 15CC RE Stinger Gas Engine

RCGF 15CC RE Stinger Gas Engine

Glow size:economy and powerful

New Series Engines with all new design --  Stinger Engines
More powerful , Stronger material , More precision , More shining

Engine SIZE:
15cc small
15cc small

 RCGF 15cc (SE)

  1. Parameter
  2. Type : 2 cycle piston valve type gasoline engine for airplane
  3. Displacement (cc) : 15cc (.91 cu in)
  4. Bore x Stroke (mm): 1.3 in (32mm)*0.8 in (19.6mm)
  5. Carburetor : Walbro
  6. Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
  7. Power supply: 6-8.4V
  8. Maximum Output : 2.4 hp/1.76KW
  9. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  10. speed rang : 1500-15000rpm
  11. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1) (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
  12. Lubrication Oil : 2 cycle engine oil
  13. Propeller : 15*6 9000 rpm; 13*6 11000rpm (Standard Two leafs prop)
  14. recommended props :13 x 6, 14 x6,13X8,15X8,15X6
  15. recommended Airplane: 60 size plane,50 size plane,40 size plane
  16. Cooling System : Air Cooled
  17. RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight

  1. Engine: 1.31 lb (594 g)
    Muffler: 1.8 oz (51 g)
    Ignition Module: 4.4 oz (125 g)
    Total: Weight: 1.69 lb (770 g)


Technical Data

  1. Technical Data:
  2. Ignition Battery: 6-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
  3. Gasoline/Oil Mix: 30:1
  4. Replacement Spark Plug: M8 1/4-32 or equivalent
  5. Idle Speed: 1800 rpm/min
  6. Static Thrust:
  7. 10.2 lb (4.6 kg) @ 328 ft (100 m) altitude
  8. 9.1 lb (4.1 kg) @ 5,900 ft (1800 m) altitude

RCGF-15RE

$254.99

BMS-3310, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, CORELESS (38.4kg/533.4oz 0.08sec @8.4V)

BMS-3310, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, CORELESS (38.4kg/533.4oz 0.08sec @8.4V)

BBR-BMS-3310

$68.99
