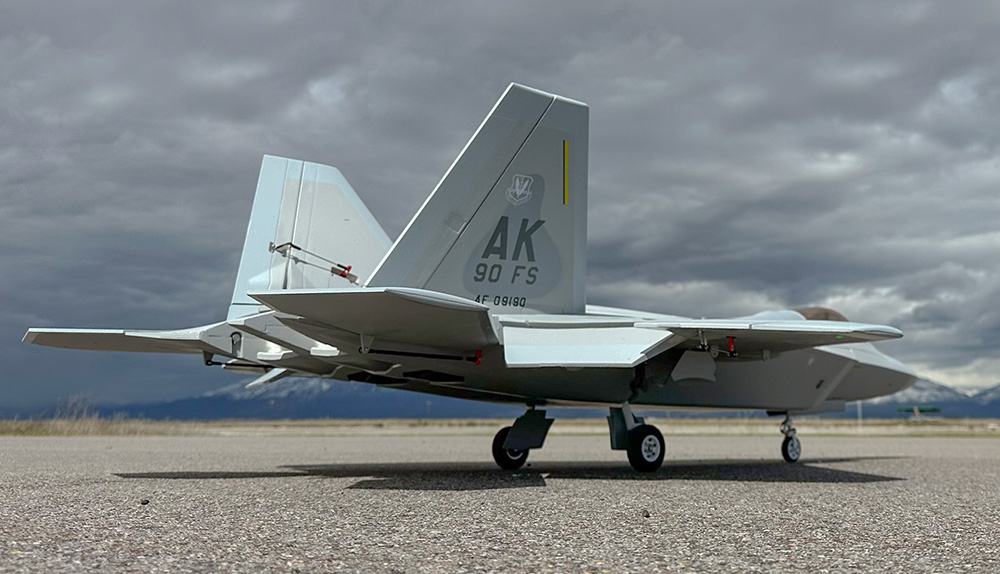

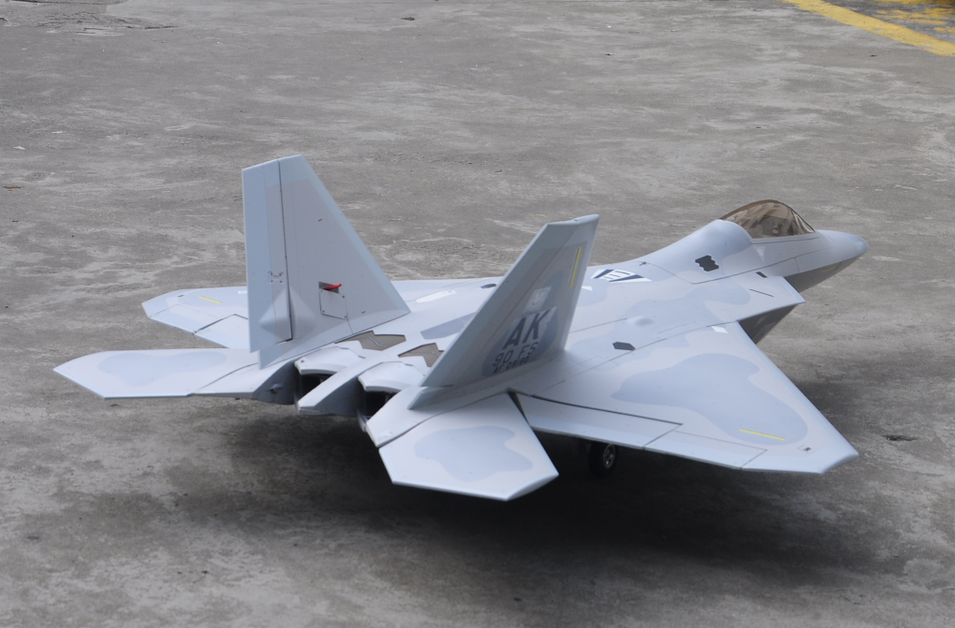

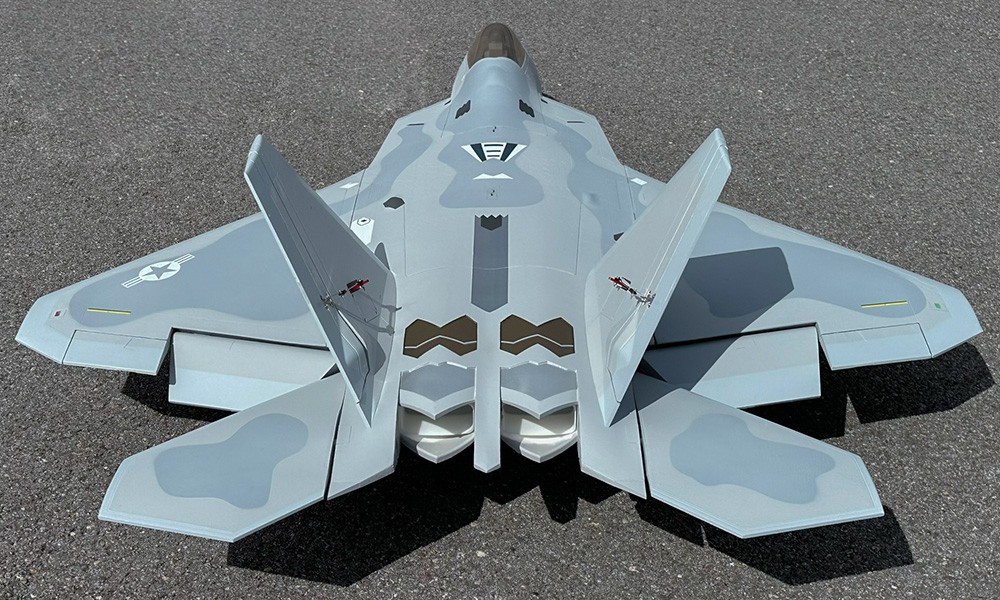

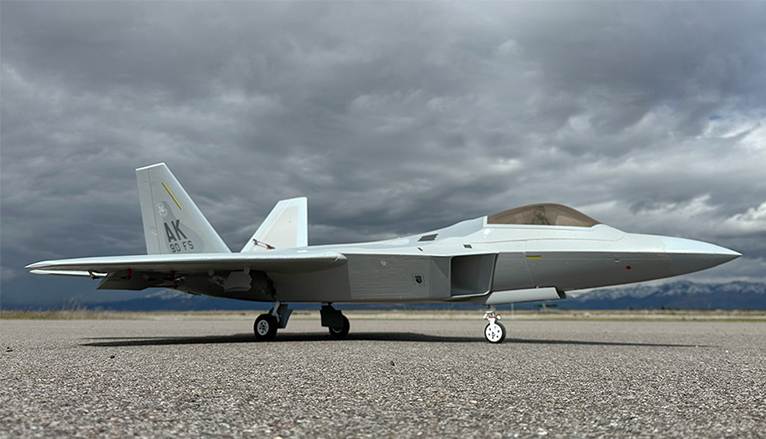

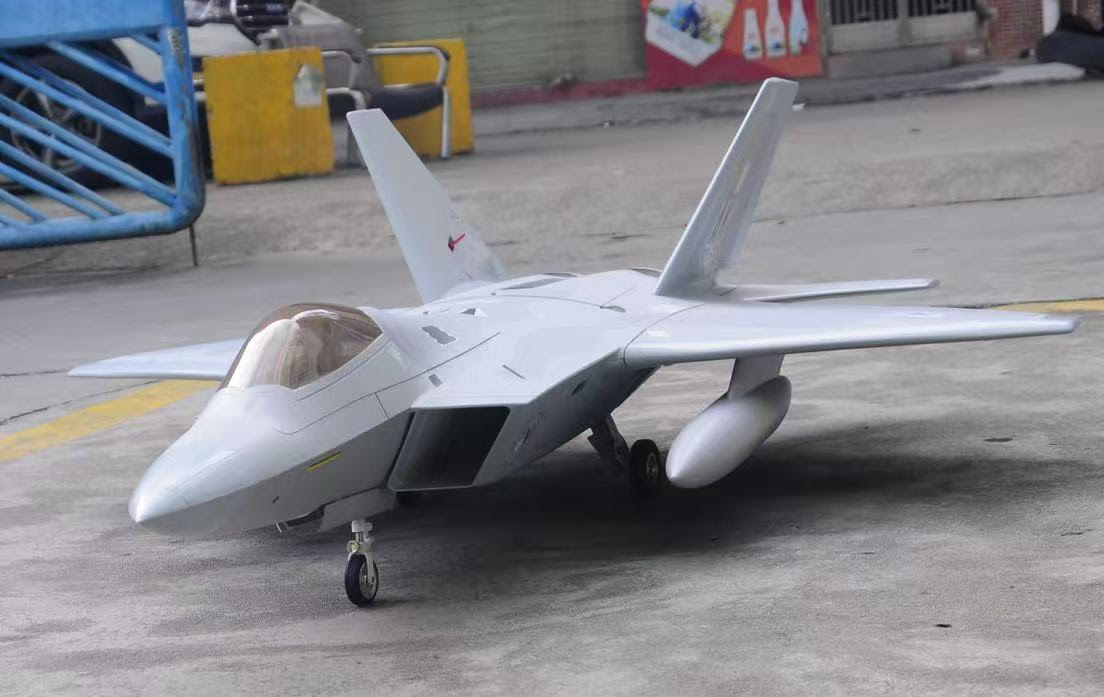

F-22 Raptor 1.8M (71") 105mm EDF Jet PNP (Scale 1:10 AF Model 8 CH)

F-22 Raptor 1.8M (71") 105mm EDF Jet PNP (Scale 1:10 AF Model 8 CH)

RedwingRC is proud to announce the F-22 Raptor 105mm EDF Jet to our Fleet (RWRC's largest and most advanced EDF)!

Have you mastered prop aircraft and want to try out a new level of RC Aviation? Check out the AF Model F-22 Raptor scale military 105mm EDF jet fighter, designed from the ground up with performance in mind. Capable of both high and low speed flying and manouvers.

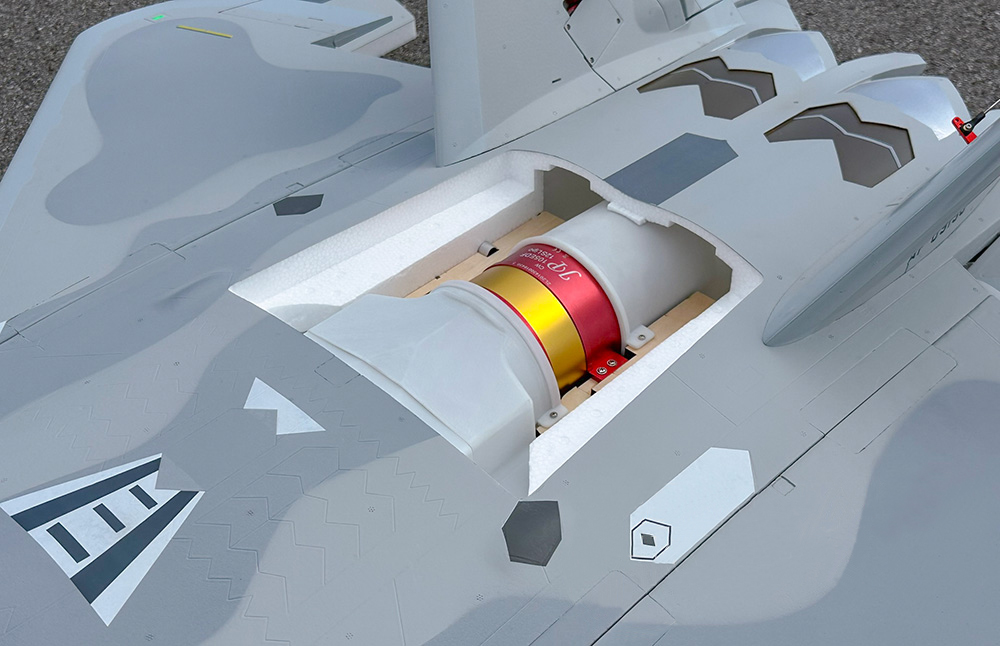

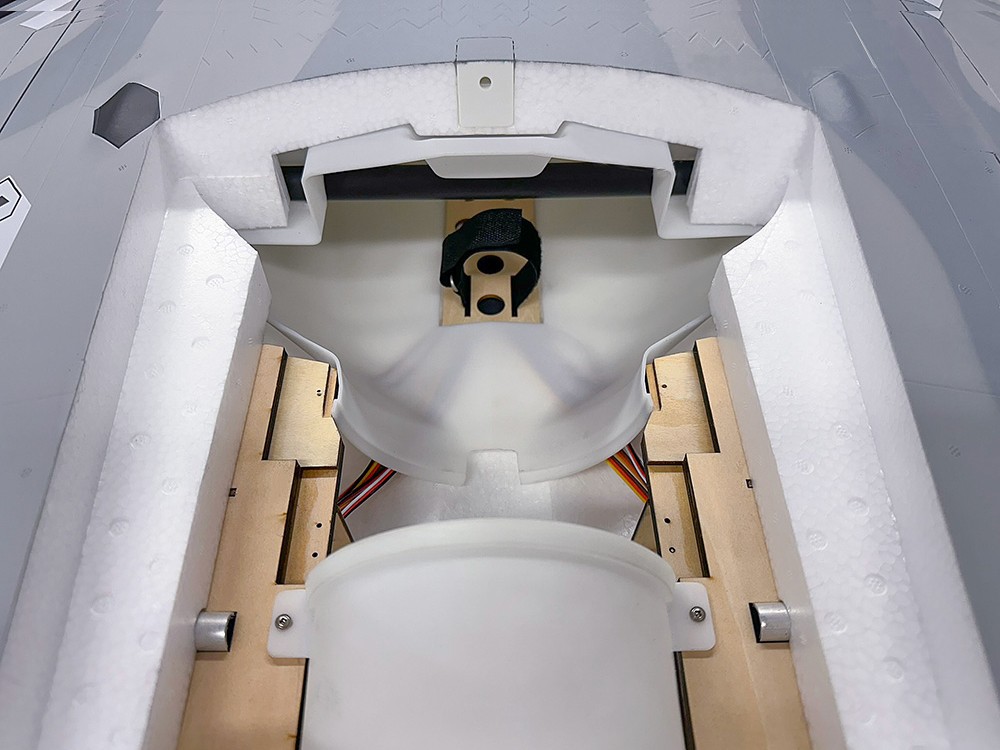

Say goodbye to unsightly cheater holes and vents that never existed on the actual aircraft – welcome the first highly efficient thru-and-thru EDF duct system! This new EDF duct system is designed where the airflow is managed and directed efficiently through the entire duct, from the intake to the exhaust, without interruptions or obstructions, with enhanced performance of the EDF by minimizing airflow resistance and maximizing thrust. Unlike traditional designs that might include additional vents or cheater holes to improve airflow, a thru-and-thru duct system achieves high efficiency without compromising the aesthetic appearance of the model. This results in a more realistic and visually appealing representation of the aircraft while maintaining or improving its aerodynamic performance.

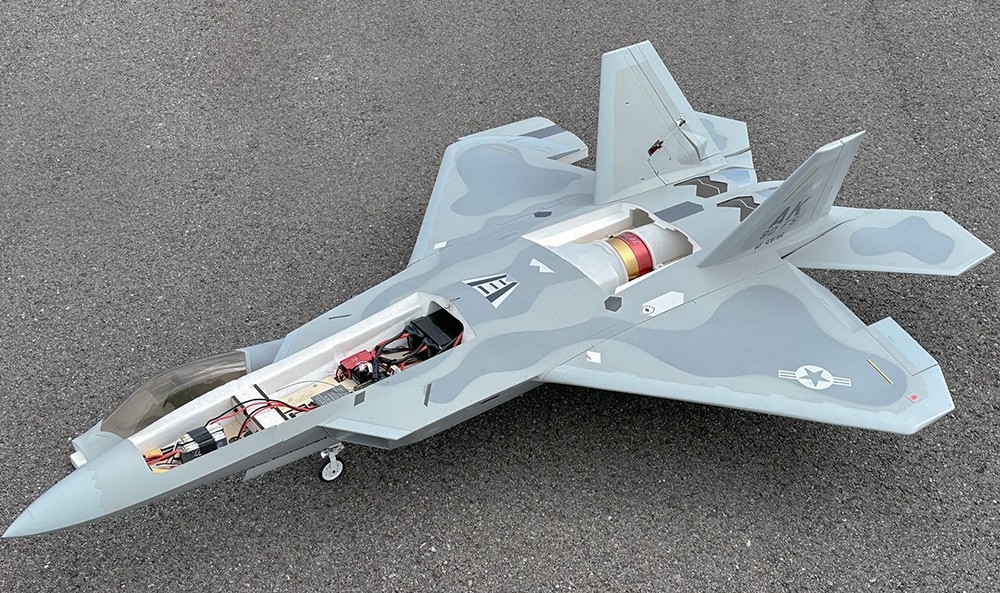

This AF Model F-22 Raptor 105mm EDF Jet uses high-density, rigid turbine-grade EPO foam and electronics but featuring a different drive system. Its signature super-efficient thru-and-thru duct system is specifically tailored to elevate and maximize the performance of the JP Hobby 105mm EDF power system. This EDF version features an operational range of 8 to 13 channels, depending on your chosen configuration, and includes a robust, heavy-duty, high-scale retract and e-brake system from JP Hobby, a renowned industry leader in top-quality EDF and turbine jet CNC components. Preinstalled with GDW's high-voltage servos and reliable CNC metal servo arms, this jet showcases exceptional scale details and minimal wing loading, making it an ideal choice for both scale training and extreme maneuvers, just like its full-size counterpart.

The AF Model F-22 is not just a visually stunning replica; it's a high-performance EDF RC jet with the lowest stall speed and one of the highest top speeds among foam jets. Whether you're an expert pilot seeking to perform extreme maneuvers or a trainer pilot looking for stable, high-alpha flight, this jet is designed to cater to both. It effortlessly handles maneuvers like Cobra and inverted Immelmans, yet can be comfortably flown at lower throttle settings, making it perfect for those transitioning from smaller jet sizes.

Specifications:

• Wing span: 1301mm/ 51.2 in
• Length: ：1810mm/ 71.2 in
• Flying weight: 8.8kg/ 19.5 lbs (105mm EDF, Hobbywing 160A ESC, and 12S 5000mAh Batt)

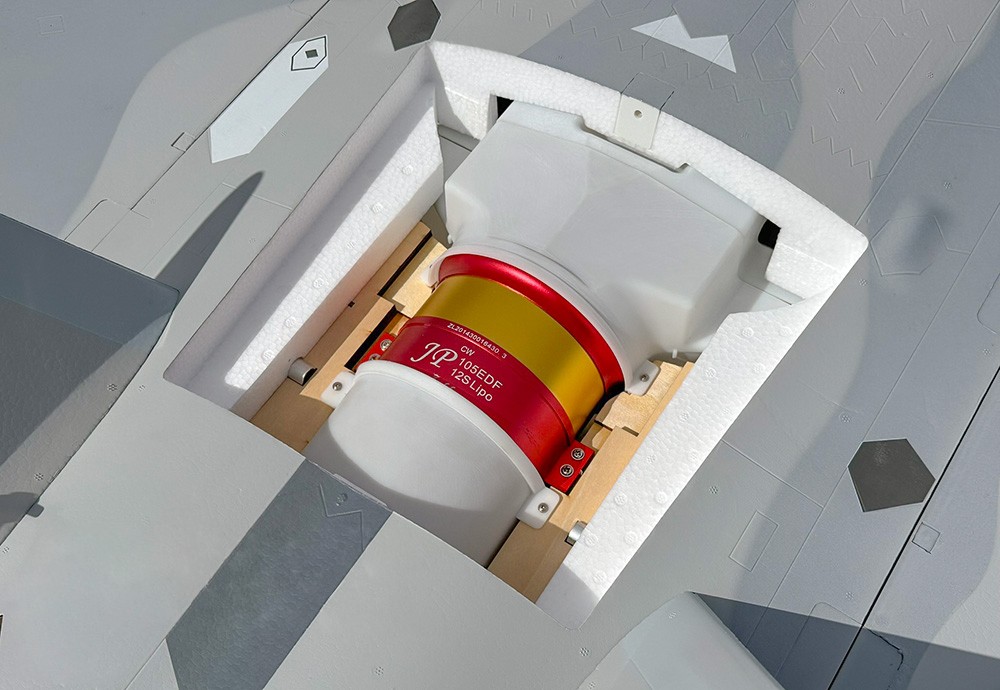

• Drive System: 750KV Brushless 105mm (12-blade) EDF power system INCLUDED
• ESC: Hobbywing 160A INCLUDED
• CG: 156mm from leading edge
• Radio: 8-13 channels based on configuration (Aileron, Elevator, Throttle, Rudder, Steering, Flaps, Retracts, Gear Brakes)
• 8x GDW HV 35g digital metal-geared servos INCLUDED
• 3x GDW HV 12g digital metal-geared servos INCLUDED
• Retract System: servoless metal retracts w/ e-brake system
• Recommended Battery: 12S 5000mAh 40C and up

Features:

• 8-13 channels based on configuration (Aileron, Elevator, Throttle, Rudder, Steering, Flaps, Retracts, Gear Brakes)
• Super-efficient thru-and-thru duct system for maximum performance—exceeds the performance of traditional designs that rely on additional vents or cheater holes to improve airflow
• No compromise to the airframe's aesthetic appearance (no added cheater holes, vents, or scoops)
• Designed to turbine-grade specifications—everything is identical to the turbine version except for the drive system
• The highest scaled and largest foam F-22 jet on the market
• Airframe is constructed from high-density EPO foam
• Designed at 1/10 scale for 105mm EDF
• Wingspan exceeding 51 inches and a fuselage length of 71 inches
• Sequentially operating retractable gear doors
• Operational navigation lights on wingtips and landing gear

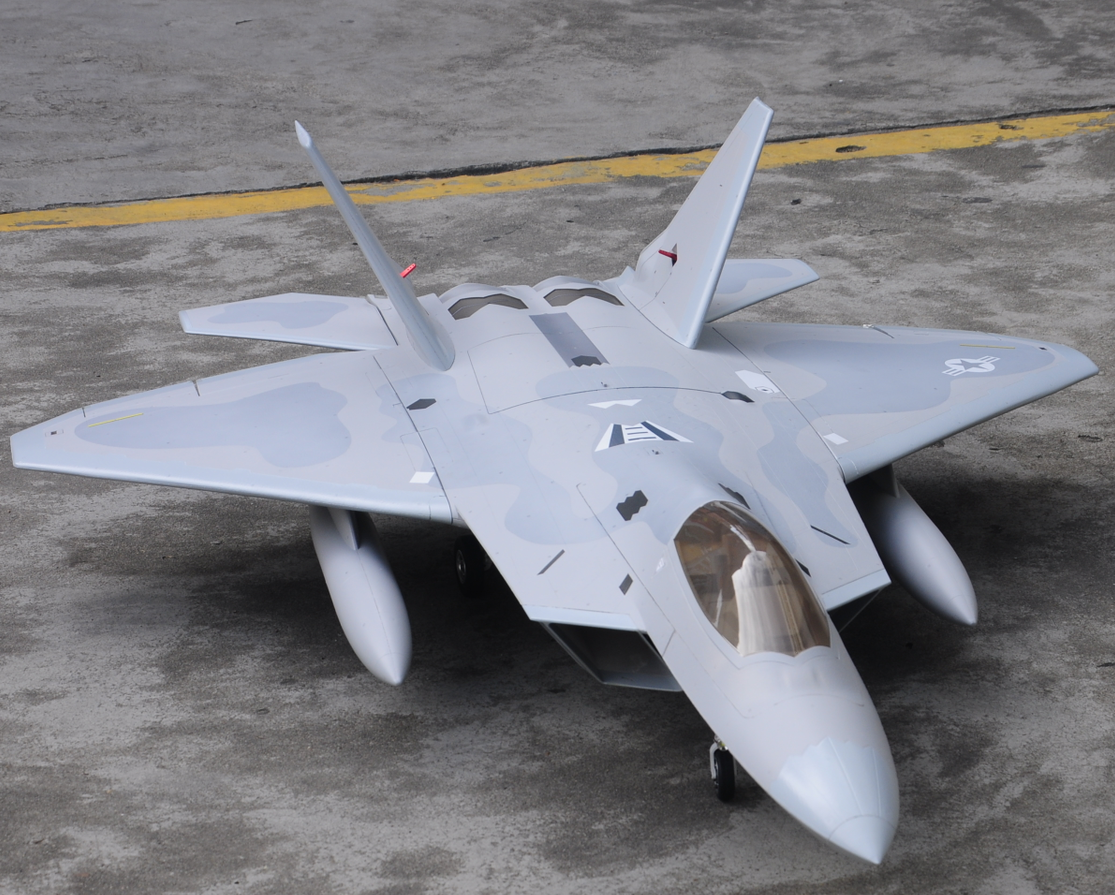

• Detachable wing-mounted drop tanks
• Extremely robust structure for handling extreme maneuvers
• Robust, heavy-duty, high-scaled retract and e-brake system designed and supplied by JP Hobby
• Preinstalled with GDW high voltage servos and CNC metal servo arms
• Exceptional scale details and minimal wing loading
• Ideal for scale training and performing extreme maneuvers
• Lowest stall speed among foam jets
• One of the highest top speeds among foam jets
• Suitable for both expert and trainer pilots
• Capable of performing maneuvers like Cobra and inverted Immelmans
• Comfortable cruising at lower throttle settings
• Perfect for pilots transitioning from smaller jet sizes

$200 Flat Rate shipping lower 48 USA only. Contact us at [email protected] to calculate international shipping cost.
