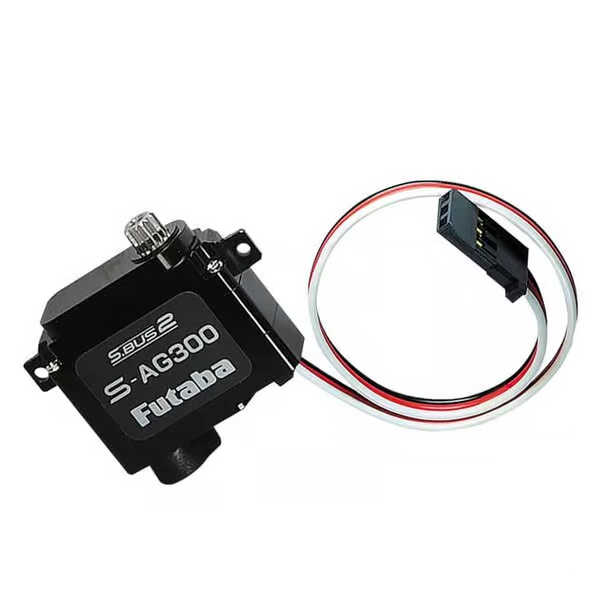

FUTABA S-AG300 (S.Bus2) Digital Coreless Ultra Micro Narrow Airplane Servo .08sec/111.1oz @ 7.4V (Glider/F3K)

Contact UsCustomer Reviews
  0
  4. FUTABA S-AG300 (S.Bus2) Digital Coreless Ultra Micro Narrow Airplane Servo .08sec/111.1oz @ 7.4V (Glider/F3K)
Tariff Information update
more offers

FUTABA S-AG300 (S.Bus2) Digital Coreless Ultra Micro Narrow Airplane Servo .08sec/111.1oz @ 7.4V (Glider/F3K)

Ask a question about this product
Printable version

Share

Options

Our Price:

$103.99


FREE SHIPPING
Quantity (9)

Details

Availability 9 in stock
Weight 0.13 lbs
SKU Futaba-01102353-3

FUTABA S-AG300 (S.Bus2) Digital Coreless Ultra Micro Narrow Airplane Servo .08sec/111.1oz @ 7.4V  (Glider/F3K)

FEATURES:
– For Glider/ F3K
– Programmable/HV Coreless Servo.
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Metal Final Gear
– Upper/middle/bottom: Aluminum Case

SPEED:
0.130 sec/60°at 3.8V
0.065 sec/60° at 7.4V

TORQUE:
1.5 kgf/cm at 3.8V
20.8 ozf/in at 3.8V
2.5 kgf/cm at 7.4V
34.7 ozf/in at 7.4V

SIZE:
23.5 mm x 8.0 mm x 19.7 mm
0.93 in x 0.32 in x 0.78 in

WEIGHT:
10.8 g
0.38 oz

RATED VOLTAGE:
DC 4.8V-7.4V

OPERATING VOLTAGE:
DC 3.8-8.4V


: *
: *
: *
