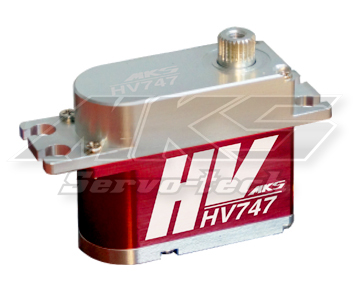

MKS HV747

MKS HV747

Description:

The MKS HV747 is a high quality digital "Coreless" Servo. It has a unique shape that works in conjunction with it's aluminum casing to dissipate heat quickly, just like heat sink would. Another great feature is the two sets of housing screws. With two sets, you can remove the top for easy access to the gears without worrying about the bottom coming apart.

This servo is equipped with a 9mm VR ultra high resolution potentiometer to provide accurate movement and holding power.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

• Torque:
  • 164 oz/in at 6V (11.8kg/cm)
  • 191.6 oz/in at 7.4V (13.8kg/cm)
  • 208.3 oz/in at 8.4V(15kg/cm)

• Speed:
  • .17 sec at 6V
  • .14 sec at 7.4V
  • .13 sec at 8.4V

• Voltage: 5.5V to 8.4V
• Weight: 1.36 oz (38.55g)
• Size: 1.4 x .6 x 1.12 in (35.5 x 15.0 x 28.5 mm )

• Operating Temp - -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.001ms
• 29.5 cm connector wire
• CORELESS Motor
• Double ball bearings
• FET Driver
• 9mm VR ultra high resolution potentiometer
• Double Ball Bearings
• All Aluminum casing (CNC machined 6061 aluminum
• Chrome-Titanium alloy gears
