3520 650KV Brushless Motor ESC Combo

Contact UsCustomer Reviews

3520 650KV Brushless Motor ESC Combo

Our Price:

$59.99


ESC Combo
Quantity (5)

Availability 5 in stock
Weight 1.00 lbs
SKU DW-MO3520A

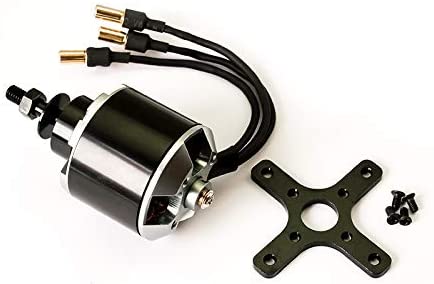

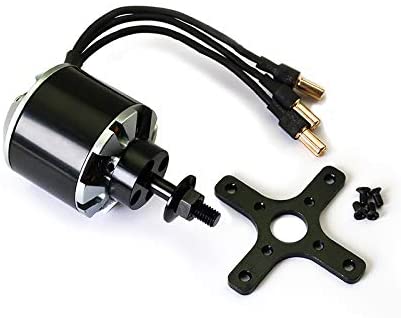

This Brushless Motor is a high-end motor that combines ultra-high power and super efficient design to deliver outstanding performance. Ideal motor for EPP/Wood hybrid planes, or any aerobatic plane 55"-60" weighing about 3-4lbs (+/- all up weight with batteries).

Specifications

  • Type:.........................3520-KV650
  • KV(rpms per volt):.... 650
  • No load current: ....... 1.6 A @10V
  • Resistance:................ 0.021 ohms (phase to phase)
  • Watts:........................ up to 1400
  • Max Continuous Current:... 60A
  • Cells:......................... 3–6 S Li-Po
  • Recommended Props: 3S 14x10E; 4S 13x8E; 5S 12x6E or 11x8E; 6S 10x6E-10x8E
  • Slots,Poles:............... 12,14
  • Stator Diameter:.........35 mm
  • Stator Thickness........20mm
  • Shaft: Diameter:........ 5.0 mm
  • Weight:...................... 220 g
  • Brushless ESC:......... 60A

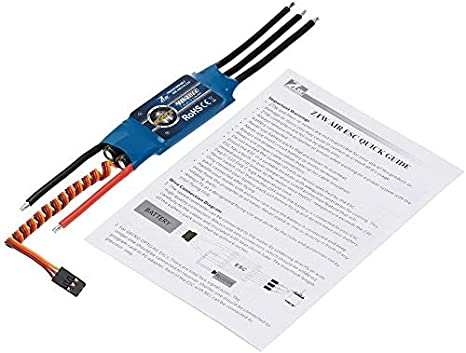

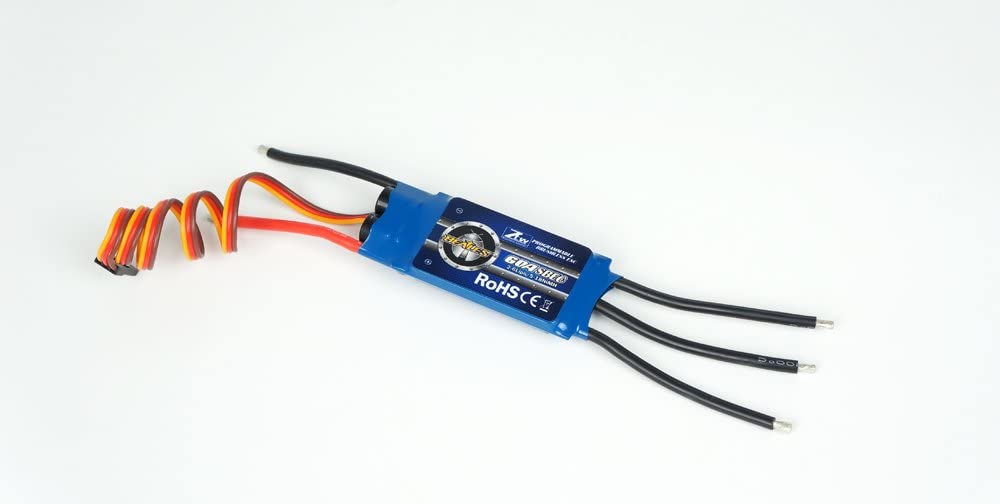

Special Combo pricing: Add ZTW 60A Beatles Series Brushless ESC/SBEC

Features:

  • Extremely low internal resistance
  • Super smooth and accurate throttle linearity
  • Safety thermal over-load protection
  • Auto throttle shut down in signal lose situation
  • Supports high RPM motors
  • Power arming protection (prevents the motor from accidentally running when switched ON)
  • New Advanced programming software
  • Continuous current: 60A
  • Burst Current: 10s
  • Battery: 5-18NC / 2-6Lipo
  • BEC output: 5.5V 3A
  • Size: 56*30*14mm (L*W*H)
  • Weight: 44g
  • Applicability: 70mm ducted fan aircraft; 500 class 3D airplane.
: *
: *
: *
