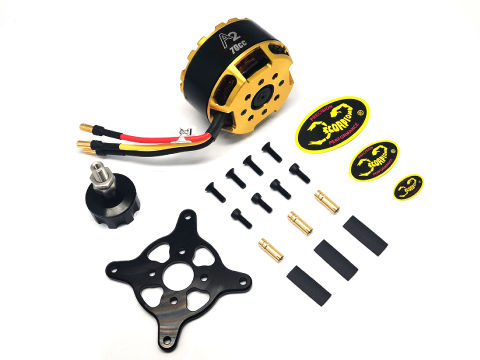

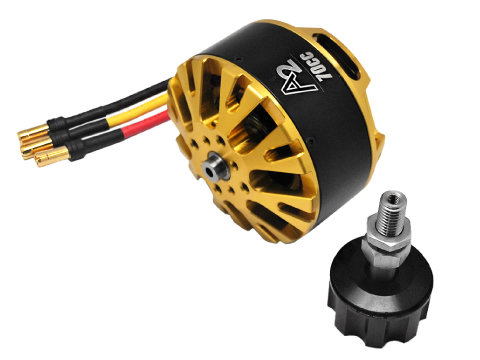

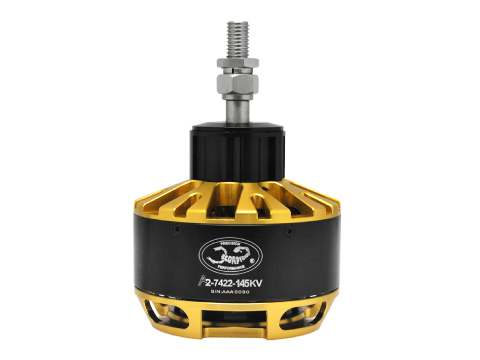

SCORPION A2-7422-145kv Motor for Giant Scale Airplane (16S/7350w 70cc)

Tariff Information update

more offers

SCORPION A2-7422-145kv Motor for Giant Scale Airplane (16S/7350w 70cc)

Ask a question about this product

Printable version

Options

Our Price:

$549.00

ESC

Battery

Quantity (2)

Notify me when back in stock

Details


Availability	2 in stock
Weight	5.00 lbs
SKU	A2-7422-145kv
Manufacturer	Scorpion

The Scorpion A2 - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and high temp enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

The A2-7422-145kv was designed specifically for airplanes requiring a 70cc equivalent gas engine on 16s LIPO, or other airframes requiring up to 7350w of power.

Recommended Prop Selection :

For 16s - Scorpion 24x10 Carbon / 25x10 Carbon

For 14s - Scorpion 24x10 Carbon / 24x12 carbon / 25x10 Carbon

For 12s - 25x10 / 25.5x13 / 26x10

Recommended ESC : Tribunus III HV 16S-180A ESC SBEC

Scorpion A2-7422-200kv (70cc / 6900w / 12s) features

DLE 40 Twin Cylinder Engine

Untitled Document

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
DLE has always been trusted to be reliable in performance and sustainability within the Redwing RC family - so we've made another great gas engine available to our customers!

The DLE 40cc Twin Cylinder Gas Engine carries the same great quality and performance as our other DLE Engines with that little extra thrown in. Perfect for our 30cc planes, the DLE 40cc Twin packs the extra punch.

Enjoy the same great features as our other DLE engines such as our free 2-year warranty, free shipping within the U.S.

You can't go wrong with the DLE 40cc Twin - order yours today!

DLE 40 Twin Mounting Template

Specifications: *(More coming Soon)*

4.8HP/8500rpm
Idle Speed: 1500rpm/min.
9.5Kg Static Thrust / 100 metersAltitude
8.5Kg Static Thrust / 1800 metersAltitude
The specification of the aircraft propeller:19×8；19×10；20X8；20X10
the type of the sparking plug：NGK CM6

Parameter
Exhaust Amount : 40cm3
diameter × stroke:32mm×25mm
Ratio of compression: 10.5：1
Fuel Ratio : Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Weight: Main engine –1170g
Exhaust pipe –110g
Ignition equipment – 170g
