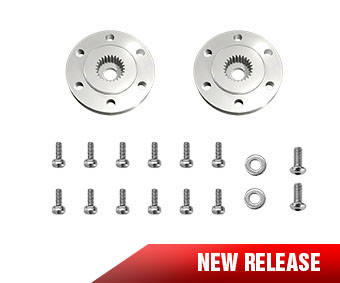

MKS-X6 Hub Set-25T

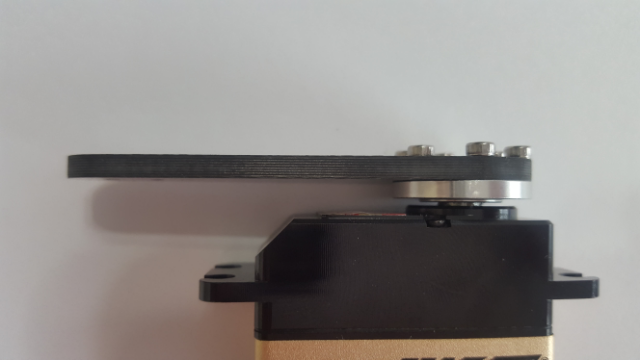

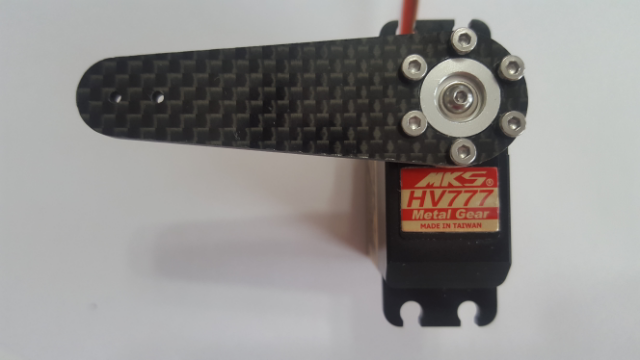

MKS X8/X6 1.5" Carbon Arm

Available in styles for

• Yak carbon fiber replacement gear Sbach carbon fiber replacement gear MXSR/MX2 carbon fiber replacement gear Extra carbon fiber replacement gear Edge carbon fiber replacement gear etc

  A - Sbach, MXSR, Slick, Edge, Extra 260
  B - Yak, Sukoi
  C - Yak also
  PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.

Dimensions (match the below information to the inset photo)

• 30cc A STYLE (3.6 oz)
  • A=7.5"
  • B=16"
  • C=5.5"
  • D=1.187" taper to 1"
  • E=1.5"

• 30cc B STYLE (3.8 oz)
  • A=6.5"
  • B=16.75"
  • C=6.25"
  • D=1.375" taper to 1"
  • E=1"

• 30cc C STYLE (3.4 oz)
  • A=6.5"
  • B=15.5"
  • C=5.5"
  • D=1.125" taper to .75
  • E=1"

• 50cc A STYLE (8.2 oz)
  • A=9.25"
  • B=18.75"
  • C=8"
  • D=1.5" taper to 1.125"
  • E=1.5"

• 50cc B STYLE (6 oz)
  • A=8.75"
  • B=18.5"
  • C=6.5"
  • D=1.5" taper to 1"
  • E=1.25"

• 50cc C STYLE (6 oz)
  • A=7.75"
  • B=18.5"
  • C=6.25"
  • D=1.5" taper to 1"
  • E=1.0"

• 50cc A STYLE (8.2 oz)
  • A=9.25"
  • B=18.75"
  • C=8"
  • D=1.5" taper to 1.125"
  • E=1.5"

• 50cc B STYLE (6 oz)
  • A=8.75"
  • B=18.5"
  • C=6.5"
  • D=1.5" taper to 1"
  • E=1.25"

Carbon Fiber Landing Gear Extra 300 Series For 26-30cc, 50-80cc and 100-120cc

Dimensions (match the below information to the inset photo)

• 26-30cc
  • A=140mm 5.5"
  • B=400mm 15.75"
  • C=170mm 6.69"
  • D=28mm 1.10"

• 50-80cc
  • A=160mm 6.29"
  • B=465mm 18.30"
  • C=198mm 7.79"
  • D=40mm 1.57"

• 100-120cc
  • A=190mm 7.48"
  • B=560mm 22.04"
  • C=252mm 9.92"
  • D=50mm 1.96"

Savox SB2292SG, Monster Performance, Brushless Servo Black Edition 0.055sec / 624.9oz @ 8.4v

Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230.

The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!

Specifications:

• Torque:
  • 416.6 oz/in at 4.8V
  • 500 oz/in at 6V

• Speed:
  • .20 sec at 4.8V
  • .16 sec at 6V

• Voltage: 4.8V to6V
• Weight: 2.78 oz (79 g)
• Size: 1.6 x .79 x 1.77 in (40.3 x 20.2 x 45.0 mm)

• Gear Type - Unique Steel
• Case - Full Aluminum
• Bearing - dual ball bearings
• Frequency - 250-333hz
• Output Shaft - 25 Tooth Spline

GET YOURS TODAY!

Hitec HS-65MG
